Label printing machine

CODIMAG Viva 420

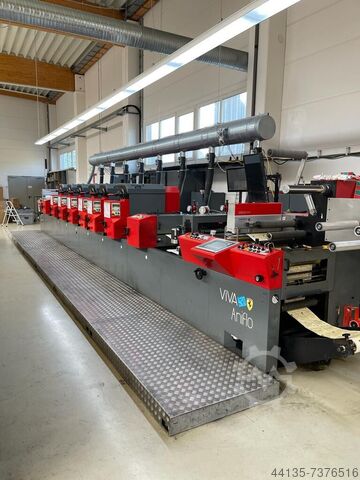

Year of construction: 2016, condition: like new (used), CODIMAG VIVA 420 Aniflo – 8 color  Age: 2016 – like new  8 printing units / equipment 1 flexo - 6x offset - 1 flexo Fjdpfxoibdyfe Aa Njgi  2 x. Flexo Units  6 pcs. offset aniflo  web cleaning  Varnish Unit unit  Punching cylinder semi-rotary  100% control

Condition: ready for operation (used), Year of construction: 2010, Large semi-automated Pace cutting system Polar 137 XT-Autotrim with pile lifter, jogging system with count scale, gripper transport system, rotary gripper, and delivery unit Year: 2010 Approx. 5.43 million cuts Workflow: The material to be cut is raised to an optimal working height using a loading lift, placed into the jogger by the operator, automatically jogged, and then transported via the Autotrans gripper system from behind the jogger to the rear table of the high-speed cutter and rotated. After cutting, the Transomat automatically stacks the layers onto a pallet, allowing continuous cutting operations. Polar Stack Lift LW 1200-4 Platform size: 80 x 126 mm Load capacity: 1200 kg Equipped with steplessly adjustable photoelectric sensors for automatic lifting and lowering. Jogger RAH-4 with air removal roller and unloading for rear-table feeding Working format up to 75 x 105 cm Unloading of the jogged cutting material occurs automatically to the rear into the STR stacking rack. The Autotrans gripper transport system then handles layer transport onto the rear table of the high-speed cutter. Fedpfx Asxd U Saoa Njgi Sheet scale – Polar count scale Avery Weigh-Tronix For creating quantity-accurate cutting layers Gripper transport system POLAR Autoturn – clamp transporter for rear-table loading and rotary gripper Takes over the prepared cutting layer from the stack rack or buffer table Via air tables, which use air cushion for optimized material handling, the cut material is transported directly onto the rear table of the high-speed cutter and placed with precision. The cutting layer is held firmly by the grippers during transport, ensuring even pre-aligned layers remain precisely squared during movement. Cutting machine Polar 137 XT-AT with touch control And Autotrim function for automatic waste removal under the front table during cutting - Lowerable side gauge left (required for rear-table loading); also allows handling of formats with a diagonal of...

Year of construction: 2012, condition: good (used), VIVA 420 ANIFLO – Waterless Offset Label Printing Press Fedpfjxbq Ufox Aa Nogi • Year of Manufacture: 2012 • Configuration: 6-color ANIFLO, waterless offset, fully servo-driven • Web width: 200 – 420 mm • Maximum print width: 420 mm • Print length: 200 – 432 mm (variable, no cylinder/tool change required) • Printing speed: up to 12,000 cyl./h • Dimensions (L × W × H): approx. 12,300 × 2,500 × 1,800 mm Key Equipment Included: • Unwind with roll lift and splicing table • 6 × ANIFLO offset printing units, waterless technology, fully servo-driven • Technotrans temperature control for anilox, plate cylinder & UV impression roller • IR conditioning unit prior to first print station • Automatic pre-register and motorized lateral & circumferential register • 1 × flexo unit (servo, UV) with anilox roller, chambered doctor blade, ink pump • UV system IST-MBS 5 (6 cooled lamps, stepless control) • BST Powerscope video web inspection system • Gap Master for die pressure management • Format-variable die cutting unit (0.44 mm plate thickness) • Rewinder + matrix rewinder • Slitting unit (4 knives) • Web cleaning system SIMCO DD 320 • Electronic Insetter for pre-printed web re-registration • Various accessories: magnetic cylinder, anilox rollers, spare blankets, wash-up units, etc. Condition: • Very well maintained, complete line, still in production • Visual and technical condition: excellent.

Year of construction: 2010, condition: excellent (used), MECTEC A2220/B-C160-110/110-L ID.NO. 2504 Mectec label applicator without wave function year mod 2010 including conveyor belt. Dimensions 150 x 100 H 180 cm. Fgodpfski Tqvex Aa Nsi

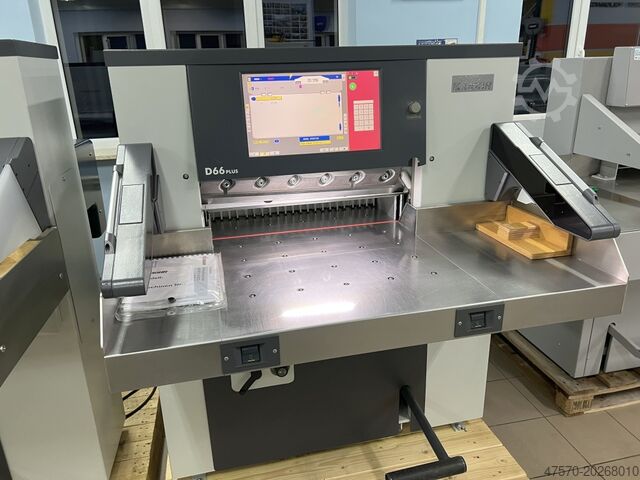

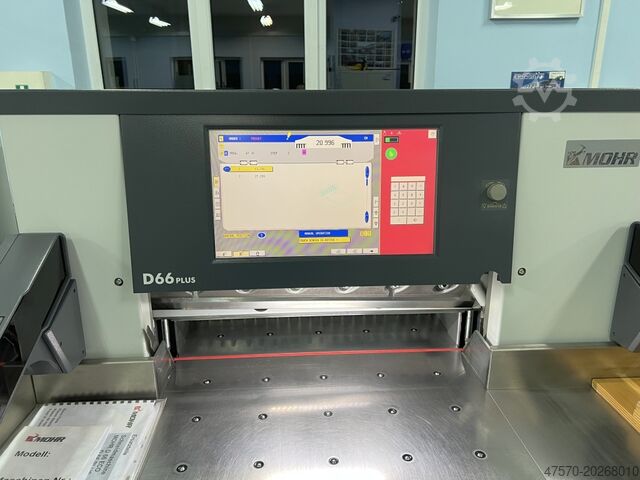

Condition: good (used), Mohr 66 Plus Polar Guillotine Fgedpfx Ajxmu Umoa Nei This machine is ready for production, after a complete overhaul, and in like-new condition. Manufactured in 2016. Mohr Polar is the most recognizable and highly valued brand of bookbinding guillotines in the world. Made in Germany. Working width: 660mm Stack height: 80mm Machine weight: 620kg Power supply: 380V Equipment: Programmer with an 18.5″ display and the ability to store 1998 programs Chrome-plated table Photocells Air table Intuitive operation Documentation, tools.

Condition: good (used), Year of construction: 2004, 1x unwinder 6x offset printing units 1x flexo coating unit for varnishing 1x rotary screen printing unit (doctor blade unit missing) 1x hot stamping unit (one hot bar defective – currently heats up to approx. 100°C) 1x laminating unit 1x semi-rotary die-cutting unit with GAP-Master 1x BST inspection camera 1x edge trimming knife 1x waste matrix rewinder 1x rewinder 1x TechoTrans cooling unit ▪ Spare parts such as motors, cylinders, and new rollers for the printing units ▪ Accessories such as folding machine and plate perforation ▪ Including extraction system, motor, and platform Web width: 340 mm Fjdpfx Asxlzdrsa Negi Repeat length: min. 155 mm Repeat length: max. 304.8 mm Max. print width: 330 mm

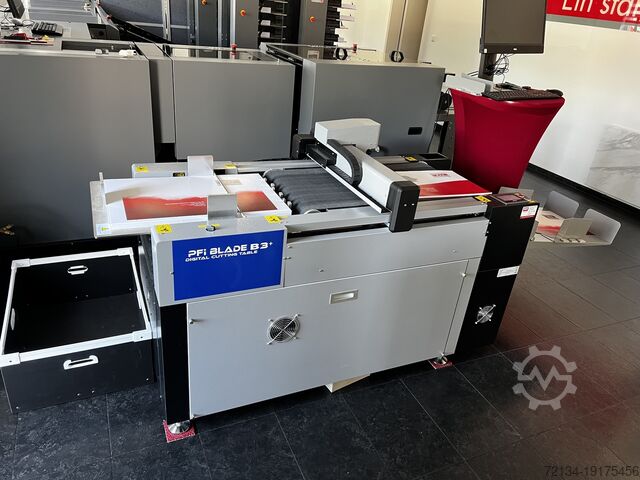

Condition: reconditioned (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: LST20217541, stack height: 100 mm, overall weight: 350 kg, total width: 810 mm, input current: 20 A, total height: 1,060 mm, total length: 2,540 mm, input voltage: 220 V, input frequency: 50 Hz, PFi Blade B3+ Specifications: Working area: 210 x 297 mm - 400 x 600 mm Grammage: 120 - 400 g/m2 (depending on tool use) Cutting thickness: up to 1.3 mm Cutting speed: up to 800 mm/second Cutting tolerance: +/- 0.3 mm Blade material: tungsten steel Feeder: Stack feeder with 5 combined lifting and dragging suction cups Feeder capacity: 100 mm Control systems: CCD camera Power supply: 220 V, 50 Hz, 20 A, 4 kW Fsdewi Nkwepfx Aa Nogi Dimensions (L x W x H): 2,540 x 810 x 1,060 mm Weight: 350 kg The machine has been overhauled in our workshop and serviced according to the manufacturer's specifications. The warranty is 6 months. The machine is available from our warehouse in Barsbüttel near Hamburg. Optional shipping within Germany is negotiable. On-site installation and training (within Germany) are negotiable. A maintenance contract is available.

Condition: reconditioned (used), Year of construction: 2021, functionality: fully functional, stack height: 100 mm, overall weight: 350 kg, total width: 810 mm, total height: 1,060 mm, total length: 2,540 mm, input voltage: 220 V, input frequency: 50 Hz, PFi Blade B3+ Specifications: Working area: 210 x 297 mm - 400 x 600 mm Grammage: 120 - 400 g/m² (depending on tooling) Cutting thickness: up to 1.3 mm Cutting speed: up to 800 mm/second Cutting tolerance: +/- 0.3 mm Blade material: Tungsten steel Feeder: Stack feeder with 5 combined lifting and dragging suction cups Feeder capacity: 100 mm Control systems: CCD camera Power supply: 220 V, 50 Hz, 20 A, 4 kW Dimensions (L x W x H): 2,540 x 810 x 1,060 mm Weight: 350 kg Fgsdswlhbaepfx Aa Nei The machine has been overhauled in our workshop and serviced according to the manufacturer's specifications. The warranty is 6 months. The machine is available from the Renningen warehouse near Stuttgart. Optional shipping within Germany is negotiable. On-site installation and training (within Germany) are negotiable. A maintenance contract is available.
