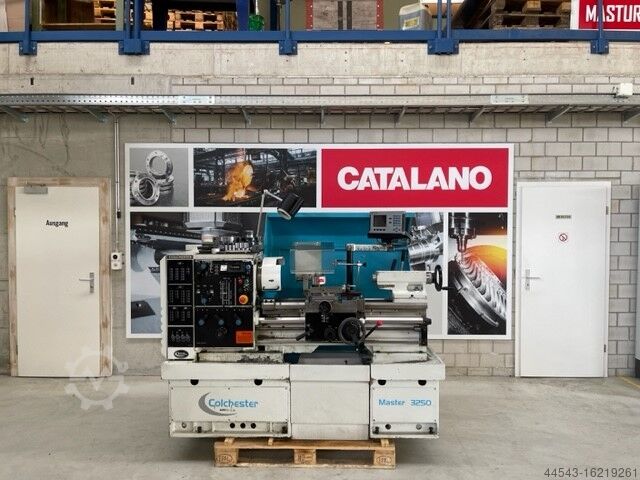

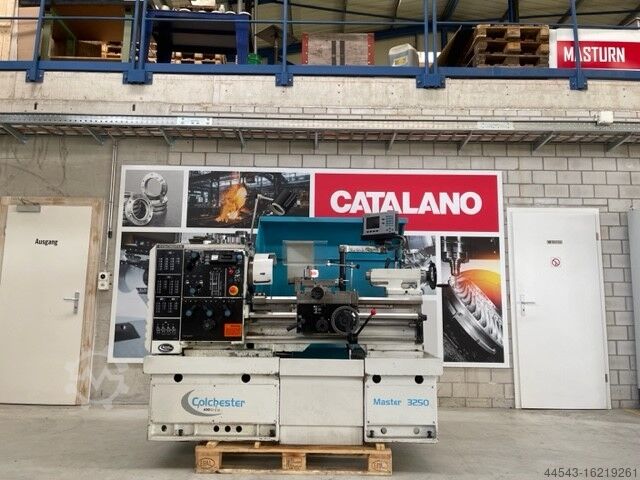

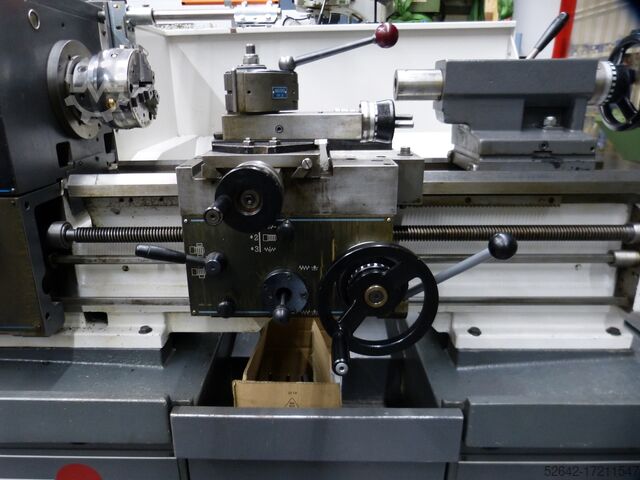

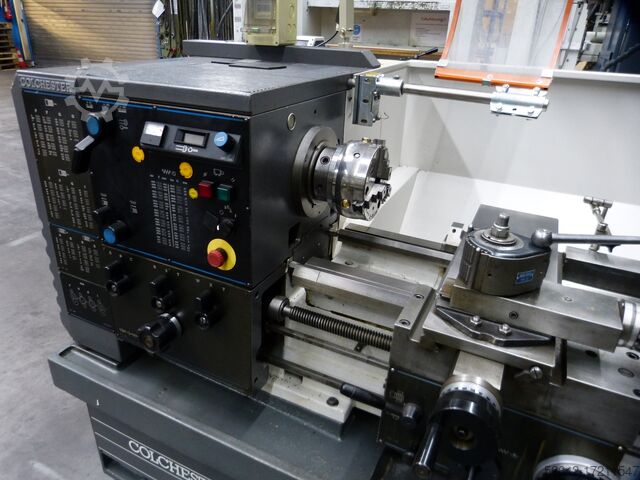

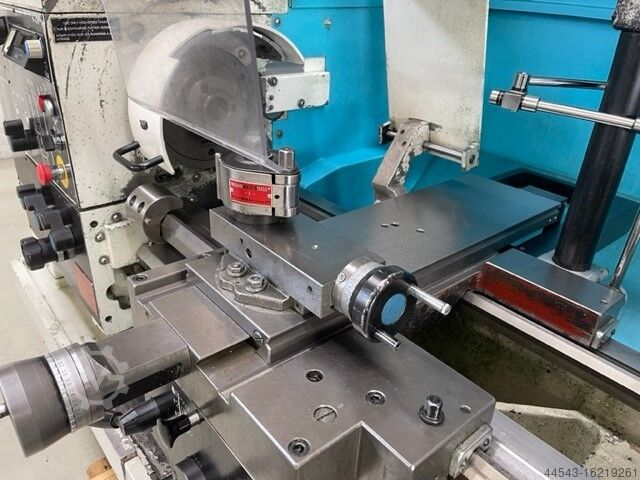

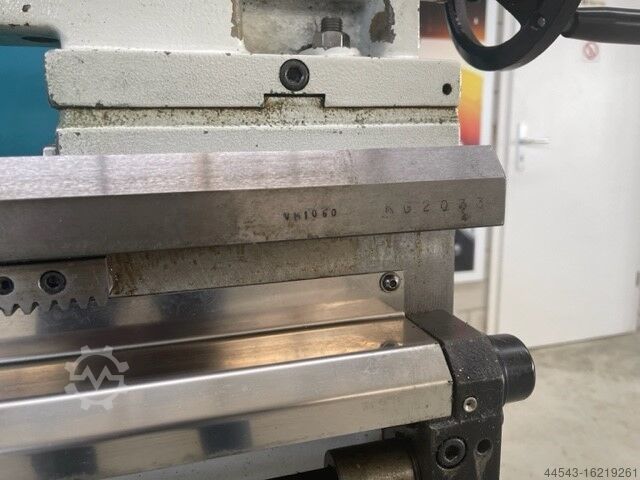

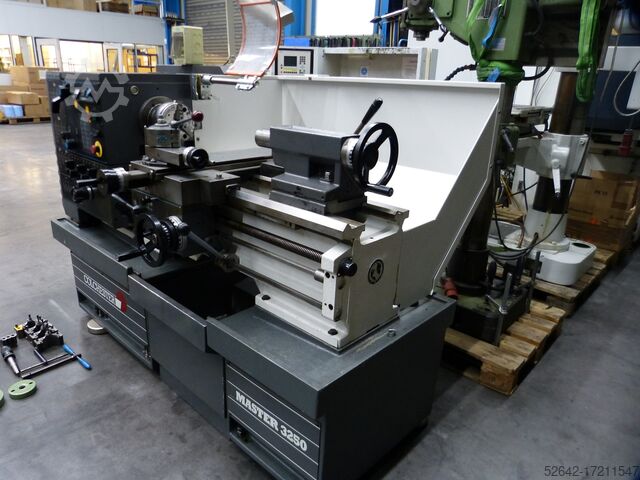

Lead/traction spindle lathe

Colchester Master 3250

Condition: excellent (used), Swing over bed 360 mm Distance between centers 650 mm Spindle speeds 20-3250 rpm Fedpfxorx Rwnj Aa Njgi Misc. accessories MARCELS MASCHINEN CH

Condition: new, Year of construction: 2024, 0350 mm 196 mm Fodpjwp Tpkefx Aa Negi 0650 mm 170 mm 42 mm 7,5 kW

Condition: good (used), Used COLCHESTER MASTER 3250 center lathe and feed spindle lathe Fodpsuqkf Nefx Aa Negi center height 170mm center distance: 650mm spindle bore: 42mm Infinitely variable speed from 15-3250 rpm 1 x SCHUNK wedge bar lathe chuck Ø160mm 1 x MULTIFIX steel holder size B with 4 inserts Machine light, chuck protection electrically fused, machine shoes 1 x rotating center point, 1 x rotating center point with pressure indicator 1 x drill chuck with tapered arbor The machine is located at our premises in 71334 Waiblingen-Beinstein and is available immediately. An inspection of the machine is possible by arrangement.

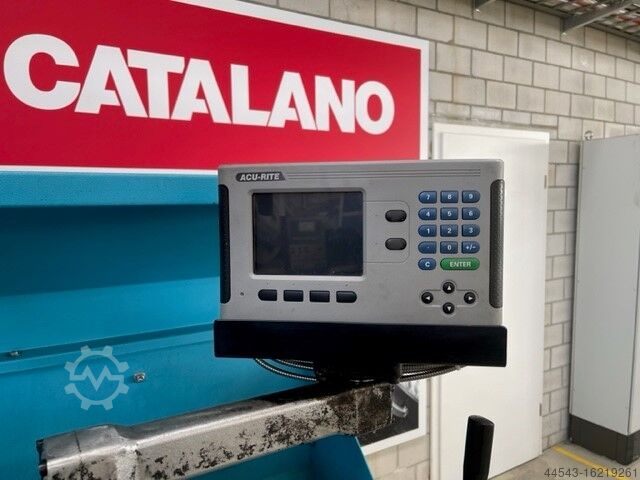

Condition: excellent (used), Year of construction: 2009, - Digital display. - Accessories available. Tips Height 170 mm Tip width 650 mm turning diameter over the bed 350 mm over the cross slide 196 mm in the offset 535 mm Width in front of the front plate 165 mm Spindle Spindle bore 42 mm Spindle nose D1-4" Camlock Morse taper in bushing no. 3 MT Spindle speeds 3 speed ranges 0 - 3250 rpm Fedpfx Ajtr Ud Sea Njgi Main motor 7.5 kW (10 HP) Bed Slide guide width 318 mm Guide type V-shaped and flat Cross slide Width and length 180 - 850 mm Travel 250 mm Top slide Width 90 mm Travel 130 mm Tool holder 20 x 20 mm Quick-action tool lock Dickson No. 2 Tailstock Diameter of quill (nominal value) 63 mm Travel 145 mm Morse taper no. 4 M.T. Offset ±12 mm Lead screw Diameter 32 mm Thread 6 mm pitch or 4 T.P.I. Thread Metric Pitch 0.2 - 14 mm (51) Inch thread T.P.I. 2 -56 (56) Module thread pitches 0.2 - 3.5 (20) Diametrical pitch (D.P.) 8 - 56 (20) Feed rate Metric (R10 series) 0.018 - 1.2 mm/rev Inch (R10 series) 0.0007 - 0.048"/rev Face feed = approx. half of the longitudinal values Machine height Floor to spindle center 1070 mm Total length 1250 mm Machine 2500 mm Total width 1100 mm Height over all 1300 mm Cooling pump Type AQ 3MG Headstock oil pump Type Interlube three-phase 27662-131 Weight 1250 mm between tips approx. 1450 kg
