Large Vacuum Press

COLUMBUS INFINITY

INFINITY - the vacuum press system in special lengths

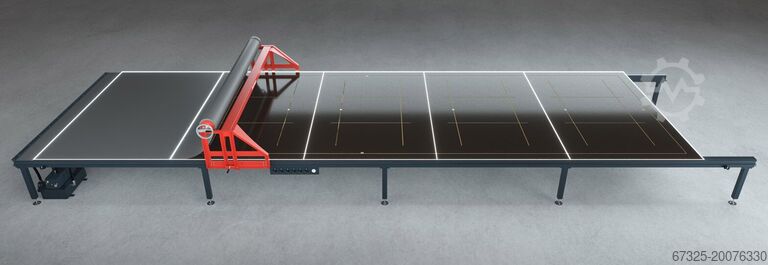

The Columbus INFINITY is the new and groundbreaking vacuum press system that can be constructed in the length desired by the user on request.

The specially created and eponymous Infinity Principle, according to which the usable area in terms of length can be increased very cost-effectively almost to infinity, is used in each individual component. The system offers both maximum flexibility and maximum efficiency, because where the Infinity Vacuum Table and the Rolling Membrane System offer infinity, the Multi-Zone Suction guarantees maximum control. Thanks to this Multi-Zone Suction, only that section of the usable area that is currently in use is vacuumized.

INFINITY is perfect for all users who value an infinite usable area for a wide variety of special pressing with maximum yield volume.

Directly from the manufacturer - including warranty!

Execution:
Length and width on customer request!
Table base made of stable, welded metal construction, adjustable table feet.
The table material is a 21 mm thick birch plywood board. An approx. 15 mm wide vacuum suction groove is milled on the table surface to seal the membrane.
Cedpexfz Hmefx Abwehc

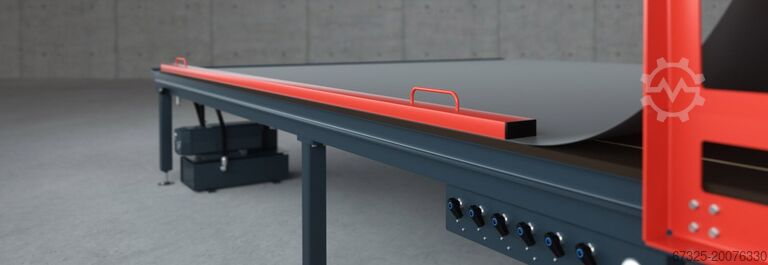

The membrane is wound onto a reel and is manually unrolled onto the table surface using a very smooth-running linear slide.
The cavities of the table frame serve as vacuum buffer storage.
The vacuum pump has an output of 100 m³/hour.
The table surface has several suction grooves, these are divided into 5 suction zones.
The table load is about 200 kg / m
