Grinder for curved parts

COMEC

Condition: ready for operation (used), Year of construction: 2020, travel distance X-axis: 3,350 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 180 mm, number of axes: 3, spindle motor power: 5,600 W, spindle speed (max.): 18,000 rpm, This 3-axis COMEC MD TOP XL CNC Wood Machining Centre was manufactured in 2020. It features a robust mono-block structure, high-speed axes positioning up to 70 m/min, and versatile electro-spindles for drilling, milling, and cutting. The machine includes a CAD-CAM control unit with a 17" touchscreen and full safety enclosures. If you are looking to get high-quality woodworking capabilities, consider the COMEC MD TOP XL machine we have for sale. Contact us for more information. • Machine frame: Heavy-duty mono-block structure in electro-welded steel • Spindles: • Vertical electro-spindles: 3 • Drilling spindle Blsdpfox D Hngjx Ah Iod • Power: 1.7 kW • Speed: 4350 rpm • Point-to-point drilling head: • 5 vertical drilling spindles (32 mm spacing) • 3 double-exit horizontal spindles along Y-axis (32 mm) • 3 double-exit horizontal spindles along X-axis (32 mm) • Milling/mortising spindle • Power: 7.0 kW • Speed range: 12,000–18,000 rpm • Cutting/milling/drilling spindle • Power: 7.0 kW • Speed range: 8,000–18,000 rpm • Multi-function aggregate included • Horizontal electro-spindle: • Type: Milling/mortising spindle • Power: 5.6 kW • Speed: 12,000–18,000 rpm • Tool holder: ER32 collet • Working area: • Nominal strokes: X 3350 mm, Y 200 mm, Z 180 mm • Two working fields: 2 × 1500 mm • Axes positioning speed: up to 70 m/min • Interpolation: Linear and circular on X/Y/Z (3 axes CN-controlled) • Workpiece support tables: • 4 + 4 tables on adjustable slides • Each table with 4 + 4 vertical pneumatic clamping cylinders • Frontal and lateral reference stops • Control system: • CAD-CAM control unit • Stand-alone electrical cabinet • Industrial PC with 17" touchscreen • Connectivity: Ethernet, USB, RS232 • Software: Supports NC CAM Suite TPAED132 • Safety and enclosure: • Full perimeter safety cabin • Automatic synchronized front safety door • Polycarbonate panels and safety interlocks • Power and standards: • Supply voltage: 400 V / 50 Hz • CE safety compliance

Condition: used, A versatile horizontal end borer that can be used for a variety of drilling operations in solid wood furniture components. Optionally the machine can be equipped with a tilting table. -3hp motor - 2800rpm Bljdpfx Aoymnk Noh Isd -Drilling unit advancement via hydrocheck unit. -Drilling head with 5 drills which can be rotated through 360 degrees. -Drill interaxis 3 x 32mm ctres / 3 x 20mm ctres. -Max drilling depth 70mm. -Drill connection M10 -Height of drill head and drilling depth adjustable via screws with Siko mechanical digital readouts. -Table with adjustable reference fence adjustable to 45 degrees with pneumatic workpiece clamp. -CE safety protections

Condition: used, Year of construction: 2013, COMEC - FMOV 1500 6UF - CA2 - 2013 - multifunctional multiple drilling machine with 10 multiple heads, arranged on 3 working lines, equipped with an automatic parts loader. The machine allows drilling of long workpieces up to 2000 mm in one working cycle - working width (X) 1500 mm - working depth (Y) 300 mm - max. clamping height 70 mm - top surface processing Yes - horizontal processing Yes - interchangeable aggregates Yes - positioning Manual - drilling feed Pneumatic - clamping Pneumatic - CE certification - automatic parts loader Yes (synchronized with cycle) - modularity & customization High - cleaning & waste system Integrated, efficient - PLC control with selection of work cycles Main advantages: - High productivity (synchronized automatic loading and multiple drilling units) - Fast, precise operations with guaranteed repeatability Blsdoyl Stfepfx Ah Iod - Modular design with customization options - Solid mechanical design and quality components - Efficient cleaning, dust extraction and waste disposal system - PLC programming with selection of work cycles - Wide customization options and very reliable technology for industrial use even for multi-shift operation.

Condition: new, Year of construction: 2025, functionality: fully functional, LBM950 COMEC Line boring machine for cylinder heads and blocks - NEW machine Specifications: Boring capacity: 24 - 85 mm Max boring bar travel: 190 mm Min-Max distance height supports-bar C/L: 100 - 376 mm Max cylinder head and block length: 810 mm Max cylinder head and block width: 300 mm Variable spindle rotation speed: 0 - 1000 rpm Spindle traverse rate: 0 - 5000 mm/min Feed motor power: 1,27 Nm Spindle rotation motor power: 0,68 Nm Dimensions (LxWxH): 1780x800x1385 mm Bsdpfx Asykun Ash Ield Weight: 375 kg Standard equipment: Single phase power supply (230V/50Hz/1ph) Bar displacement on linear guideways with ball screw drive system Bar displacement/rotation acted by brushless motors Touch screen control panel Operating software for manual and automatic working process Electronic handwheel for manual displacement (Fast-Medium-Fine speeds) Basement with equipment-tray Boring bar supporting arms Universal head clamping fixture BC0800 Dia. 24-85 mm chromed tool holder bar L = 800 mm AP0800 Dia. 50-85 mm toolholder ring for blocks Set of boring tools DC0200 Centering device with dial gauge AC0093 (2 pieces) DT0100 Tool setting device complete of dial gauge with micrometer AC0091 Set of fixing screws for cylinder heads Wrench set Instruction manual EC declaration of conformity If you are interested, please feel free to contact us! Other machines for sale: Berco, Comec, Sunnen, Carmec, Kwik-Way, Serdi, PEG Valve grinders, surface grinders, valve seat milling machines, pressure testing machines, parts washing machines

Condition: used, Year of construction: 1995, 1995 (CE) Comec MOV8UX+CAP(LV+LO) Mortising machine horizontal and vertical, for short parts, with double magazine for high productivity. Blsdpfxeykni Hs Ah Ijd 2 vertical groups and 2 horizontal groups for each feeder.

Condition: used, The COMEC MM05/3L is a multi-spindle oscillating drilling machine equipped with seven spindles, designed for automatic drilling of holes in materials of specific dimensions. The machine features an automatic feeder that streamlines the machining process by automatically feeding and clamping the material. The MM05/3L's technical specifications include: - 7 oscillating spindles, - adjustable oscillation, - pneumatic material clamps, - production capacity of several hundred pieces per hour. The machine features a robust construction, flexible work settings, and CE certification, ensuring safety and compliance with European standards. It is suitable for production applications requiring precise multi-point drilling on a variety of materials, typically found in the furniture and woodworking industries. Bedpfxoxrpcij Ah Iold The automatic material feeder, working in conjunction with the multi-spindle drilling unit, increases the efficiency and repeatability of production processes, minimizing operator involvement and improving work ergonomics.

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: 202102, type of input current: three-phase, power: 5 kW (6.80 HP), input voltage: 230,400 V, Comec Moulding machine for pressing and moulding Shoe insole parts Bodpeyizl Ssfx Ah Ijld

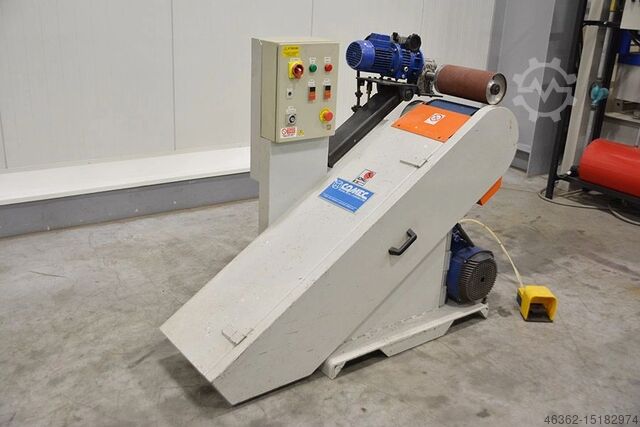

Condition: excellent (used), OMAB/Comec curved part grinder Working width 200mm Sanding belt oscillation Pneumatic material clamping Main motor 5.5kw Feed motor 0.25kw Extraction stubs 2x100mm Blsdpjtvfmhjfx Ah Ijd Dimensions of the machine 210x80x150cmH Weight 450kg

Condition: ready for operation (used), Year of construction: 2015, travel distance X-axis: 2,500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 112 mm, CNC Wood Machining Centre manufactured in 2015. This COMEC MD JAMB 9X features a multi-head design ideal for machining door frames, including DIN-adjustable options. It includes an automatic unloading conveyor and advanced CNC control with NC CAM SUITE software, allowing for simultaneous operations across its three independent heads. Consider the opportunity to buy this COMEC MD JAMB 9X CNC Wood Machining Centre. Contact us for further details. • Heads: 3 independent CNC-controlled heads (left, central, right); control can independently manage all 3 heads on all axes; allows simultaneous identical or different operations • Left and right heads: • 1 cutting/drilling unit per head with automatic pneumatic inclination of saw blades and drill groups • 2 counter-rotating horizontal electro-spindles for milling • 1 milling and mortising electro-spindle • Special sleeve for slotting on the lower side of the workpiece • Vertical units: • 1 vertical electro-spindle for milling • 1 vertical electro-spindle for drilling seats for metal clips • 1 vertical electro-spindle with special drilling head (5 drills arranged at 90°) • Workholding/benches: • Workpiece holding bench divided into 4 elements, adjustable on ball-rail guide system • Automatic locking, unlocking, and positioning controlled by the central head (CNC-controlled) • Control and software: • CNC control with NC CAM SUITE software • CAD/CAM: TPAED132 with 3D workpiece visualization, integrated movement optimizer, and dedicated post-processor • Safety: • Full perimetral safety enclosure • CE compliant Additional equipment • Automatic unloading conveyor • Chip evacuation conveyor Bsdpfxeyhn Hao Ah Ield • Special loading benches for fully assembled door jambs

Condition: excellent (used), Double-sided end chamfering milling machine Comec FIS 4 900 Number of milling units per side: 2 Bsdpfx Ahsyf T E Ns Ield Automatic material loading from the feeder
