Twin screw extruder

Coperion - Werner & Pfleiderer ZSK 40

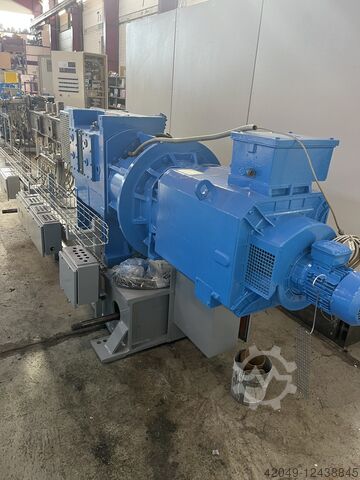

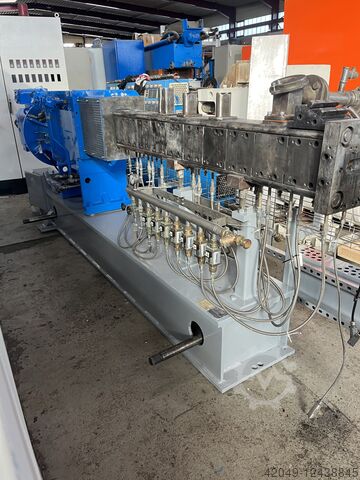

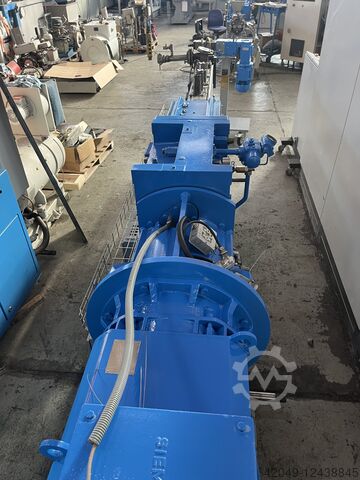

Condition: excellent (used), functionality: fully functional, Werner & Pfleiderer Twin-Screw Extruder ZSK 40 – Excellent Condition For sale is a Werner & Pfleiderer (WP) ZSK 40 co-rotating twin-screw extruder. Technical Specifications: • Machine Type: ZSK 40 • Screw Diameter: 40 mm • Screw Length: 7 barrels × 4 D → approx. 28 L/D • Main Drive: 34.5 kW • Motor Speed: 1,800 rpm • Screw Speed: 40 – 400 rpm • Max. Torque per Screw Shaft: 325 Nm • Heating: Electric, connected load approx. 17 kW • Cooling: Water chiller unit • Temperature Control Zones: 6 zones • Barrel Temperature Sensors: 6 • Material Temperature Sensor: 1 • Material Pressure Sensor: 1 Barrel Configuration: • Feed barrel with liquid injection port • Open barrel with insert and 2 liquid injection ports • Multiple closed barrels with ports for liquid injection or measurement points • Degassing barrel General Features: • Co-rotating, closely intermeshing (self-cleaning) screws • High mixing and dispersing performance thanks to modular mixing and kneading elements • Modular system for screws and barrels • Drive section and process section mounted on stable base frame Fields of Application: • Plastics compounding • Masterbatch • Additive and filler incorporation • Laboratory and pilot plant use • Formulation and product development Nledpoycuuysfx Adrjd Condition & Runtime: According to the operating hour counter, the machine has run for less than one year and is therefore in excellent, nearly as-new condition. The screw elements are also as new. Options & Customizations: Upon request, we can design and install suitable tooling, such as strand dies, and integrate additional peripherals such as screen changers, pelletizing units, dosing technology, or other customer-specific components. The machine can thus be configured and delivered ready-for-operation according to customer requirements.
