Pillar drill

CORMAK 32 mm

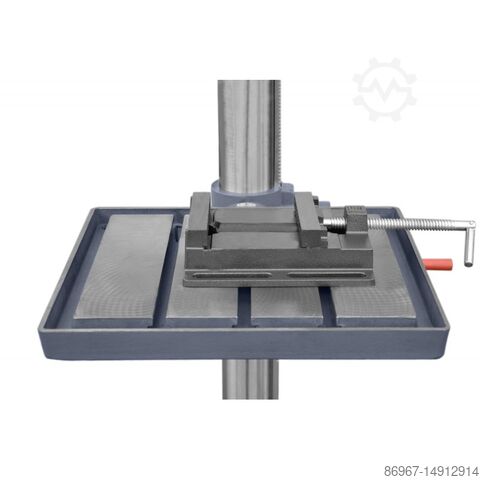

Condition: new, Year of construction: 2025, The Z5040L industrial gear drill ensures optimal drilling results. It is characterized by solid workmanship and high power, so it can be used both in repair plants and in industrial production. The drill is equipped with a massive, adjustable cube table, auto-feed, a solid gear with a wide range of rotational speeds, right/left rotation and an adjustable drilling depth limiter with a scale. The drill has a built-in cooling system. CORMAK Z5040L pillar drill - description of the machine Automatic spindle feed Cube table rotates around the column, tilts 45° to the right/left Workspace lighting Possibility of threading Work table and base equipped with T-slots Right/left rotation Drilling depth indicator CORMAK Z5040L pillar drill - technical parameters MAX. DRILLING DIAMETER 40mm NUMBER OF GEARS 18 THREADING STEEL/CAST IRON 22/24 mm DISTANCE FROM THE CENTER OF THE SPINDLE TO THE SURFACE OF THE COLUMN 350mm MAX. DISTANCE OF THE SPINDLE END TO THE WORK TABLE 770mm MAX. DISTANCE OF THE SPINDLE TIP FROM THE BASE 1215 mm MAX. SPINDLE TRAVEL 185mm SPINDLE TAPER MK 4 FEED RANGE 0.1mm; 0.2mm SPINDLE SPEED RANGE 75 - 1450 rpm WORKTABLE DIMENSIONS 560 x 520 mm SIDE TABLE DIMENSIONS 560 x 250 mm Bdedpfx Asridxxjf Hek BASE DIMENSIONS 730 x 500 mm WIDTH OF T-GROOVES 18mm ENGINE POWER 1.5 kW COOLANT PUMP POWER 75 W OVERALL DIMENSIONS 2230 x 560 x 850 mm WEIGHT U 510 kg

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Description WE SELL AN STUNNING NICE CONDITION CNC BIGLIA WITH TOOLS AND ACCESSORIESS CONDITION IS AS ALMOST NEW. VERY LITLLE USED. FANUC SERIES 18-T Maximum turning diameter: 520 mm Maximum turning length: 500 mm Bar turning diameter: 80mm X axis travel: 210 + 5 Z axis travel: 500 + 10 Spindle speed: 4000 rpm Bedpfx Afevk Ezcj Hedk Spindle motor: 11-15 Kw (50%) Spindle connection: ASA 6 Spindle hole: 80 mm Self-centering diameter: 250 mm Turret: number 12 stations Tailstock: CM 4 Dimensions: 3500 x 1670 x 1650 mm Weight: 4600 Kg HOLE TROUGH SPINDLE: 82 m YEAR:1997

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, WE OFFER AN VERY NICE CONDITION INDEX WITH FULL EQUIPMENT AND TOOLINGS. MACHINE IS IN FULLY WORKING CONDITION. WE OFFER AN NICE CONDITION INDEX WITH Control FANUC 21i-TA DRIVEN TOOLS AND EQUIPMENT Max. turning diameter 310 mm max. turning length 1,470 mm Hollow clamping cylinder diameter 80 mm HOLE TROUGH SPINDEL 95mm Rapid traverse 12 m/min Tool positions 16-way turret / 4 driven C-axis division 1-locking bolt 2.5 degrees 2-locking bolt 0.5 degrees Speed range level 1: 20-2000 rpm level 2: 40-4000 rpm Total power requirement 40 kW Machine weight approx. 6 t Dimensions 5,350 with chip conveyor x 2,000 x 2,500 mm Control FANUC 21i-TA Year of manufacture 2002 Bodpfx Afjvkx Nyo Hodk Incl. chip conveyor Incl. tailstock Incl. steady rest Incl. documentation FOR CUSTOMER WE CAN ORGANIZE AS WELL TRANSPORT TO THEIR COMPANY..WORLDWIDE DELIVERY TO LOAD MACHINE NEED 7 LOADING METERS ON TRUCK.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, WE OFFER AN VERY NICE CONDITION 5 AXIS CNC LATHE HWACHEON MACHINE IS WORKING IN DAILY PRODUCTION ORDERS, SOLD WILL BE BECAUSE SOON IS COMING A BIGGER NEW. MODEL: CUTEX -180BL YSMC YEAR: 2019 HEAD STOCK HEIGHT: 1130mm MAX SPINDLE SPEED: 4500 RPM MAX CHUCK DIA: 8 INCH MAX CHUCK SPEED: 5000 RPM MAX WORKING DIA: DIAMETER 300 X 425 L WEIGHT: 4700 KG RATED VOLTAGE: 3 PE / 220 V (ac) FREQUENCY 50HZ ELECTRICAL POWER SUPLY 35 kWA RATED CURRENT 100A SHORT CIRCUT CURRENT RATING 5 kA LARGEST MOTOR 95 A CIRCUIT BREAKER CAPACITY 100A AMPERE INTERRUPTER CAPACITY 50 kA Bodpfsv Acpnex Af Hjdk AIR SUPPLY: 0.5 MPa

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, Specifications Manufacturer MONFORTS Model RNC4 Year 1993 Description WE OFFER AN VERY NICE CONDITION MONFORTS CNC LATHE INCLUDING COMPLETE TOOLINGS DRAWERS FOR TOOLS MACHINE HAS LIVE TOOLS , DRIVEN TOOLS MACHINE IS CONECTED ON POWER TECHNICAL INFO: Diameter 420 mm Distance between centers 600 mm CNC system Control System F Tools 12 positions Cross travel 250 mm Longitudinal travel 620 mm Hole through spindle 65 mm Spindle speed 70 - 4000 RPM Motor power 18,5 HP Bjdpfx Asvk E A Tjf Hedk Weight 7500 Kg

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Description WE OFFER AN NICE CONDITION TWO MACHINES EMCO HYPERTURN 665 WITH BARR FEDERS AND TOOLS ACCESSORIESS YEAR: 2005 FULLY FUNCTIONAL , READY TO WORK CONNECTED ON POWER. FOR THE CUSTOMER WE ORGANIZE DISMANTLING LOADING AND TRANSPORT TECHNICAL DATA: Specifications: Max. swing diameter 430 mm dia. Max. rotary. About Bed 600 mm Dia. Turning length 744 mm Distance between spindle lugs 975 mm Main engine power 21/29 kw Main spindle speed range 0-5000 rpm Bore through drawing tube 65 mm dia. C axis - main spindle movement 0.001 degree Y axis 100 +/- 50 mm B Axis Movement Stepless 45 Degree Tool turret 1 with 12 VDI 30 stations Powered stations turret 1 12 pc. - 4000 rpm Y+B pieces. Engine power driven tools 6.7 Kw Tool turret 2 with 12 pc. VDI 30 stations Bedpfovk E Atjx Af Hedk Counter spindle C axis - counter pindel movement 0.001 degree Counter spindle speeds 0-5000 D46485 Pr/min Motor power counter spindle 17/22 Kw Control Siemens 840 D Controlled in 8 axis - x1-x2-z1-z2-c1-c2-y-b axes Accessories: BAR FEDER AND HUGE LIST OF TOLLINGS ON PHOTOS Length: 3400 mm + convoyer , Height: 2300 mm, Width: 2550 mm, Weight: 7600 kg

Condition: good (used), Year of construction: 1996, functionality: limited functionality, Description WE OFFER AN GOOD CONDITION TRAUB TNA 300 SPINDLE CAPACITY: 65mm SPINDLE NOSE: A6 CHUCK DIAMETER 200-250 TURNING DIAMETER MAX: 275mm TRAVERSE OVER CENTER: 35mm TURNING LENGHT MAX: 450mm Bdsdpfsvk E Dkox Af Hjk SWING DIA. OVER CROSS SLIDE: 395mm SWING DIA OVER BED: 520mm Main drive: POWER: 11kW SPINDLE SPEED MAX: 4000 RPM TORQUE: 280 Nm C-AXIS: 100RPM TURRET: TOOLS: 12 SHANK DIAMETER: 30mm TOOL SECTION DIMENSIONS: 20X20 mm INDEXING TIME: 1 STATION 0,5 sec EACH ADD STATION: 0,15 sec Y-AXIS : +-35mm feed rates: X-AXIS: 15/15 Z-AXIS: 18/18 Y-AXIS: 10/10 TAIL STOCK: QUIL SIZE: 70mm QUIL STROKE: 60mm MAY TROKE OF RAPID RETURN SLIDE: 280mm Quil force at 55 bar (8600N) QUIL RECEPTOR: MK4 STEADY FIXED: 8-95 COOLANT: 5 BAR COOLANT TANK CAPACITY: 275L TOTAL POWER CONSUMP: 16kW WEIGHT: 3500 KG DIMENSIONS: L: 2710 mm D: 1620 mm H: 1800 mm
