CNC turning and milling center

CNC LATHE - EMCO HYPERTURN 665 TWIN HYPERTURN 665 TWIN

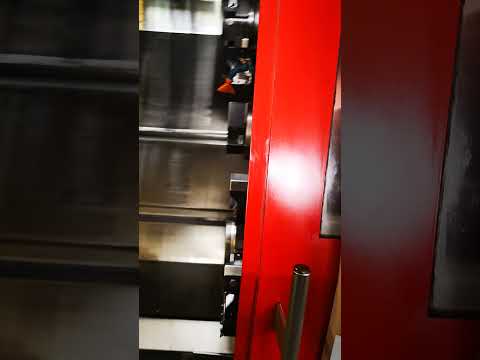

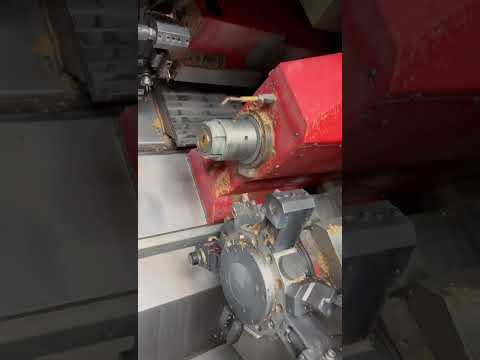

Condition: used, Year of construction: 1999, operating hours: 65,090 h, functionality: fully functional, ET365 GS with bar feeder and chip conveyor The machine is fully equipped - Collection tray - High-pressure pump - Control cabinet air-conditioning unit - Kupa loader Rcjdpfx Aieycvaqj Teh - The machine was purchased from a running production operation and has been technically inspected - Geometry measured and all settings adjusted - Wearing parts replaced - All functions checked and adjusted as required The machine is fully operational and ready for immediate production The machine is available immediately

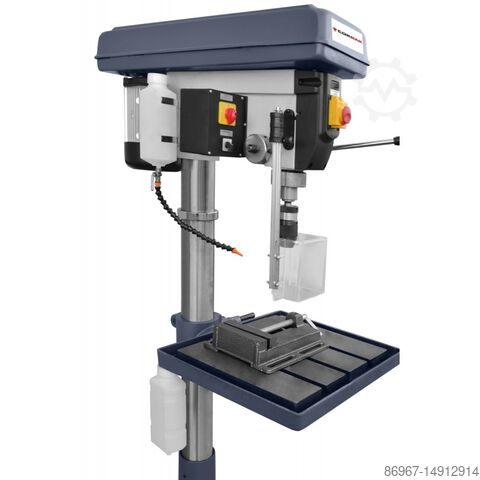

Condition: new, Year of construction: 2026, CORMAK 32 mm Floor Drill Press – Heavy-Duty Metal Drilling Machine The CORMAK 32 mm floor drill press is a robust and versatile metal drilling machine designed for intensive operation in industrial plants, metalworking workshops, and maintenance departments. The increased drilling capacity, stable construction, and precise spindle guidance make it an ideal machine for drilling, reaming, and tapping a wide range of metal materials. Main Advantages of the Machine Maximum drilling diameter – 32 mm – allows machining of various steel, cast iron, and aluminium components. Two-speed 1.5 kW motor – provides optimal torque when operating at low and high spindle speeds. Wide spindle speed range – from 60 to 3480 rpm – achieved through a combination of motor speeds and belt drive transmission. MK4 spindle taper with 120 mm travel – enables deep drilling while maintaining high tool rigidity. Right/left spindle rotation – allows safe tapping operations and quick tool retraction. Gravity cooling system – improves tool life and enhances the quality of machined surfaces. High weight of 144 kg – ensures excellent stability and minimizes vibrations during operation. Design and Technology – A Well-Engineered Construction for Continuous Operation The CORMAK 32 mm column drill press has been built using durable components that guarantee long service life and reliable operation. The base and worktable are made of high-rigidity cast iron, while the spindle is supported by precision rolling bearings, ensuring accurate drilling performance. Rcjdpfx Aoridpwsi Tjh Power is transmitted through a belt drive system combined with a two-speed motor, providing 24 spindle speed settings. This allows precise adjustment of machining parameters for different materials and applications. Precision and Working Efficiency – Reliability in Everyday Operations The powerful 1500 W (400 V) motor enables operation under heavy loads, while the 120 mm spindle stroke allows deep holes to be drilled in a single working cycle. The large working table (475 × 425 mm) makes it easier to secure workpieces of different sizes. The wide spindle speed range allows accurate selection of machining parameters depending on tool diameter and material type. The rigid construction ensures excellent stability even during operations requiring high cutting forces. Applications – Ideal for Workshops and Industrial Production The CORMAK 32 mm floor drill press is suitable for: tool and locksmith workshops, maintenance departments in industrial plants, single-piece and small-batch production, technical training centres and educational workshops. Standard Equipment Two-speed 1500 W motor Right/left spindle rotation Gravity cooling system Polish-language technical documentation (DTR) CE Declaration of Conformity Technical Specifications Parameter Value Maximum drilling diameter 32 mm Chuck capacity 16 mm Spindle taper MK4 Spindle-to-column distance 254 mm Spindle stroke 120 mm Maximum spindle-to-table distance 595 mm Maximum spindle-to-base distance 1075 mm Worktable dimensions 475 × 425 mm Column diameter 92 mm Motor power 1.5 kW / 400 V Cooling system Gravity-fed Overall dimensions 1670 × 760 × 475 mm Weight 144 kg Spindle speed range 60–3480 rpm

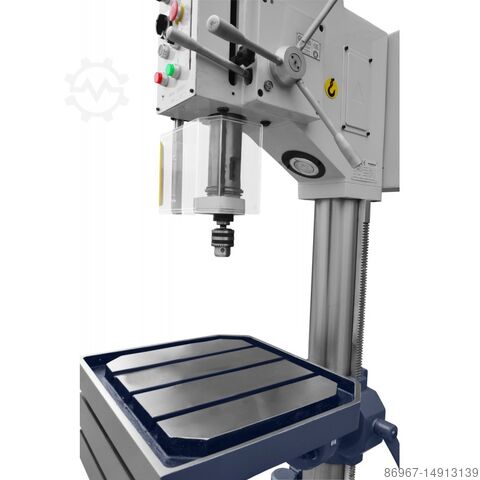

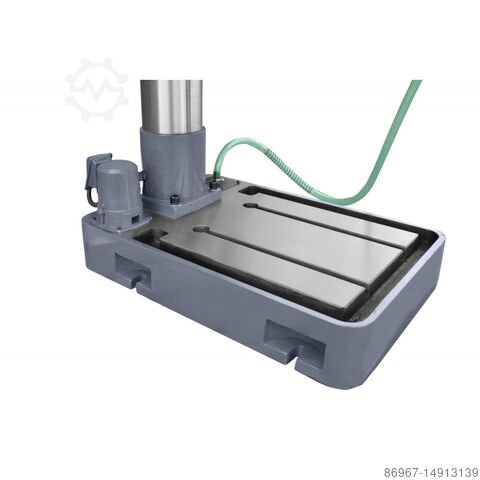

Condition: new, Year of construction: 2026, CORMAK Z5040L Column Drill Press The CORMAK Z5040L column drill press is an industrial metal drilling machine designed for intensive and precise operation in production plants and tool rooms. Equipped with an automatic spindle feed, tapping function, and a rotary tilting cube table, it enables efficient execution of the most demanding drilling and threading operations. This complete industrial drilling machine provides full adjustment flexibility and safe operation. Main advantages of the machine Automatic spindle feed – two feed rates (0.1 mm and 0.2 mm/rev) ensure stable and repeatable operation during deep drilling processes. Rotary tilting cube table – adjustable around the column and tiltable by ±45°, providing access to difficult-to-reach working surfaces at various angles. Tapping function – automatic spindle rotation change (right/left) enables fast and safe threading in steel (M22) and cast iron (M24). Wide spindle speed range – 18 speeds from 75–1450 rpm allow optimal machining parameters depending on the material and tool used. High structural rigidity – achieved through a large-diameter column and a massive base with 18 mm T-slots. Drilling depth indicator – provides precise control of hole depth. Standard cooling system – an independent 75 W pump improves drilling quality and protects tools against overheating. Construction and technology The CORMAK Z5040L column drill press has been designed with high stability, durability, and versatility in mind. The cast iron spindle head and column construction provide excellent vibration resistance, resulting in higher machining accuracy. The main worktable, measuring 560 × 520 mm, and the side table measuring 560 × 250 mm provide a large working area with the possibility of mounting various types of fixtures and machine vices. The large spindle stroke of 185 mm allows deep drilling without interrupting the machining process. Precision and work efficiency The CORMAK Z5040L drill press with automatic feed is designed for continuous operation while maintaining maximum accuracy. Thanks to the 18-speed gearbox, two automatic feed rates, and extensive angular adjustment options of the table, the operator can precisely adapt working parameters to the requirements of a specific workpiece. High-quality LED lighting enables accurate tool positioning even during complex machining operations. Standard equipment Angular cube table with T-slots Side table with mounting slots Rodperidxxofx Ai Tech Cooling system with pump Automatic spindle feed LED work light Drilling depth indicator Technical specifications Parameter Value Maximum drilling diameter 40 mm Maximum tapping diameter (steel/cast iron) M22 / M24 Spindle stroke 185 mm Spindle taper MK4 Automatic feed range 0.1 / 0.2 mm/rev Spindle speed range 75–1450 rpm Number of speeds 18 Spindle-to-column distance 350 mm Maximum spindle-to-table distance 770 mm Maximum spindle-to-base distance 1215 mm Main table dimensions 560 × 520 mm Side table dimensions 560 × 250 mm Base dimensions 730 × 500 mm T-slot width 18 mm Motor power 1.5 kW Coolant pump power 75 W Overall dimensions 2230 × 560 × 850 mm Weight 510 kg

Condition: excellent (used), Manufacturer, Emco. Machine type, Hyperturn 665 CNC lathe. Inventory number, 22281. Machine designation, Drehmaschine Emco Hyperturn 665. Machine number, serial number R7A Q 2701. Year of manufacture, 2002. Control system, Siemens Sinumerik 840D with PCU 50 V1. Rsdpfox S Hghox Ai Tsch Programming, DIN ISO, Siemens ShopTurn capable. Axes configuration, X axis and Z axis. Max turning diameter over bed, approx. 665 mm. Max turning diameter over cross slide, approx. 500 mm. Max turning length, approx. 1,000 mm. Swing diameter, approx. 665 mm. Main spindle. Spindle speed range, up to approx. 4,000 rpm. Spindle nose, DIN standard spindle interface. Spindle motor power, approx. 30 kW. Spindle torque, high torque for soft turning applications. Tool system. Tool turret, CNC controlled turret. Number of tool stations, typically 12 positions. Tool holder type, VDI standard. Live tooling, not included, soft turning configuration. Tailstock, CNC controlled tailstock. Quill diameter, approx. 100 mm. Quill travel, approx. 120 mm. Coolant system, included. Chip conveyor, included. Machine accuracy. Positioning accuracy, approx. 0.01 mm. Repeatability, approx. 0.005 mm. Electrical supply data. Supply voltage, 400 V. Frequency, 50 Hz. Rated current, 110.00 A. Backup fuse, 125.00 A. Connected load, 56.00 kW. Compressed air requirement, approx. 6 bar. Machine dimensions. Machine length, approx. 4,500 mm. Machine width, approx. 2,200 mm. Machine height, approx. 2,100 mm. Machine weight, approx. 8,000 to 9,000 kg depending on configuration. Application, precision soft turning of steel, aluminum, and non hardened materials.

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Description WE SELL AN STUNNING NICE CONDITION CNC BIGLIA WITH TOOLS AND ACCESSORIESS CONDITION IS AS ALMOST NEW. VERY LITLLE USED. FANUC SERIES 18-T Maximum turning diameter: 520 mm Maximum turning length: 500 mm Bar turning diameter: 80mm X axis travel: 210 + 5 Z axis travel: 500 + 10 Spindle speed: 4000 rpm Rcedpfx Aievk Ezcj Teh Spindle motor: 11-15 Kw (50%) Spindle connection: ASA 6 Spindle hole: 80 mm Self-centering diameter: 250 mm Turret: number 12 stations Tailstock: CM 4 Dimensions: 3500 x 1670 x 1650 mm Weight: 4600 Kg HOLE TROUGH SPINDLE: 82 m YEAR:1997

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, WE OFFER AN VERY NICE CONDITION INDEX WITH FULL EQUIPMENT AND TOOLINGS. MACHINE IS IN FULLY WORKING CONDITION. WE OFFER AN NICE CONDITION INDEX WITH Control FANUC 21i-TA DRIVEN TOOLS AND EQUIPMENT Max. turning diameter 310 mm max. turning length 1,470 mm Hollow clamping cylinder diameter 80 mm HOLE TROUGH SPINDEL 95mm Rapid traverse 12 m/min Tool positions 16-way turret / 4 driven C-axis division 1-locking bolt 2.5 degrees 2-locking bolt 0.5 degrees Rjdpfx Aevkx Nyoi Toch Speed range level 1: 20-2000 rpm level 2: 40-4000 rpm Total power requirement 40 kW Machine weight approx. 6 t Dimensions 5,350 with chip conveyor x 2,000 x 2,500 mm Control FANUC 21i-TA Year of manufacture 2002 Incl. chip conveyor Incl. tailstock Incl. steady rest Incl. documentation FOR CUSTOMER WE CAN ORGANIZE AS WELL TRANSPORT TO THEIR COMPANY..WORLDWIDE DELIVERY TO LOAD MACHINE NEED 7 LOADING METERS ON TRUCK.

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, Specifications Manufacturer MONFORTS Model RNC4 Year 1993 Description WE OFFER AN VERY NICE CONDITION MONFORTS CNC LATHE INCLUDING COMPLETE TOOLINGS DRAWERS FOR TOOLS MACHINE HAS LIVE TOOLS , DRIVEN TOOLS Rcedpfx Aiovk E A To Tsh MACHINE IS CONECTED ON POWER TECHNICAL INFO: Diameter 420 mm Distance between centers 600 mm CNC system Control System F Tools 12 positions Cross travel 250 mm Longitudinal travel 620 mm Hole through spindle 65 mm Spindle speed 70 - 4000 RPM Motor power 18,5 HP Weight 7500 Kg
