Surface Grindinding Machine 540x250mm

CORMAK 540x250 semi-automatic

540×250 Surface Grinder (MYS1022) is a compact machine designed for precision grinding of small and medium-sized metal components. Its robust construction and advanced technologies ensure high machining accuracy and reliable operation in demanding industrial environments.
Ndsdpfxokkcm Ue Aa Roa

Main advantages of the 540×250 (MYS1022) surface grinder

The 540×250 (MYS1022) magnetic surface grinder is an ideal solution for industrial facilities requiring precise machining in a compact format. Designed for professional users, it combines advanced technologies such as hydraulic feed in two axes and precision guideways with a solid construction, ensuring reliability and high machining efficiency.

Its compact dimensions and high accuracy make it an excellent choice for smaller workshops and production facilities where space is limited.

Key benefits include:

High grinding precision – maximum grinding area of 540 × 240 mm and transverse feed accuracy of 0.02 mm ensure excellent surface finishing quality.
Compact construction – dimensions of 1800 × 1400 × 1800 mm and a weight of 900 kg allow easy installation in smaller production facilities.
Smooth hydraulic feed system – two-axis feed system enables precise movements with transverse speed up to 600 mm/min, ensuring efficient machining.
Stability and durability – robust construction with double guideways minimizes vibrations, guaranteeing stable operation during intensive use.
Easy maintenance – centralized guideway lubrication reduces manual maintenance requirements and increases machine availability.
Ready for operation – the machine is fully equipped for immediate production, minimizing setup and downtime.
Machine design and technology
Robust construction and precision components

The MYS1022 surface grinder features a heavy-duty construction weighing approximately 1000 kg, providing excellent stability during machining operations. Hardened and ground linear guideways eliminate vibrations, ensuring smooth table movement and high-quality surface finishes.

The spindle, driven by a 1.5 kW motor, operates with a grinding wheel measuring 200 × 20 × 32 mm, enabling efficient processing of various metal materials.

Technical specifications
Parameter Value
Table dimensions 500 × 250 mm
Longitudinal / transverse travel 560 × 260 mm
Maximum grinding area 540 × 240 mm
Maximum distance from table to spindle centerline 490 mm
Table guideways Double guideway
Transverse movement per vernier scale division 0.02 mm
Transverse movement per handwheel revolution 2.5 mm
Vertical movement per vernier scale division 0.01 mm
Manual vertical movement per handwheel revolution 1.25 mm
Grinding wheel dimensions 200 × 20 × 32 mm
Grinding wheel speed 2850 rpm
Main motor power 1.5 kW
Hydraulic oil tank capacity 80 L
Hydraulic pump motor power 1.5 kW
Coolant pump motor power 40 W
Machine dimensions 1800 × 1400 × 1800 mm
Weight 1000 kg
Standard equipment
Magnetic table
Grinding wheel
Grinding wheel holder
Cooling system

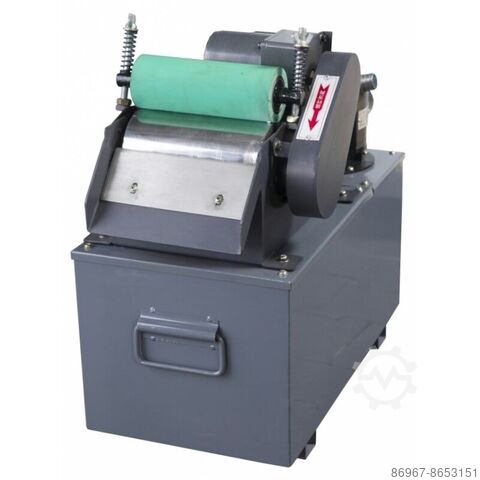

Chip separator with magnetic filter
Halogen lighting system
Technical documentation (DTR)
CE declaration
