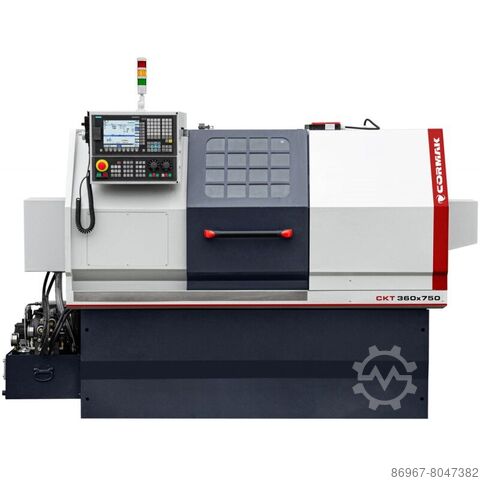

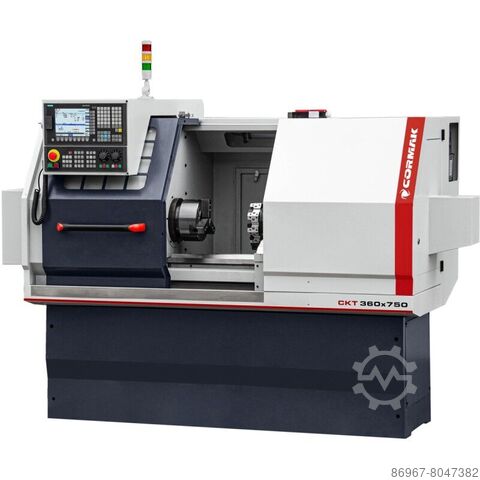

CNC Lathe 360x750 Hydr. Chuck Tailstock

CORMAK CNC CKT 360x750 Hydraulic

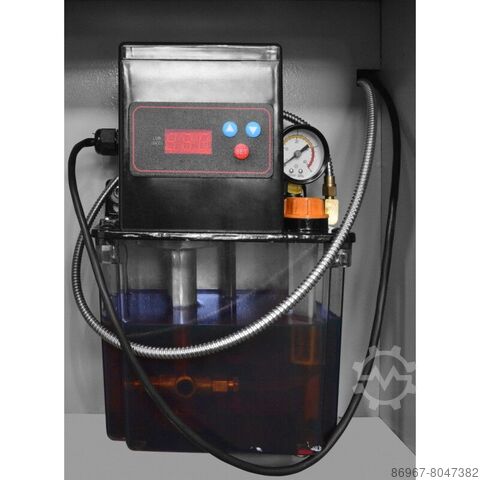

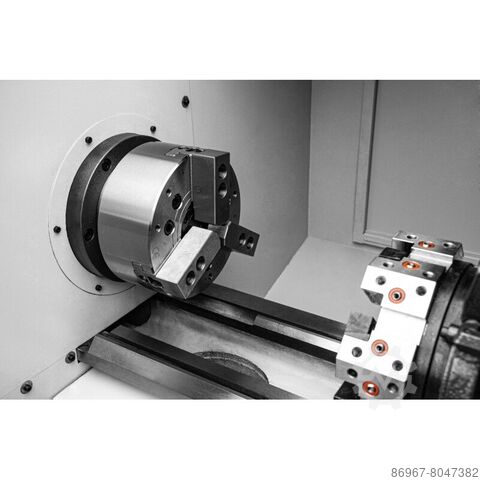

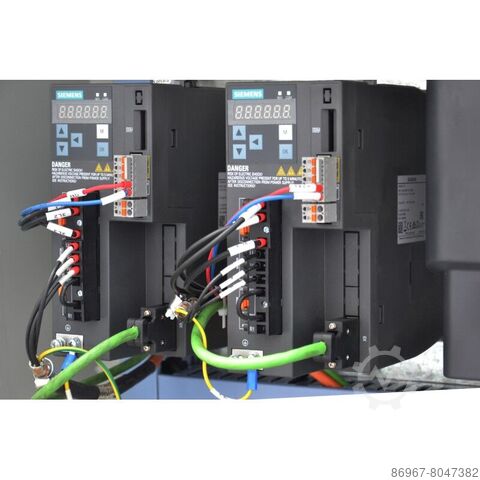

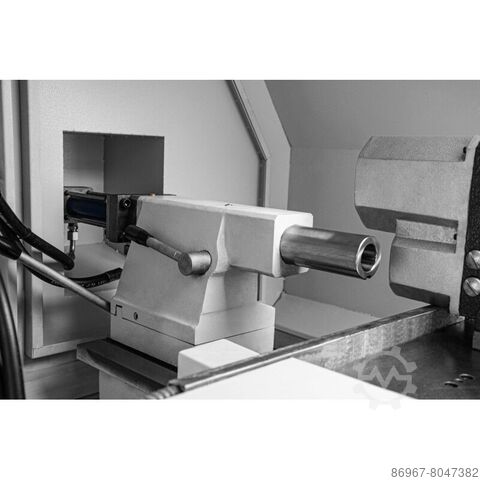

Condition: new, Year of construction: 2025, Technical data Swing over bed 360 mm Swing over cross slide 150 mm Nwsdpoizw E Aofx Ac Hjr Maximum turning length 750 mm Spindle speed 100–2000 rpm Spindle bore Ø 51 mm Spindle taper A2-6 Tailstock spindle taper MT5 Number of tools in the holder 8 Tools size 20×20 Tailstock spindle feed 100 mm Main motor power 3.7 kW Dimensions 1815×1300×1600 mm Weight 1300 kg Available equipment SINUMERIK 808D control system in Polish and English SIEMENS servomotors 1 live tool 3-jaw hydraulic chuck 8-position turret head soft jaw kit hydraulic tailstock cooling system automatic gear and guide lubrication system 24V halogen lighting Polish and English manuals EC declaration The price is a net price. Price does not include shipping costs. For more information, please contact us by phone or e-mail. We invite you to familiarize yourself with the offer on our website.

Year of construction: 2007, condition: ready for operation (used), - USED - 4-AXIS CNC LATHE MAX ROTATING DIAMETER: 550 mm MAX TURNING LENGTH: 513 mm MAX TURNING DIAMETER: 300 mm BAR CAPACITY: 65 mm Nwsdpfx Acsxburuj Hjr SPINDLE: 4500 rpm; 15-18,5 kW; ASA A2-6 COUNTER SPINDLE: 6000 rpm; 5,5 kW X-AXIS TRAVEL: 205 mm Z-AXIS TRAVEL: 580 mm RAPID FEEDS X-Z: 24 - 30 m/min DRIVEN TURRET HEAD: 12 POS; 5000 rpm; 3,7 kW CONTROL UNIT: FANUC 18i-TB WEIGHT: 4240 Kg OVERALL DIMENSIONS: 3315 x 1600 x 1750 mm ACCESSORIES: PARTS CATCHER ; SWARF CONVEYOR ; PIECE CONVEYOR ; TOOL SETTER

Condition: used, total height: 1,700 mm, total length: 6,000 mm, total width: 1,700 mm, Empty weight: 6.500 kg Price: On request Lathe metal lathe Model: Conventional Manufacturer: TOS Type: SUI 63 Nwodpfx Aownhy Ijc Her Serial number: 407620860 Center distance: 4000mm Center height: 325mm Turning diameter: 630mm Spindle passage: 80mm Spindle speed: 11,2-1800 rpm Machine-afmeting: 6000x1700x1700mm Machine weight: 6500kg - Documentation available: No - CE certificate present: No - Drive system: Conventional - Centre height [mm]: 325 - Swing over bed [mm]: 630 - Distance between centres [mm]: 4000 - Spindle bore [mm]: 80 - Min. spindle speed [rpm]: 11.2 - Max. spindle speed [rpm]: 1800 - Transport dimensions: 6000mm x 1700mm x 1700mm (l x w x h) - Transport weight [kg]: 6500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Nwjdpfed Tm D Esx Ac Hor Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: used, Year of construction: 2008, turning diameter: 275 mm, spindle bore: 80 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 1,345 mm, total height: 2,232 mm, total length: 4,339 mm, total width: 2,232 mm, overall weight: 7,600 kg, Equipment: documentation/manual, CNC Lathe with Y-axis, driven tools an 2nd spindle CNC Control MSX-850-lll (mitsubishi 720 BM) Turning diameter 275 / 366 mm Spindle bore diameter 80 mm Spindle speed 4000 R/min Spindle motor 18.5/15 Kw Movement X-axis 260 mm Movement Y-axis +50 / -50 mm Movement Z-axis 1345 mm Movement W-axis (subspindle to mainspindle) 1275 mm Min indexing C-axis main spindle 0,001 ° Number of tools on turret 12x Number of driven tools 12 x Tool Taper BMT Bar feeder LNS Quick Load Servo lll Nwodsxnmzhepfx Ac Hjr Spindle motor driven tools 6000 R/min If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: new, Year of construction: 2024, Operating massive working pieces? Then this CNC laser machine would be the ideal option. The Wattsan 2030 Flat Bed is a laser cutter designed to work with large materials. There is no need for extra preparation; go right to work! This CNC laser machine has a table size of 2000x3000 mm. It also includes a trash collecting container, which will make the job much more enjoyable. Wattsan 2030 can cut materials such as cloth, plywood, cardboard, rubber, acrylic, plexiglass, and wood. You can give our managers a call for additional details! Wattsan 2030 Flat Bed characteristics Working area: 2000x3000 mm Laser power: 100-130 W Nedery Uf Aopfx Ac Howr Working table lowering depth: 40 mm Positioning precision: 0,03 mm Machine size: 2400 x 3750 x 800 mm Packing size: 3860 x 2540 x 1020 mm Weight: 1075 kg Virmer provides not only prime machines but also service and delivery. Our engineers and managers are ready to answer all of your questions and provide video assistance if required. Also, owners of Wattsan equipment get lifetime online support. Virmer is located in the Netherlands and works all over Europe. Virmer is Wattsan's official supplier. We provide not only laser engravers, but also metal cutters, welders, markers and cleaning machines. Wattsan is a Chinese manufacturer, which has been creating laser equipment for almost 15 years and keeps evolving with the help of its clients. Thanks to feedback Wattsan made over 50 modernizations, which made machines more reliable, precise and powerful so you could upgrade your business up to the new level. YOU CAN WRITE OR CALL US! WE WILL SELECT THE RIGHT MACHINE FOR YOUR TASK On our company you can find a wide range of machines and components: Laser Metal Cutting Machine; Laser Metal Machine, Fiber Metal Laser, Fiber Metal Laser Engraver; CNC laser machine for metal; Laser machine for wood; CNC laser machine; Laser engraving machine; Laser engraver; Laser cutting machine for plywood; Laser engraver; Laser cutting machine for metal; CNC milling machine; laser marker. Lenses; Chillers; Cooling system for machine; Chiller S&A ; IPG laser, MAX photonics, Raycus; Compressor; Rotary device; Mirror for laser machine.

Condition: used, Year of construction: 2007, turning diameter 140 mm turning length 615 mm control C200-4D spindle passage 65 mm turning speeds 5.000 U/min max. torque at 40% / 100% load 145 / 105 kW turret-slide 1,2 und 3 x-travel 110 mm z-travel 360 mm y-travel 70 mm rapid traverse X/Y/Z 25/12/45 m/min slide travel X-axis 150 mm Z- Travel 600 mm turning speeds 5.000 U/min B - axis B-Korrekturachse +/- 1 ° tool turret - number of stations 3 x 12 tool taper DIN 69880 VDI 25 x 48 C-axis 0,001 ° total power requirement 61 kW weight of the machine ca. 6,5 t Nwedjwzynqepfx Ac Her dimensions of the machine ca. 9,75 x 3,10 x 2,85 m Loading: Breuning Profimat 65.8x270/8 multi-channel loading magazine, built in 2005 for bars with lengths of 500–3,000 mm, 8 guide channels with spindle insert tubes (Ø 16, 25, 30, 40, 45, 55, 60, 65 mm) Unloading: BREUNING ILS-REX-7208 automatic workpiece unloader, built in 2007

Condition: excellent (used), CNC INFOTEC Machining center Model: 3121 3-axis Year of production: 2016 Machine working area dimensions for axes X and Y: X: 2200 mm Y: 3100 mm Head stroke in the Z axis: 250 mm Machine working speed X, Y, Z: X: 60m/min Y:60m/min Z:12m/min Vacuum table Price of a new machine: approx. 75.000 € Nedpfxjun Rqye Ac Hswr Price: 27.900 €

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Nsdpfxswidp Io Ac Hjwr

Condition: excellent (used), Year of construction: 2012, - 3-axis CNC center SCM Pratix S - model PRATIX 12B from 2012. - Range X, Y, Z axes: 2500x1250x150+ mm - Number of tool spaces in the magazine: 8 - Machine table: Raster aluminum table, 2 sections. Nwedouu Ntgjpfx Ac Hsr - Control: PC control - Software: SCM NESTING, SCM XILOG MAESTRO - Serial no.: AH/115920 Number of milling axes: 1 Drilling unit: 1 - practically unused Maximum spindle speed: 24,000 rpm Tool holder: HSK-F63 Main engine: 6.6 kW Table measurements: 130 cm x 260 cm Portal construction: Machine with movable portal Vacuum pumps: 2 pcs. BECKER from 2012 - one placed outside, the other installed in the machine. Vacuum pump capacity m³/h: 240/280 m³/h. Interface for reading CAD format (.dxf) Security: Rejects Weight approx. 2,500 kg Length: 5,900 mm Width: 2,790 mm Height: 2,190 mm Automatic tool length measurement
