Fan-Blower

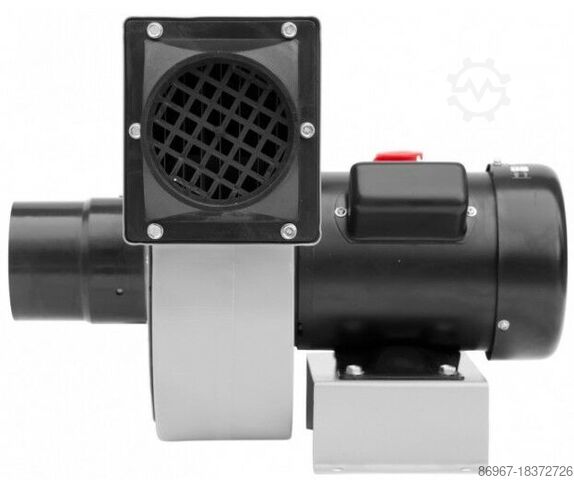

CORMAK FM230N

The FM 230N transport fan is a professional solution for the local extraction of sawdust, wood chips, and dust generated during wood processing. Its compact design, durable motor, and high efficiency make this sawdust blower an ideal component of dust extraction systems in carpentry shops, workshops, and for single- or multi-spindle machines.

Key Advantages

Effective sawdust extraction – capacity of 1000 m³/h enables efficient removal of contaminants directly from the workplace

0.75 kW motor – provides adequate torque with low energy consumption

High impeller speed – 2950 rpm ensures intensive airflow

Bcedpfxsvu Ad Aj Afcow
100 mm inlet diameter – allows easy connection to commonly used machines and systems

Low weight (15 kg) – facilitates easy transport and installation at various workstations

Design and Technology

The FM 230N fan features a closed, welded steel construction with the impeller mounted directly on the motor shaft. This design eliminates power losses associated with belt drives and minimizes vibration. The housing has been optimized for airflow, ensuring stable operation even during continuous use.

The electric motor is powered by 230V at a standard frequency of 50 Hz, allowing universal application in most workshops without the need for three-phase power installation.

Precision and Performance

The FM 230N is designed for highly efficient transport of air containing lightweight wood particles. Thanks to its optimized impeller and airflow channel, the unit minimizes air resistance, enabling uninterrupted operation even with large volumes of chips and sawdust. It performs equally well as a transport fan for sawdust or as a local blower supporting woodworking machines.

Applications

The FM 230N is suitable for carpentry workshops, furniture manufacturing plants, and production facilities using machines that generate dust. It can operate independently or as part of a larger dust extraction system. Particularly recommended for use with:

planers and jointers

thickness planers

spindle moulders

edge banders

circular saws

Standard Equipment

powder-coated steel housing

100 mm inlet port

stable mounting base

single-phase 230V motor

Optional Equipment

100 mm flexible hoses

dust collection bags

Technical Specifications
Parameter Value
Motor power 0.75 kW
Speed 2950 rpm
Extraction capacity 1000 m³/h
Inlet diameter 100 mm
Outlet diameter 110 mm
Voltage / Frequency 230 V / 50 Hz
Dimensions (L × W × H) 430 × 400 × 340 mm
Weight 15 kg
