220L Sandblaster - TOP open + DC23

CORMAK KDP220 TOP + odciąg DC23

The KDP220TOP blasting cabinet is an industrial sandblasting machine designed for professionals looking for a precise, safe, and efficient solution for surface treatment. Thanks to its top-opening design with telescopic cylinders and a spacious working chamber, this model is ideal for blasting wheels, engine components, hinges, and steel structures. The integrated DC23 dust extraction system ensures a clean and comfortable working environment in industrial conditions.

Main Advantages of the Machine
Top-opening cabinet with telescopic cylinders – makes loading heavy and large components easier.
Efficient working chamber – provides 220 litres of internal volume.
Professional blasting gun with four interchangeable ceramic nozzles (4, 5, 6, and 7 mm).
Dust-free operation – thanks to perimeter seals and an effective dust extraction system.
Wear-resistant integrated working gloves – provide safe and comfortable operation.
Efficient internal lighting system – improves visibility during blasting operations.
Compatible with various abrasives – including corundum, quartz sand, glass beads, and abrasive granulates.
Blasting hose located in the lower part of the tank – improves ergonomics and ease of use.
Construction and Sandblasting Technology

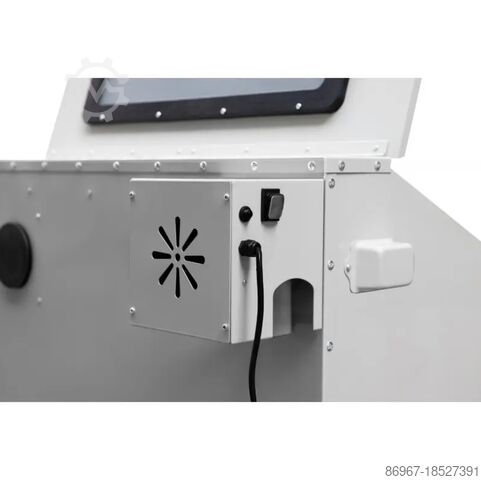

The KDP220TOP blasting cabinet is a robust steel construction designed for intensive industrial use. The upper lid supported by telescopic cylinders simplifies loading and unloading operations, while the large front door with a rubber perimeter seal ensures excellent chamber tightness.

The viewing window measuring 540 x 250 mm, equipped with replaceable protective films, provides a wide working field without blind spots. The interior features a stable support grid and efficient lighting, allowing precise control of the cleaning process.

Dust Extraction System – DC23

The integrated DC23 dust extraction system efficiently removes fine dust particles from inside the cabinet, improving operator safety and working comfort. The 16-litre bag filter captures solid particles, while the powerful 1200 W motor and vacuum pressure above 12 kPa ensure effective separation of contaminants. The flexible 2-metre connection hose allows convenient installation of the extraction system.
Bodpfjvzqf Ujx Aqwoll

Standard Equipment
KDP220TOP blasting cabinet
Blasting gun with 4 ceramic nozzles (sizes 4, 5, 6, and 7 mm)
4 protective films for the viewing window
Rubber gloves integrated with the cabinet housing
12 V working light powered by 230 V supply
Two extraction connections: 63 mm and 90 mm
Stable internal working grid
DC23 dust extraction system with filter and connection hose
Polish-language operating manual
Technical Specifications – KDP220TOP Blasting Cabinet
Parameter Value
Air consumption 400–700 L/min
Maximum operating pressure 8 bar
Air connection 1/4" quick coupling
Abrasive tank capacity approx. 18 kg
Extraction connection diameter 63 mm
Viewing window area 540 x 250 mm
Front height 370 mm
Internal cabinet dimensions (L x W x H min–max) 840 x 550 x 370–550 mm
External cabinet dimensions (L x W x H min–max) 890 x 560 x 1118–1380 mm
Weight 49 kg
Technical Specifications – DC23 Dust Extractor
Parameter Value
Model DC23
Voltage 220 V
Power 1200 W
Vacuum pressure >12 kPa
Inlet diameter 45 mm
Filter capacity approx. 16 l
