CORMAK NST2131-16D CNC milling machining

CORMAK NST2131-16D

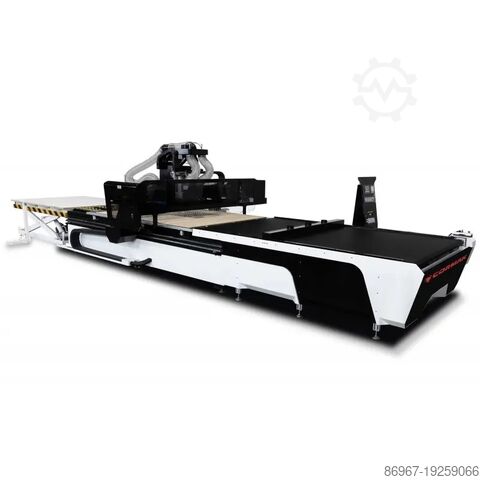

The CORMAK NST2131-16D LOADING/UNLOADING CNC milling machine machining center was created for companies that prioritize high processing power, economic efficiency and machine reliability. This automatic nesting center offers huge possibilities, especially in its most popular version, equipped with an innovative storage and pushing unit, enabling smooth loading and unloading of boards with a full working area and effective collection of finished elements on a specially adapted table.

Thanks to the use of a reinforced structure and solid components, the CORMAK CNC Router is able to cut several boards simultaneously in one cycle, ensuring continuous production even in the case of heavy loads.

The attributes of this advanced machine include those ensuring precise and very fast processing of materials:

pneumatic pins, strips and actuators ensuring automatic plate basing
efficient milling unit

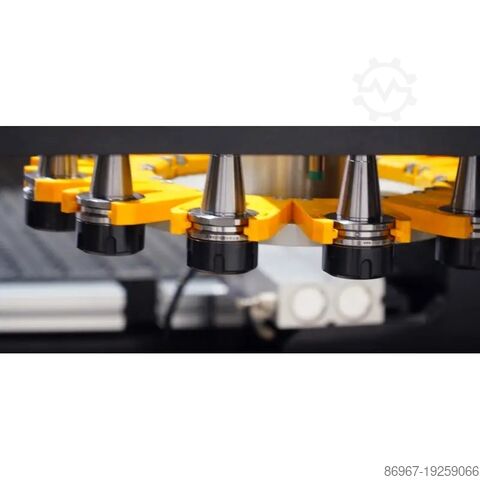

intelligent quick selection of tools from the 12-piece "revolver" type magazine
LCD control panel with industrial control software included
Siemens, Schneider and Phoenix electronics
feeder and receiver table - ADDITIONALLY PAID OPTION

In addition, the center is equipped with an advanced nesting algorithm and tool path optimization, which allows for flexible production and efficient use of materials. The vacuum chip extraction system and the central lubrication system ensure not only cleanliness and safety of work, but also long-term reliability of the machine.
Hfodjwn Dz Iopfx Afpsn

Overall, the CORMAK NST2131-16D CNC milling machine machining center is an ideal solution for companies looking for efficient, reliable and versatile machines for processing materials, capable of meeting even the most demanding industrial productions.

Technical parameters

Field Working 2100x3100 mm
Z axis 300 mm
INOVANCE servo drives (1.3kw for XY, 850w for Z-axis), with planetary gear
Spindle power 9 kW
HQD air-cooled spindle (optional oil mist)
Spindle speed from 6000 to 24000 rpm
Power supply 400 V, 3PH, 50HZ
Re-positioning accuracy 0.01 mm
Linear bearings trapezoidal rails, Hiwin carriages
Vacuum, hybrid material clamping
Vacuum pump 2x7.5 kW (optional)
SYNTEC 60WE software
Dimensions 10300x3600x2430 mm
Weight 2050 kg

Equipment

HQD spindle air cooled, Premium version
Tool measurement sensor included
Tools, sleeve set, leveling feet and other accessories
