Electric mast truck

CORMAK Q12E30

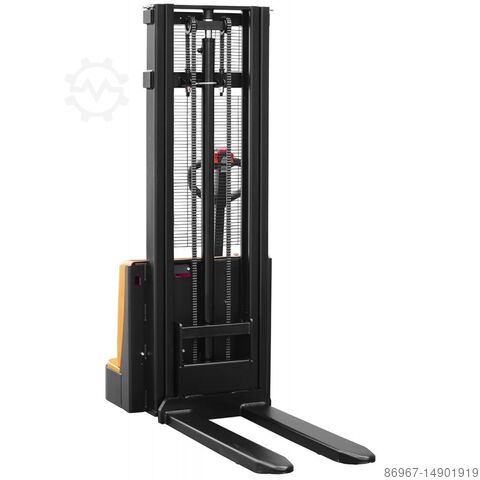

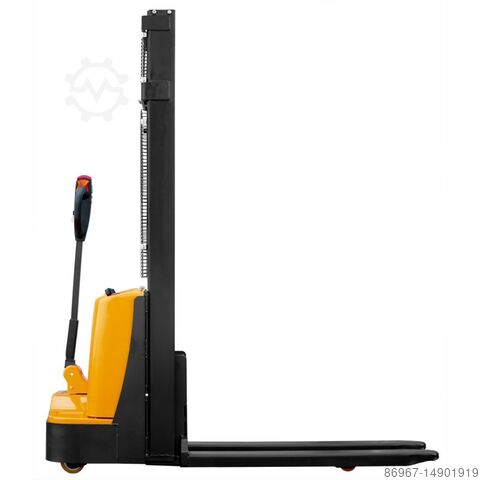

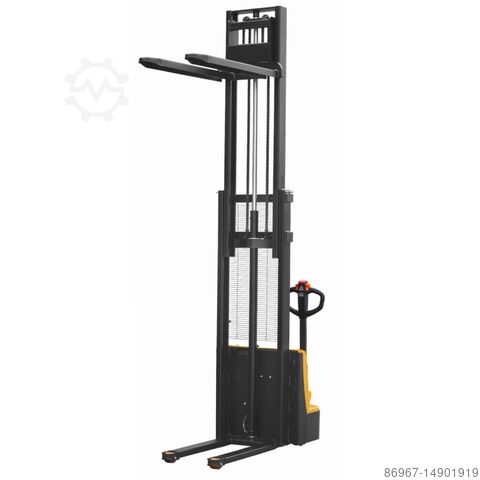

Electric Mast Pallet Truck Q12E30

The Q12E30 electric mast pallet truck is an innovative solution that combines advanced technology with exceptional ease of use. Its main advantages are a 1200 kg load capacity and a 3000 mm lifting height, making it an indispensable tool for warehouse operations. Thanks to its compact design and a total height of only 2080 mm, the truck is perfectly suited for narrow aisles, limited spaces, and environments with restricted height clearance. It is ideal for use in warehouses, distribution centers, and other logistics environments.

Main advantages of the Q12E30 electric mast pallet truck
1200 kg load capacity – enables safe and efficient transport of medium-sized loads, both vertically and horizontally.
3000 mm lifting height – allows convenient lifting of goods to higher storage levels, improving storage and transport efficiency.
Designed for narrow spaces – the compact construction allows easy operation in confined areas and passage through standard doors.
Polyurethane wheels – provide long service life, excellent wear resistance, and quiet operation, improving working comfort, especially in noise-sensitive environments.
High operating safety – equipped with an emergency stop switch, belly safety switch, and LED battery charge indicator to ensure safe operation.
Construction and technology

Gbedpfxjrh Ey Us Aixer
The Q12E30 electric mast pallet truck has been designed for intensive operation in demanding working conditions. The 0.75 kW drive motor provides sufficient power for transporting loads, while the 2.2 kW lifting motor enables fast and precise lifting to the required heights.

The truck is powered by two 12V 85Ah batteries, providing long operating time on a single charge. The integrated charger and rectifier allow convenient charging anywhere, reducing downtime caused by lengthy charging processes.

The advanced electrical system, durable construction, and precise control ensure reliable operation in warehouses and logistics facilities.

Standard equipment
Q12E30 electric mast pallet truck with electric drive and lifting system
Built-in charger and rectifier
Polyurethane wheels ensuring quiet operation and durability
Emergency stop switch and belly safety switch
“Turtle mode” travel function for precise maneuvering
Technical specifications
Parameter Value
Maximum lifting height 3000 mm
Load capacity 1200 kg
Load center 600 mm
Fork length 1150 mm
External fork width 550 mm
Height with lowered forks 2080 mm
Height with raised mast 3550 mm
Lowered fork height 85 mm
Overall width 800 mm
Overall length 1800 mm
Ground clearance 30 mm
Turning radius 1390 mm
Travel speed with/without load 3.5 / 4.0 km/h
Lifting speed with/without load 100 / 200 mm/s
Lowering speed with/without load 120 / 100 mm/s
Gradeability with/without load 3 / 10%
Service brake type Electromagnetic
Drive motor power 0.75 kW
Lifting motor power 2.2 kW
Battery voltage / capacity 12V 85Ah × 2
Wheel material Polyurethane
Weight 460 kg
