Electric pallet truck

CORMAK Q15-2 1500kg Li-Ion widły 800mm

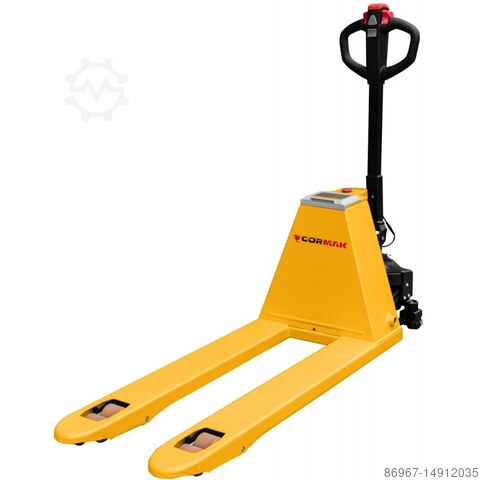

CORMAK Electric Pallet Truck

The CORMAK electric pallet truck is an advanced transport solution designed for easy handling of heavy pallets and loads in warehouses, production halls, and other logistics environments. With a 1500 kg load capacity and an electric lifting system, it provides high efficiency, precision, reliability, and improved operator comfort.

Main advantages of the electric pallet truck
1500 kg load capacity – enables the transport of heavy loads while maintaining full stability and safety.
Electric lifting system – provides smooth and precise lifting of loads up to 190 mm, eliminating physical effort for the operator.
Easy maneuvering – the electric drive system ensures quiet and efficient operation without requiring manual force.
Speed control potentiometer – allows precise adjustment of travel speed according to working conditions and warehouse traffic levels.

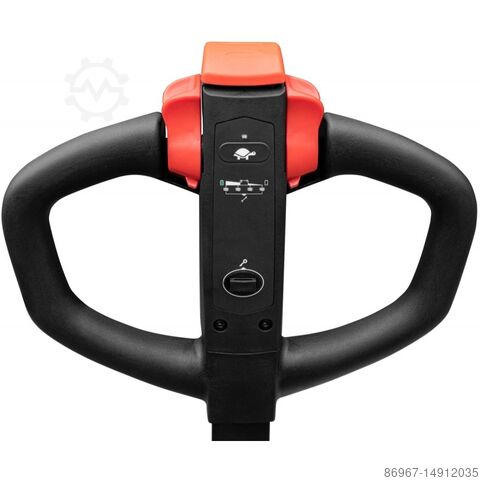

“Turtle mode” – enables slower and controlled movement, ideal for precise operations in narrow spaces.
Integrated safety systems – electromagnetic brakes, belly safety switch, horn, and protective functions ensure a high level of operator safety.
Construction and technology
Codpfericvdox Ah Rsrg

The CORMAK electric pallet truck is equipped with a 24V/20Ah lithium-ion battery, providing up to 3 hours of operation on a single charge and fast charging in only 2.5 hours. This allows the truck to return to operation quickly, increasing productivity and reducing downtime in intensively used warehouses.

The truck is fitted with polyurethane wheels with a diameter of 80/210 mm, providing excellent traction, wear resistance, and smooth movement. This ensures stability and comfortable operation, even on smooth warehouse surfaces.

Precision and work efficiency

The CORMAK electric pallet truck allows precise maneuvering even in crowded working areas. Thanks to the speed control potentiometer, the operator has full control over travel speed, improving safety and reducing the risk of collisions.

The “turtle mode” function enables slower and more accurate movement, which is especially useful when working in narrow warehouse aisles, loading ramps, or areas requiring precise positioning.

The truck is also equipped with an electromechanical brake, ensuring safe stopping and easy control of movement, even in demanding working conditions.

Standard equipment
24V/20Ah lithium-ion battery
Polyurethane wheels with diameter 80/210 mm
Electromechanical braking system
Speed control potentiometer
“Turtle mode” for precise maneuvering
Charger included
Technical specifications
Parameter Value
Load capacity 1500 kg
Turning radius 1300 mm
Fork height when raised 190 mm
Fork height when lowered 85 mm
Fork length 800 mm
Fork width 550 mm
Wheel diameter 80/210 mm
Battery voltage / rated capacity 24V / 20Ah Li-ion
Operating time on full battery Up to 3 h
Charging time 2.5 h
Drive motor power 0.75 kW
Lifting motor power 0.8 kW
Brake type Electromechanical
Travel speed with/without load 3.5 / 4.5 km/h
Weight 130 kg
Dimensions 1300 × 550 × 1300 mm
