Universal lathe 330x700

CORMAK TU330V 330 x 700

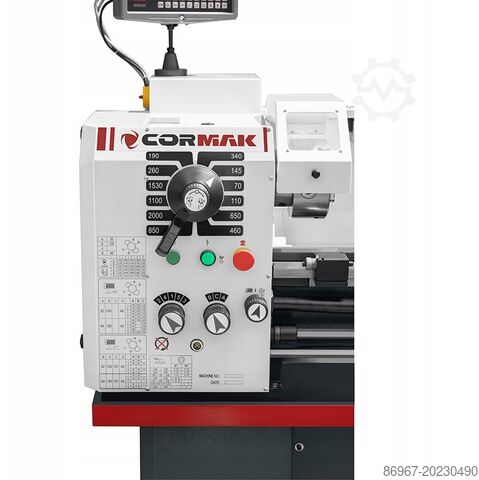

UNIVERSAL LATHE CORMAK 330 x 700 F38 WITH DIGITAL READOUT

The semi-professional universal metal lathe CORMAK 330 x 700V mm is equipped with a 12-speed gearbox and an induction motor (constant speed) 1.1 kW/400V – offering maximum torque. It is recommended for machining hard steels and mechanical turning. It can be used for a variety of tasks such as internal and external surface turning, taper turning, polishing, metric and inch threading, drilling, and broaching.

Fsdpfx Ajxlpm Ijfpegh
Technical Specifications:

Max. turning diameter over bed: 325 mm

Turning length between centers: 700 mm

Max. installed workpiece length (lathe chuck/center): 700 mm

Turning diameter over cross slide: 208 mm

Bed width: 160 mm

Spindle bore: 38 mm

Spindle taper: MT5

Tool post dimensions: 78 x 78 x 20 mm

Max. tool size: 16 x 16 mm

Top slide travel: 100 mm

Cross slide travel: 153 mm

Longitudinal travel: 800 mm

Spindle end: MT5

Spindle speeds: 12 steps (L/H)

Spindle speed range:

L: 65, 90, 120, 120, 160, 300 rpm

H: 380, 500, 640, 850, 1100, 1650 rpm

Metric threads: (16) 0.25–6 mm

Inch threads: (24) 4–120 TPI

Longitudinal feed range: 0.087–2.218 mm/rev

Cross feed range: 0.019–0.477 mm/rev

Tailstock quill diameter: 32 mm

Tailstock quill travel: 75 mm

Tailstock quill taper: MT3

Motor power: 1.1 kW / 400 V

Dimensions: 1770 x 740 x 1600 mm

Weight: 390 kg

Standard Equipment:

Fixed and follow steady rests

Lathe stand/base

2-axis digital readout (DRO)

3-jaw lathe chuck

Internal and external chuck jaws

Change gears

Cooling system

Lubrication pump

Chuck and tool post keys

Set of service tools

Safety guards compliant with CE standards

Operating manual

CE Declaration of Conformity
