Mortiser Drilling Machine

CORMAK Wiertarka pozioma LBM290PRO/400V

CORMAK LBM290 PRO Horizontal Wood Boring Machine – Precision and Versatility for Professional Woodworking

The CORMAK LBM290 PRO is a precise and multifunctional horizontal wood boring machine designed for intensive operation in woodworking shops, furniture production facilities, and manufacturing plants. Thanks to its stable construction and extensive standard equipment, the machine ensures maximum efficiency and repeatability of drilling operations, even in the most demanding projects.

Main advantages of the machine
Mortising attachment – enables precise production of rectangular holes and slots.
Double-sided tilting of the working unit – allows drilling at any angle within a range of 0–45°.
Four-position spindle head – enables quick changing of drill diameters: 16, 20, 22, and 25 mm.
Two end stops – ensure repeatability and accuracy during series production.

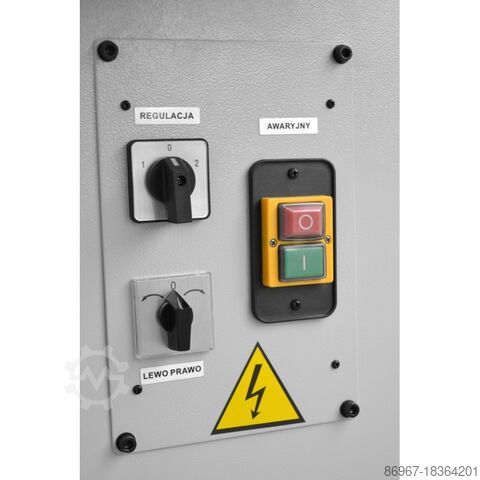

Left/right spindle rotation – increases drilling versatility and allows adaptation to different types of tools.
Easy one-hand operation – an ergonomic lever provides fast and comfortable control of the drilling cycle.
Construction and technology

The CORMAK LBM290 PRO horizontal boring machine is built on a heavy-duty grey cast iron base, which effectively absorbs vibrations and minimizes machining errors. The integrated extendable worktable (600 × 300 mm) allows convenient processing of larger workpieces.

Drilling height and width adjustments are carried out using precise adjustment knobs and guide systems, ensuring smooth and accurate movement of the working unit. The machine is equipped with a professional Westcott drill chuck (0–20 mm) and a complete set of holders for square chisels.

Precision and work efficiency

The machine reaches spindle speeds of 1400/2800 rpm, while the maximum drilling depth is 155 mm. A stable and quiet 4.2 kW (S6) motor provides consistent performance even during long operating cycles.

Horizontal wood boring machines such as the LBM290 PRO are designed for continuous industrial operation – both for individual production and large series of drilling operations for dowels, hinges, and frame joints.
Dkedpfjvuq Hljx Akhsr

Applications

The CORMAK LBM290 PRO horizontal boring machine is designed for:

professional woodworking and furniture production facilities,
manufacturers of furniture fronts and frame components,
workshops specializing in furniture restoration,
woodworking technical training centers.
Standard equipment
Mortising attachment + 1 square chisel 9.5 mm
Four-position spindle head 16/20/22/25 mm
Westcott drill chuck 0–20 mm
Extendable and widened worktable
2 eccentric clamps
Angle stop with measuring scale
4 holders for hollow chisels (shank sizes 19/20/28/30 mm)
Base with tool storage compartment
Left/right spindle rotation
Technical specifications
Parameter Value
Table dimensions 570 × 300 mm
Table extension 600 × 300 mm
Drilling table height 870 mm
Drilling depth 155 mm
Drilling width adjustment 300 mm
Height adjustment 160 mm
Spindle speed 1400 / 2800 rpm
Motor power (S6) 4.2 kW
Power supply 400 V
Two-jaw chuck 0–20 mm
Dimensions 570 × 850 × 1340 mm
Weight 140 kg
