Bench drill

CORMAK WS16

The WS16 table drill with a reinforced structure is a general-purpose drill for performing operations such as drilling, reaming, countersinking, threading (using special holders for tapping tools). Drills enable drilling and threading with multi-spindle holders. The drill is characterized by high efficiency, precision of operations, low noise level, wide range of rotational speeds, centralized control panel facilitating work on the machine and ease of use.

Machine characteristics

High spindle stiffness
Threading by automatic switching of left-hand rotation
Left rotation switch
The headstock, column, table and column base are made of the highest quality seasoned castings
Spindle and gear shafts made of hardened and heat-treated steel
High engine power
Large spindle stroke
Clear control panel
U-type spindle cover with limit switch, CE compliant
Manually lifted work table with 360° rotation and mounting grooves
The belt transmission cover is equipped with a safety limit switch
CE certificate

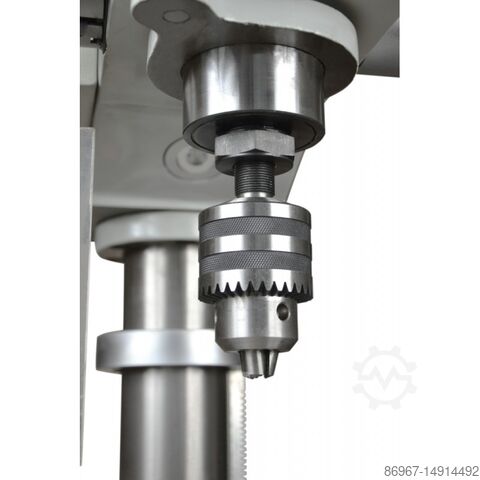

Adjustable drill chuck with key and Morse cone mounting
A wedge for knocking out a cone

Technical data
MAX. DRILLING DIAMETER IN STEEL
16mm
MAX. THREADING DIAMETER IN STEEL
M10
COLUMN DIAMETER
70mm
SPINDLE TRAVEL
100mm
SPINDLE-COLUMN DISTANCE
193mm
MAX. SPINDLE-TABLE DISTANCE
330mm
MAX. SPINDLE-BASE DISTANCE
613mm
SPINDLE MOUNTING
MK2
ROTATION SPEED RANGE
480-1875 rpm
NUMBER OF ROTATIONAL SPEEDS
5
TABLE DIMENSIONS
265 x 285 mm
BASE DIMENSIONS
Cederif S Repfx Abwehc
360 x 480 mm
MACHINE HEIGHT
1130mm
ENGINE POWER
1.1 kW
POWER
400V
NET WEIGHT
131.5 kg
DIMENSIONS
600 x 400 x 1150 mm

Optional equipment
cooling system
