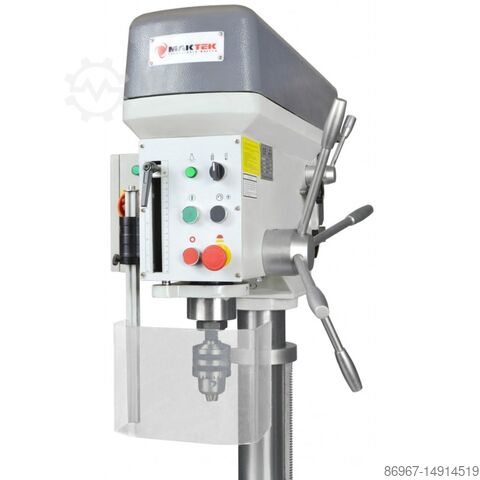

Bench drill

CORMAK WS20B

The WS20 table drill with a reinforced structure is a general-purpose drill for performing operations such as drilling, reaming, countersinking, threading (using special holders for tapping tools). Drills enable drilling and threading with multi-spindle holders. The drill is characterized by high efficiency, precision of operations, low noise level, wide range of rotational speeds, centralized control panel facilitating work on the machine and ease of use.

Machine characteristics
SPINDLE AUTOFEED
High spindle stiffness
Threading by automatic switching of left-hand rotation
Left rotation switch
The headstock, column, table and column base are made of the highest quality seasoned castings
Spindle and gear shafts made of hardened and heat-treated steel
High engine power
Large spindle stroke
Clear control panel
U-type spindle cover with limit switch, CE compliant
Manually lifted work table with 360° rotation and mounting grooves
The belt transmission cover is equipped with a safety limit switch
CE certificate
Adjustable drill chuck with key and Morse cone mounting
A wedge for knocking out a cone

Technical data
Chsdpfxerif T Ds Abwsc
MAX. DRILLING DIAMETER IN STEEL
20mm
MAX. THREADING DIAMETER IN STEEL
M16
COLUMN DIAMETER
85mm
SPINDLE TRAVEL
135mm
SPINDLE-COLUMN DISTANCE
260mm
MAX. SPINDLE-TABLE DISTANCE
366 mm
MAX. SPINDLE-BASE DISTANCE
678mm
SPINDLE MOUNTING
MK2
ROTATION SPEED RANGE
280-1875 rpm
NUMBER OF ROTATIONAL SPEEDS
5
TABLE DIMENSIONS
300 x 320 mm
BASE DIMENSIONS
376 x 566 mm
MACHINE HEIGHT
1245 mm
ENGINE POWER
1.1 kW
POWER
400V
NET WEIGHT
179 kg
DIMENSIONS
800 x 450 x 1250 mm

Optional equipment
cooling system
