Pillar drill

CORMAK WS32GP

A powerful and efficient pillar drill for industrial use, 190 cm high. The drill has an efficient cooling system with a metal spout. The machine has the function of automatically changing the direction of rotation while threading. Equipped with 8 ROTATION SPEEDS with a speed range of: 140, 250, 380, 500, 580, 850, 1250, 1960 rpm. Two work tables provide many processing possibilities. The latest generation induction motor with a properly designed belt transmission ensures high power and efficiency of the drill.
Machine characteristics

High spindle stiffness
Threading by automatic switching of left-hand rotation
Left rotation switch
It has 8 rotation speeds
Rotational speed range: 140, 250, 380, 500, 580, 850, 1250, 1960 rpm
The headstock, column, table and column base are made of the highest quality seasoned castings
Spindle and gear shafts made of hardened and heat-treated steel
Built-in LED lamp
High engine power
Large spindle stroke
Clear control panel
U-type spindle cover with limit switch, CE compliant

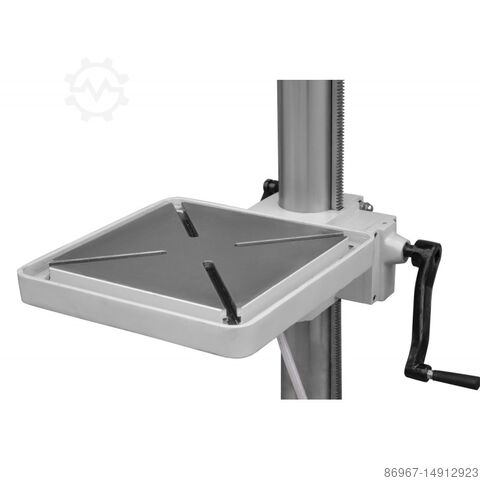

Manually lifted work table with 360° rotation and mounting grooves
The belt transmission cover is equipped with a safety limit switch
CE certificate
Adjustable drill chuck with key and Morse cone mounting
A wedge for knocking out a cone

Technical parameters
MAX. DRILLING DIAMETER IN STEEL
Chjdperidp Nofx Abwjc
32mm
MAX. THREADING DIAMETER IN STEEL
M20mm
COLUMN DIAMETER
100mm
SPINDLE TRAVEL
150mm
SPINDLE-COLUMN DISTANCE
265mm
WORKTABLE LIFTING RANGE
820mm
RANGE OF TABLE ROTATION AROUND THE COLUMN
360°
MAX. SPINDLE-BASE DISTANCE
1235mm
SPINDLE MOUNTING
MK3
ROTATION SPEED RANGE
140, 250, 380, 500, 580, 850, 1250, 1960 rpm
NUMBER OF ROTATIONAL SPEEDS
8
TABLE DIMENSIONS
380 x 400 mm
BASE DIMENSIONS
380 x 400 mm
MACHINE HEIGHT
1900mm
ENGINE POWER
1.5 kW
POWER
400V
NET WEIGHT
310 kg
SIZE OF THE PACKAGE
1040 x 640 x 2050 mm
