Radial drilling machine 1000x32mm

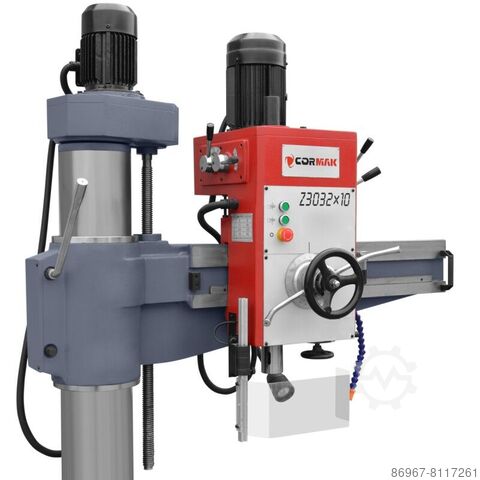

CORMAK Z3032x1000

CORMAK 3040x1300 Radial Drill Press

The CORMAK 3040x1300 radial drill press is an advanced industrial machine designed for precise drilling operations in materials such as steel and cast iron. The machine features a robust column construction and a wide range of radial arm adjustments, providing excellent stability and flexibility when machining large workpieces. Its key advantage is the ability to drill holes up to 40 mm in diameter while maintaining high precision.

Main advantages of the CORMAK 3040x1300 radial drill press
Heavy-duty construction weighing 1400 kg – ensures exceptional stability and vibration reduction, resulting in precise drilling and extended cutting tool life.
Adjustable radial arm with a reach of 360–1300 mm – enables drilling in large and irregular workpieces without repositioning, increasing flexibility and reducing setup time.
MK4 spindle taper with six speed settings (75–1200 rpm) – allows precise adjustment of machining parameters for different materials, enabling drilling holes up to 40 mm in steel and cast iron.
200 mm spindle stroke – allows deep drilling in a single cycle, improving production efficiency.
2.2 kW main motor – provides high torque for reliable continuous operation with optimized energy consumption.
0.75 kW arm lifting motor – enables smooth and fast vertical adjustment of the radial arm at a speed of 1.3 m/min, improving operator ergonomics.

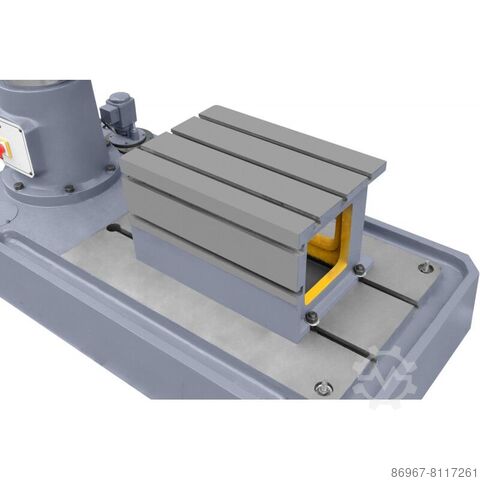

Cube worktable measuring 510 × 380 × 305 mm – allows secure mounting of irregularly shaped workpieces, increasing machining safety and accuracy.
Ergonomic control panel – positioned at the front of the machine for intuitive operation and quick parameter adjustment, minimizing downtime.
Ground column surface – ensures smooth and precise arm movement, eliminating play and improving positioning accuracy.
Manual head and arm locking system – increases safety and stability during drilling by preventing uncontrolled movement.
Three spindle feed rates (0.10, 0.16, 0.25 mm/rev) – provide precise control of the drilling process according to the material and machining requirements.
Standard equipment
B16 drill chuck (3–16 mm)
Drill chuck arbor B16/MK4
Reduction sleeve MK4/MK3
Drift key
Cube worktable 510 × 380 × 305 mm
Operating manual
Technical specifications
Parameter Value
Maximum drilling diameter 40 mm
Spindle axis to column distance 360–1300 mm
Spindle axis to table surface distance 260–1300 mm
Spindle stroke 200 mm
Spindle taper MK4
Number and range of spindle speeds 6: 75, 130, 240, 380, 660, 1200 rpm
Number and range of spindle feeds 3: 0.10; 0.16; 0.25 mm/rev
Vertical arm travel speed 1.3 m/min
Fodpfji D Daqex Akhspk
Arm rotation 360°
Main motor power 2.2 kW
Arm lifting motor power 0.75 kW
Worktable dimensions 510 × 380 × 305 mm
Machine dimensions 800 × 1800 × 2150 mm
Weight 1400 kg
