Bed type

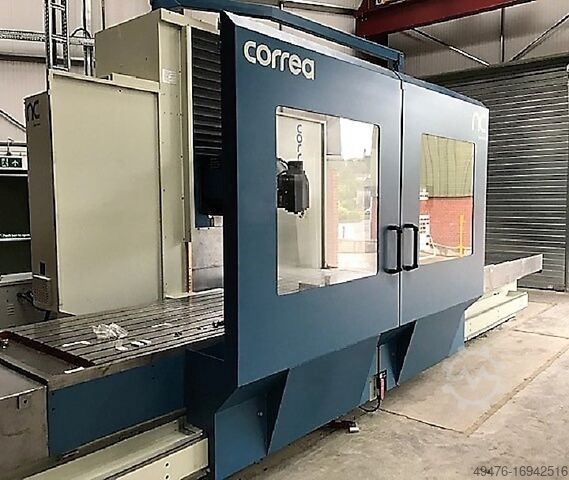

Correa Milling machine CORREA A30/40 - 6300103A30/40

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Model: FMV-1700 Year of Manufacture: 1999 Control System: FANUC Number of Tools: 24 Maximum Spindle Speed: 12000 RPM X-Axis Travel: 1700 mm Y-Axis Travel: 750 mm Z-Axis Travel: 700 mm Other Specifications: BT50 Movement System for Each Axis: Box Machine Weight: 9000 kg Ksdpfx Acjn D Ifisujdw With fourth axis

Condition: excellent (used), Year of construction: 1992, Clamping force 8,000 kN Opening stroke 1,000 mm Clamping platens 1,620 x 1,525 mm Tie bar diameter 180 mm Kdodpfotucrcox Acujw Screw diameter 105 mm Special injection weight 3,740 g Machine weight 65 tons

Condition: good (used), Year of construction: 2006, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: M086, spindle speed (max.): 1,500 rpm, spindle speed (min.): 15 rpm, spindle motor power: 22,000 W, Vertical turret lathe with CNC Control: FANUC Series 18i-TB Number of turrets: 1 Number of tools stations: 12 Kedpfxetmq Uks Acuedw Chip conveyor: 3508734 Boring bar holder: dia. 50 mm The machine is still under power.

Condition: used, Year of construction: 1988, Technical details: turning diameter over bed: 360 mm turning dia. over face-slide: 160 mm turning length: 800 mm longitudinal traverse (z-axis): 810 mm facing movement (x-axis): 205 mm control: TX-8 spindle passage: 60 mm revolution per minute: 63 - 3150 / 2 step U/min feed:: 10.000 mm/min. tool turret - number of stations: 8 operating hours - idle run: 8834 h tailstock taper ISO: SK30 DIN 2080 tailstock quill stroke: 105 mm Kdjdpfx Asu Rqabjcuew operating pressure: 40 bar total power requirement: 38 kW Weight approx.: 3,1 t dimension machine xH: 1,8 x 3,3 x 1,8 m dimensions of hydaulic: 580 x 400 x 750 mm Equipment: Lathe chuck Ø 200 mm, hydraulic Feed force Z-axis = 8 kN and X-axis = 5 kN Coolant system control panel Accessories Fine adjustment device for tool set-up *

Condition: like new (used), Year of construction: 1996, Retrofitted: 2023 Numerical control: HEIDENHAIN TNC-426 Kdedpjugbrkofx Acuow Technical features Dimensions Table dimensions: 3000 x 1250 mmNumber of T slots: 8T slots dimensions: 22 mm Traverses of axis X axis traverse: 2500 mmY axis traverse: 1800 mmDistance between columns: 1680 mmZ axis traverse: 800 mm Milling head Head type: Standard vertical spindleTool clamping system: HydraulicTaper nose: ISO 50Speed range: 20 - 2000 r.p.m.Spindle power: 22 kW Feedrates Feedrate: 2 - 5000 mm/minRapid feedrate (X / Y,Z): 15000 / 12000 mm/min Weight and dimensions Max Weight on table: 10000 kgMachine weight: 21500 kgMachine dimensions: 7300 x 2690 x 3400 mm Accesories Guarding: YesCoolant: ExternalElectronic handwheel: HR-330 Sales conditions Warranty: 6 months mechanical partsSale price (Ex Work): On request View all technical features

Condition: good (used), Technical specifications: -table surface: 400 x 1400 mm - longitudinal movement of the table - X axis: 1000 mm - lateral movement of the table - Z: 450 mm Kodpfx Asv E Nafocuodw -vertical table movement - Y axis: 400 mm -spindle cone: ISO 50 -Spindle speed: 35.5 - 1800 rpm total machine power: 11 kW

Condition: used, Year of construction: 1999, turning diameter 450 mm turning length 380 mm Ksdjvanvnspfx Acusdw control FANUC

Condition: excellent (used), Year of construction: 1999, CNC horizontal machining center DECKEL MAHO DMC 60 H SIEMENS CONTROL Year of manufacture: 1999 Technical data: Kdsdpfx Aovn Ra Sjcuew X-axis: 600mm Y-axis: 560mm Z-axis: 560mm B-axis: 360° Pallet: Number: 2 Size: 400x500mm Permissible load: 600kg Weight: 10,500kg

Condition: excellent (used), Year of construction: 1985, functionality: limited functionality, Description Technical information Swing over bed 420 mm Distance centre tot centre 1000 mm Max longitudinal travel Z-axis 1028 mm Max cross travel X-axis 335 mm Spindle coneA2-6 Dia of spindle bore 56 mm Power on the spindle20/25 hp Number of speeds16 - 4000 rpm CommandMazatrol Cam T3 Total power needed18,5 kW - 32,9 kVa Length 3734 mm Width 1893 mm Height 2401 mm Weight 4400 kg Toolchanger yes Number of tools 16x - rotating yes milling tools Kjdpovk E Ayofx Acujdw C-axis Robo flex automatic loading system tooling included Measuring arm included MAZATROL CAM T-3 CNC Accessories Tailstock, Evoquator, Tool Attachments, Presetting Machine weight 4700 kg Axis C Yes

Condition: used, Year of construction: 1990, weight 4 t X - Y + Z-axis each 410 mm kN Kodjuu S R Uspfx Acusdw control Fanuc Axis 4
