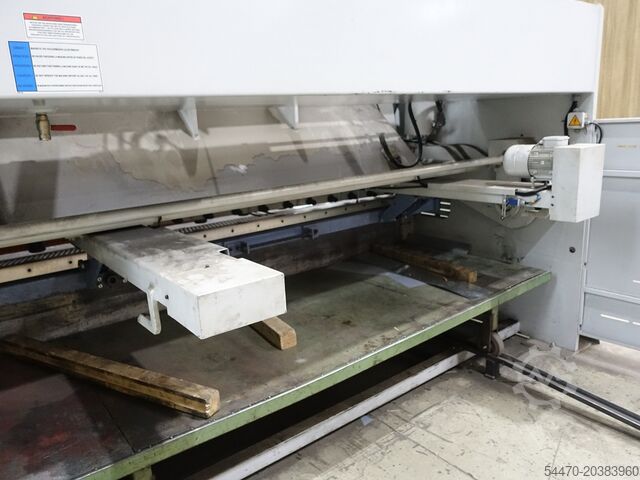

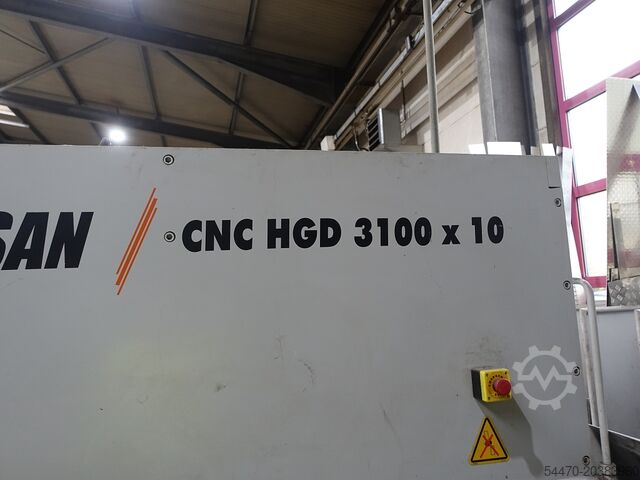

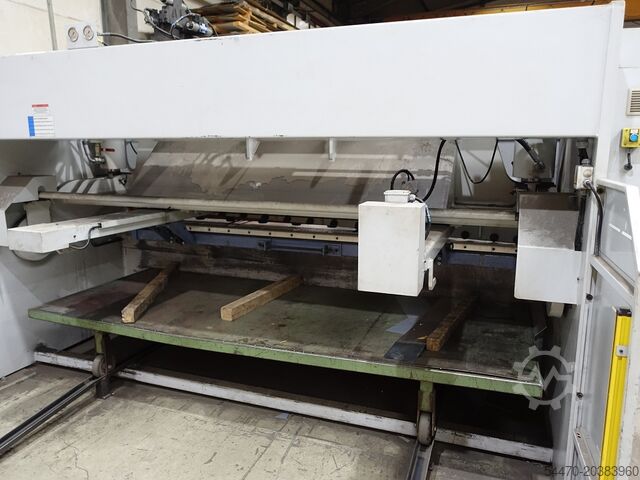

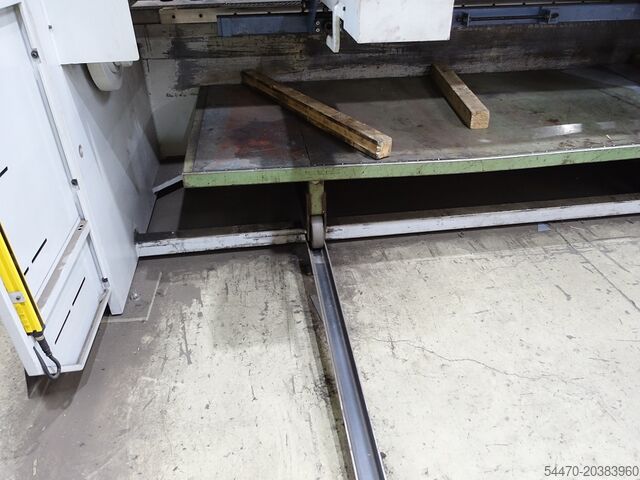

Plate shear hydraulic

Ermak HGD 3100 x 10

Condition: new, Sheet width 3100 mm sheet thickness 10 mm Dkjdpfjk Tzztsx Aktjn cutting angle 2 ° Hold down 14 pieces Stroke rate 13 strokes/min throat 350 mm Oil capacity 260 l Control CYBELEC CybTouch 8 Total power requirement 22 kW Machine weight approx. 10.550 kg space requirement approx. 4000x2250x2050 mm Equipment: - Hydraulic swing cut plate shear - touch screen controller with digital display for backgauge - automatic cutting gap adjustment via controller - backgauge control 1000 mm travel with ball screws - Swing cut machine with cutting gap adjustment - 2 backgauge arms - 1 side stop - light barrier behind the machine - cutting length limitation - cutting line illumination - chrome steel knives - ball rollers in the table - hinged finger guard with limit switch - foot switch - CE-sign / declaration of conformity - Operating instructions in German

Year of construction: 1987, condition: used, Kehren rotary table type RS 7C, second-hand manufacturer: Kehren, Honneff Comm.: 4179 year of construction: 1987 Control: Siemens 3G SPS: Siemens S5 Dedpfx Akehgmwgotokn grinding motor: BBC QUB 200 rotary table ø: 750 mm ø grinding head:460 mm Control panel with screen Coolant system Flushing pump Coolant pump Automatic paper belt filter system Control cabinet

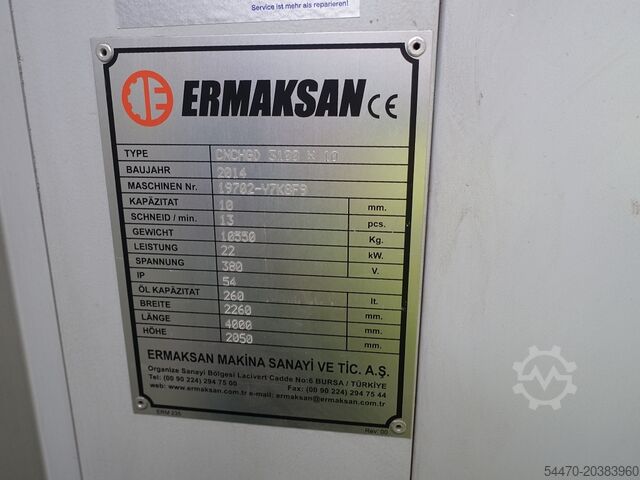

Condition: excellent (used), Year of construction: 2014, actuation type: hydraulic, working width: 3,100 mm, stroke rate (min.): 13 1/min, sheet thickness (max.): 10 mm, table height: 800 mm, back gauge: 1,000 mm, power: 22 kW (29.91 HP), Equipment: CE marking, emergency stop, finger protection, foot remote control, safety light barrier, We hereby offer you a hydraulic swing beam shear of the brand "ERMAKSON", used, in very good condition. Dodexvinmopfx Aktekn Please feel free to contact us for a quote.

Condition: excellent (used), Year of construction: 1987, Schaublin 125 C precision lathe Year: 1987 Center height 125 mm Center width 500 mm Speed 45 - 3000 rpm Feed rate 4 - 260 mm/min Spindle nose Camlock D1-3" Tailstock cone MK 2 Turning diameter over bed 250 mm Turning diameter over face slide 120 mm Top slide travel 100 mm Cross slide travel 180 mm Dimension (W x D x H) 1500 x 850 x 1300 mm Weight approx. 950 kg Dkedjy Avyxopfx Aktsn Accessories/options: tool holders Röhm chuck 125mm documentations

Condition: ready for operation (used), Year of construction: 2022, spindle speed (max.): 5,000 rpm, travel distance Y-axis: 120 mm, spindle motor power: 22,000 W, number of axes: 4, This 4-axis Okuma LB 3000 EXII was manufactured in 2022. It features a spindle speed of 5,000 rpm and a spindle power of 22 kW. The machine includes a 12-position motorized turret and a Y-axis travel of 120 mm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 EXII horizontal turning machine we have for sale. Contact us for further details. Dedpfx Akoyq Ngmotokn • Control: OSP P 300LA • Spindle: ASA 6" nose (bore 80 mm, without drawbar); bar capacity 52 mm (Kitagawa SR1453 cylinder); electric spindle orientation • Axes: Y-axis travel 120 mm ; C-axis rotation 360° (0.001° increment) • Turret: 12-position radial, motorized; turret motor 6,000 rpm, 7.1 kW • Tailstock: CM5; 500 kgf thrust; rotating tip • Pedals: Separate for spindle and tailstock • High-pressure coolant pump: 0.8 kW; 6 bar; 20 l/min • Tool presetting: Manual • Programming: Conversational IGF

Condition: excellent (used), Flexible N.C. automatic line for drilling, routing and inserting (hardware). Numerical control with Albatros software. Consisting of: KZ2046) Infeeder with hedgehog (buffer) store (18 positions) KZ2047) Transfer with motorised conveyoring belt KZ2048) CNC Mod. Vector GLR-X 30-13 Dedeidmkrspfx Aktokn KZ2049) Transfer with motorised conveyoring belt KZ2050) CNC Mod. Vektor XK 40-13 KZ2051) Transfer with motorised conveyoring belt KZ2052) CNC Mod. Idrak 3 KZ2053) Transfer with motorised carpet with 90° inclination on a rollers table KZ2054) Rollers conveyor with also motorised belts (to move panels at 180° to the assembly lines)

Condition: new, sheet thickness: 8bending length: 2600upper roll diameter: 210 Technical specifications: - Hardened and polished rolls - Complete body made of ST-52 Steel - Machine have 4 rolls and designed for symmetrical working principle - Hydraulic powered cover for easy material extracting - Digital readout for side rolls (2 digital readout) - Side rolls are free for rotation and upwards downwards movements are hydraulic powered - Top and bottom rolls are driven by hydraulic and gearbox. Bottom roll’s vertical movements are hydraulic powered - Separate control panel form machine - Conic bending device - In accordance for CE norms Options: - variable speed of rotation EURO 4.681,-- - metarial feeding table EURO 3.400,-- - oil coiler EURO 1.040,-- - center support EURO 8.250,-- - side supports EURO 6.600,-- - Automatic material extractor - PLC control - CNC control - Automatic material loading system - Changeable top roll - Adjustable bottom roll support system (for customer’s special requests) Dkodpfx Aod Ab Sfjktjn We have many references!
