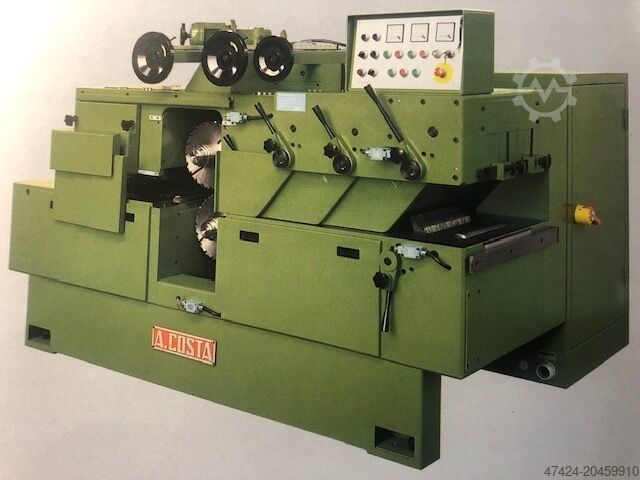

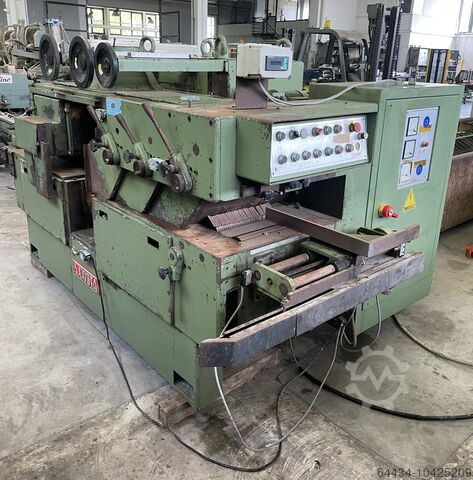

Two-axis multirip circular saw

Costa Leopard

Condition: used, Year of construction: 1986, functionality: fully functional, cutting height (max.): 180 mm, cutting width (max.): 350 mm, saw blade diameter: 350 mm, saw blade bore: 80 mm, disc diameter: 350 mm, A.COSTA LEOPARD /2/75 Cutting width: 350 mm Cutting height: 180 mm Main motors: 2 x 55 kW Feed motor: 5.5 kW Height adjustment motor: 0.37 kW Total power: 0.37 kW Maximum disc diameter: 350 mm Spindle diameter: 2 x 80 mm Sleeve diameter: 2 x 100 mm Minimum element length: 800 mm Electric feed adjustment Automatic central lubrication Electric height adjustment Electric disc height adjustment Six upper pressure rollers Pneumatic clamps Anti-expel latches Weight: ± 5,500 kg 2 spare sleeves and spacers Infeed table: Laodpfx Amswi I Hks Noa Infeed table connected to the main machine. Total length: 400 cm Number of rollers: 2 straight, 14 inclined. TOTAL: 16 lower rollers + 2 upper rollers Upper rollers with pneumatic pressure

Condition: used, A.COSTA LEOPARD multirip saw with double arbor - Max cutting depth: 200 mm - Width of track: 350 mm Laedpfxjvf Dagj Am Noa - 2 x 55 KW / 75 HP - Weight: around 5 tons

Condition: used, functionality: fully functional, type of input current: three-phase, cutting height (max.): 170 mm, cutting width (max.): 380 mm, working height: 170 mm, – Italian manufacture TECHNICAL SPECIFICATIONS: – cutting width: 380 mm – cutting height: 170 mm – motors: 2 x 55 kW – feed motor: 3 kW – height adjustment motor: 1.1 kW – max. blade diameter: 350 mm – spindle diameter: 2 x 60 mm – sleeve diameter: 2 x 80 mm Lodow H R R Hspfx Am Njaa – track width: 350 mm – total power: 114.1 kW – feed speed adjustment via frequency inverter – automatic central lubrication – minimum workpiece length: 800 mm – electric height adjustment – shaft height adjustment – six top pressure rollers – pneumatic hold-downs – five anti-kickback devices – powered lower outfeed roller – connector diameter: 2 x 200 mm – spindle speed: 4500 RPM – machine dimensions (L/W/H): 300 / 220 / 190 cm – weight: approx. 5000 kg

Condition: used, engines - 55 and 55 kW feed motor - 7.5 kW height adjustment motor - 1.1 kW cutting height - 200 mm cutting width - 350 mm blade saw diameter max.- 300 mm spindle diameter - 2 x 60 mm sleeve diameter - 2 x 70 mm track width - 350 mm total power - 119 kW electric feed regulation automatic central lubrication minimum length of the element - 600 mm electric height adjustment shaft height adjustment six upper pressure rollers pneumatic clamps Laodpfx Amjwrw D Rs Nja five anti-ejection pawls ruler stub diameter - 220 mm spindle speed - 4500 RPM dimensions of the machine (length / width / height) - 275 / 235 / 210 cm weight - ~ 7000 kg Feeders: max. cutting length - 1850 mm min. cutting length - 800 mm max. material length - 2500 mm min. material length - 600 mm max. material width - 700 mm max. material height - 200 mm roll width - 700 mm roll diameter - 130 mm number of rolls - 26 3 smooth pressure rollers 4 toothed pulling rollers feed adjustable on the inverter 0-70 m/min. central lubrication of saw guides power of the saw motor - 2 x 9.2 kW feed motor power - 1.5 kW power of the disc spreading motor - 3 kW chain motor power - 1.1 kW dimensions (length / width / height) - 7050 / 2100 / 1850 mm
