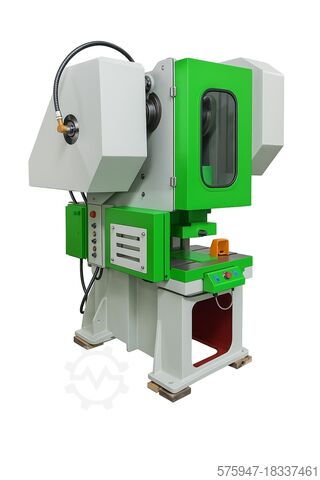

C-Type 35 Ton Eccentric Press MachineCRONOSSTECH
CECP 35
Machine data
- Machine type:
- C-Type 35 Ton Eccentric Press Machine
- Manufacturer:
- CRONOSSTECH
- Model:
- CECP 35
- Year of construction:
- 2025
- Condition:
- new
Price & Location
- Location:
- İkitelli OSB, S6B Blok NO:113, 34490 Başakşehir/İstanbul, TR
Technical details
- Drop-through hole in table:
- 130 mm
- Table width:
- 400 mm
- Table length:
- 600 mm
- Stroke adjustment:
- 70 mm
- Pressing force:
- 35 t
- Ram bore:
- 35 mm
- Power:
- 3 kW (4.08 HP)
- Punching force:
- 35 t
- Warranty duration:
- 24 months
- Equipment:
- safety light barrier
Details about the offer
- Listing ID:
- A183-37461
- Update:
- 02.10.2025
Description
• STEEL CONSTRUCTION BODY
• 4-SURFACE BEARING RECORD
• DUCTILE IRON CONNECTING ROD AND ANGLE BEARINGS
• CRANKSHAFT AND TRANSMISSION SHAFTS 4140 STEEL STEEL
• CENTRAL SYSTEM FULLY AUTOMATIC GREASE LUBRICATION
• PNEUMATIC CLUTCH AND BRAKE COMBINATION
• COMPLIANT WITH CE SAFETY DIRECTIVES
• DOUBLE COIL SAFETY VALVE
• MANUAL ADJUSTABLE STROKE
• AUTOMATIC ADJUSTABLE STROKE BETWEEN 150-300 TONS
• PHOTOCELL PROTECTION CURTAIN
• PLC CONTROL SYSTEM
• TOUCH LCD SCREEN BETWEEN 150-300 TONS
• DOUBLE-HAND PEDAL CONTROL SYSTEM
• MECHANICAL INSURANCE SYSTEM
• HYDRAULIC INSURANCE SYSTEM BETWEEN 200-300 TONS
• EMERGENCY REVERSE MOTOR MOVEMENT
• IN ACCORDANCE WITH OCCUPATIONAL SAFETY REGULATIONS
• VIBRATION PREVENTIVE WEDGE
• COUNTRY OF ORIGIN: TURKEY
• WARRANTY PERIOD: 24 MONTHS
• WE PRODUCE C TYPE ECCENTRIC PRESSES FROM 5 TONS TO 250 TONS.
TECHNICAL SPECIFICATIONS:
PRESSURE (TON) 35
STROKE ADJUSTMENT RANGE (MM) 0-70
NUMBER OF STROKES PER MINUTE (D/MIN-RPM) 115
RAM - REGULATION RANGE (MM) 45
RAM - TABLE DISTANCE (MM) 330
LOWER TABLE DIMENSIONS (MM) 400X600
LOWER TABLE HOLE DIAMETER (MM) 130
RAM TABLE DIMENSIONS (MM) 120X140
Crodpfovtxzzex Agmjh
RAM MOLD EYEBALL DIMENSIONS (MM) 35
MOTOR POWER (KW) 3
WEIGHT (KG) 1500
MACHINE DIMENSIONS (MM) (H - W - L) 1100X1400X1800
SINCE WE ARE A MANUFACTURER, TECHNICAL SPECIFICATIONS CAN BE CHANGED IF REQUESTED.
The listing was translated automatically. Translation errors are possible.
