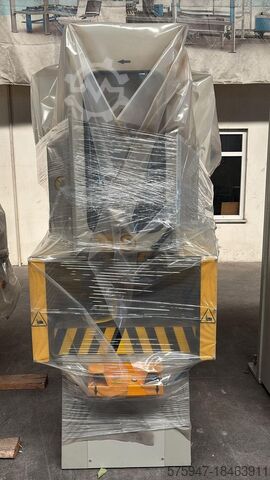

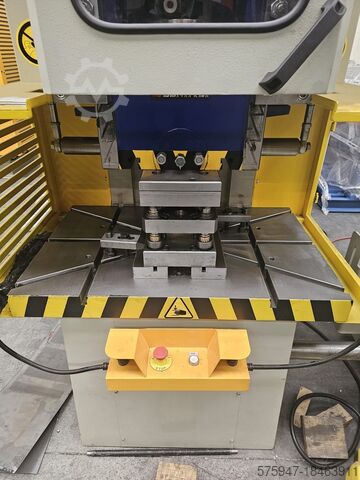

C-type 80 ton eccentric press with rear flywheel

CRONOSSTECH EEPA 80

A TYPE ECCENTRIC PRESSES GENERAL FEATURES
 Steel construction body,
 Stress relief will be applied to the body and welded parts with vibration.
 Parallelism and perpendicularity tolerance between tables in accordance with ISO and DIN standards
 Pneumatic clutch and brake combination – OMPI-Italy
 Ram supported by 8 slides
 Parts such as ram, connecting rod, claw are cast steel, GS52
 High strength solid crankshaft – 4140
 Inside of connecting rod will be bronze, (Zr14)
 With spare table,
 With hydraulic fuse
 Ratchet apparatus table-ram adjustment
 Automatic central lubrication,
 Pneumatic pedal with ratchet and double hand control with time adjustment,
 With electric counter,

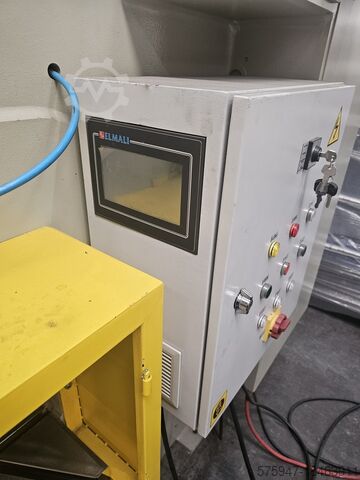

 PLC application and touch screen – DELTA
 Electrical switchgear materials – SIEMENS-SCHNEIDER
 Double coil safety valve – GPA, TOPAIR
 Locked position switch and panel,
 OPTIONAL FEATURES
 CE application
 Finger protection beam barriers – SICK, LEUZE, KEYENCE
 Security PLC (Controls the entire electrical system, valve, double and pedal) – PILZ
 Safety wedge,
 Protective enclosures will be within the scope of CE.
 Speed Control Application
 Automatic Lubrication System
Rsdpovxtgisfx Aazech

BODY A TYPE MONOBLOCK BODY
TYPE A SERIES
Capacity 80 Tons
Throat Depth 280 Mm
Table-Ram Distance 400 Mm
Slide-Table Distance 420 Mm
Wall Distance 470 Mm
Ram Adjustment 85 Mm
Press Width 1000 Mm
Press Depth 1735 Mm
Press Height 2300 Mm
Front Anchor Dimension 720 Mm
Side Anchor Dimension 1040 Mm
Table Hole Diameter 190 Mm
Table Size 540 / 740 Mm
Mold Clamping Housing Diameter 40 Mm
Ram Size 370 / 230 Mm
Floor Table Dimensions 755 Mm
Stroke Adjustment 10 / 100 Mm
Stroke Number/Minute 50 Units/Min.
Motor Power 7.5 KW
Motor Speed 1450 RPM
Weight 4,500 Kg

ROLL UNCOUNTER AND ROLL DRIVER WILL BE PRICED EXTRA IF REQUESTED. IT IS NOT INCLUDED IN THE PRICE OF THE PRESS.
