1550×15 mm - 4 top hydraulic cylinders

CRONOSSTECH SHSB 4R 1550X250

STANDARD EQUIPMENT
Highly suitable for bending light and medium sheet metal, aluminum or stainless steel materials

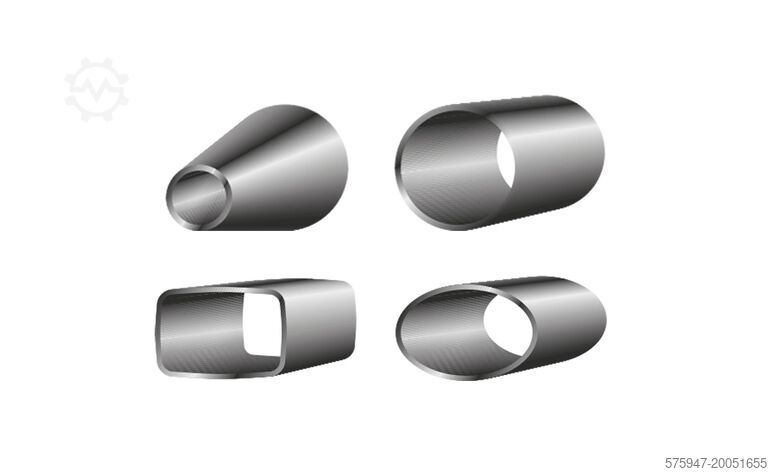

Ideal for bending materials into round and various diameters
Bottom roll and side rolls move directly up and down hydraulically via linear movement
Protected against overloading
Top roll is driven by an electric motor and planetary gearbox. Bottom roll driven by cardan coupling system. Two rolls are drive rolls
Roll positions can be easily read from three digital displays
Hydraulically operated openable head allows easy removal of the bent workpiece
Very easy to use with movable control panel
Welded steel construction body
SAE 1050 (CK 45) induction hardened forged or rolled steel shafts
Conical bending system
Hydraulic balancing system for parallel movement of the rolls
Complies with EU safety standards and CE marked
Operation manual

Codpfx Aboxd S Aiswohc
OPTIONAL EQUIPMENT
Remote assistance with NC control
Overhead crane (hoist) for supporting large diameter bending
Hydraulic side supports for assisting with large diameter bending
Ground and polished rolls
Dual-speed adjustment system
Stepless speed regulation
Return rotation driven by hydromotor
Ejector system

TECHNICAL SPECIFICATIONS
Bending Length: 1550 mm
Pre-Bending: 10/12 mm
Bending Thickness: 12/15 mm
Top & Bottom Roll Diameter: 250 mm
Side Roll Diameter: 200 mm
Min. Bending Diameter: 375 / 1250 mm
Motor Power: 7.5 + 1.5 kW
Bending Speed: 5 m/min
Tank Capacity: 40 L
Length: 3500 mm
Width: 1500 mm
Height: 1370 mm
Weight: 4650 kg
