Brush sander

DANIBRUM DAS LDX 1000 - 6

Improve the quality of your finish with the DAS LDX 1000 – 6 brush sander

The DAS LDX 1000 – 6 automatic machine is designed for precise sanding and finishing of profiled wood or MDF elements, offering excellent results even for the most demanding aesthetic requirements. It is ideal for smoothing, fine sanding and final preparation of surfaces, thanks to the versatile and robust configuration of the 6 working units.

Standard features and technical characteristics:

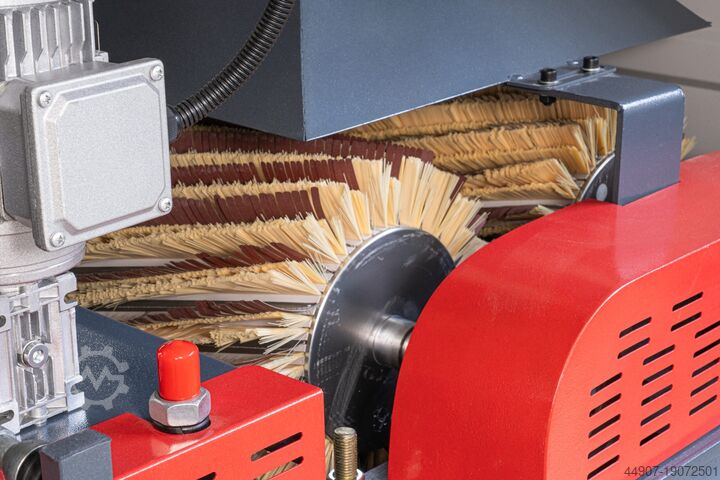

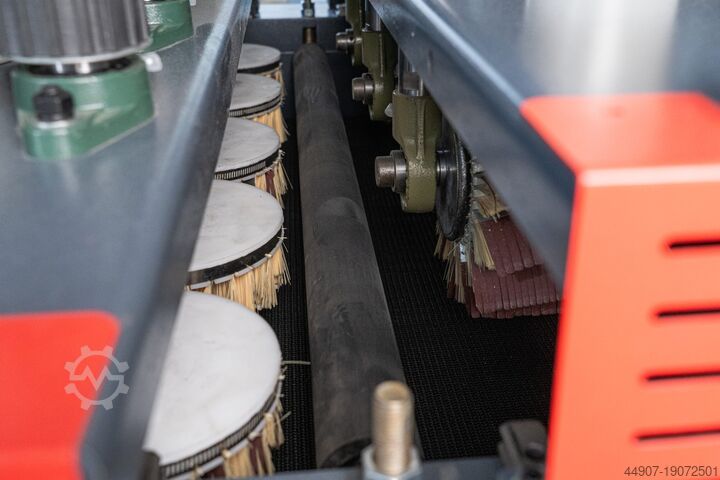

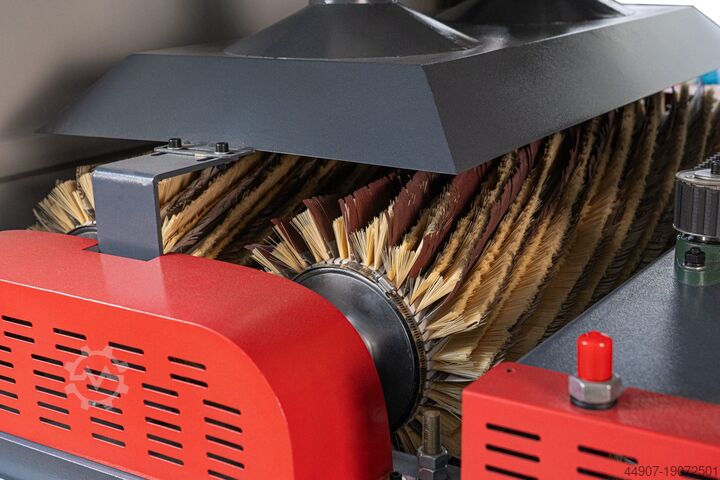

Multiple working units: oscillating longitudinal drums, oscillating pads, transverse drums with Ø 280 mm and width 1000 mm, equipped with 20 helically mounted brushes.

Working capacity: max. width 1000 mm, workpiece thickness max. 100 mm.

Efficient sanding: disc rotation speed between 50 – 300 RPM (adjustable via frequency inverter).

Sanding brushes: adjustable length between 20 – 70 mm, allowing detailed work on profiles with a depth of up to 8 mm.

Touchscreen control panel: Ergonomically positioned, it allows independent control of each unit. The interface is intuitive, developed by DANIBRUM engineers for fast and efficient operation.

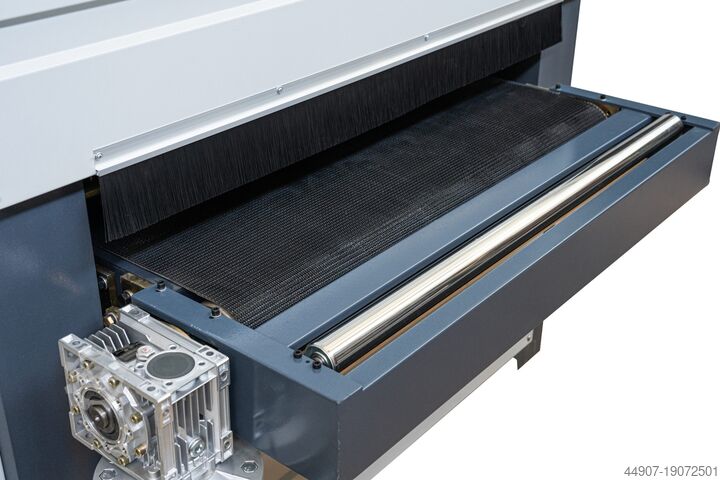

Adherent conveyor belt: Equipped with ribbed rubber for constant advance, driven by a 1.1 kW motor. Includes automatic centering roller, height adjustment sensor and brushes for dust removal at the entrance and exit.

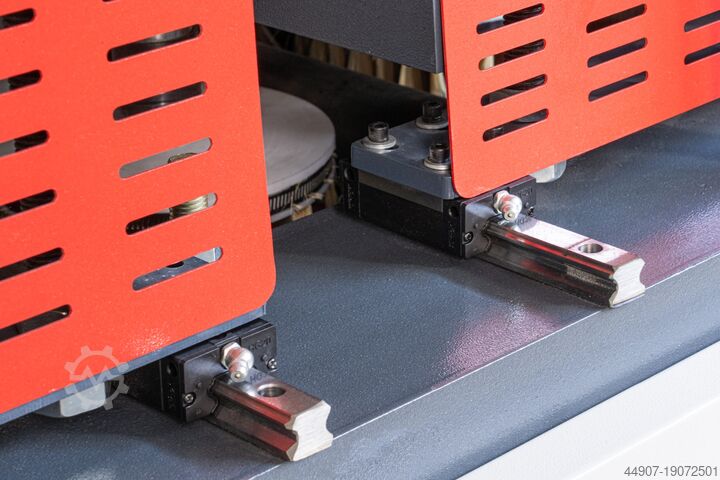

Professional sliding system: Based on recirculating ball bearings, it offers precise, reliable and low-maintenance movement. Lubrication is done manually.

Fedpfx Ajwhbtzjfpegh
Oscillation for sanding units: Ensures uniform finishing and prolongs the life of abrasive belts and sisal brushes.

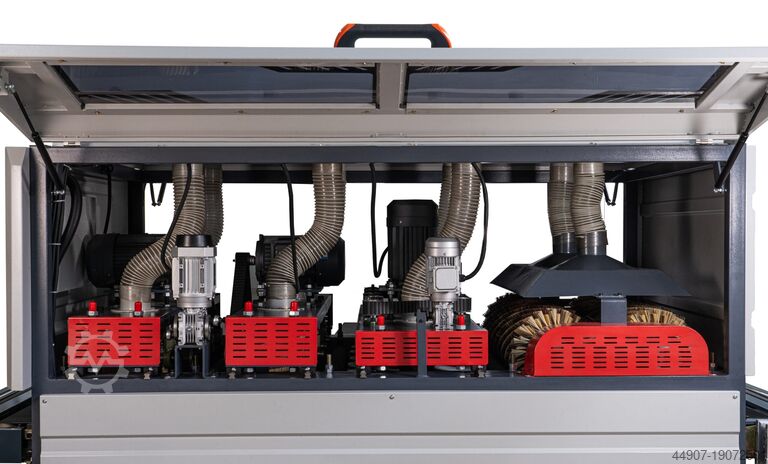

Efficient exhaust system: Each group has dedicated exhaust ports, connected to 8 Ø 100 mm outlets, keeping the work area clean and efficient.

Fast side access: Large side openings allow easy brush changes and quick access for maintenance.

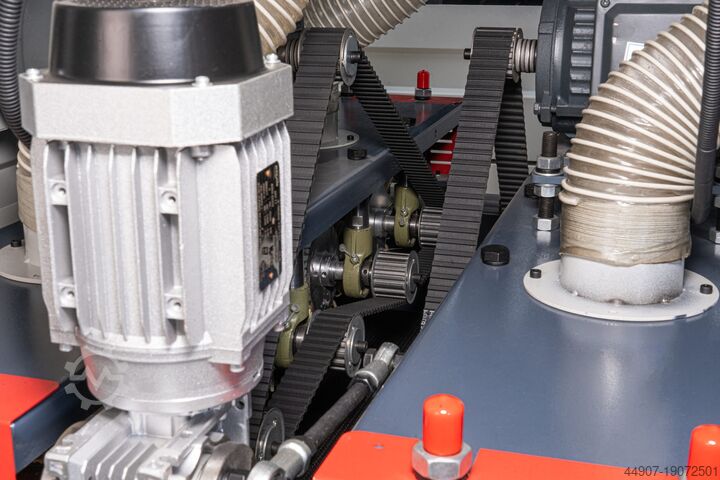

Toothed belt transmission: Ensures constant speeds, stable transmission and low noise level during operation.

Flexibility in finishing: The "fast release" system allows for quick changes of belts and brushes. The adaptable configuration is suitable for various styles and types of finishing.

The DAS LDX 1000 – 6 machine is an efficient solution for manufacturers who want superior quality in the processing of profiled wood elements, with high productivity and impeccable finishing.

Maximum working width
1000 mm

Maximum working height
100 mm

Longitudinal drum diameter (Ø)
220 mm

Longitudinal drum drive motor power - oscillating
2 x 1.5 kW

Longitudinal drum oscillation motor power
0.55 kW

Oscillating pad diameter
200 mm

Oscillating pad drive motor power
1.5 kW

Pad oscillation motor power
0.18 kW

Transverse drum diameter (Ø)
280 mm

Transverse drum drive motor power
2 x 2.2 kW

Advance motor power
1.1 kW

Brush speed
max. 1000 rpm

Exhaust hood diameter (Ø)
4 x 100 mm

Overall dimensions
3300 x 1600 mm

Weight
1500 kg

Technical support available in Romanian, English or German.
