Tool Grinder - Universal
DECKEL ( ISOG ) S11 Speed

Name: DECKEL ( ISOG ) S11 Speed
Brand: DECKEL ( ISOG )
Availability: InStock

Year of construction

2016

Condition

Used (fully functional)

Location

Günzburg

Tool Grinder - Universal DECKEL ( ISOG ) S11 Speed

Basic data

Machine type:: Tool Grinder - Universal

Manufacturer:: DECKEL ( ISOG )

Model:: S11 Speed

Year of construction:: 2016

Condition:: excellent (used)

Functionality:: fully functional

Operating hours:: 200 h

Price & Location

Location:: 89312 Günzburg

Call

Technical details

Dimensions and weight

Overall weight:

520 kg

Total length:

1,100 mm

Total width:

850 mm

Total height:

1,760 mm

Distance between centers:

270 mm

Distance table to spindle center:

325 mm

Space requirement height:

1,800 mm

Space requirement length:

1,800 mm

Space requirement width:

2,000 mm

Table length:

190 mm

Table height:

1,020 mm

Table width:

200 mm

Spindles

Grinding spindle motor power:

1,100 W

Grinding spindle speed:

10,000 rpm

Number of spindles:

Spindle speed (max.):

10,000 rpm

Spindle speed (min.):

500 rpm

Power details

Input voltage:

280 V

Input frequency:

50 Hz

Input current:

20 A

Type of input current:

three-phase

Documentation and certification

Year of last overhaul:

2022

Processable material / products

Workpiece weight (max.):

12 kg

Workpiece diameter (max.):

400 mm

Workpiece length between centers:

270 mm

Axis specifications

Travel distance X-axis:

100 mm

Travel distance Y-axis:

190 mm

Travel distance Z-axis:

325 mm

Feed length X-axis:

100 mm

Feed length Y-axis:

190 mm

Feed length Z-axis:

325 mm

Feed rate X-axis:

1 m/min

Feed rate Y-axis:

1 m/min

Feed rate Z-axis:

1 m/min

Further details

Power:

1.1 kW (1.50 HP)

Grinding length:

270 mm

Center height:

300 mm

Center height in crank:

220 mm

Center width:

620 mm

Collet bore:

25 mm

Disc diameter:

125 mm

Grinding diameter:

300 mm

Grinding wheel diameter:

125 mm

Grinding wheel speed:

10,000 rpm

Height adjustment type:

electric

Pivoting range:

360 °

Rotational speed (max.):

10,000 rpm

Rotational speed (min.):

500 rpm

Tool diameter:

300 mm

Rotational speed infinitely variable

Details about the offer

Listing ID:: A199-14945

Reference number:: 1035-04654

Update:: 24.09.2025

Description

max. grinding diameter 238 - 620 mm
grinding length 190 mm
workpiece length 380 - 940 mm
spindle turning speed - stepless 2 - 12000 U/min
current capacity 380 kVA
power capacity - grinding motor 1,1 kW
total power requirement 2,2 kW
weight of the machine ca. 0,6 t
!!! We have almost all spare parts for the Deckel S 11 machines in stock !!!

!!! Accessories can be varied as desired !!!

We would be happy to trade in your used Deckel S 11 - contact us!

2016 S25 003004

V, 50/60 Hz, with CEE plug and cable

Color: light gray

motorized height adjustment, axial grinding spindle adjustment

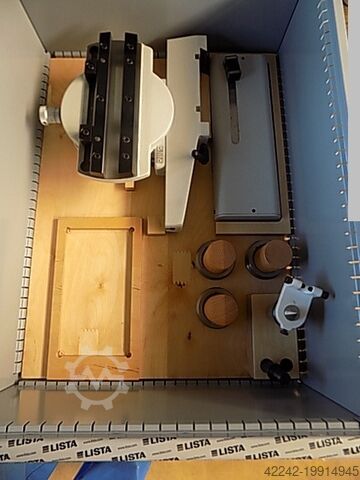

Equipment:

* Opto-electronic measuring device with measuring electronics
Image processing, PC (Original ISOG)
Nlsdpfx Abew U Ehbj Reh
* CCD camera and monitor
* Dividing head Sk 40 with dividing disk 24 R
* 1 dividing disk each 14, 16, 18
* Tightening screw M 16
* Counter bearing complete with 4 center punch points
* Center point Sk 40 with driver
* Twist-u. Relief grinding device with rack housing
* Dust extraction completely without vacuum cleaner
* LED machine light
* Tooth support complete with support and sliding blades
* Setting gauge
* Universal setting gauge
* Handwheel facility
* Dressing device with 3 diamonds
* 1 set of collets 1.0 - 17.5 mm by 0.5 mm rising
* Pliers sleeve and extraction nut and key
* 10 pieces of direct collets Sk 40 6 - 25 mm
* 4 cone reducing sleeves Sk 40 x Mk 1, 2, 3, 4
* Clamping nut
* 12 grinding wheel chucks
* Tool cabinet with shelves
* 2 protective hoods
* various diamond / borazon discs

* Operating instructions and key, spare parts list, circuit diagram
* Set of technical grinding instructions

##### Machine is partially overhauled and has an electrical acceptance
report!#####
