CNC Machining Center

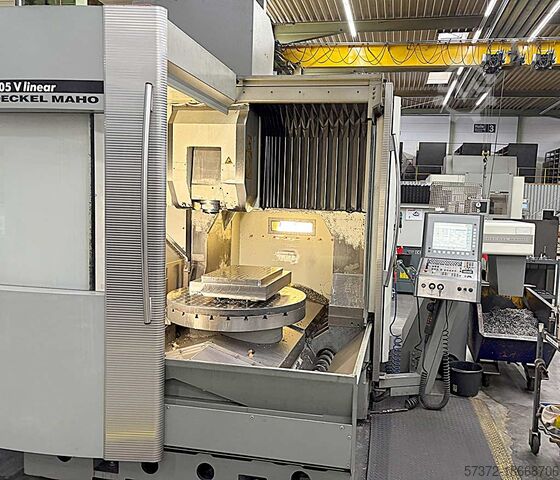

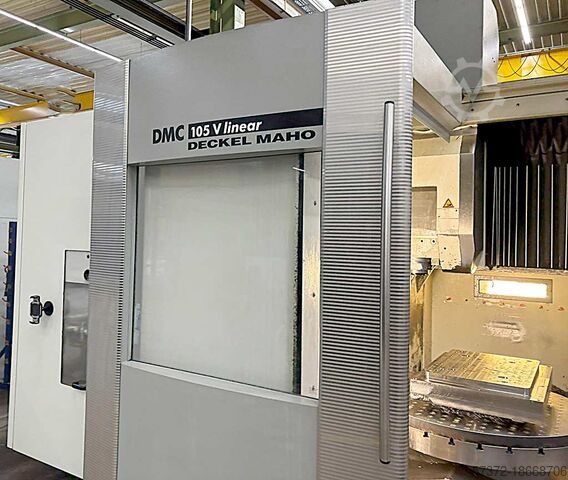

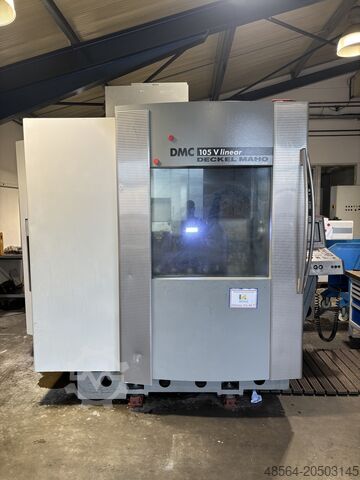

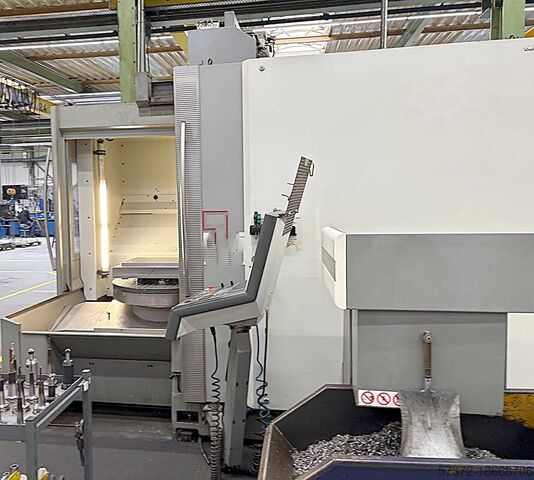

Deckel Maho DMC 105 V Linear

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,110 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 90 m/min, rapid traverse Y-axis: 90 m/min, rapid traverse Z-axis: 90 m/min, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, rotational speed (max.): 28,000 rpm, overall weight: 14,000 kg, spindle speed (max.): 28,000 rpm, operating hours of spindle: 10,000 h, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, 5-axis continuous machining center Linear motors 28,000 rpm spindle with HSK 63A, recently replaced Rotary table, 950mm diameter Wireless workpiece probe MH Laser presetter for tool inspection Optical scales Gsdezmxmtjpfx Aixoka Remote handwheel Chip conveyor NO coolant supply through the spindle Complete with manuals Disconnection scheduled for August 25th Removal scheduled for August 26th

Condition: refurbished (used), Year of construction: 2019, functionality: fully functional, GF Machining Solutions FORM X600 Year of manufacture 2019 - Factory revision 2022 C-shaped design, fixed table with lowerable container Travel paths (X/Y/Z): 600 x 400 x 500 mm Distance between table and quill: 200-700 mm Max. workpiece size: L x W x H = 1200 x 800 x 350 mm Max. workpiece weight: 2000 kg Integrated C-axis for rotation, indexing, and erosion (rpm = 0-100 rpm) Pneumatic chuck of your choice (Erowa/3R Systems) 80 amp ISPG generator Gsdpfewh Sigox Aixska Best achievable surface finish Ra 0.08 µm AC FORM HMI user interface 15" LCD color screen, mouse or touchscreen, keyboard, and hand control Incl. 3R-Systems Workpartner WPT1+ - 150 electrode positions - 10 pallet positions Net weight of the system: 5504 kg Machine dimensions: 1790 x 2860 x 3100 mm We will clean, service, and test the machine upon receipt of the order. Optional: - Commissioning and instruction - Transport and installation - Cooling unit - Dielectric

Year of construction: 2008, condition: ready for operation (used), Travel X/Y/Z: 1050mm/800mm/560mm, C-axis: 360°, spindle head swivel range: -10°/110°, speed: 18000rpm, spindle power: 25kW/35kW, table diameter: 950mm, table load capacity: 800kg, max. workpiece height: 500mm. Tool positions: 30, tool holder: HSK A 63, max. tool diameter: 80mm/130mm, max. tool length: 250mm, rapid traverse: 90m/min, feed: 20m/min. Control: Heidenhain iTNC 530, operating hours: 117490h, spindle hours: 18086h. Including chip conveyor, IKZ, distance measuring system, Blum laser and measuring probe. Documentation available. On-site inspection is possible. Gsdev H Dgiopfx Aixeka

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, controller model: HEIDENHAIN TNC 530, workpiece weight (max.): 4,000 kg, overall weight: 35,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 12,000 rpm, spindle nose: SK 40 (DIN 69871), number of slots in tool magazine: 60, CNC Machining centre DECKEL MAHO DMU 160 P Gkodpozggmbjfx Aixja TECHNICAL CHARACTERISTICS: Year of manufacturing: 2008 CNC control: HEIDENHAIN TNC 530 Number of simultaneous axes: 5 Stroke X axis: 1600 [mm] Stroke Y axis: 1250 [mm] Stroke Z axis: 1000 [mm] Feed rate on X, Y and Z axes: 15000 [mm/min] Traversing feeds X, Y and Z axes: 60000 [mm/min] Table dimensions: Ø1500 x 1250 [mm] Max. load on table: 4000 [Kg] Spindle type: SK 40 (DIN 69871) Min. spindle speed: 20 [rpm] Max. spindle speed 12000: [rpm] Tool changer magazin number of stations: 60 Machine weight: 35000 [Kg] INCLUDED EQUIPMENT: 1 × HEIDENHAIN part probe 1 × laser measuring system for tool setting and tool monitoring 3 × HEIDENHAIN linear glas scales on the X, Y and Z axes 1 × through-spindle coolant system 1 × chip conveyor 1 × paper-band filtration unit (paper filter system) More information upon request.

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 1,600 kg, total height: 2,780 mm, total width: 2,265 mm, total length: 2,110 mm, quill stroke: 450 mm, workpiece length (max.): 1,220 mm, workpiece width (max.): 870 mm, workpiece height (max.): 470 mm, GF AgieCharmilles FORM 300 Year of manufacture: 2014 Die-sinking EDM machine in C-frame design (fixed table) with automatic lowering tank Travel paths (X/Y/Z): 600 x 400 x 450 mm Maximum workpiece size: 1220 x 870 x 470 mm Table dimensions: 750 x 600 mm Maximum workpiece weight: 1,600 kg Maximum electrode weight: 50 kg Innovative ISPG Generator (Intelligent Speed Power Generator) for maximum efficiency Maximum working current: 80 amps Gkodsx Sv E Hopfx Aixsa Surface finish up to Ra 0.08 µm AC FORM HMI with intuitive user interface & touchscreen Intelligent workpiece measurement & 3D correction Reduced electrode wear thanks to iQ technology Adaptive control (ACC & ACO) for optimized spark erosion and reduced electrode wear Pneumatic chuck of your choice (Erowa or 3R Systems) Includes 6-position electrode changer LTC Machine dimensions: 2265 x 2110 x 2780 mm Total weight: 4,500 kg The machine will be cleaned, overhauled and extensively tested prior to sale to ensure the highest quality and reliability. We are also happy to offer you additional services: - Transport - Commissioning - Training - Accessories such as clamping devices

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 1,250 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 620, table load: 1,500 kg, spindle speed (max.): 20,000 rpm, number of axes: 4, This 4-axis +GF+ Mikron Mill E 1200 was manufactured in 2021. It features a spindle speed of 20,000 rpm, HSK A63 tool magazine, and rapid traverses up to 40 m/min. The work table measures 1450 x 600 mm with a maximum load of 1500 kg. Additional features include a Lehmann 4-axis rotary table and a liftable chip conveyor. Consider the opportunity to buy this +GF+ Mikron Mill E 1200 vertical machining centre. Contact us for more information. • Tool magazine: DT30, HSK-A63 Godpfoyb Sifjx Aixoka • Rapid traverse: X/Y 40 m/min; Z 35 m/min • Table size: 1450 x 600 mm • T-slots: 5 • Spindle cooling system – 20 kHz • Linear scales: MILL E 1200 linear scales • Machine status light Additional equipment • Liftable chip conveyor • Chip trolley • Washdown system • Oil separator • Remote electronic handwheel • TS35.10 tool presetter (TNC 620) • IRP40.02 HSK63A measuring system • Lehmann 4-axis rotary table Technical Specification Taper Size HSK 63

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, 5-AXIS MACHINING CENTER MIKRON HPM 1350U TRIPALET, MANUFACTURED IN 2011 EQUIPPED WITH HEIDENHAIN TNC 530 ELECTRONIC HANDWHEEL TRAVEL: Z 1350 AND 1150, Z 895, A +16°/-120°, C ±360° SPINDLE: 24,000 RPM, 38 KW, HSK-A63 (NEW) TABLE: DIAMETER 1100, MAXIMUM LOAD 1600 KG Gedpfxoy Tv Nbj Aixoka 46-TOOL CHANGER 3-PALLET CHANGER, 1000 x 840 MM RENISHAW OMP60 PART PROBE LASER TOOL MEASUREMENT APS - Advanced Process System APS Extended ITS - Intelligent Thermal Control CINEMATIC OPTIONS CHIP CONVEYOR WITH TSC MACHINE WEIGHT: 19,000 KG

Condition: used, Year of construction: 2008, x-travel 1000 mm y-travel 1000 mm z-travel 1000 mm Control Siemens 840D powerline spindle tunring speed 8.000 U/min drive capacity - main spindle 100/40% ED 32/44 kW tool taper HSK-A 100 number of tool places 354 Pos. rapid traverse ( x / y / z ) 60 m/min size of pallet 800 x 800 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features: - NC rotary table with pallet carrier - Rotary pallet changer - 40 bar internal coolant supply Godpfx Asxcp R Ueixska - Rotating viewing window - Wall-mounted magazine with 300 magazine positions - Rotating wall tool lock, 30 positions (inactive) and 54 positions (active) - Infrared measuring probe - SK 50 mechanical tool breakage detector - Tool identification - 4-color signal lamp Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: ready for operation (used), Year of construction: 2010, operating hours: 36,033 h, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: SIEMENS, controller model: 840D SolutionLine, overall weight: 16,000 kg, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 60, number of axes: 4, This 4-axis DECKEL MAHO DMC 80 H duoBLOCK was manufactured in 2010. It features a maximum spindle speed of 12,000 rpm and an impressive X, Y, and Z-axis travel of 800 mm each. The machine has a robust weight of 16,000 kg, ensuring stability during operation. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 80 H duoBLOCK horizontal machining centre we have for sale. Contact us for further details. • Power capacity: 103 kVA • Current (In max): 148 A • Voltage: 400 V • Frequency: 50 Hz Gkjdpfx Aioy Ryyrsxoa • Control voltage: 24 V • Measuring system: Direct, absolute, photoelectric • Resolution (X, Y, Z): 0.001 mm • Position tolerance (X, Y, Z): 0.007 mm (Standard) / 0.006 mm (with Accuracy Package) • Position tolerance A-axis: 9 ws (Standard) / 8 ws (with Accuracy Package) • Position tolerance B-axis: 8 ws (Standard) / 6 ws (with Accuracy Package) • Position tolerance C-axis: 7 ws (Standard) / 5 ws (with Accuracy Package) • Table height (top of pallet to floor): 1120 mm • Distance spindle center to table: 150 mm (minimum distance, Motor spindle) / 145 mm (Gear spindle) Technical Specification Taper Size HSK 100

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, WE SELL AN VERY NICE CONDITION DMF 180 5 AXIS MACHINE WILL BE AWAILIBLE IN JUNE 2026 WORKING HOURS: 17.000 SPINDLE HOURS TOOL TAPER SK40 SPINDLE SPEED : 14.000 RPM Vorschubantrieb AC-Servomotoren für Achse X, Y, Z, B, C Vorschubgeschwindigkeit, stufenlos programm, (X,Y,Z) bis 20.000 mm/min Eilgang (X,Y,Z) 40 m/min Einrichtbetrieb (Betriebsart 2) (X,Y,Z) 20 – 2.000 mm/min Gksdpfx Aexy Tq Tsixoa Einrichtbetrieb (Betriebsart 3) (X,Y,Z) 20 – 5.000 mm/min Arbeitsbereich X-Achse 1.800 mm Y-Achse 700 mm Z-Achse 700 mm Schwenkkopf B-Achse min./max. +/- 110° Integrierter Rundtisch Ø 750 mm C-Achse nx 360°
