CNC horizontal machining center

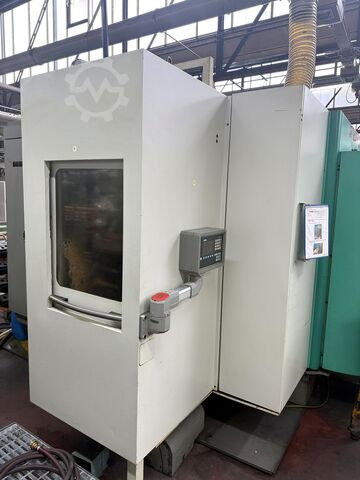

DECKEL MAHO DMC 60 H

Condition: ready for operation (used), Year of construction: 2000, operating hours: 48,804 h, General Data Measurements width 7000 Measurements depth 5000 mm Machine weight 3400 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 8000 Number of axis 4 Movement X-Axis Working Feed 60000 mm/min X-Axis Rapid Traverse 60 m/min Y-Axis Working Feed 60000 mm/min Y-Axis Rapid Traverse 60 m/min Z-Axis Working Feed 60000 mm/min Z-Axis Rapid Traverse 60 m/min X-Axis Movement 600 mm Y-Axis Movement 560 mm Z-Axis Movement 560 mm Table Table load 350 kg Nsdpfxox D H S Es Ac Hsdf Tools Slots in storage 90 Max weight 10 kg Max tool diameter 80 mm Max tool length 350 mm Type of tool holder DIN 69871-SK40 Media Chip conveyor Yes Additional Equipment Coolant Type/Content: Emulsion (internal & external) / approx. 1100L Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command Machine Accuracy: VDI / DGQ 3441 Renishaw Measuring Probe Tool Breakage Detection Drum filter Pallet Sequential Operation Enclosed Work Area Enclosure Network Connection Technical Documents and Layout Plan available This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Model: FMV-1700 Year of Manufacture: 1999 Control System: FANUC Number of Tools: 24 Maximum Spindle Speed: 12000 RPM X-Axis Travel: 1700 mm Y-Axis Travel: 750 mm Z-Axis Travel: 700 mm Other Specifications: BT50 Movement System for Each Axis: Box Nsdpfen D Ifiex Ac Hsdf Machine Weight: 9000 kg With fourth axis

Condition: good (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 650 mm, controller manufacturer: Siemens, controller model: Sinumerik 840 D, rotational speed (max.): 18,000 rpm, overall weight: 14,000 kg, spindle speed (max.): 18,000 rpm, coolant supply: 70 bar, number of spindles: 1, number of slots in tool magazine: 180, Horizontal machining center DECKEL MAHO DMC 60 H Linear with double pallet changer and 180 tool magazine positions Year of manufacture: 2009 Control: Sinumerik 840D Technical data: Spindle speed: 0–18,000 rpm Drive power: 35 kW Torque: Spindle taper: HSK 63 Number of magazine positions: 180 pcs Number of pallets: 2 Pallet size: 500x500 mm Travel distances: X-axis: 630 mm Y-axis: 800 mm Nodpfjx Dlgnjx Ac Hsdf Z-axis: 650 mm C-axis: 0.001° All axes with linear drives Equipment: -Coolant system -Chip conveyor The machine has been regularly maintained and is still very precise! More pictures will follow. Video available on request.

Condition: used, Year of construction: 1999, x-travel 600 mm Ndodpfxoxzk Rys Ac Hjf y-travel 560 mm z-travel 560 mm weight of the machine ca. 8500 kg

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, In 2023, we replaced the following machine components: spindle replacement X axis linear guide replacement Nodpeumal Defx Ac Hodf Replacement of the Y axis linear guide Replacement of the ball screw and bearings on the X axis Replacing the ball screw and bearings on the Y axis. Parts of the machine will also be painted. There is a 6-month warranty for the work performed. Weight of the machine: 5500 kg Table clamping area: 1300 x 600 mm Longitudinal movement of the table - x-axis: 1016 mm Cross table movement - y axis: 610 mm Vertical table movement - z axis: 710 mm Spindle taper: ISO 40 Spindle speed: 10000 rpm. Max. workpiece weight: 700 kg

Condition: used, Year of construction: 1995, x-travel 600 mm y-travel 560 mm z-travel 560 mm Control SIEMENS 840 C total power requirement 12 kW weight of the machine ca. 10000 kg dimensions of the machine ca. m Nedpfx Acot Hw R Rj Hsdf

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, workpiece weight (max.): 600 kg, swivel angle C-axis (max.): 360 °, Equipment: documentation/manual, TECHNICAL DETAILS X-axis: 600 mm Y-axis: 560 mm Nedpfx Acswtq S Re Hsdf Z-axis: 560 mm C-axis: 360° Control: Siemens Number of pallets: 2 Pallet size: 400x500 mm Permissible pallet load: 600 kg MACHINE DETAILS Weight: 10,500 kg

Condition: like new (used), Year of construction: 1992, Retrofitted: 2023 Numerical control: SELCA 4045D Technical features Dimensions Table dimensions: 4500 x 1100 mmNumber of T slots: 8T slots dimensions: 22 mm Traverses of axis X axis traverse: 4000 mmY axis traverse: 1200 mmZ axis traverse: 1250 mm Milling head Head type: Universal manualTool clamping system: HydraulicTaper nose: ISO 50 (DIN 2080)  /  Pull stud: DIN 69872Speed range: 20 - 2000 rpmSpindle power: 22 kW Feedrates Feedrate: 2 - 5000 mm/minRapid feedrate (X / Y,Z): 15000   /   10000 mm/min Weight and dimensions Maximum weight on table: 8000 kgMachine weight approx.: 23500 kgMachine dimensions approx.: 11100 x 5392 x 3400 mm Accesories Nodpfx Aougbqysc Hjdf  Electronic handwheel: Joystick SELBOX S2External coolantGuarding Sales conditions Warranty: 6 months mechanical partsSale price (Ex Work): On request View all technical features

Condition: used, Year of construction: 2012, x-travel 630 mm y-travel 800 mm z-travel 750 mm control SIN 840D sl Siemens B - axis 360 x 0,001 ° A - axis -200 -- +25 x 0,001 ° spindle turning speed - stepless 20 - 18.000 U/min power capacity at 100 % load 28,00 kW power capacity at 40 % load 34,00 KW max. torque at 40% / 100% load 110 / 84 Nm tool taper HSK 63 Nodpovxwxvjfx Ac Hedf feed X/Y/Z/-axis 1 - 100.000 mm/min rapid traverse X/Y/Z 100,00 m/min feed capacity X/Y/Z 9 / 6 / 9 kN feed B-axis 1 - 14.400 °/min feed A-axis 1 - 7.200 °/min size of pallet 2x 500 x 500 mm workpiece weight max. 400 kg max. workpiece diameter 800 mm workpiece height max. 800 mm tool magacine with 63 diameter of tools max. 280 mm tool length - max. 550 mm weight of tools max. 15,00 kg total power requirement 65,00 kW weight of the machine ca. 14,00 t dimensions of the machine ca. 5,50 x 3,50 x H3,20 m 5-axis machining center with SIEMENS SINUMERIK 840D sl control, mechanical tool breakage control, emulsion mist separator, without chip conveyor and without coolant system.

Year of construction: 1996, operating hours: 91,897 h, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 288, TECHNICAL DETAILS x-way: 600 mm y-way: 560 mm z-way: 560 mm Control: Siemens MACHINE DETAILS supply voltage: 400 V / 3 phases / 50 Hz Connected load: 60 kVA total power requirement: 12 kW Machine weight: approx. 10 t EQUIPMENT - 2 machine pallets Nedpfxslruxfe Ac Hjdf - 1 probe

Condition: used, Year of construction: 1988, Technical details: turning diameter over bed: 360 mm turning dia. over face-slide: 160 mm turning length: 800 mm longitudinal traverse (z-axis): 810 mm facing movement (x-axis): 205 mm control: TX-8 spindle passage: 60 mm revolution per minute: 63 - 3150 / 2 step U/min feed:: 10.000 mm/min. tool turret - number of stations: 8 operating hours - idle run: 8834 h tailstock taper ISO: SK30 DIN 2080 tailstock quill stroke: 105 mm operating pressure: 40 bar total power requirement: 38 kW Weight approx.: 3,1 t dimension machine xH: 1,8 x 3,3 x 1,8 m dimensions of hydaulic: 580 x 400 x 750 mm Equipment: Ndsdeu Rqabopfx Ac Hof Lathe chuck Ø 200 mm, hydraulic Feed force Z-axis = 8 kN and X-axis = 5 kN Coolant system control panel Accessories Fine adjustment device for tool set-up *

Year of construction: 2002, condition: used, functionality: fully functional, Horizontal machining center with double chain magazine. TECHNICAL DETAILS x-way: 600 mm y-way: 560 mm z-way: 560 mm control: Siemens Sinumerik 840D B - axis: 360 x 0,001 ° spindle speed - stepless: 8.000 rpm feed X/Y/Z/ axis: 1 - 60.000 mm/min feed B axis: 9.250 °/min rapid traverse X/Y/Z: 60.00 m/min feed force X/Z: 9.600 N Feed force Y: 8,000 N drive power 40 % ED: 20,00 KW driving power 100% ED: 13,00 kW Tool holder: SK40 Torque at 40% / 100% ED: 191 / 124 Nm Pallet size: 2x 400 x 500 mm workpiece weight: max. 600 kg tool magazine: 180 Nedpfonh Rn Asx Ac Hjdf tool diameter: 90 mm tool diameter with 2 free places: 160 mm tool length: max. 350 mm Tool weight: max. 3.50 / 12.00 kg MACHINE DETAILS total power requirement: 65,00 kW machine weight: approx. 16,00 t space requirement: approx. 9.00 x 4.50 x 3.50 m EQUIPMENT Coolant system with IKZ Double chain magazine with 180 places Chip conveyor BLUM tool laser measurement electronic handwheel

Year of construction: 2000, operating hours: 47,085 h, condition: good (used), functionality: fully functional, machine/vehicle number: 42272, Machining center with 5 pallets TECHNICAL DETAILS x-way: 600 mm y-way: 560 mm z-way: 560 mm Ndedpfx Acjlrupao Hjf B-axis (table): 360° tool holder: SK 40 pallet size: 5 x 500x400 mm Control: Siemens 840D MACHINE DETAILS supply voltage: 300 V / 3 phases / 50 Hz Power: 60 kVA

Condition: good (used), Technical specifications: Ndedpfsv E Nafex Ac Hsf -table surface: 400 x 1400 mm - longitudinal movement of the table - X axis: 1000 mm - lateral movement of the table - Z: 450 mm -vertical table movement - Y axis: 400 mm -spindle cone: ISO 50 -Spindle speed: 35.5 - 1800 rpm total machine power: 11 kW
