CNC Lathe

HITACHI SEIKI HT 20

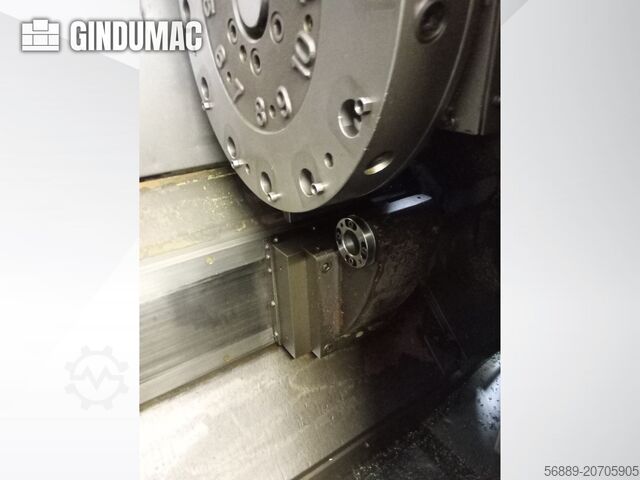

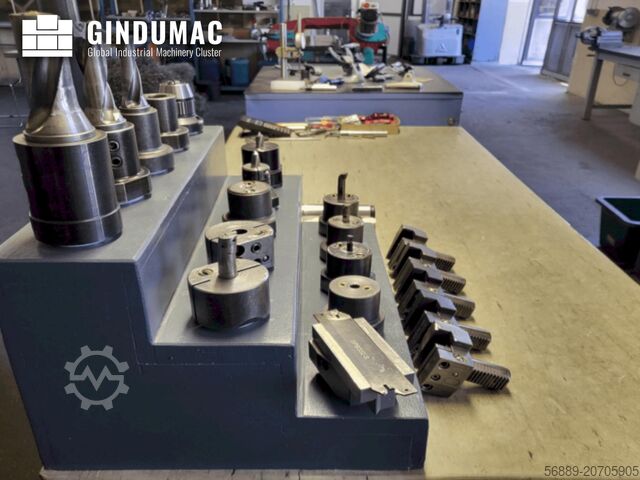

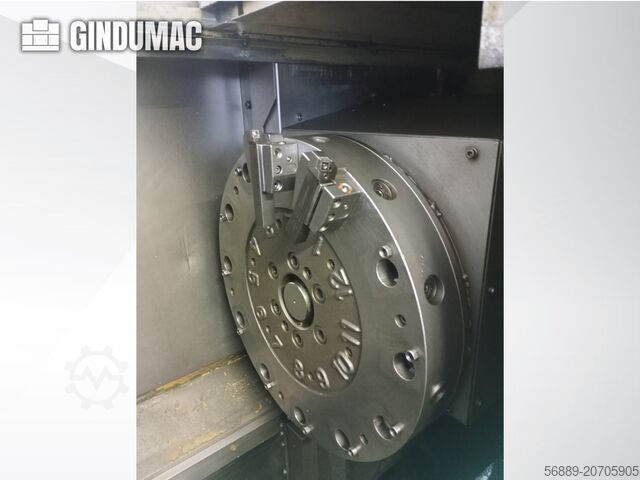

Condition: ready for operation (used), A defective spare parts donor of a Hitachi Seiki lathe including an IEMCA bar feeder is available. 1) CNC lathe Hitachi Seiki GT 20 S II, travel X/Z: 200mm/400mm, max. turning diameter: 210mm, max. swing diameter over bed: 380mm, max. bar diameter: 51mm, spindle bore: 59mm, speed: 5000rpm, tool stations: 10, rapid traverse: 20m/min. Machine dimensions X/Y/Z: approx. 2350mm/1950mm/1850mm, weight: approx. 4100kg. The capacitors for the power connection are defective. 2) Hydraulic bar feeder IEMCA TAL/AUTO 65/32, max. bar diameter: 65mm, max. bar length: 3200mm, machine dimensions X/Y/Z: approx. 4200mm/800mm/1200mm, weight: approx. 800kg. The lathe is sold exclusively as a defective spare parts donor. An on-site inspection is possible. Crodpfx Acjzka I Tsmsf

Condition: used, Year of construction: 1988, Technical details: turning diameter over bed: 360 mm turning dia. over face-slide: 160 mm turning length: 800 mm longitudinal traverse (z-axis): 810 mm facing movement (x-axis): 205 mm control: TX-8 spindle passage: 60 mm revolution per minute: 63 - 3150 / 2 step U/min feed:: 10.000 mm/min. tool turret - number of stations: 8 operating hours - idle run: 8834 h tailstock taper ISO: SK30 DIN 2080 tailstock quill stroke: 105 mm operating pressure: 40 bar total power requirement: 38 kW Weight approx.: 3,1 t dimension machine xH: 1,8 x 3,3 x 1,8 m dimensions of hydaulic: 580 x 400 x 750 mm Equipment: Lathe chuck Ø 200 mm, hydraulic Feed force Z-axis = 8 kN and X-axis = 5 kN Coolant system control panel Accessories Cjdpeu Rqabofx Acmerf Fine adjustment device for tool set-up *

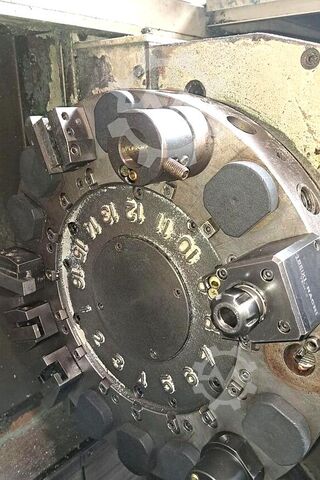

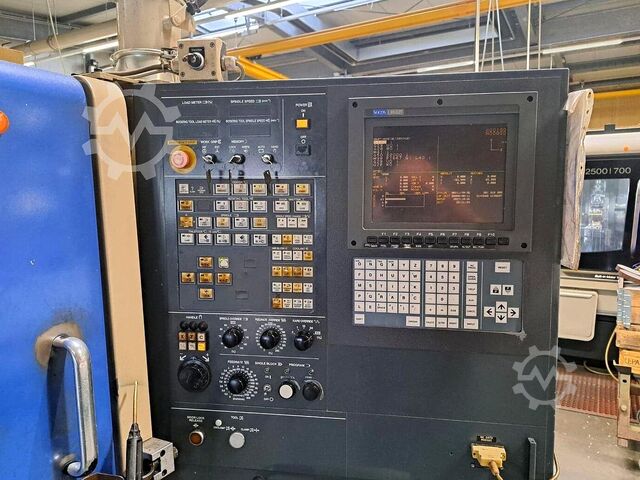

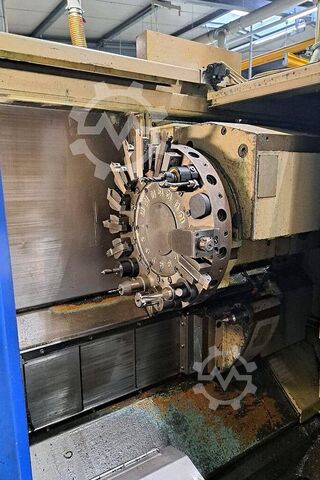

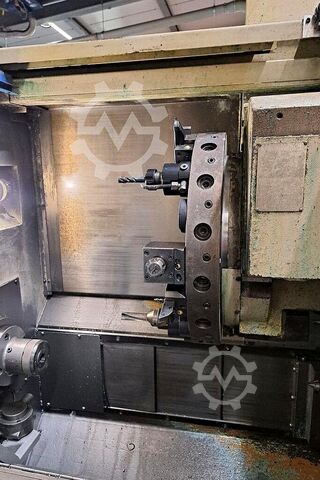

Condition: used, Year of construction: 1999, turning diameter 450 mm turning length 380 mm control Seicos 40L Multi Cjdpfx Acszbcy Uomjrf max. machining diameter 340 mm Bar feed 51 mm turning speed range - spindle 30 ~ 5.000 U/min drive capacity - spindle motor 11 / 7,5 kW spindle nose A2-6 spindle bore 59 mm bearing diameter 100 mm travel -x axis 215 mm travel -z axis 400 mm turret (x-stations) 16 feed 0,001 ~ 500 mm/min rapid traverse X/Z: 30 m/min Shank diameter 25 x 25 mm Drill shank diameter 40 mm taper of center MK 5 tailstock adjustment 300 mm total power requirement 23 kVA weight of the machine ca. 4,6 t dimensions of the machine ca. 5,5 x 2,8 x 2,2 m CNC Lathe HITACHI SEIKI - HiTec-Turn HT 20 RIII

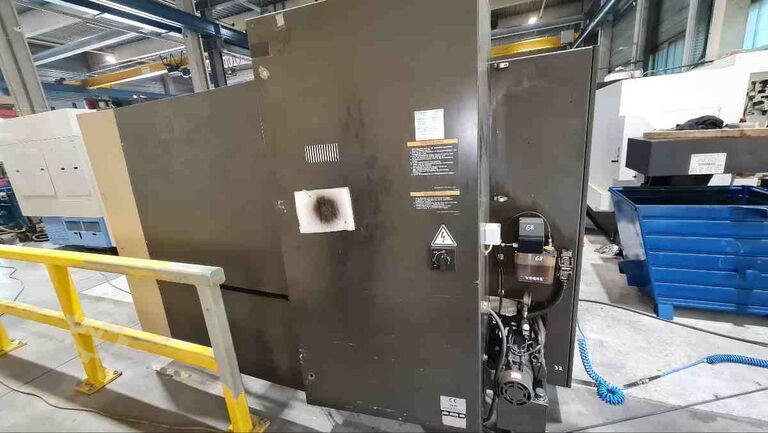

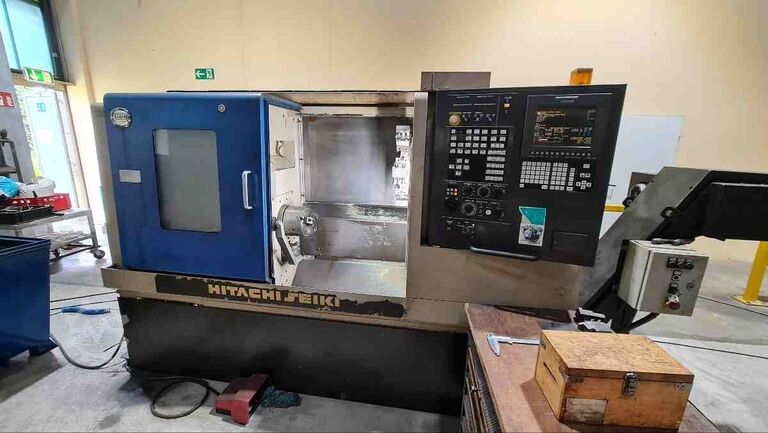

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, turning length: 380 mm, turning diameter: 450 mm, spindle bore: 59 mm, rotational speed (max.): 5,000 rpm, controller model: Seicos 40L Multi, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Turning diameter: 450 mm Turning length: 380 mm Maximum machining diameter: 340 mm Travel X-axis: 215 mm Travel Z-axis: 400 mm Bar capacity: 51 mm Spindle speed range: 30 to 5,000 rpm Spindle drive power: 11 / 7.5 kW Spindle nose: A2-6 Spindle bore: 59 mm Bearing diameter: 100 mm Turret: 16 stations Crodoy R Dmiepfx Acmjf Feed rate: 0.001 to 500 mm/min Rapid traverse X/Z: 30 m/min Tool shank diameter: 25 x 25 mm Drill shank diameter: 40 mm Tailstock taper: MT 5 Tailstock quill stroke: 300 mm MACHINE DETAILS Control unit: Seicos 40L Multi Total power requirement: 23 kVA Dimensions & Weight Space requirement: approx. 5.5 x 2.8 x 2.2 m Machine weight: approx. 4.6 t EQUIPMENT Documentation Chip conveyor Tailstock Signal light Parts discharge chute Tool setting arm Work area illumination Tool holder

Condition: good (used), Year of construction: 2006, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: M086, spindle speed (max.): 1,500 rpm, spindle speed (min.): 15 rpm, spindle motor power: 22,000 W, Vertical turret lathe with CNC Crjdpfx Aotmq Ukjcmjf Control: FANUC Series 18i-TB Number of turrets: 1 Number of tools stations: 12 Chip conveyor: 3508734 Boring bar holder: dia. 50 mm The machine is still under power.

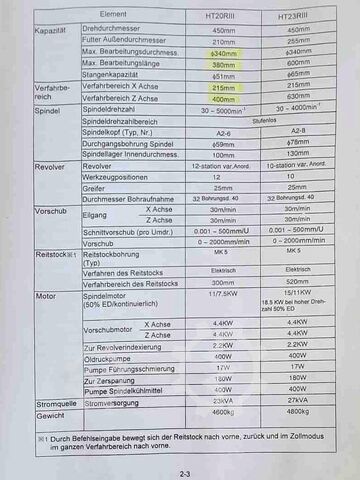

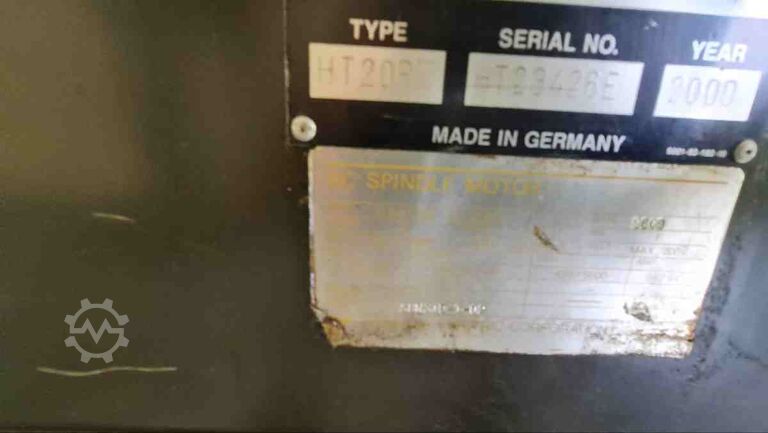

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, turning diameter: 450 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 215 mm, travel distance Z-axis: 400 mm, bar diameter (max.): 51 mm, workpiece length (max.): 380 mm, TECHNICAL DETAILS Capacity Turning diameter: 450 mm Maximum machining diameter: 340 mm Maximum machining length: 380 mm Bar capacity: 51 mm Travel Range X-axis travel: 215 mm Z-axis travel: 400 mm Spindle Spindle speed: 30 – 5,000 rpm Spindle nose (Type No.): A2-6 Spindle bore: 59 mm Spindle bearing inner diameter: 100 mm Turret Cjdpfxexrc Dge Acmorf Tool positions: 12 Gripper: 25 mm Drill holder diameter: 32 mm Feed Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Cutting feed (per revolution): 0.001 – 500 mm/rev Feed rate: 0 – 2,000 mm/min MACHINE DETAILS Control: Seicos Machine weight: 4,600 kg Motor Spindle motor (50% duty cycle / continuous): 11 / 7.5 kW Feed motor X-axis: 4 kW Feed motor Z-axis: 4 kW Turret indexing motor: 2.2 kW Guideway lubrication pump: 18 W Spindle coolant pump: 370 W

Condition: ready for operation (used), Year of construction: 2001, JOHNFORD VTC 880 TWIN PALLET CNC VERTICAL LATHE MAKE JOHNFORD, MADE IN TAIWAN MODEL VTC 880 + APC + ATC YEAR 2001 CONTROL FANUC 18 T MAX SWING DIA 1,000 mm MAX CUTTING DIA 900.0 mm STANDARD CUTTING DIA 800.0 mm MAX CUTTING HEIGHT 800.0 mm TRAVERSES X AXIS 50.0 mm to 810.0 mm Z AXIS 880.0 mm SPINDLE SPEEDS 10 to 800 RPM SPINDLE BEARING DIA 330.0 mm SPINDLE NOSE A2 - 11 SPINDLE MOTOR 18.5 / 22 kW TURRET TYPE AUTOMATIC TOOL CHANGER NO OF TYPES 2 X 12 ATC TOOLS SHANK SIZE BT 50 AND CAPTO PLUS FULL C AXIS MILLING Codpfx Aceukupremjrf TAPPING X, Z, C, A AND B AXES HIGH PRESSURE COOLANT PAPER COOLANT FILTRATION SWARF CONVEYOR FULLY OPERATIONAL FULL SET OF MANUALS GOOD RANGE OF TOOLING

Condition: good (used), Year of construction: 1992, Table surface area: 1850 x 710 mm Permissible table load: 3000 kg Travel ranges: Longitudinal, automatic (X): 1600 mm Lateral, automatic (Y): 710 mm Vertical, automatic (Z): 850 mm Spindle mounting: SK 50 Speed range: 20 - 2500 RPM Main motor power, AC: 15 kW Transport dimensions L x W x H: 3650 x 2300 x 2700 mm Weight: 9400 kg Accessories / Special features: • CNC path control system, manufacturer HEIDENHAIN, model TNC 360 with 3 scales • Programming language "Plain text dialog" and DIN-ISO • Electronic handwheel HEIDENHAIN HR 330 with magnetic holder • 3D probing system HEIDENHAIN TS 120 • Main spindle compact unit RAC 3 • Control system prepared for 4th axis • Universal milling head system "HURON" with 2 levels, gears run in an oil bath • Hydraulic tool clamping • Coolant system • Central lubrication with interval • German electrical system, drives INDRAMAT • Operator control panel • Operating manual Crodpjttamksfx Acmef - Newly refurbished milling head, partially overhauled with new gears, seals and bearings - Oil dispenser for central lubrication renewed Operating hours: 10,032 Program runs: 3,288 Spindle ON: 2,569 Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE – 44143 Dortmund - Wambel / Germany

Condition: excellent (used), Year of construction: 1985, functionality: limited functionality, Description Technical information Swing over bed 420 mm Distance centre tot centre 1000 mm Max longitudinal travel Z-axis 1028 mm Max cross travel X-axis 335 mm Spindle coneA2-6 Dia of spindle bore 56 mm Power on the spindle20/25 hp Number of speeds16 - 4000 rpm CommandMazatrol Cam T3 Total power needed18,5 kW - 32,9 kVa Length 3734 mm Width 1893 mm Height 2401 mm Weight 4400 kg Crodpfx Ajvk E Ayecmef Toolchanger yes Number of tools 16x - rotating yes milling tools C-axis Robo flex automatic loading system tooling included Measuring arm included MAZATROL CAM T-3 CNC Accessories Tailstock, Evoquator, Tool Attachments, Presetting Machine weight 4700 kg Axis C Yes

Condition: used, Year of construction: 1990, weight 4 t X - Y + Z-axis each 410 mm kN control Fanuc Crodpjuu S R Ujfx Acmjf Axis 4
