5-Axis Machining Center

DECKEL MAHO DMC 80 FD duoBLOCK

Condition: used, Year of construction: 2007, max. workpiece diameter 800 mm profile depth 100 mm control Siemens Sinumerik 840 D x-travel 650 mm y-travel 300 mm z-travel 1300 mm spindle turning speed - stepless 400 - 4000 U/min table turning speeds 0 - 10 U/min Fedpfjw Rrckex Aa Nsgi total power requirement 110 kVa dimensions of the machine ca. 9,48 x 6,13 x 5,00 m weight of the machine ca. 24,5 t Tool: - Largest grinding wheel diameter 450 mm - Largest grinding wheel width 160 mm Feed rates: - X-axis 1 to 3000 mm/min - Y-axis 1 to 5000 mm/min - Z-axis 1 to 6000 mm/min Equipment/accessories: - Counterholder - Grinding oil treatment system - Oil mist extraction - Measuring probe - Dresser - Technical documentation

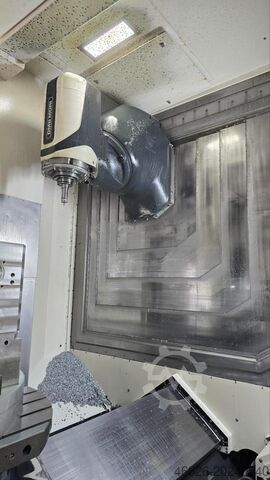

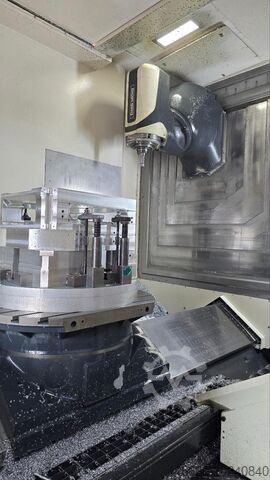

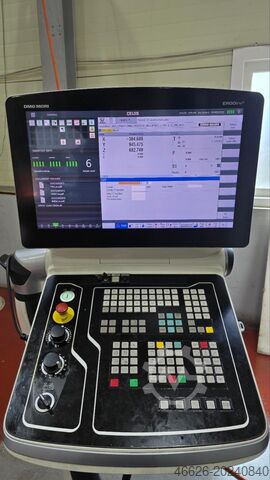

Condition: excellent (used), Year of construction: 2016, operating hours: 26,678 h, functionality: fully functional, This machine is available exclusively through Montrasio GmbH and is being sold on behalf of the authorized parties. DMG DMU 100P duoBLOCK – 5-Axis CNC Machining Centre (2016) Year of manufacture: 2016 Control: SIEMENS CELOS Travel / Capacities X-axis: 1,000 mm Y-axis: 1,250 mm Z-axis: 1,000 mm Workpiece diameter: 1,100 mm Fjdpfx Aoxl Arksa Njgi Workpiece height: 1,600 mm Workpiece weight: up to 2,200 kg Table / Axes Table size: 1,100 × 900 mm Table rotation speed: 35 rpm Max. table load: 2,223 kg B-axis universal milling head swiveling range: −30° to +180° Spindle / Tool Spindle speed: 0 – 12,000 rpm Spindle motor power: approx. 69 HP (≈ 51.5 kW) Spindle taper: HSK-A100 Tool magazine: 63 positions Machine Dimensions Footprint: approx. 24 m² Machine height: approx. 3,606 mm Machine weight: approx. 24,540 kg Accessories / Equipment CNC-controlled universal milling head (B-axis) Workpiece probe Tool measurement system 3D Quickset Chip conveyor

Condition: not inspected (used), Year of construction: 1998, machine/vehicle number: 2183, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 300 kg, total height: 3,250 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, table width: 380 mm, table length: 600 mm, table load: 300 kg, overall weight: 4,500 kg, travel distance W-axis: 450 mm, Equipment: documentation/manual, Object type: CNC Coordinate Grinding Machine Manufacturer: HAUSER Model: S35-400 Year of manufacture: 1998 Machine number: 2183 Condition: According to the previous owner and a Hauser specialist, the machine is in good condition. Delivery terms: Free loaded onto truck Availability: Immediately (by arrangement) Location: Magdeburg Technical specifications: • Control system: GE Fanuc Series 16-M • Tool holder: Collets EX 19 or grinding arbors E19 • Travel X / Y / W axes: 500 / 300 / 450 mm • Feed speed X & Y axes: 0 – 2000 mm/min • Feed speed W axis approx.: 900 mm/min • Table dimensions: 600 x 380 mm • Max. table load: 300 kg • Grinding spindle speed, stepless: 9,000 – 60,000 rpm • Z axis stroke speed, stepless: 0.5 – 14,000 mm/min • Fire extinguishing system • Further technical details – see images Scope of delivery: • Grinding motor 60S (9,000 – 60,000 rpm) – see separate images • Extraction system • Coolant unit • Dressing turbine • Available manuals • The clamping devices shown in the pictures as well as the currently mounted grinding motor are not included! Dimensions & weight: • Installation dimensions (L x W x H) approx.: 4250 x 4000 x 3250 mm • Weight approx.: 4500 kg Fedewakqyepfx Aa Njgi For any questions or to arrange a viewing, please feel free to contact us. Additional notes: The tool changer is non-functional – according to the previous owner, it was never needed anyway! • Upon request, we can offer transport to the destination. • The offer price is net plus VAT. • The item is sold excluding any warranty! • Sale is only to commercial customers! • Technical data subject to change without notice. • Subject to prior sale.

Condition: used, Year of construction: 2006, Technical details: Fgsdepumdcjpfx Aa Nei x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

Condition: used, Year of construction: 2008, tip circle diameter 650/800 mm workpiece length - max. 1100 mm max. module 20 (25) mm Fjdpew Rrbyofx Aa Nogi min. module 0,5 mm control Siemens Sinumerik 840 D total connected load 62 kVA helical angle -45 / + 120 ° weight of the machine ca. 10 t

Condition: excellent (used), Year of construction: 2020, X-axis 800 mm Y-axis 800 mm Z-axis 600 mm A-axis +/- 140 degrees C-axis 360 degrees (infinite rotation) Max. workpiece weight 1,000 kg Tool holder HSK 63 Tool magazine 126 positions Spindle speed 18,000 rpm Drive power 50 kW CNC control HEIDENHAIN iTNC 640 Machine weight 15.5 tons Spindle hours: 9,360 Including ICS 80 bar Fsdpfx Aaswynt Eo Njgi Including coolant system Including chip conveyor Including complete set of tools Including PAROTEC zero-point clamping system Including Heidenhain TS 460 probe

Condition: as good as new (ex-display), Year of construction: 2019, machine/vehicle number: S216405501002, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - powerful motor spindle HSK-A 100 with 9,000 rpm - lasermeasurement system BLUM LC-DIGILOG - 46 tools in the system _____ Basic machine G550 access-SERIE Travel path of the X-axis 800.0 mm Travel path of the Y'-axis 950.0 mm Travel path of the Z-axis 1020.0 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Stainless-steel internal work area enclosure Fluid cabinet doors SIEMENS SINUMERIK 840D sl with GROB4Pilot access Fgsdpforul U Ajx Aa Nji Swivel axis calibration GSC Classic Hand-held controller HT 2 (SIEMENS) SINUMERIK MDynamics technology package - milling Tilting table unit (A'-axis) Rotary table with T-slots (B'-axis) Motorized spindle HSK-A 100, 9,000 rpm, 470/575 Nm, 54/65 kW *spindle new replaced GROB spindle diagnostics GSD Compact double disk-type magazine HSK-A 100 with 46 tool pockets Tool cleaning device Electromechanical tool breakage detection device Blum Lasermeasuringsystem LC50-DIGILOG, A‘=0° High-pressure cutting fluid system (5-40 bar, IKZ) Continuous cooler for cutting fluid with an air cooled cooling unit (13 kW) Compressed air feed through spindle center Oil skimmer for cutting fluid care Air gun at the work area Flush gun at the work area Compressed air cleaner bar for safety screen in work area door Radio touch probe OMP 60 (RENISHAW) machine status lamp 12 month warranty

Condition: used, Year of construction: 2001, table length 600 mm table width 380 mm control FANUC 16i-M longitudinal travel 500 mm cross travel 300 mm Fgsdowmwwyepfx Aa Nei largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: reconditioned (used), Year of construction: 1998, operating hours: 44,675 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 140 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 800 kg, table width: 860 mm, table load: 1,500 kg, travel distance W-axis: 635 mm, Equipment: documentation/manual, Fully overhauled and in perfect condition as per original specifications and accuracy. 6 Axis X-Y-Z-C-U 7th axis CNC-rotary table with tailstock in option Control: Fanuc 15 MB Grinding Spindle 60S speed 9,000 to 60,000 rpm Hi-Cut system with full enclosure Fodpewb Db Uofx Aa Nsgi CBN Form rotary dressing with Fischer spindle and Dr. Kaiser diamond wheel This machine is under power and can be seen in our facility in Gals, Switzerland Garantee of 6 months Shipment, installation and training can be provided

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 Fgsdpfjw Rrb Hex Aa Nei - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation
