5 axis machining center

Deckel Maho DMC-60T

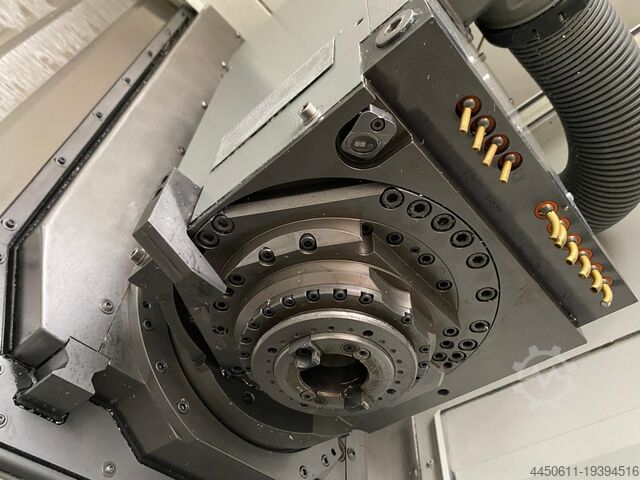

Condition: good (used), Year of construction: 2005, operating hours: 39,256 h, functionality: fully functional, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, total height: 2,800 mm, total length: 7,000 mm, total width: 7,000 mm, rotational speed (max.): 12,000 rpm, overall weight: 12,000 kg, For sale is a machining center by Deckel Maho, model DMC 60 T. The machine is in good condition and ready for immediate use. Technical data: Year of manufacture: 2005 Operating hours: 39,256 Power-on hours: 72,107 X-axis travel: 780 mm Y-axis travel: 560 mm Z-axis travel: 560 mm Control: iTNC 530 Heidenhain Spindle speed range: 20 - 12,000 rpm Main spindle drive power: 28 / 19 kW Max. torque: 125 Nm Tool holder: SK 40 B-axis infinitely adjustable: 150° (-120/+30)° Number of pallets: 2 Pallet size: 630 x 500 mm Fjdpfx Afjwtft Nspspn Max. load: 400 kg Table speed range: max. 30 rpm Number of tool stations: 120 positions Max. tool diameter: 80 mm Max. tool diameter with adjacent pocket empty: 160 mm Max. tool length: 315 mm Max. tool weight: 8 kg Rapid traverse ( X / Y / Z ): 50 m/min Feed rate: 20 - 15,000 mm/min Total power requirement: 64.2 kVA Machine weight: approx. 12.0 t Floor space required: approx. 7.0 x 7.0 x 2.8 m Included in the offer: Documentation, chip conveyor, coolant system, high-pressure coolant 40 bar through spindle, paper band filter, 2-position pallet changer, tool breakage monitoring Accessories such as clamping devices or tool holders are NOT included in the offer. Transport and loading can be organised throughout Europe at additional cost upon request. Prices are subject to VAT. Inspection is possible by appointment. Please contact us; our team will be happy to assist you. Trade-in or exchange possible! Machinery purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website.

Condition: used, Year of construction: 2008, x-travel 780 mm y-travel 560 mm Fpjdpou Elqqjfx Afpsn z-travel 560 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper SK 40 (150° (-120/+30)° pallet changer: Number of pallet-stations 4+1 pos. size of pallet 630 x 500 mm max. load 400 kg T-slots 5x 14 x 100 rotary table 360 ° tool magazin: number of toolpositions 120 pos. max. tool diameter 80 mm max. tool-dia with free toolbox 160 mm max. tool length 315 mm max. tool weight 8 kg feeds: rapid traverse ( X / Y / Z ) 50 m/min feed speeds 20 - 15.000 mm/min measuring system resolution capability 0,001 mm total power requirement 61 kVA weight of the machine ca. 12,0 t dimensions of the machine ca. 6,0 x 6,0 x 2,8 m CNC Machiningcenter Universal DECKEL MAHO - DMC 60 T RS 3 - 5 axes - 120 pos. tool changer - Number of pallet-stations 4+1 pos. - Internal coolant supply - HEIDENHAIN measuring probe - BLUM tool measurement - Spindle replacement Feb. 2024

Condition: used, Year of construction: 2003, x-travel 780 mm y-travel 560 mm z-travel 560 mm tool taper SK40 control HEIDENHAIN iTNC 530 weight of the machine ca. ca.12,5 t required space 3,40 x 3,30 x 2,60 m DECKEL MAHO DMC 60T BJ 2003 Operating hours: 32532.7 The machine DMC 60T (1659) is in very good condition and is ideally suited for precise milling operations thanks to powerful motor spindles, high feed rates, and a flexible tool magazine. All technical details can be found below. Working range Travel distance/ X-axis: 780mm Y-axis: 560mm Z-axis: 560mm Worktables NC rotary table – clamping surface, pallet: diameter 500 x 630 mm Centering bore: diameter 50^H6 20 deep mm Locating bore: diameter 20^H6 20 deep mm Torque of the table at: – 100% duty cycle: 1603Nm – 25% duty cycle: 2813Nm Max. rotation of the table: 30 rpm Feed: 7200 ./min. Permissible table load: 400 kg Tool magazine with magazine SK 40 Feed drive AC servo motors in digital technology for axis X, Y, Z Feed speed X-, Y-, Z-axis infinitely programmable: 20–15000 mm/min. Rapid traverse X-, Y-, Z-axis: 50 mm/min. Setup operation X-, Y-, Z-axis: 20–2000 mm/min Measuring system Resolution | X-, Y-, Z-axis: 0.001mm Input unit | X-, Y-, Z-axis: 0.001mm Position tolerance | X-, Y-, Z-axis: 0.010mm Working area Travel/ X-axis: 780mm Y-axis: 560mm Z-axis: 560mm Spindle main speed: 18000min^-1 Speed Infinitely programmable: 20–24000 min^-1 In setup mode: 20–800 min^-1 Main drive 24000 min^-1: motor spindle without gearbox Speed Infinitely programmable: 20–24000 min^-1 In setup mode: 20–800 min^-1 Weight Machine with tool changer and transport base: approx. 10100kg Installation weight Machine with fixed table and tool changer: max. 11500kg Dimensions Machine: 3.40 x 3.30 x 2.60 m Chip conveyor: 2.77 x 1.00 x 2.07 m Band filter system 900l: 2.22 x 1.40 x 2.20 m Fpjdpfewm Rrwex Afpsn

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, spindle speed (max.): 12,000 rpm, number of slots in tool magazine: 60, 5-axis machining center with rotary table (C) and tilting head (B) The machine comes from a large operation and was maintained preventively. TECHNICAL DETAILS Travel X: 760 mm Travel Y: 560 mm Travel Z: 560 mm Control: 840 D Powerline Siemens Tool holder: SK 40 Number of tool magazine positions: 60 Spindle speed: 0–12,000 rpm Pallet size: 630 x 500 mm Feed rate: 20–15,000 mm/min Rapid traverse: 50 m/min MACHINE DETAILS Total connected load: 64.2 kVA Total power requirement: 26 kW Machine weight: 12 t Space requirements: 5.2 x 4.5 x 2.45 m Spindle hours: 20,844 h Operating hours: 58,437 h Dimensions and Weight Machine body length: 3,450 x 2,400 x 2,650 mm Machine body weight: approx. 6.50 t Fpjdpfxswvitxs Afpon Tool magazine length: 2,600 x 1,000 x 2,000 mm Tool magazine weight: approx. 0.50 t Cooling unit length: 1,850 x 1,750 x 1,500 mm Cooling unit weight: approx. 0.50 t Chip conveyor length: 3,200 x 1,000 x 1,700 mm Chip conveyor weight: approx. 0.50 t EQUIPMENT - Pallet changer with 2 pallets - Tool changer with 60 positions

Condition: ready for operation (used), Year of construction: 2005, Main Drive Number of axis 5 Media Chip conveyor Yes This DMG DECKEL MAHO DMC 60T was manufactured in 2005. A Universal machining centre, it offers robust construction and reliable performance for precision machining tasks. Consider the opportunity to buy this DMG DECKEL MAHO DMC 60T Universal machining centre. Contact us for more information. Fpedjwmg T Dopfx Afpsn Application Types Milling

Year of construction: 2004, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 1143 000084 3, TECHNICAL DETAILS X-axis movement: 780 mm Y-axis movement: 560 mm Z axis movement: 560 mm Fpodpjmiilbsfx Afpen B-axis movement: +30° to -120° C-axis movement: 360° stepless Control: Heidenhain iTNC 530 spindle speed range: 0 - 12 000 rpm tool holder: ISO SK 40
