Universal machining center

Deckel Maho DMU 50 EVO

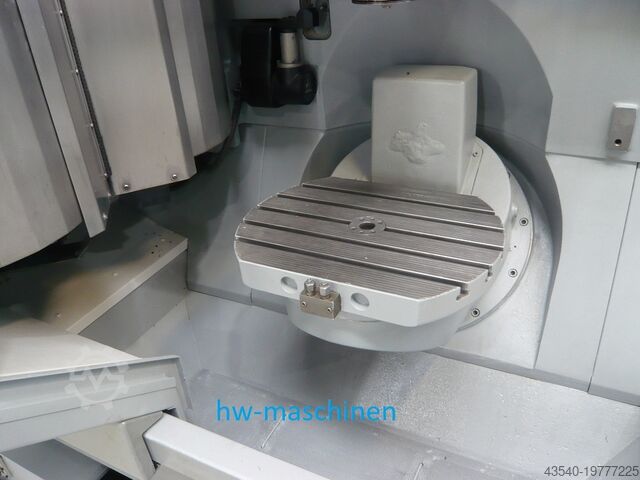

Condition: good (used), Year of construction: 2006, TECHNICAL DATA Main drive Speed: Infinitely programmable: 18`000 rpm In set-up mode: 20 - 800 rpm Work spindle: Hollow shank taper: HSK-A63 Tool clamping: Hydraulic Feed drive Linear motor: X-axis AC servomotors: C, B, Y, Z Feed speed X, Y, Z: Up to 20`000 mm/min Rapid traverse Y, Z: 50 m/min X: 80 m/min B: 40 rpm C: 50 rpm Position measuring system Resolution: C, B, X, Y, Z: 0.001 mm Position tolerance: C, B, X, Y, Z: 0.010 mm Working range X-axis: 500 mm Y-axis: 450 mm Z-axis: 400 mm B-axis: 0° to 161.955 ° C-axis: n x 360 ° Tool changer with double gripper Magazine slots: 120 Max. Tool diameter without free spaces: 80 Max. Tool diameter with free spaces: 130 Max. Tool length from spindle nose: 300 mm Max. Tool weight: 6 kg NC rotary table with swivel axis C-axis: Clamping surface rotary axis (mm): 500 x 380 mm Distance of T-slots / size: 63 / 14 H7 Centering bore: 30 H6 Max. Torque: 1491 Nm Max. Rotation of the table top: 50 rpm B-axis: Max. Swivel torque: 1864 Nm Swivel speed: 40 rpm Swivel range: 0° - 161.955 ° Input and display precision: 0.001 ° Weight: 420 kg Max. load: 200 kg Weight: Approx. 6800 kg Installation weight: Approx. 7500 kg Dimensions: 4170 x 3133 x 2560 mm SCOPE OF OFFER U.A: (list not exhaustive): Deckel Maho DMU 50 Evo CNC machining center Heidenhain iTNC 530 Tool breakage control Blum measuring probe Oil mist separator Fire extinguishing system High-pressure pump and belt filter system Chip conveyor Exact scope of supply according to photo gallery Hodpou Hkb Refx Afpjfn We assume no liability for the accuracy, completeness and up-to-dateness of the information provided

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 10915551234, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 50 m/min, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, controller manufacturer: SIEMENS, controller model: SINUMERIK 840 D POWERLINE, total height: 2,900 mm, total length: 4,000 mm, total width: 3,000 mm, overall weight: 9,000 kg, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 30, mount diameter: 40 mm, TECHNICAL DATA & EQUIPMENT: Operating voltage: 400 V Frequency: 50 Hz Rated current: 100 A Connection: 48 kVA Rapid traverse in B-axis: 40 m/min Rapid traverse in C-axis: 50 m/min Hedpfsxninqox Afpsfn Measuring system: Resolution in C, B, X, Y, and Z axes: 0.001 mm Position tolerance in C, B, X, Y, and Z axes: 0.010 (with direct measuring system) Travel range B-axis: 0-161.955° Travel range C-axis: 360° Max. tool diameter without free adjacent positions: 80 mm Max. tool diameter with adjacent free positions: 130 mm Max. tool length from spindle nose: 300 mm Max. tool weight for automatic tool change: 6 kg NC rotary table with swivel axis (C-axis) Clamping surface (rotary axis): 500 x 380 mm T-slot pitch: 63 mm/14h7 Centering bore: 30 mm diameter h6 Max. torque rotary axis: 1491 Nm Max. table plate speed: 50 rpm B-axis: Max. swiveling torque: 1864 Nm Swiveling speed: 40 rpm Swivel range: 0-161.955° Load capacity: approx. 420 kg Max. load positioned in table center: 200 kg Including zero-point clamping system by SCHUNK and clamping rail Rail length: 490 mm Jaw width: 90 mm Including chip conveyor, extraction filter by SARA PICK-UP INFORMATION: Pick-up must be scheduled firmly between December 10th and 12th FCA Winterlingen, loaded onto truck

Condition: good (used), Year of construction: 2001, Dear Sir or Madam, below we offer you a 5-axis CNC machining center 'DECKEL MAHO' DMU 50 eVo, used, in good condition. Hfedpfjw Axahex Afpon

Condition: used, Year of construction: 2008, x-travel 500 mm y-travel 450 mm z-travel 400 mm Control HEIDENHAIN iTNC 530 Table dimensions 500 x 380 mm table weight 500 Kg c-axis 0.001º ( ± 360º) 0 Hfjdpfoxluf Aox Afpon b-axis 180 ° rapid traverse X-axis 80 m/min feeds 50 m/min spindle turning speed range 18.000 U/min spindle taper BT- 40 spindle drive 30 kW Internal cooling system 40 bar handwheel HEIDENHAIN HR-410 total power requirement 50 kVA weight of the machine ca. 6,5 t

Condition: good (used), Year of construction: 2006, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 50,000 m/min, rapid traverse Y-axis: 50,000 m/min, rapid traverse Z-axis: 50,000 m/min, table width: 380 mm, table length: 500 mm, table load: 200 kg, mount diameter: 30 mm, Measuring probe TS640 Tank 600 L with 40 Bar IKZ Extended chip conveyor for 30/60 Tools ATC Direct measuring scales also in B & C Axis Air true spindle over M-Function X - Travel: 500mm Y - Travel: 450mm Z - Travel: 400mm A - Axis: 360° B - Axis: 0 - 108° Hodpfx Afew Rl Igspjfn Table Length: 500mm Table Width: 380mm Table load: 200 Feed rate X-Axis: 50000mm/min. Feed rate Y-Axis: 50000mm/min. Feed rate Z-Axis: 50000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 35kW Speeds / ranges: 18000Rpm ATC / revolver: 30 Coolant through spindle / Bar:20 Number of controlled axis: 3+2 Chip conveyor: yes Coolantsystem: yes Length: 3800mm Width: 3200mm Height: 2800mm Weight: 6500kg

Condition: excellent (used), Year of construction: 2004, operating hours: 8,725 h, functionality: fully functional, Deckel Maho DMU 50 EVO with iTNC 530 About the machine: Only 2,684 spindle hours! Like new condition! All hoses (pneumatic, coolant, cooling) have been replaced. The machine has been completely cleaned. The machine has been checked and measured. A geometry inspection report has been issued. Geometry is excellent. Top specifications! - Control system: Heidenhain iTNC 530 - Travel path X-, Y-, Z-axis: 500/420/380 mm - Rapid traverse: 50 m/min - Spindle speed: 20–18,000 rpm - Tool holder: SK40 DIN 69871 - Tool magazine with 32 slots - Machine weight approx. 6,500 kg - Chip conveyor - Internal coolant supply 40 bar with belt filter (rotary union NEW) - Rinse gun Hodpsxf Ud Sefx Afpsfn - Coolant/air blast switching (M25) - Heidenhain TS 640 probe - Renishaw tool probe NEW (automatically retracts) - Kinematics Qickset - Network connectivity - Automation interface available Viewing and testing under power on site is, of course, possible. We are happy to offer you transport, installation, and commissioning at your location. Everything from a single source: We, Baumgärtner CNC GmbH & Co. KG, are a company specialized in: - Service - Maintenance - Overhaul - Automation of DMG machines and other renowned manufacturers. We support you! From machine purchase, through transport and installation, to commissioning and subsequent maintenance or repair work, you can rely on us.

Year of construction: 2000, condition: ready for operation (used), A CNC 5-axis milling machine Deckel Maho is available. Travel X/Y/Z: 500mm/420mm/400mm, table dimensions X/Y: 500mm/400mm, axes: 5, speed: 18000rpm, tool stations: 32, tool holder: SK40, coolant volume: 900l, control: Heidenhain MillPlus V410/00h, operating hours: 63925h, program run hours: 30857h. Documentation available. An on-site inspection is possible. Hsdpfx Asw Ext Tefpsfn

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, Equipment: chip conveyor, documentation/manual, Deckel Maho DMU 50 evo Linear with TNC 530 control from Heidenhain, TOP condition Technical data: >> Year of manufacture 2006 >> Manufacturer Heidenhain, type iTNC 530 >> Travel paths X500/Y450/Z400 >> C-axis 360 degrees >> B-axis 0 degrees to 161.955 degrees >> Tool holder HSK A63 >> Max. spindle speed up to 18000 rpm >> Feed continuously programmable up to X, Y, Z 20000 mm/min C-B axis continuously programmable up to rapid traverse speed >> Rapid traverse Y- Z axis 50 m/min X-axis 80 m/min (linear drive) B-axis 40 rpm C-axis 50 rpm >> Tool magazine: Double gripper 60 magazine spaces >> Table clamping area Ø 500 x 380 mm T-slot spacing 63/14H7 >> Table load 200 KG >> Dimensions and weight: approx. Machine without control and attachments Depth 3.0 meters Width 2.4 meters Height 2.6 meters Weight approx. 7000 kg >> Operating voltage 400 V >> electr. Handwheel Heidenhain HR 410 >> Power connection 17 KVA >> Chip conveyor >> Active spindle cooling >> Mist extraction >> IKZ 40 bar >> Coolant lubricant cleaning system (fleece filter system) >> Spray gun >> Visiport >> Sealing air on the measuring system >> Preparation for robot loading >> 3D probe Heidenhain TS640 >> 3D Quick Set >> Kinematics >> Blum laser for tool measurement and breakage control Cpvnunmsoi >> Complete documentation Dn2F2R The following work was carried out: >> Generally overhauled main work spindle >> Complete maintenance: All cooling hoses and pneumatic hoses replaced, new filters, fluids and belts replaced. Scrapers, etc. Complete cleaning. >> Geometrically measured (acceptance protocol) Hsdpfevyr Tdsx Afpofn About the machine: A Deckel Maho DMU 50 evo Linear machining center with a TNC 530 3D path control from Heidenhain is offered. The machine is in very good condition. The main spindle on the DMU was overhauled (replacement spindle), completely serviced and an acceptance protocol was created. Take advantage of the opportunity to view and try out the machine on site with power on.

Condition: excellent (used), Year of construction: 2007, operating hours: 1,380 h, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 350 mm, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 30, swivel angle B-axis (max.): 108 °, swivel angle C-axis (max.): 360 °, TECHNICAL DETAILS Travel X-axis: 500 mm Travel Y-axis: 450 mm Travel Z-axis: 400 mm B-axis: 108° Hfsdpfx Aowu Evtofpon C-axis: 360° Speed range: 18,000 rpm Tool holder: HSK-63-A Tool positions: 30 Table size: 500 x 380 mm Rapid traverse X-axis: 80 m/min Rapid traverse Y-axis: 50 m/min Rapid traverse Z-axis: 50 m/min Feed rate X-axis: 20 m/min Feed rate Y-axis: 20 m/min Feed rate Z-axis: 20 m/min MACHINE DETAILS Control: Heidenhain iTNC 530 Machine weight: 6,500 kg Operating hours: 1,380 h Power-on hours: 19,803 h EQUIPMENT - 5-axis simultaneous machining - Tool changer - NC rotary tilting table - Internal cooling (IKZ) prepared for 40 bar - Paper band filter - Chip conveyor - 3D probe: Renishaw preparation (probe not included) - Blum laser tool measurement

Condition: used, Year of construction: 2008, x-travel 500 mm y-travel 450 mm z-travel 400 mm Control HEIDENHAIN control MillPlus iT table surface area ø 500 x 380 mm B-axis 0 - 161,955 ° C-axis 360 ° spindle taper SK 40 spindle turning speed range 20 - 18.000 U/min spindle power max. 35 kW max. torque on the spindle max. 130 Nm Hfodpfx Afswlvi Eepon feeds -stepless- bis 20.000 mm/min rapid traverse X/Y/Z axis 80 / 50 / 50 m/min rapid traverse B-axis 40 U/min C-axis rapid feed 50 U/min no. of tools in magazin 30 tool diameter if 2 vacant positions 130 mm tool diametre at full load 80 mm tool length - max. 300 mm weight of tools max. 6 kg internal coolant system feed 40 bar total power requirement 52 kVA weight of the machine ca. 6 t = 5-axis machining center with 2-axis NC swivelling rotary table Accessories: electron. handwheel, chip conveyor, coolant, band filter device
