Machining center

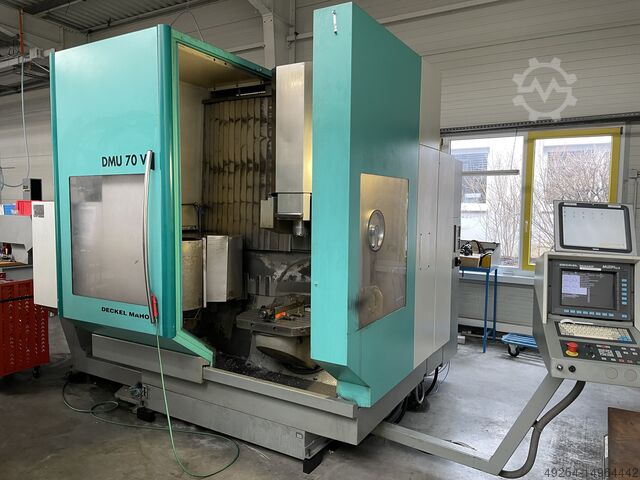

Deckel Maho DMU 70 V

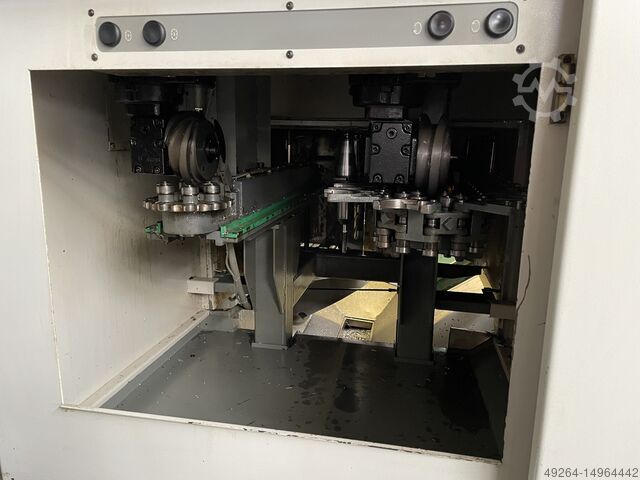

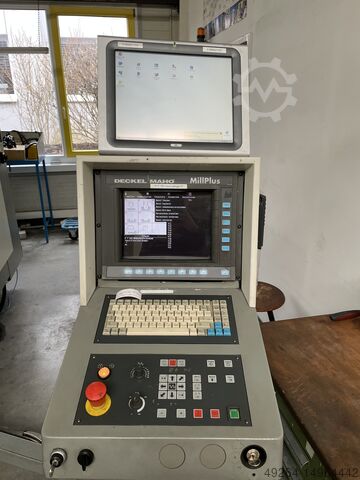

Condition: used, Year of construction: 2000, operating hours: 3,273 h, machine/vehicle number: 15015702974, travel distance X-axis: 710 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 520 mm, torque: 130 Nm, controller manufacturer: Heidenhain 426/430, workpiece weight (max.): 350 kg, total height: 2,724 mm, total length: 2,756 mm, total width: 2,020 mm, table width: 500 mm, table length: 700 mm, rotary table diameter: 700 mm, overall weight: 5,500 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 15,000 W, number of spindles: 1, number of slots in tool magazine: 32, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, 5-Axis Machining Center DECKEL MAHO DMU 70V We offer for sale an advanced, universal vertical machining center, the Deckel Maho DMU 70V (part of the renowned DMG MORI group), equipped with a numerically controlled (NC) rotary/tilting table. The machine features a compact and robust design, minimizing its footprint in the production hall while offering full capabilities for advanced 5-axis machining. AXIS SPECIFICATIONS AND WORKING AREA • Axis travel (XYZ): X = 710 mm | Y = 520 mm | Z = 520 mm • Working travel: 710 mm (X) / 520 mm (Y) / 520 mm (Z) INNOVATIVE NC ROTARY/TILTING TABLE (4th and 5th AXIS) • Mounting surface dimensions: ∅ 700 mm x 500 mm (practical design with factory-cut sides, facilitating optimal mounting of vises and fixtures) • Maximum table load: 350 kg (full mechanical safety of the gearbox, bearings, and measuring system) • Axis rotation range: • C-axis (rotation): continuous / multi-rotation operation (advanced trochoidal milling strategies) Ibedpfjzumh Iex Achea • B-axis (tilting): wide working range of over 180°, providing excellent access to the workpiece and freedom for angled undercutting MAIN DRIVE AND SPINDLE • Spindle speed: continuously (steplessly) adjustable in the range of 20 – 12,000 rpm • Spindle power: 15 kW • Maximum torque: up to 130 Nm (powerful cutting force guaranteeing excellent stiffness and stability during heavy rough machining of hard materials) CONTROL SYSTEM AND TOOL MAGAZINE • Control system: Reliable and widely appreciated by operators, the Heidenhain 426/430 (simple dialog programming, intuitive menu) • Tool magazine: Automatic, compact chain-type magazine with a capacity of 32 positions (fast tool change in automatic cycles) LOGISTICAL AND CONNECTION PARAMETERS • Overall dimensions of the machine ready for operation (with chip conveyor): • Length: 2756 mm • Width: 2020 mm • Transport height: 2724 mm (the machine fits easily on standard trailers and passes through conventional hall doors) • Total machine weight: approx. 5,500 kg • Maximum power consumption (connection): up to 42 kVA • Input voltage: 400 V (AC - three-phase current) • Current protection (fuse): 63 A • Power supply frequency: 50/60 Hz MACHINE CONDITION AND ADDITIONAL INFORMATION The machine is in good technical condition, regularly serviced and maintained. It is ideally suited for both serial production and tool shops producing complex molds, dies, and precise 5-axis parts. The machine comes complete with a chip conveyor.
