CNC Universal Milling Machine

Deckel Maho DMU 70

Condition: ready for operation (used), Year of construction: 2008, Main Drive Number of axis 5 This 5-axis DMG DECKEL MAHO DMU 70 eVo was manufactured in 2008. Consider the opportunity to buy this DMG DECKEL MAHO DMU 70 eVo universal machining centre. Contact us for more information. Application Types Gusdpfx Afew E Rnpopeh Milling

Condition: good (used), Year of construction: 2007, Cover Maho DMG DMU 70eVolution 5Axis simultaneous Machining center CNC Manufacturer: DMG Deckel Maho Gedpevcnd Refx Afpsuh Type [ type]: DMU 70eVolution Control unit: Heidenhain iTNC 530 Incl. handwheel/handwheel Year of construction: 12/2006 - erneuert/renewed Spindle - IKZ integrated cooling system for water 40bar and air (both possible-both possible) Travel X/Y/Z 750/600/520 mm B-axis 0 to 180° degrees C-axis n x +-360° degrees Table load up to 350 kg Spindle speed range 20 to 18,000 1/min. Tool holder SK 40 DIN 69871 Weight [weight]: 10,000kg Complete documentation is available. Inspection under power can be arranged at short notice. If you have any further questions, please do not hesitate to contact us. Condition: good - ready for demonstration Delivery: ex warehouse - as inspected Payment: strictly net - after receipt of invoice Subject to prior sale, errors excepted.

Condition: excellent (used), Year of construction: 2002, 5-Axis Machining Center - Universal DECKEL MAHO DMU 70 EVO Year of manufacture: 2002 Control: MillPlus iT Heidenhain Machine hours: 33,289.6 h Spindle hours: 10,533.5 h Technical Data: X-axis travel: 750 mm Y-axis travel: 600 mm Z-axis travel: 520 mm Main Spindle: Godpfx Aoxf Hlhofpeuh Speed range - main spindle: 20 - 18,000 rpm Drive power - main spindle: 35 / 25 kW Max. torque: 130 / 87 Nm NC Rotary Swivel Table: Clamping surface: 700 x 500 mm Swivel range, B-axis: 180° Rotatable, C-axis: 360° Max. table load: 350 kg Centering bore: 30 H6 mm T-slots: 7x 14H7 x 63 mm Table speed range: 21.5 rpm Tool Magazine: Number of tool positions: 32 Max. tool length: 315 mm Max. tool diameter: 105 mm Max. tool diameter with adjacent pockets empty: 130 mm Max. tool weight: 6 kg

Condition: used, Year of construction: 2002, x-travel 750 mm y-travel 600 mm z-travel 520 mm control iTNC 530 Heidenhain turning speed range - main spindle 20 - 18.000 min/-1 power capacity - main spindel 35 / 25 kW max. Torque 130 / 87 Nm tool taper HSK-A63 Gujdpfx Asuntmdefpoh table surface area 700 x 500 mm Swivel range B-Axis 0 - 180 ° Swivel range C-Axis 0,001 ° max. table load 350 kg center hole 30 H6 mm T-slots 7x 14H7 x 63 mm table turning speeds 21,5 rpm number of toolpositions 32 pos. max. tool length 315 mm max. tool diameter 105 mm max. tool-dia with free toolbox 130 mm max. tool weight 6,0 kg rapid traverse ( X / Y / Z ) 50 / 50 / 50 m/min feed speeds 20.000 mm/min Feed force X / Y / Z: 8 / 8 / 7 kN total power requirement 50 kVA weight of the machine ca. 8,5 t dimensions of the machine ca. 6,5 x 3,5 x 3,5 m 5 Axis-CNC-Machining Center DECKEL MAHO - DMU 70 eVolution - 5 Axis - NC-Swivel-Rotary-Table - Operating-Hours: Power-On: ca. 62.500h / Spindle: ca. 15.100h

Condition: good (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 2,050 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 520 mm, rotational speed (max.): 12,000 rpm, CNC control Heidenhain TNC 430 32-fold tool changer coolant device 2x chip conveyor measuring feeler The hole X-axis travel is 2050mm. You can work in one move 2 meters. A dividing wall is also with the machine. Then the X-travel will be split. Technische Daten / technical details: X-Weg / X-travel 2050 mm Y-Weg / Y-travel 520 mm Z-Weg / Z-travel 520 mm Spindelaufnahme / spindle taper SK40 Drehzahlbereich / spindle speed 12000 UpM /rpm Werkzeugwechselmagazinplätze / number of tool places in changer 2x 32 Antriebleistung Spindel / drive capacity spindle 36 kW Gewicht ca. / weight 12800 kg Godpfou Hf Ryjx Afpjuh Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2007, operating hours: 86,863 h, functionality: fully functional, travel distance X-axis: 750 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 520 mm, controller model: Heidenhain iTNC530, table width: 800 mm, table length: 620 mm, overall weight: 9,000 kg, spindle speed (min.): 18,000 rpm, operating hours of spindle: 39,186 h, number of slots in tool magazine: 60, A well-maintained used DMU 70 EVO Linear is for sale Gjdpfx Afsxcnd Tspouh

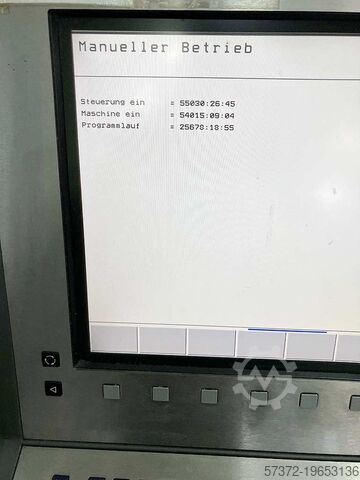

Condition: ready for operation (used), Year of construction: 2008, operating hours: 25,678 h, General Data Measurements width 1862 mm (transport width without handle) Measurements depth 3235 mm Measurements height 3000 mm Gusdsxg Ulrepfx Afpsh Control Unit Brand HEIDENHAIN Model iTNC 530 Main Drive Number of axis 5 Movement X-Axis Movement 750 Y-Axis Movement 600 Z-Axis Movement 520 This 5-axis DMG DECKEL MAHO DMU 70 was manufactured in 2008. It features X-Axis Travel of 750 mm, Y-Axis Travel of 600 mm, and Z-Axis Travel of 520 mm, with a rapid traverse speed of 24 m/min. The main spindle achieves up to 14,000 rpm. Tooling includes a SK 40 tool holder and a 30-slot magazine. If you are looking to get high quality milling capabilities consider the DMG DECKEL MAHO DMU 70 machine we have for sale. Contact us for more information. Application Types Milling

Condition: good (used), Universal machining center CNC DMU 70 VL Lid Maho Manufacturer [manufacturer]: Deckel Maho (DMG) Guodpfevcm I Ijx Afpoh Type [ type]: DMU 70 VL Steuerung [control unit]: Heidenhain TNC 430C Construction year: 09/2002 Travel path: X= 710mm Y=520mm Z=520mm spindle rotation speed: 20-18,000 rpm Main spindle power: 36 kW IKZ Internal coolant supply: 30 bar Tool changer: 2 x 32 places Tool holder: SK 40 according to DIN2080 Coolant system: Knoll Chip conveyor: 2 units Weight: 12.800kg Space required [needed space ]approx. (L x W x H): 5.3m x 2.75m x 2.75m Further information: - CNC 5-axis machining center universal - 2 pcs. NC rotary tables with swivel axis - Clamping surface rotary axis (rotary axis): Ø 700 mm x 500 mm - Max. load (centered): 350 kg Complete documentation is available. Inspection under power can take place at short notice. If you have any further questions, please do not hesitate to contact us. Price, ex stock here plus VAT. Condition: good - ready for demonstration Delivery: ex stock - as viewed Payment: strictly net - after receipt of invoice Subject to prior sale, errors excepted. We ask for your order. Further machines and systems available from stock - please enquire. We look forward to hearing from you.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, controller model: Heidenhain TNC 530, Deckel Maho DMU 70 evolution Heidenhain TNC 530 Gusdpfew Uf Egox Afpjh Travel paths 750x600x520 mm Table size 500x700 mm Maximum table load 600 kg Main spindle 18,000 rpm, 25 kW Tool changer with 90 positions Maximum tool length 200 mm, max. weight 6 kg Tool holder HSK 63 Internal coolant supply with paper band filter Heidenhain measuring probe Direct path measuring system Chip conveyor

Condition: used, Deckel Maho DMU 70 eVolution Guodpfx Afsw Rtd Aopoh
