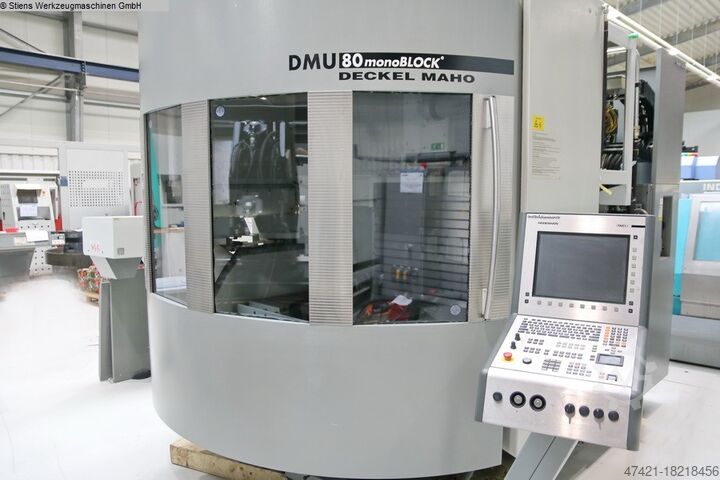

Machining Center - Universal

DECKEL MAHO DMU 80 monoBLOCK

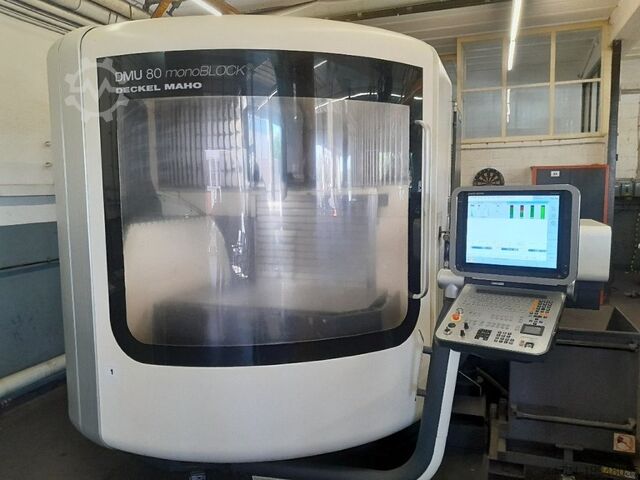

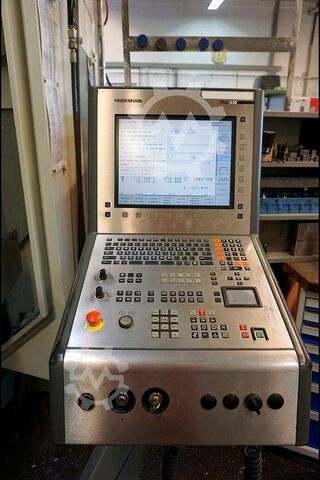

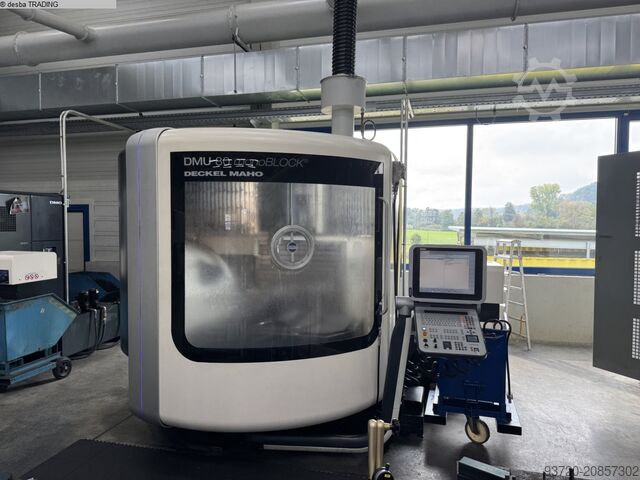

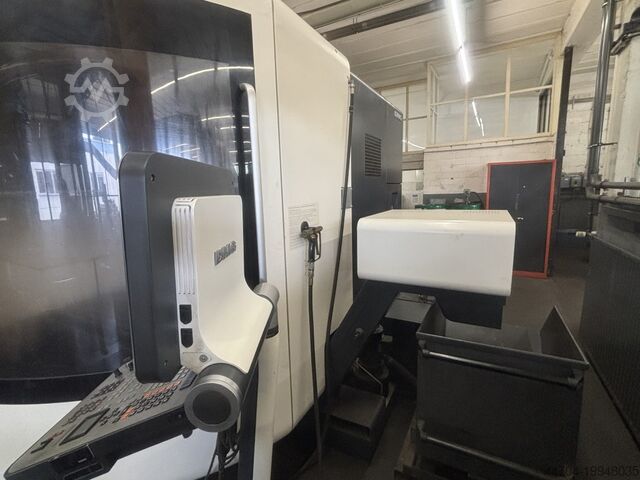

Condition: used, Year of construction: 2007, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, controller manufacturer: Heidenhain, controller model: iTNC 530, total height: 2,500 mm, total length: 4,500 mm, total width: 4,000 mm, table load: 800 kg, rotary table diameter: 700 mm, overall weight: 14,000 kg, spindle speed (max.): 18,000 rpm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, DMG / Deckel Maho 5-axis machining centre with Heidenhain iTNC 530 control. The machine features a 5-axis simultaneous machining concept with swivelling B-axis (+30° / −120°) as well as an integrated NC rotary table (C-axis, 360°) and is designed for complex and precise machining operations. Bjdpfeyhn A Uox Afcecw Equipped with a main spindle with HSK-A63 tool interface and a 32-position tool magazine for flexible manufacturing applications. Suitable for tool and mould making, contract manufacturing, as well as general precision machining.

Condition: excellent (used), Year of construction: 1998, travel distance X-axis: 290 mm, travel distance Z-axis: 1,920 mm, spindle motor power: 11,000 W, 3 chuck ca 400 mm Duplomatic 8 position revolver Steady rest big 400 mm Steady rets normal 300 mm Pinole taper: 6Mk Stroke pinole: 180mm Quill Ø: 95mm Length: 3300mm Width: 1800mm Bedpjyfd Hwefx Afcocw Height: 1700mm Weight: 4000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

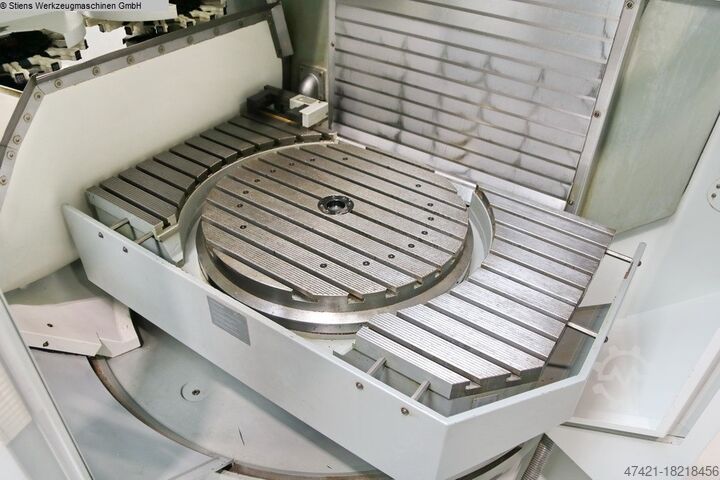

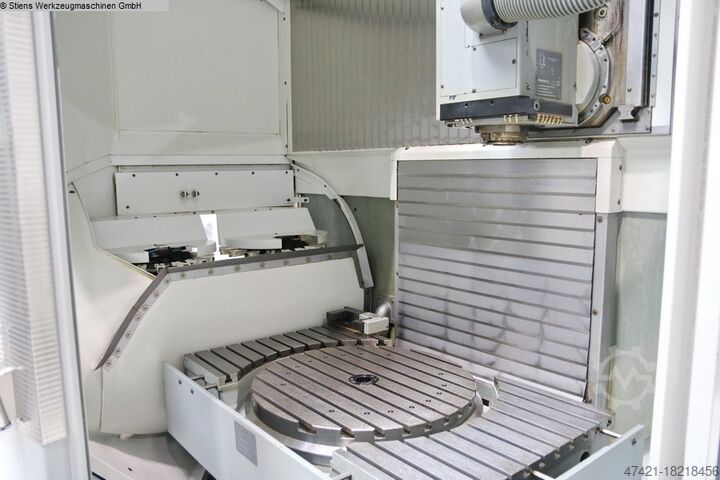

Condition: used, Year of construction: 2006, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain Bcedpfxeyackdj Afcow turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Condition: used, Year of construction: 2007, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table Bcedpfxeyaci Te Afcjw - Swivel-Milling-Head (B-Achse)

Condition: good (used), COLCHESTER COMBI 4000 is a CNC turning lathe engineered for precision, high accuracy and reliability. Capacities: distance between centres 2000 mm, turning diameter over cross-slide 370 mm, swing over bed 554 mm, max turning length 2000 mm; Z travel 1920 mm, X travel 290 mm, spindle hole 104 mm, spindle nose D1-11, Camlock D1-6, tailstock Morse 6 CM, spindle stroke 178 mm Ø95 mm. Specs: 3-step speeds 16–1800 t/min, rapid traverse 10 m/min, spindle motor 11/7.5 kW, 50 Hz 3×380 V, weight ~4000 kg, overall L3300×W1800×H1700 mm. Equipment: 3‑jaw Ø400 mm and 4‑jaw Ø700 mm chucks, faceplate Ø680 mm, 90 l coolant, MULTIFIX toolholders, toolholder sets and reducing bushes, lamp, tailstock, steady, drill chuck, chuck protection. Delivers tight tolerances; ideal for automotive, aerospace, medical, watchmaking and machine tool sectors. Bsdpfsx S N Hdox Afcscw

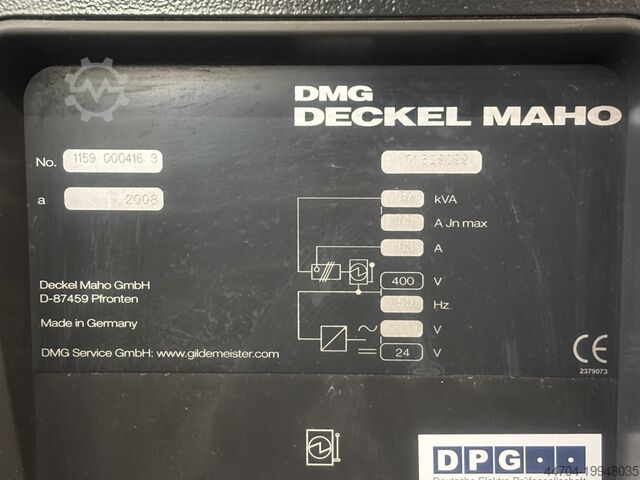

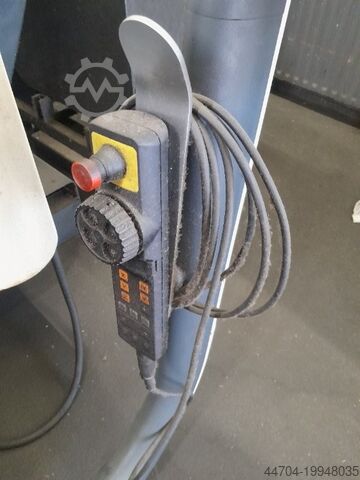

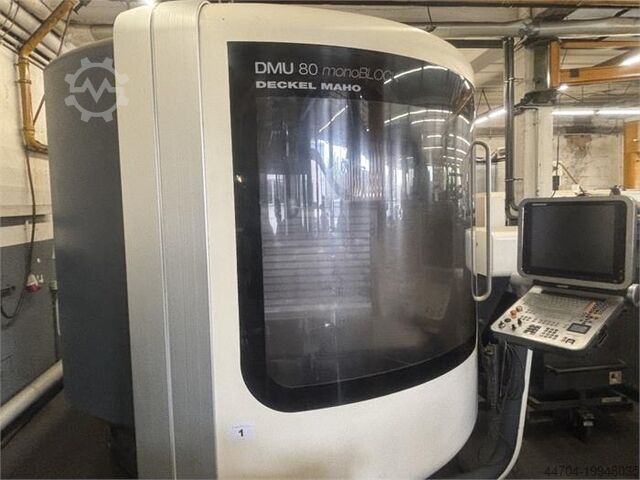

Condition: good (used), Year of construction: 2008, 1 used vertical machining center Manufacturer: Deckel Maho Model: DMU 80 monoblock Year of manufacture: 2008 Control: ITNC 530 Technical specifications X travel: 980 mm Y travel: 630 mm Z travel: 630 mm Control: iTNC 530 Total power requirement: 10 / 15 kW Machine weight approx.: 9.5 t Space requirements approx.: 4*4*2.5 m Additional information Equipment: Electronic handwheel Bsdsxa Eudspfx Afcjcw Operation mode 4 Manual swivel milling head Motor spindle 12,000 rpm SK 40 / Clamping DIN 69872 32-tool magazine Fixed table 1250 x 700 mm Chip conveyor Coolant system

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, operating hours: 17,797 h, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, number of slots in tool magazine: 32, spindle speed (max.): 12,000 rpm, swivel angle B-axis (min.): -30 °, swivel angle B-axis (max.): 90 °, TECHNICAL DETAILS Control: MillPlus iT Heidenhain X travel: 880 mm Bodpfxsxf A E Re Afcecw Y travel: 630 mm Z travel: 630 mm B axis: -30° / +90° C axis: available Spindle and Drive Spindle speed: 20 - 12,000 rpm Spindle taper: SK 40 DIN 69871 Torque at 40 % / 100 % duty cycle: 28 / 19 kW Table and Workpiece Table size: 1,250 x 700 mm Table load capacity: 650 kg NC rotary table: Ø 800 mm Tool Magazine Tool change system: 2 × 16 positions MACHINE DETAILS Operating hours: 43,802 h Spindle hours: 17,797 h Total power requirement: 44 kW Machine weight: 9.5 t Space requirements: 3.50 × 3.20 × 2.60 m Coolant system standard volume: 250 liters EQUIPMENT - Renishaw OMP60 probe - Rotoclear - Rinse gun - High-pressure pump - Chip conveyor - Air filtration system - ICS (internal coolant supply)

Condition: good (used), Year of construction: 2004, DMC 80 U, year of manufacture 2004, CNC MillPlus IT, spindle 18,000 rpm, SK40 taper, coolant through spindle, ATC 60 positions, machine number 1120 000170 3, power-on 41,449 h, spindle hours 21,015 h. Bsdpexy Tybefx Afcocw
