5-axis universal machining center

DECKEL MAHO DMU 80 T

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, controller model: Heidenhain iTNC 530, spindle speed (max.): 12,000 rpm, No minimum price – guaranteed sale to the highest bidder! The spindle was replaced on November 14, 2018. TECHNICAL DETAILS Travel in the X-axis: 880 mm Travel in the Y-axis: 630 mm Travel in the Z-axis: 630 mm Rcsdpezpw Iusfx Ankjd Spindle speed: 12,000 rpm Controlled B-axis: -15° to +90° Tool holder: SK 40 Number of tool magazine slots: 32 MACHINE DETAILS Control system: Heidenhain iTNC 530 Spindle operating hours: 50,033 h EQUIPMENT Coolant system

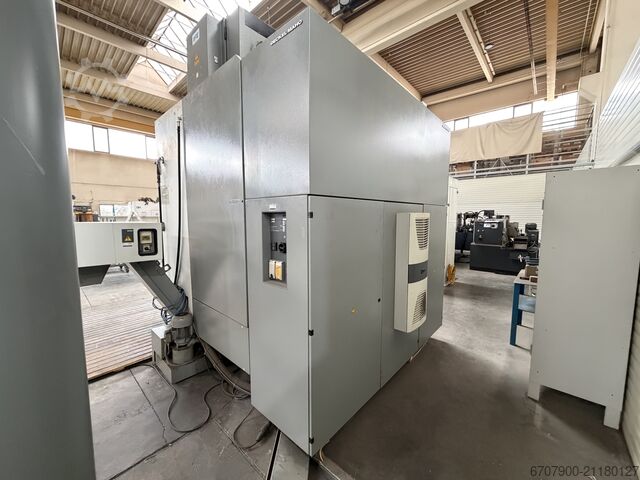

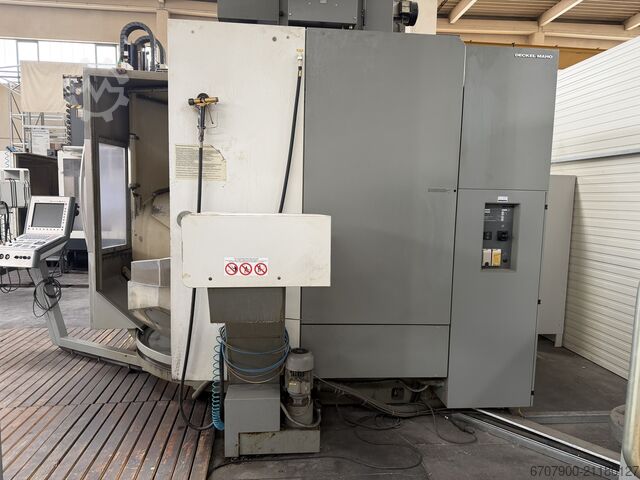

Condition: used, Year of construction: 2006, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table Rcedpfx Anoyackdskjd - Swivel-Milling-Head (B-Achse)

Condition: ready for operation (used), Year of construction: 2001, Control system: Heidenhain TNC 430 MillPlus, length: 4073mm, width: 3323mm, height: 2375mm, weight: approx. 9.5t, an on-site inspection is possible. Rcedpfx Aszk Naxonksd

Condition: used, Year of construction: 2000, x-travel 880 mm y-travel 630 mm z-travel 630 mm Rcodpfszfaxhsx Ankod weight of the machine ca. 8800 kg

Condition: used, Univ. universal tool milling machine DECKEL, type FP 1 Machine no. 52185, year of manufacture 1968 Travel distances: X: 300 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 250 mm Rsdsdzqb Sopfx Ankecd Spindle mount: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Motor power: 1.0 and 1.4 kW, pole-shifting Power connection: 380 volts, 50 Hz - Feed in the X and Z axes - Two motor speeds and 8 gear stages - Quill travel on the vertical milling head: 60 mm - Fixed tilting table - Coolant system in the machine base - Adjacent control cabinet - Counter holder with counter bearing for horizontal milling, SK 40 Space requirement L x W x H: 1200 x 1100 x 1600 mm Weight: approx. 1000 kg Very good condition

Condition: used, Year of construction: 2002, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain Main spindle: turning speed range - main spindle 20 - 10.000 min/-1 power capacity - main spindel 13 kW Torque 130 Nm tool taper BT 40 DIN 69872 work table: table surface area 1.250 x 700 mm max. table load ca. 500 kg table diameter 700 mm T-slots 11x 14 x 63 mm max. table speed 15 min/-1 tool magazin: number of toolpositions 32 (2x 16) pos. Rcodpovn Ur Sefx Anked tool taper BT 40 max. tool diameter 80 / 130 mm max. tool-dia with free toolbox 160 mm max. tool length 315 mm max. tool weight 8,0 kg feeds: feed speeds 20 - 15.000 mm/min rapid traverse 12 m/min total power requirement 30 kVA weight of the machine ca. 9,0 t dimensions of the machine ca. 4,0 x 3,0 x 2,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 T - 5-Axis - Rotary table in Fixed-Table - Retrofitting to SK 40 optionally possible!

Condition: used, Year of construction: 2002, x-travel 880 mm y-travel 630 mm z-travel 630 mm table surface area 1250 x 700 mm NC-rotary table integriert, 700 mmø spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - 12.000 U/min control HEIDENHAIN control TNC 430 feeds x/y/z -stepless 20 - 15.000 mm/min rapid traverse 30 m/min ATC 32 (2 x 16) Pos tool diameter 80 / 130 mm Rcodpotqqmbefx Ankod workpiece length 315 mm weight of tools max. 8 kg NC-rotary table - speed - max. 15 U/min table load 600 / 500 kg milling head -swivable +/- 12 / 90 ° total power requirement 60 kW weight of the machine ca. 9,6 t dimensions of machine L x W x H 4,53 x 2,60 x 2,50 m = 5-axis machining center, table clamping surface 1250 x 700 mm with integrated NC-rotary table (=4th axis), movement of milling head via control (=5th axis) Accessories: electron. handwheel, chip conveyor (snailconveyor), coolant

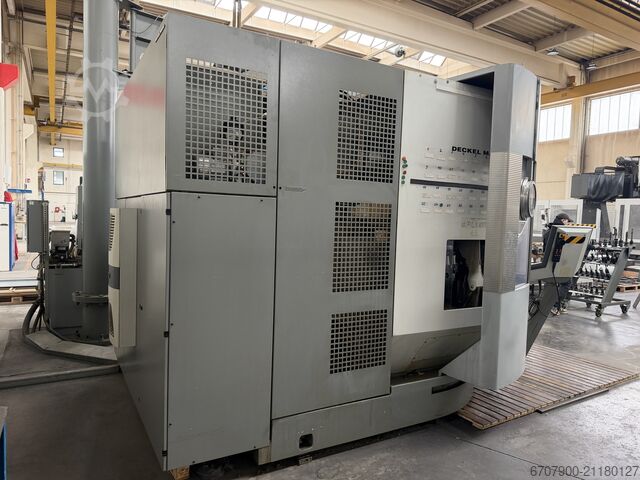

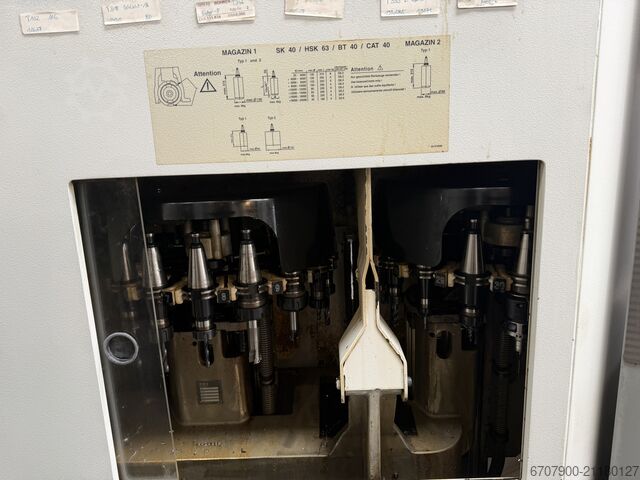

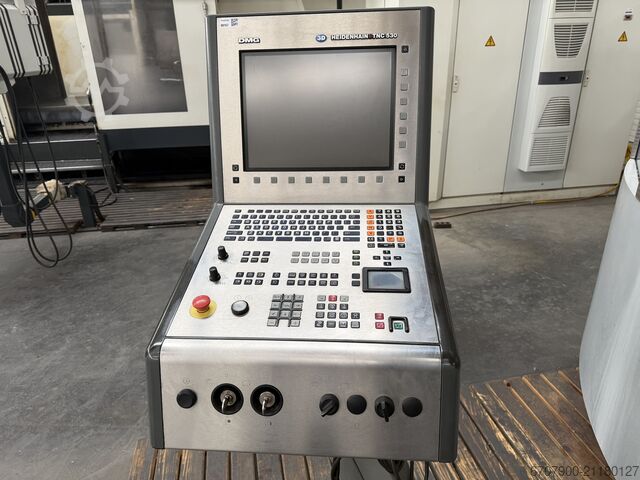

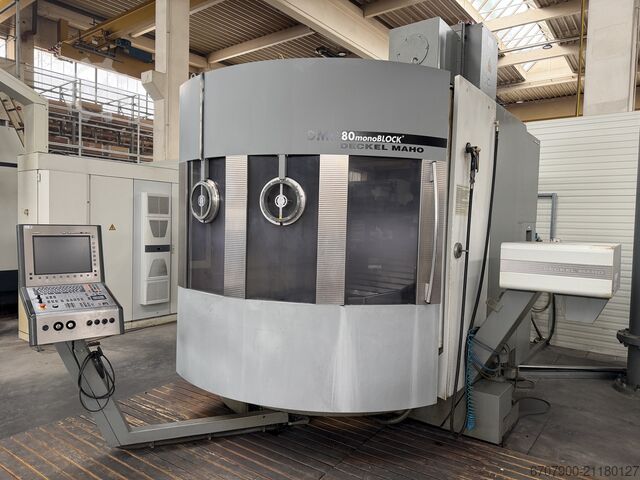

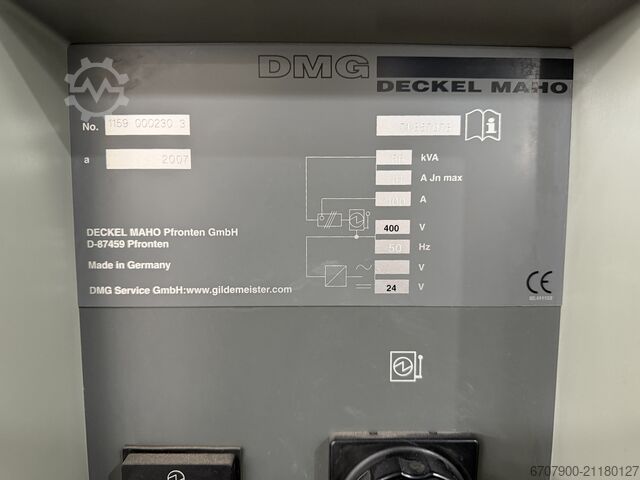

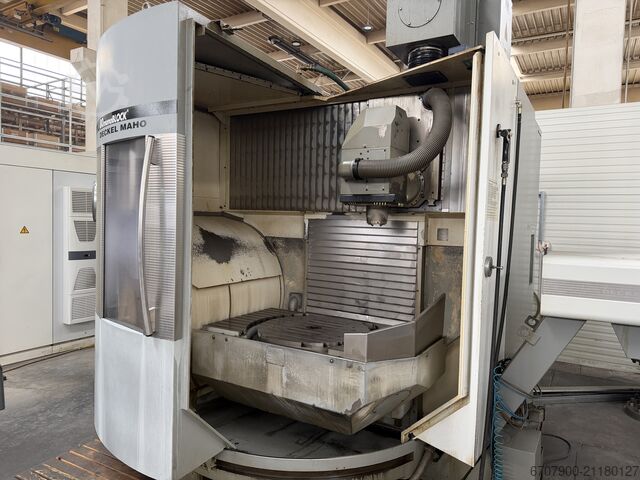

Condition: used, Year of construction: 2007, x-travel 880 mm y-travel 630 mm z-travel 630 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 Nm tool taper HSK-A 63 swivellable B: +30° / -120 ° table surface area Ø 700 / 1.250 x 700 mm max. table load 650 kg rotatable C: 360 ° number of toolpositions 2x16 pos. tool taper HSK-A 63 max. tool diameter 80 mm max. tool-dia with free toolbox 130 mm max. tool weight 8,0 kg max. tool length 315 mm Rjdeyaci Tepfx Ankecd feed speeds max. 30.000 mm/min rapid traverse 30 m/min total power requirement 48 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 4,5 x 4,0 x 2,6 m 5 Axis CNC - MachiningCenter Universal DECKEL MAHO - DMU 80 monoBLOCK - NC-Rotary Table (C-Achse) integrated in rigid-table - Swivel-Milling-Head (B-Achse)

Year of construction: 1996, condition: good (used), Used machining center from DECKEL MAHO, equipped with: - MillPlus CNC control - Fixed angular table - Coolant system - Lighting - 25-position tool changer - Documentation Travel distances X/Y/Z: 800/650/550 mm Spindle speed: 20-6300 rpm Tool holder: SK 40 Redohzt Thepfx Ankscd Further technical data: see PDF document Technical data and dimensions: Subject to change without notice.

Condition: ready for operation (used), Year of construction: 2004, operating hours: 40,000 h, travel distance X-axis: 880 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, controller manufacturer: HEIDENHAIN, controller model: Mill Plus, spindle speed (max.): 18,000 rpm, number of axes: 3, This 3-axis DMG DECKEL MAHO DMU 80T was manufactured in 2004. It features a high-speed spindle at 18,000 RPM, internal coolant supply with 40 Bar pressure, and a 32-station tool changer. The machine includes SK 40 tool holders and a Rotoclear viewing window. Ideal for demanding machining tasks, consider the opportunity to buy this DMG DECKEL MAHO DMU 80T vertical machining centre. Contact us for more information about this machine. • Spindle cooling: Active cooling • Cooling: Air or coolant • Internal coolant supply: 40 bar (through-spindle) • Tool changer: 32 stations • Operating mode: Mode 4 (working with open door) Additional equipment Rcodpfex D Iunjx Anksd • Belt filter system: Interlit SPD 3-600-HD • Mist collector • Rotoclear viewing window • Control cabinet cooling unit

Condition: used, Universal Tool Milling Machine MAHO Type MH 800 P with digital readout and HEIDENHAIN TNC 121 contouring control . 80983 Year of manufacture: 1982 Machine overhauled by MMD in 2008, subsequently used only occasionally in the workshop of an electronics company. Travel X: 700 mm, Y: 450 mm, Z: 500 mm Table size: 1050 x 627 mm Spindle taper: ISO 40 Spindle speed: 40–2000 rpm, 18 steps Feed X, Z-axis: 10–500 mm/min, stepless Feed Y-axis: 5–250 mm/min, stepless Rapid traverse X, Z-axis: 1.4 m/min Rapid traverse Y-axis: 0.7 m/min Quill vertical travel: 100 mm Quill feed, vertical: 0.02 / 0.03 / 0.05 / 0.08 / 0.12 / 0.2 mm/rev Quill horizontal travel: 100 mm Spindle drive: 5.5 kW Power supply: 380 Volt, 50 Hz, 10 kW - NC contouring control HEIDENHAIN TNC 121 - Vertical milling head with automatic quill feed 0.02–0.2 mm/rev (6 steps) - Hydro-mechanical tool clamping - Coolant system integrated in the machine base - Universal rotary table, 360° rotatable, tilts and swivels 30°, 225 mm cross adjustment - Rotary table with direct indexing 72 x 5° and indirect indexing via index plate 1:120 = 1 rev = 3° Rcsdpfx Aev Amryenksd - Swiveling control panel - Central lubrication - Operating manual - Machine mounted on steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirements L x W x H 2650 x 2000 x 2450 mm Weight: 3700 kg + 550 kg steel plate Total weight: 4250 kg (actual) Very good condition

Condition: used, Year of construction: 2001, x-travel 880 mm y-travel 630 mm z-travel 630 mm Control Heidemhain type 426/430 spindle speed: 18000 spindle taper HSK 63 surface area 1250x700 mm Rotary table 700 mm Table load 1000 kg b-axis Schwenkopf 0,001 ° c-axis 0-360° Rundtisch 0 B-axis C-axis Air blow through the spindle HSK 63 Electronic handwheel The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. Rjdpfx Aneyqukdjkecd We look forward to your visit. Your Markus Hirsch Team

Condition: ready for operation (used), Year of construction: 2004, operating hours: 17,500 h, functionality: fully functional, travel distance X-axis: 830 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, controller model: Heidenhain 530 (MC422), rotational speed (max.): 12,000 rpm, The machine is in very good condition, runs quietly, and operates with precision. TECHNICAL DETAILS Travel X-axis: 830 mm Travel Y-axis: 630 mm Travel Z-axis: 630 mm Feed rates: 15,000 mm/min Rapid traverse: 30,000 m/min Motor spindle: 12,000 rpm Number of tool stations: 32 MACHINE DETAILS Control: Heidenhain 530 (MC422) Tool holder: SK 40 Weight: approx. 9,000 kg Spindle hours: approx. 17,500 EQUIPMENT Internal coolant supply (IKZ) Chip conveyor Electronic handwheel Rodpfx Asymn Saonkscd Blum laser Flushing unit Filtration system Note: The probing system is not included in the scope of delivery.

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm - Fixed angle table 600 x 210 mm Rcjdpfx Aor U St Ujnkod - Coolant system integrated in the machine base - Standalone control cabinet - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: ready for operation (used), Year of construction: 1998, A universal machining center is offered with control: Heidenhain TNC 426. Operating hours: approx. 45380h, spindle hours: approx. 14384h. Viewing possible by appointment. Rsdpfxox Ivi Do Ankecd
