Universal Machining Centre

DECKEL MAHO DMU 80P

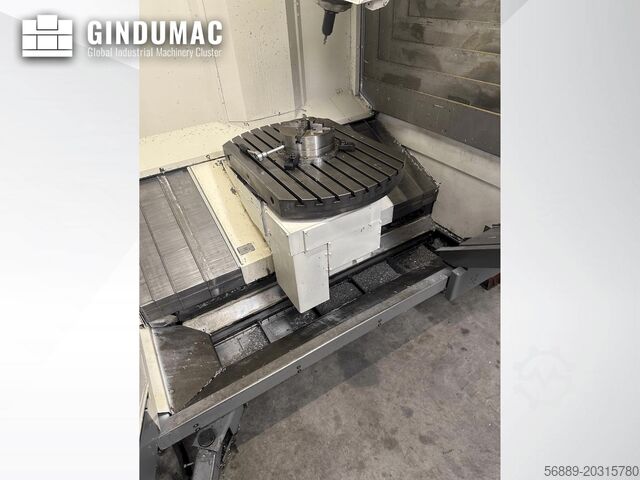

Condition: reconditioned (used), Year of construction: 2006, CNC Universal Milling & Drilling Machine DECKEL MAHO DMU 80 P duoBlock With MILL PLUS iT path control system Year of manufacture: 2006 Travel paths: X 800 Y 800 Z 800 mm Speed range: 0 – 8,000 rpm, stepless (SK 50) Supplied with the following accessories: NC rotary table 900 mm x 700 mm clamping area (max. table load 1.4 t) Universal milling head with controlled B axis Universal tool changer with 40 magazine slots as double gripper (SK 50) Full enclosure with sliding doors and internal lighting IKZ – 40 bar (internal coolant supply) Chip conveyor Rotoclear BLUM laser tool measurement 3D touch probe Heidenhain TS 641 Ibedsxn Aczepfx Afpsc Operating modes 3 + 4 Electronic handwheel 3 height-adjustable machine feet Transport device Operating manuals

Condition: used, Year of construction: 1999, x-travel 800 mm y-travel 700 mm Iedpfxsxmtvcs Afpebc z-travel 600 mm Control Heidenhain TNC 426/ 430PB total power requirement 15 kW weight of the machine ca. 8,4 t

Condition: used, Year of construction: 2009, x-travel 800 mm y-travel 800 mm z-travel 800 mm control iTNC 530 Heidenhain Speed Mainspindle 50 - 18.000 min/-1 Ibjdpfx Afju Ag Iropjc power capacity - main spindel 28 kW max. Torque 121 Nm tool taper HSK-A 63 Swivel range -30 / +180 ° table surface area dia. 900 x 700 mm max. table load 1.400 kg table speed 30 min/-1 rotatable C: 360 ° number of toolpositions 40 pos. tool taper HSK-A 63 max. tool diameter 230 mm max. tool length 450 mm max. tool weight 15,0 kg rapid traverse ( X / Y / Z ) 60 m/min Feed force ( X / Y / Z ) 13 / 13 / 9 kN weight of the machine ca. 13,0 t dimensions of the machine ca. 5,5 x 3,5 x 3,5 m total power requirement 68 kVA 5 Axis Machining Center - Universal DMG DECKEL MAHO - DMU 80 P duoBLOCK - Swivel-Milling-Head (B-Axis) - NC-Rotary Table (C-Axis) - Application Tuning Cycle ATC - WITHOUT clamping devices

Condition: ready for operation (used), Year of construction: 1998, operating hours: 12,745 h, Control Unit Brand HEIDENHAIN Model MillPlus Movement X-Axis Movement 800 Iodpfxexfml Ij Afpobc Y-Axis Movement 560 Z-Axis Movement 450 This 5-axis DECKEL MAHO DMU 80P was manufactured in 1998. It features a Heidenhain MillPlus control system, a rotary table that can rotate and tilt by 45°, and a 90° swivel head. The machine offers a spindle speed of up to 12000 rpm and accommodates 60 tool positions. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMU 80P machine we have for sale. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2000, travel distance X-axis: 800 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, 5-axis CNC machine (VMC) Ibjdpfxsw Rdl De Afpjc DECKEL MAHO - DMU80P MACH-ID 9194 Make: DECKEL MAHO Type: DMU80P Control: HeidenHain TNC430 Year: 2000

Condition: used, Year of construction: 1999, x-travel 800 mm y-travel 700 mm z-travel 600 mm NC-rotary table ø 900 x 630 mm spindle taper SK 40 spindle turning speed - stepless 20 - 12.000 U/min Ibodpfx Asw Eyhfsfpsc feeds x/y/z -stepless 20 - 10.000 mm/min rapid travel x/y/z 24 m/min control HEIDENHAIN, TNC 426 NC-rotary table - speed - max. 10,7 U/min NC-rotary table - feed - 3600 °/min table load capacity max. 800 kg no. of tools in magazin 30 tool diameter if 2 vacant positions 160 mm tool diametre at full load 100 mm tool length - max. 315 mm weight of tools max. 10 kg total power requirement 44 kVA = 5 axis (simultan) machining center - NC rotary table = C-axis - univ. milling head = B-axis Accessories: 30 tool fixtures, electron. hand panel, chip conveyor, coolant with filtration

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, DMG UNIVERSAL MACHINE CENTER DMU80P hi-Dyn Year 2001 X800 Y700 Z 600mm Heidenhain iTNC530 NC Rotary Table Ø900x630mm NC B axis Milling Head Ibjdpfx Aew A Dy Tefpsc Spindle 18,000rpm ATC 180 – HSK-A63 Roto Clear window Spindle thru' coolant 40 bar Cheap sales - 50.000,00 USD

Year of construction: 2005, condition: ready for operation (used), A CNC milling machine, which has been converted to a horizontal design, is available. Travel X/Y/Z: 800mm/700mm/600mm, repeat accuracy: mm. Table diameter: 630mm, max. table load: 600kg, tool positions: 60, tool holder: 60, tool diameter: 100mm/160mm, tool length: 350mm, max. tool weight: 10kg, feed rate: 50m/min, rapid traverse: 50m/min. Machine dimensions X/Y/Z: approx. 6600mm/5400mm/2750mm, weight: approx. 10200kg, control: iTNC 530. Documentation available. On-site inspection is possible. Isdpfjv Amprox Afpsbc

Condition: used, Year of construction: 2008, x-travel 800 mm y-travel 800 mm z-travel 800 mm Control iTNC 530 Heidenhain Main spindle: Max. rpm 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK-A63 swivellable B: 0 - 190 ° swivle time 1,2 s NC-Rotary table: table diameter 900 x 700 mm max. table load 1.400 kg rotatable C: 360 ° tool magazin: number of toolpositions 40 pos. tool taper HSK-A63 change-time chip to chip ca. 5,0 sec Ibedpfx Afeukwatspoc feeds: rapid traverse ( X / Y / Z ) 60 m/min rapid traverse B: 30 m/min rapid traverse C: 30 m/min feed speeds max. 60.000 mm/min total power requirement 64 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,5 x 6,5 x 3,5 m 5 Axis CNC-Machiningcenter Universal DECKEL MAHO - DMU 80 P duoBLOCK - 5-Axis - Swivel-Milling-Head - Rotary-Table

Condition: used, Year of construction: 2006, x-travel 800 mm y-travel 800 mm z-travel 800 mm Control iTNC 530 Heidenhain Main spindle: Max. rpm 18.000 min/-1 power capacity - main spindel 28 / 19 kW max. Torque 121 / 82 Nm tool taper HSK A63 swivellable B: 0 - 190 ° swivle time 1,2 s NC-Rotary table: table diameter 900 x 700 mm max. table load 1.400 kg Ibodotqmmzepfx Afpoc rotatable C: 360 ° tool magazin: number of toolpositions 60 pos. tool taper HSK A63 change-time chip to chip ca. 5,0 sec feeds: rapid traverse ( X / Y / Z ) 60 m/min rapid traverse B: 30 m/min rapid traverse C: 30 m/min feed speeds max. 60.000 mm/min total power requirement 64 kVA weight of the machine ca. 14,0 t dimensions of the machine ca. 6,0 x 6,5 x 3,2 m 5 Axis CNC-Machiningcenter Universal DECKEL MAHO - DMU 80 P duoBLOCK - 5-axis simultaneous - Swivel-Milling-Head - Rotary-Table
