Machining Center - Universal

DECKEL- MAHO DMU50

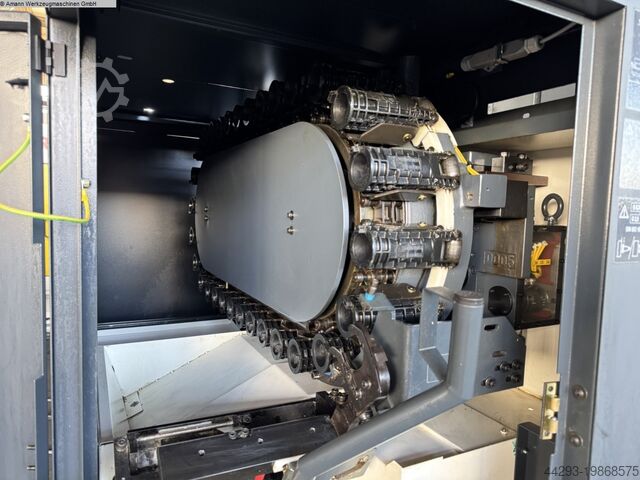

Condition: good (used), Year of construction: 2006, TECHNICAL DATA Main drive Speed: Infinitely programmable: 18`000 rpm In set-up mode: 20 - 800 rpm Work spindle: Hollow shank taper: HSK-A63 Gsdpfxsu Hkb Re Afpeuh Tool clamping: Hydraulic Feed drive Linear motor: X-axis AC servomotors: C, B, Y, Z Feed speed X, Y, Z: Up to 20`000 mm/min Rapid traverse Y, Z: 50 m/min X: 80 m/min B: 40 rpm C: 50 rpm Position measuring system Resolution: C, B, X, Y, Z: 0.001 mm Position tolerance: C, B, X, Y, Z: 0.010 mm Working range X-axis: 500 mm Y-axis: 450 mm Z-axis: 400 mm B-axis: 0° to 161.955 ° C-axis: n x 360 ° Tool changer with double gripper Magazine slots: 120 Max. Tool diameter without free spaces: 80 Max. Tool diameter with free spaces: 130 Max. Tool length from spindle nose: 300 mm Max. Tool weight: 6 kg NC rotary table with swivel axis C-axis: Clamping surface rotary axis (mm): 500 x 380 mm Distance of T-slots / size: 63 / 14 H7 Centering bore: 30 H6 Max. Torque: 1491 Nm Max. Rotation of the table top: 50 rpm B-axis: Max. Swivel torque: 1864 Nm Swivel speed: 40 rpm Swivel range: 0° - 161.955 ° Input and display precision: 0.001 ° Weight: 420 kg Max. load: 200 kg Weight: Approx. 6800 kg Installation weight: Approx. 7500 kg Dimensions: 4170 x 3133 x 2560 mm SCOPE OF OFFER U.A: (list not exhaustive): Deckel Maho DMU 50 Evo CNC machining center Heidenhain iTNC 530 Tool breakage control Blum measuring probe Oil mist separator Fire extinguishing system High-pressure pump and belt filter system Chip conveyor Exact scope of supply according to photo gallery We assume no liability for the accuracy, completeness and up-to-dateness of the information provided

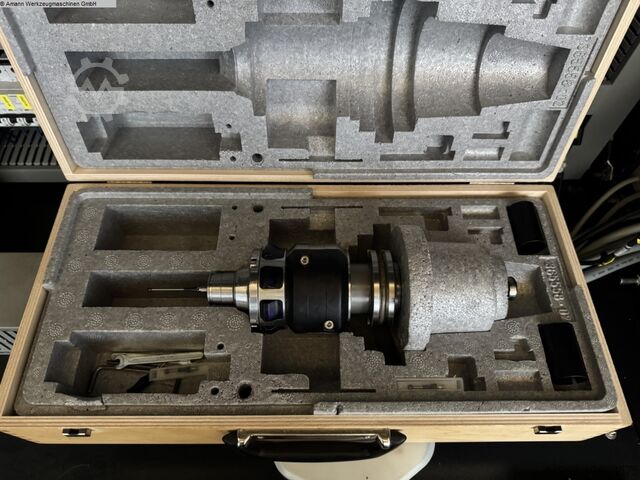

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 500 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 380 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, controller model: Heidenhain Mill Plus, table width: 500 mm, table length: 500 mm, rotary table diameter: 500 mm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 17,618 h, coolant supply: 40 bar, spindle nose: SK40 (DIN69871), number of slots in tool magazine: 60, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The 5-axis DMU50 eVolution has been removed from production in working order and can also be seen in operation in our showroom (by appointment). Guedpoxnixisfx Afpoh The machine is equipped with 40 bar internal spindle cooling, chip conveyor, 60-tool changer, Renishaw tool setter, Heidenhain 3D probe, 18,000 RPM spindle, Visiport, and original factory extraction system.

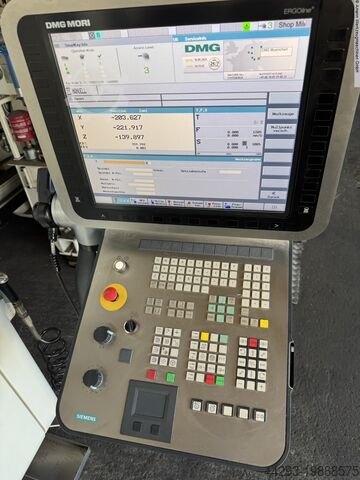

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 10915551234, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 50 m/min, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, controller manufacturer: SIEMENS, controller model: SINUMERIK 840 D POWERLINE, total height: 2,900 mm, total length: 4,000 mm, total width: 3,000 mm, overall weight: 9,000 kg, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 30, mount diameter: 40 mm, TECHNICAL DATA & EQUIPMENT: Operating voltage: 400 V Frequency: 50 Hz Rated current: 100 A Connection: 48 kVA Rapid traverse in B-axis: 40 m/min Godexninqopfx Afpjuh Rapid traverse in C-axis: 50 m/min Measuring system: Resolution in C, B, X, Y, and Z axes: 0.001 mm Position tolerance in C, B, X, Y, and Z axes: 0.010 (with direct measuring system) Travel range B-axis: 0-161.955° Travel range C-axis: 360° Max. tool diameter without free adjacent positions: 80 mm Max. tool diameter with adjacent free positions: 130 mm Max. tool length from spindle nose: 300 mm Max. tool weight for automatic tool change: 6 kg NC rotary table with swivel axis (C-axis) Clamping surface (rotary axis): 500 x 380 mm T-slot pitch: 63 mm/14h7 Centering bore: 30 mm diameter h6 Max. torque rotary axis: 1491 Nm Max. table plate speed: 50 rpm B-axis: Max. swiveling torque: 1864 Nm Swiveling speed: 40 rpm Swivel range: 0-161.955° Load capacity: approx. 420 kg Max. load positioned in table center: 200 kg Including zero-point clamping system by SCHUNK and clamping rail Rail length: 490 mm Jaw width: 90 mm Including chip conveyor, extraction filter by SARA PICK-UP INFORMATION: Pick-up must be scheduled firmly between December 10th and 12th FCA Winterlingen, loaded onto truck

Condition: good (used), Year of construction: 2001, Dear Sir or Madam, below we offer you a 5-axis CNC machining center 'DECKEL MAHO' DMU 50 eVo, used, in good condition. Godpfxsw Axahe Afpjuh

Condition: used, Year of construction: 1998, x-travel 500 mm y-travel 400 mm z-travel 400 mm Control TNC 426M Heidenhain turning speed range - main spindle 20 - 9.000 min/-1 power capacity - main spindel 9 / 13 kW max. Torque 57 / 82 Nm Gujdexmag Uspfx Afpsh tool taper ISO 40 DIN 69871 table diameter 700 x 500 mm swivellable B: 105° (-10°/+95°) man. rotatable 360° man. max. table load 200 kg number of T-slots 7 T-slot - distance 63 mm T-slot - width 14H7 mm center hole 30H7 mm number of toolpositions 16 pos. tool taper ISO 40 DIN 69871 max. tool length 290 mm max. tool weight 6,0 kg max. total weight 50 kg feed speeds max. 10.000 mm/min rapid traverse 12 m/min input unit 0,01 mm total power requirement 17 kW weight of the machine ca. 3,2 t dimensions of the machine ca. 4,0 x 4,0 x 2,5 m CNC - MachiningCenter Univresal DECKEL MAHO - DMU 50 T - 5 Axis (3 + 2) - Swivel-Rotary-Table incl. Angle-Specification (manual Axis B+C via Handwheel)

Condition: good (used), Year of construction: 2001, Travel X/Y/Z: 500mm/420mm/380mm, Gsdpswi H E Eefx Afpjuh Table dimensions X/Y: 500mm/380mm, Max. table load: 200kg, Spindle speed: 18,000 rpm, Tool holder: SK40, Tool positions: 30, Rapid traverse: 50m/min, Machine dimensions: approx. 3400mm/2400mm/2500mm, Weight: approx. 6000kg. Equipment: 30-position tool changer CNC control: Heidenhain MillPlus NOTE: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport, and proper installation – all from a single source. Billing according to individual terms and duration. Contact us for your personalized offer.

Condition: used, Year of construction: 2008, x-travel 500 mm y-travel 450 mm z-travel 400 mm Control HEIDENHAIN iTNC 530 Table dimensions 500 x 380 mm table weight 500 Kg c-axis 0.001º ( ± 360º) 0 b-axis 180 ° rapid traverse X-axis 80 m/min feeds 50 m/min spindle turning speed range 18.000 U/min spindle taper BT- 40 Gusdpfx Afoxluf Aspjh spindle drive 30 kW Internal cooling system 40 bar handwheel HEIDENHAIN HR-410 total power requirement 50 kVA weight of the machine ca. 6,5 t

Condition: good (used), functionality: fully functional, machine/vehicle number: 71.708181, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 12 m/min, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, controller manufacturer: SIEMENS, total height: 2,200 mm, total length: 3,000 mm, total width: 2,000 mm, table width: 500 mm, table length: 700 mm, table load: 200 kg, overall weight: 2,500 kg, spindle speed (max.): 9,000 rpm, number of slots in tool magazine: 16, mount diameter: 40 mm, TECHNICAL DATA & EQUIPMENT: Operating voltage: 400 V Frequency: 50 Hz Rated current: 35 A Connection: 17 kVA Position measuring system X, Y and Z-axis: 0.001 mm Position tolerance X, Y and Z-axis: 0.010 mm with direct measuring system Max. tool length from spindle nose: 290 mm Max. tool weight for automatic tool change: 6 kg Max. total tool weight in magazine: 50 kg Rotary table with swivel axis Rotation range: 360° Table plate clamping: mechanical Swivel range: +95/-10° COLLECTION INFORMATION: Collection must take place, without exception, between December 10 and 12. FCA Winterlingen, loaded onto truck Gedpfx Afsxm Uacepouh

Condition: used, Year of construction: 2001, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 12 m/min, nominal power (apparent): 17 kVA, torque: 82 Nm, controller manufacturer: Heidenhain, controller model: Mill Plus, total height: 2,450 mm, total length: 4,000 mm, total width: 2,200 mm, table width: 700 mm, table length: 500 mm, table load: 200 kg, overall weight: 3,500 kg, We are offering here a Deckel Maho DMU 50 T with Heidenhain Mill Plus control for sale. Godpfxjw Dfbho Afpsuh

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 11035534144, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 12 m/min, spindle speed (max.): 9,000 rpm, No reserve price – guaranteed sale to the highest bidder! Payment is due one week after purchase of the machine! Bidding is binding and requires timely collection between 17.11.2025 and 21.11.2025! TECHNICAL DETAILS Travel path X-axis: 500 mm Travel path Y-axis: 400 mm Travel path Z-axis: 400 mm Rapid traverse X-axis: 12 m/min Rapid traverse Y-axis: 12 m/min Rapid traverse Z-axis: 12 m/min Feed rate in X, Y, and Z axes: 10,000 mm/min Spindle speed (max.): 9,000 rpm Tool holder: SK 40 Max. tool length from spindle face: 290 mm Max. tool weight for automatic tool change: 6 kg Max. total tool weight in magazine: 50 kg Clamping area: 700 x 500 mm Swivel range: 360° Tilting range: +95/-10° Permissible table load: 200 kg MACHINE DETAILS Control model: SIEMENS SINUMERIK 810 D Dimensions & Weight Guodpjxm T I Esfx Afpsh Dimensions (L x W x H): 2,300 x 2,000 x 2,300 mm Total weight: 5,000 kg EQUIPMENT 16-position tool changer Rotary table with swivel axis Mechanical table clamping
