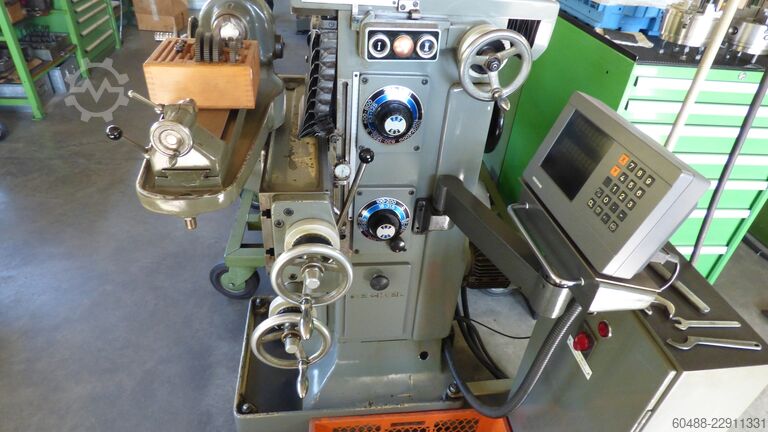

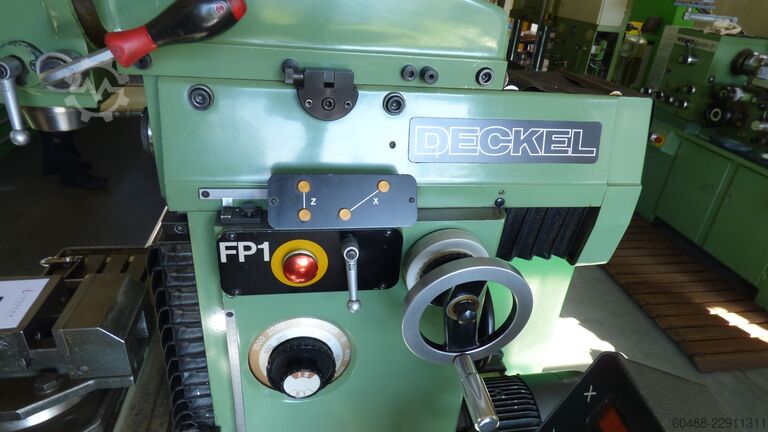

Milling machine

DECKEL FP 1

Condition: ready for operation (used), Year of construction: 1989, functionality: fully functional, feed length X-axis: 300 mm, feed length Y-axis: 160 mm, feed length Z-axis: 340 mm, travel distance X-axis: 300 mm, travel distance Y-axis: 160 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, Deckel FP1 milling machine with Heidenhain TNC113 digital readout in very good condition. Technical specifications: Year of manufacture: 1989 Machine no.: 2102-5533 * Speed: 40 - 2000 rpm * Infinitely variable feed on 3 axes * Rapid traverse on 3 axes * Spindle brake * Table movement X/Y/Z: 300/160/340 mm * Vertical milling head can be adjusted 100 mm on the spindle block * Vertical quill * Drawbar system SK40/M16 Duedpfx Aeytcarsaxsp * Weight approx. 800 kg Accessories and equipment: 3-axis digital readout Heidenhain TNC113 Coolant system Central lubrication Operating manual, spare parts diagram

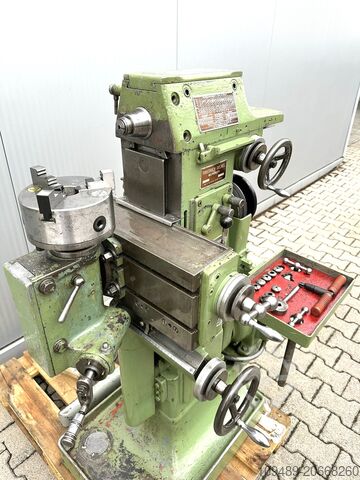

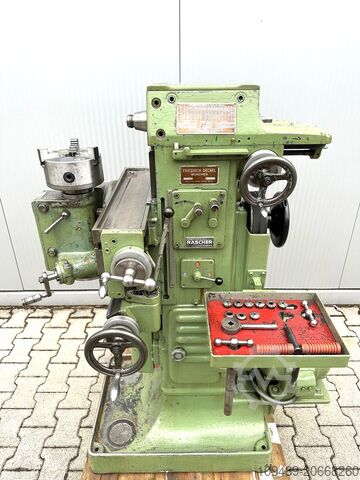

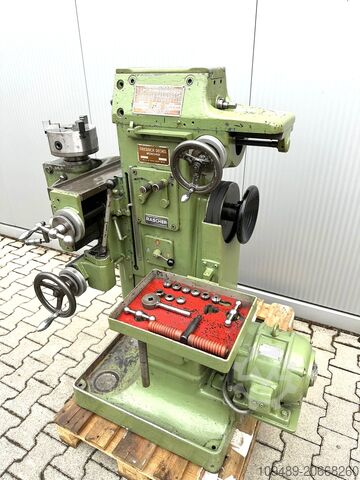

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Machine No. 51265 Year of manufacture: approx. 1967 Travel paths X: 300 mm Y: 150 mm Z: 340 mm Table size 600 x 200 mm Spindle taper SK 40 - S20 x 2 Spindle speed 40–2000 rpm, 16 steps Motor power 1.0 and 1.6 kW, pole-changing Power supply 380 Volt, 50 Hz - Feed on X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at vertical milling head 60 mm - Swiveling, rotating, and tilting angle table - Coolant pump in machine base - Separate control cabinet Space requirements L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Dusdoghtvaepfx Aaxjp In good condition

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 600 x 210 mm tool taper SK 40 spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA Duedpjyrnwmjfx Aaxjp weight of the machine ca. 830 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: * 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage * Fixed angle table * Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm * Coolant equipment * Central lubrication * Tailstock with counter bearing * Manual

Condition: good (used), Internal article no.: 26031 Universal milling machine Dusdpfjyqx S Eex Aaxjp Deckel FP1 Infinitely variable feed + Various SK40 tool holders + Collet set (S20x2) + Hydraulic machine vice Röhm 110 The servomotor has been overhauled! Travel: X300 / Y160 / Z340 mm Quill stroke: 60 mm Connected load: 1.9 kW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Infinitely variable 5-500 mm/min The machine is fully functional and can be inspected under power, by appointment, in a heated storage area of over 500 m².

Condition: excellent (used), Deckel FP1 Tool Milling Machine Dujdpeyn Iphjfx Aaxep with New Digital Readout (3-Axis) Machine No. 55192-08 Travel paths: X 300 mm Y 150 mm Z 340 mm Spindle speed 40-2000 rpm Feed rate 10 to 500 mm/min Fixed angle table 600 x 210 mm, max. load 200 kg Quill vertical travel 60 mm SK40 with DECKEL saw thread S20 x 2 Vertical and horizontal spindle Milling head manually swivels (+/- 90°) Equipment/Accessories: - As-new machine table - New 3-axis digital readout - Machine vice - New spindle nut X-axis - New SK40 inner spindle - Control cabinet retrofitted with new main switch - Coolant system with new hoses - Chip tray - Emergency stop The machine has been technically inspected and is in excellent working condition. Backlash X-axis 0.05 mm Backlash Y-axis 0.2 mm Backlash Z-axis 0.4 mm Net price ex works, loaded from stock

Condition: good (used), functionality: fully functional, Deckel FP 1 aktiv – 3 axes, serial number 2102 – 2433, machine overhauled by Arnold around 2010, travel X/Y/Z 300/160/340 mm, spindle speed up to 2,000 rpm, infinitely variable feed in 3 axes, Heidenhain readout, weight approx. 800 kg, accessories. Djdpfx Aeyn Efmeaxjup

Condition: excellent (used), Year of construction: 1981, functionality: fully functional, input voltage: 380 V, year of last overhaul: 2013, We are offering this very well-preserved Deckel FP 1 2101 tool milling machine, year of manufacture 1981. The milling machine was fully overhauled by FPS in 2013. As part of the overhaul, the machine was also technically upgraded to achieve CE conformity. A ND780 position display was also installed. This is a compact and easy-to-operate machine, ideal for workshops or jig and fixture construction. The milling machine was previously used in the medical engineering sector for manufacturing fixtures, and has therefore accumulated only a few operating hours since the overhaul. The machine is being sold excluding any warranty. Control type: FP 1 2101 Serial number: 5685 Dedpfsym Ulgox Aaxoup Year of manufacture: 1981 Circuit diagram: 6004 004102 Operating voltage: 380 V~ Frequency: 50 Hz Rated current: 13 A~ If you have any questions or need further information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm Dusdpfow A Apysx Aaxop z-travel 340 mm tool taper SK40 Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling - Several fixtures and clamping devices/milling cutters - Operating instructions

Condition: used, Year of construction: 1980, x-travel 300 mm y-travel 160 mm z-travel 340 mm tool taper SK40 Dsdpfxow A Ap Ho Aaxjup Speed 40-2000 U/min. control Aktiv HEIDENHAIN table-size 600 x 210 mm total power requirement 2 kW weight of the machine ca. 0,73 t dimensions of the machine ca. TBH 1200x1100x1600 m - Active feed in the X and Z axes - Additional swiveling table 600 x 210 mm - Coolant system - Counter bearing for horizontal milling - Several fixtures and clamping devices/milling cutters - Operating instructions

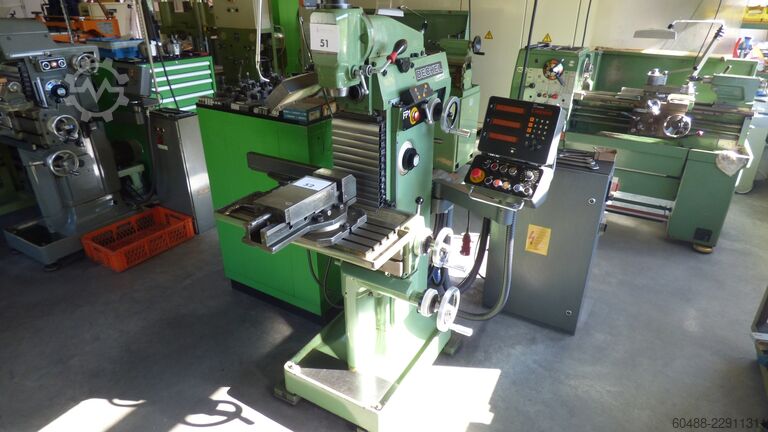

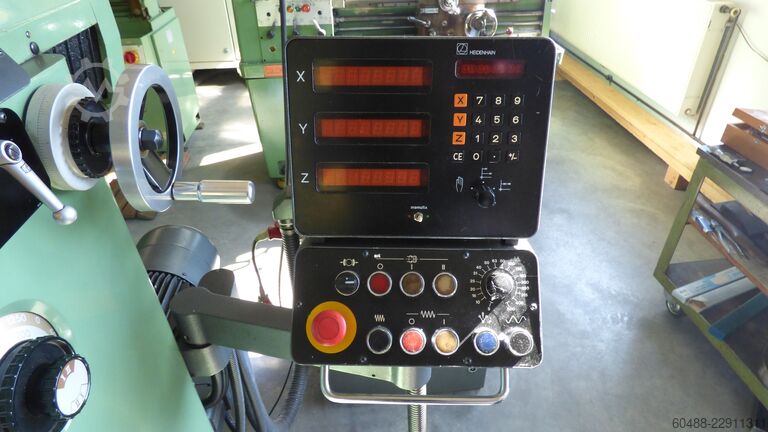

Condition: reconditioned (used), Year of construction: 1994, Universal Tool Milling Machine DECKEL FP 1 With 3-axis active digital readout Heidenhain TNC 123 Year of manufacture: 1994 Travel: X 300 mm, Y 160 mm, Z 340 mm Spindle speed range: 40 – 2000 rpm Comes with the following accessories: Djdpfx Aajw Agxrexeup Fixed angle table, 600 mm x 250 mm clamping surface Movable vertical milling head Extendable quill Infinitely variable feed via potentiometer 1 machine vice 1 tailstock with counter bearing 1 long milling arbor Ø 22 mm, Ø 16 mm, Ø 27 mm Various tool holders S 22 x 2 Z axis bellows 1 chip guard Machine lamp Automatic central lubrication pump Coolant system Operating manual THE MACHINE IS IN EXCELLENT CONDITION! THE MACHINE COMES FROM A TRAINING WORKSHOP!
