Tool milling machine Milling machine

Deckel FP 1

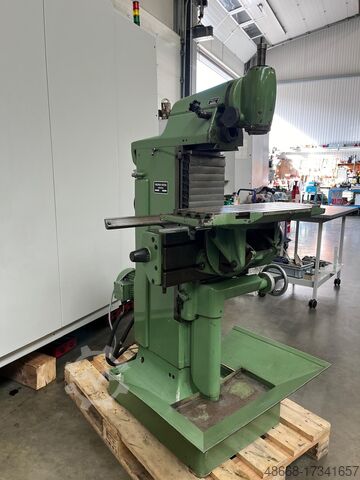

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Ncodpfx Ajr U St Uebzew Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm - Fixed angle table 600 x 210 mm - Coolant system integrated in the machine base - Standalone control cabinet - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: used, Univ. universal tool milling machine DECKEL, type FP 1 Machine no. 52185, year of manufacture 1968 Travel distances: X: 300 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 250 mm Spindle mount: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Motor power: 1.0 and 1.4 kW, pole-shifting Power connection: 380 volts, 50 Hz - Feed in the X and Z axes - Two motor speeds and 8 gear stages - Quill travel on the vertical milling head: 60 mm - Fixed tilting table - Coolant system in the machine base - Adjacent control cabinet - Counter holder with counter bearing for horizontal milling, SK 40 Space requirement L x W x H: 1200 x 1100 x 1600 mm Ncedpfsdzqb Sjx Abzsw Weight: approx. 1000 kg Very good condition

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 28317, Year of manufacture approx. 1960 Travel distances: X: 245 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 210 mm Spindle mount, horizontal: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 0.8 and 1.1 kW, pole-changing Power connection: 380 Volt, 50 Hz Nedjiy Ekvjpfx Abzecw - Spindle speed controlled via 2 motor speeds and 6 gear stages - Feed in the X and Z axes - Coolant system with mechanical pump in the machine base - Quill travel on the vertical milling head: 60 mm - Vertical milling head swivels +/- 90° - Metal substructure made of angle iron with machine feet Space requirement L x W x H: 1100 x 900 x 1650 mm Weight: 650 kg Good condition

Condition: used, Univ. universal tool milling machine DECKEL, Type FP 1 Machine No. 51265, Year of manufacture approx. 1967 Travel distances X: 300 mm, Y: 150 mm, Z: 340 mm Table size 600 x 200 mm Spindle mounting SK 40 - S20 x 2 Ncedpfoghtvasx Abzjw Spindle speed 40-2000 rpm, 16 speeds Motor power 1.0 and 1.6 kW, pole-changing Mains connection 380 volts, 50 Hz - Feed in the X and Z axes - Spindle speed via 2 motor speeds and 8 gear stages - Quill movement on the vertical milling head 60 mm - Swivel, rotary, and tilting angle table - Coolant pump in the machine base - Adjacent control cabinet Space required L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Good condition

Condition: used, Keyway milling head, head for DECKEL milling machine, type FP 1 Factory number: 21948 Dovetail width: approx. 74 - 88 mm Dovetail height: approx. 14.5 mm Dovetail length: 285 mm Distance from the front edge of the dovetail to the center of the gear: approx. 200 mm Stroke size: max. 80 mm Stroke rate: max. 475 double strokes/min. Tool holder: 4-sided, 16 x 16 mm with clamping plate - Stroke size adjustable via eccentric adjustment - Drive from the machine gearbox, within the dovetail guide (as with the normal vertical head) - This keyway milling head is inserted into the dovetail guide in place of the normal vertical milling head (Mounting in place of the vertical milling head) - Drive gear in the keyway milling head, 39 teeth, gear width 15 mm, presumably 15° pressure angle - Keyway milling head can be rotated 360° on the flange plate, degree scale +/- 35° - Small breakout point on the housing Weight: 28.5 kg DECKEL FP1 has a pressure angle of 15° on the drive wheel. DECKEL FP2 + FP3 have a pressure angle of 20° on the drive wheel. Ncodpfeznn Hrsx Abzjw

Condition: used, Counter bearing and adapter for milling machine for horizontal milling Counter bearing and adapter (counterholder) for DECKEL milling machine (Bearing block with dovetail mounting adapter DECKEL FP1 + FP2) Type 9570 Dovetail width, narrow: approx. 72 mm Njdpfx Aoxcbl Dsbzecw Dovetail width, wide: approx. 88 mm Dovetail height: approx. 15 mm Length (bearing block): 133 mm Width (bearing block): 50 mm Total height (bearing block): 105 mm Bearing bore: Ø 17 mm (with bronze bearing bushing) Distance from bore axis to dovetail mounting face: approx. 82.5 mm (center height) - Adapter fits dovetail and mounting surface, raises center height by 22.5 mm to 105 mm Total length (dovetail rail): 635 mm Weight: 3.8 kg Very good condition

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Universal Milling Machine Machine No. 2101 - Year of manufacture: 1979 Travel (manual) X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40-2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.4 / 1.8 kW, pole-changeable Power supply: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gearbox stages - Quill stroke at the vertical milling head: 60 mm - Vertical milling head tiltable and horizontally extendable by 100 mm - Fixed angle table 600 x 210 mm - Coolant system in the machine base - Separate control cabinet - Original chip tray mountable on machine base - Wiring diagram available Nodpfx Abjr D T U Dezscw Space required (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg In very good condition

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 33064, Year of manufacture approx. 1960, overhauled in 2012 Travel distances: X: 300 mm, Y: 150 mm, Z: 330 mm Table size: 600 x 210 mm Spindle mount: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 1.1 and 1.4 kW Power connection: 380 Volts, 50 Hz - Feed in the X and Y axes - Quill movement on the vertical milling head - Fixed angle table - Coolant system with mechanical pump in the machine base - Adjacent control cabinet with cable plug connection Space required L x W x H: 1100 x 900 x 1600 mm Nedpfx Aedzp T Ejbzscw Weight: approx. 900 kg Good condition Machine was overhauled in 2012.

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone SA40 DECKEL Spindle speed: from 40 to 2000 RPM Nsdpfxszmydme Abzocw Table size: 600 x 210 mm Horizontally tiltable head Straight table Spindle motor: 2 speeds Motor: 1,3 kW Feeds: X - Z auto / Y manual Voltage: 380 V Width: 1200 mm Depth with electrical panel: 1200 mm Height:1600 mm Weight: approx 900 kg

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone CM4 DECKEL Spindle speed: from 40 to 2000 RPM Horizontally tiltable head Spindle motor: 2 speeds Motor: 1,5 kW Feeds: X - Z auto / Y manual Supplied without table only with one 4 concentric jaws Ø 140 mm Voltage: 380 V Nedpfszmyc Nex Abzscw Width: 1200 mm Depth: 1200 mm Total height: 1600 mm Weight: approx 900 KG
