Tool Room Milling Machine - Universal

DECKEL FP 1

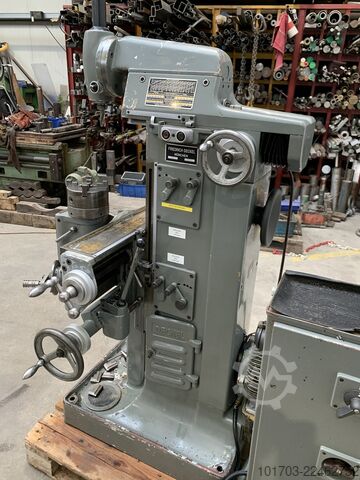

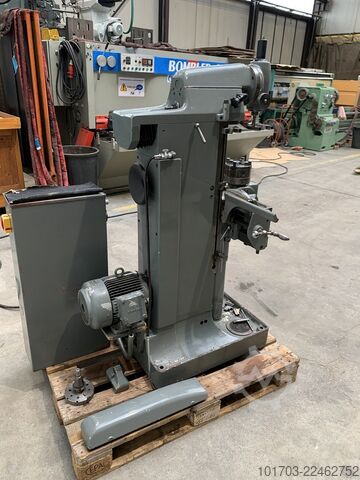

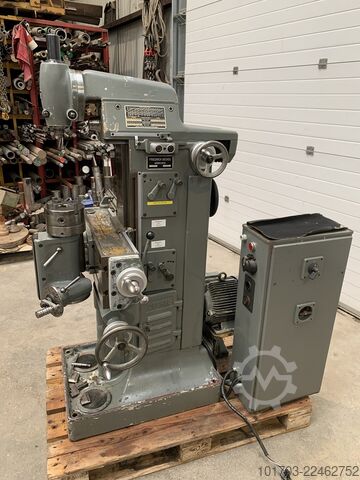

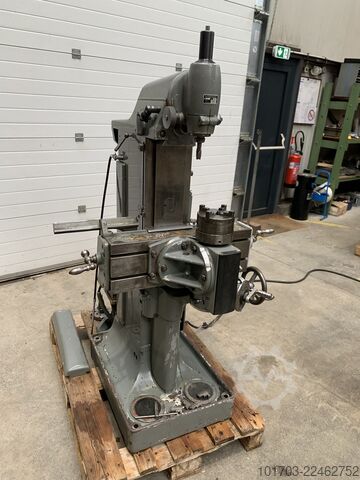

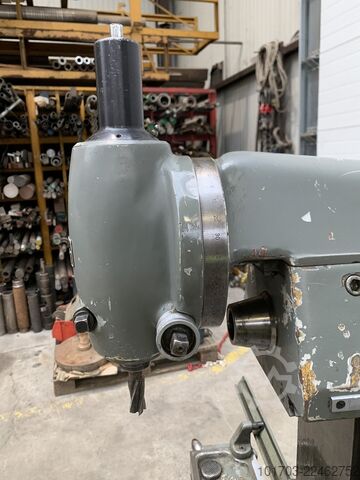

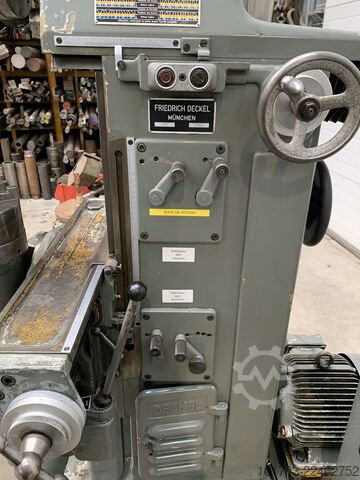

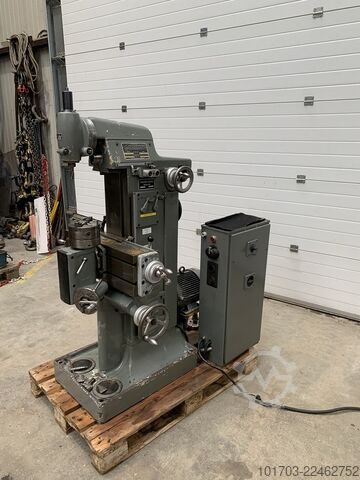

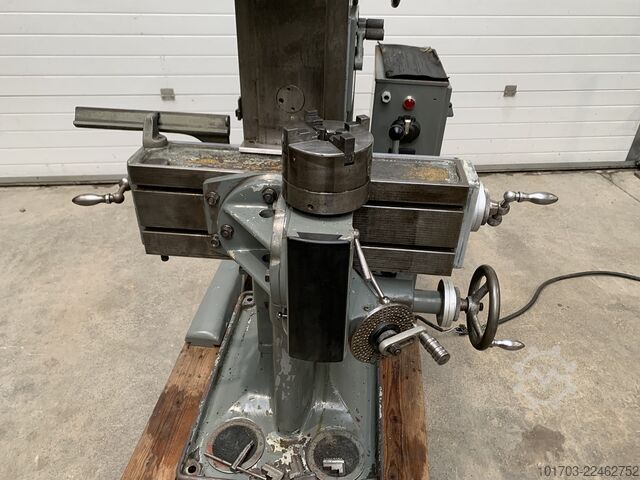

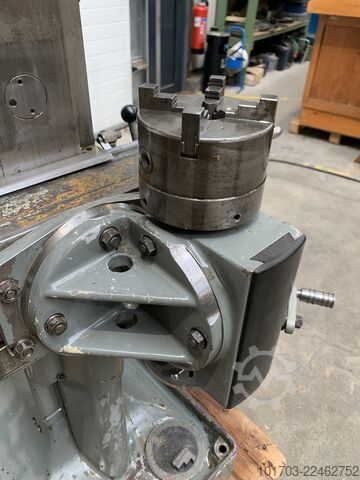

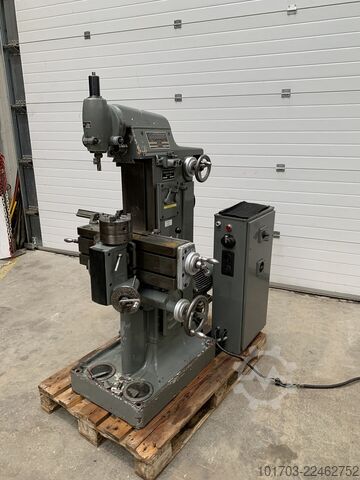

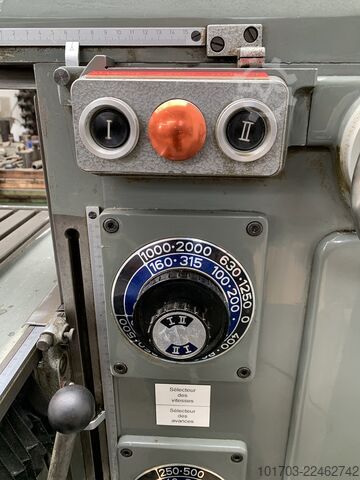

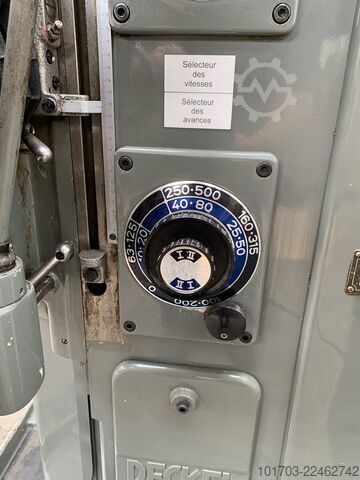

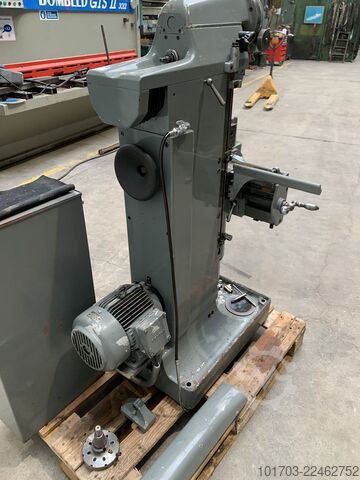

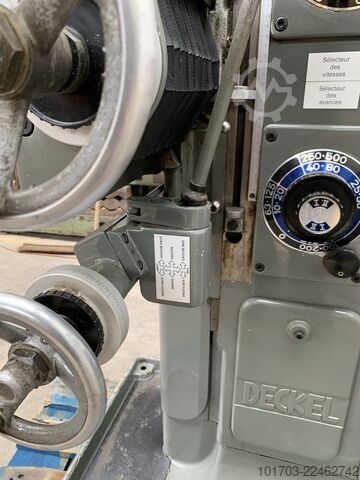

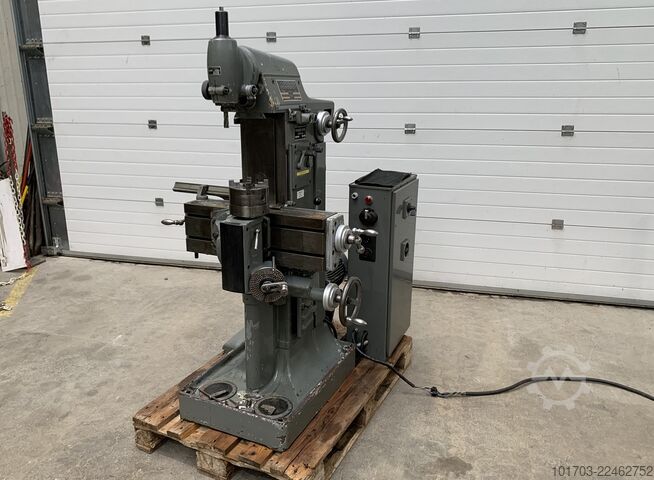

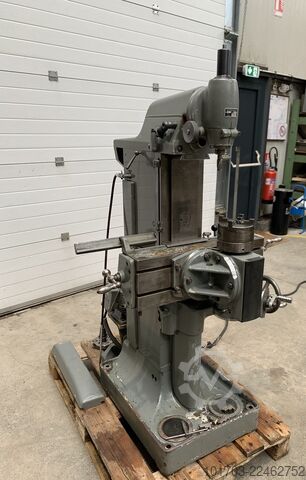

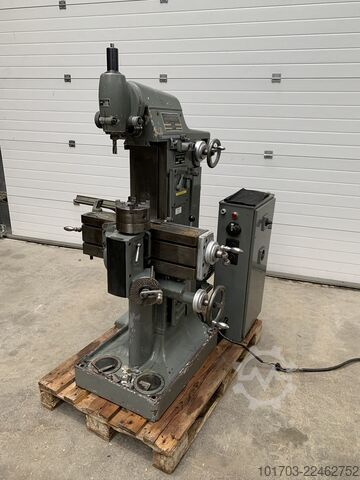

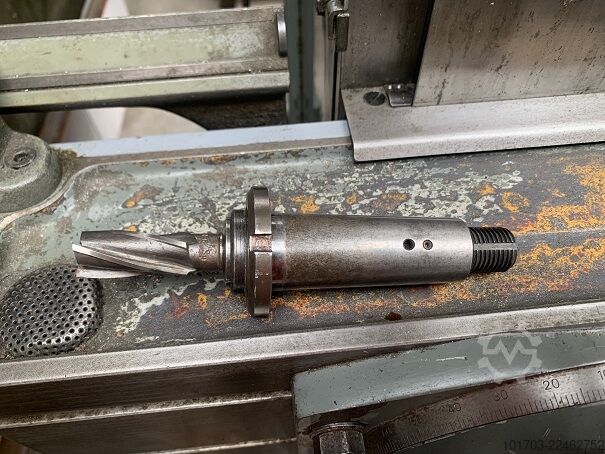

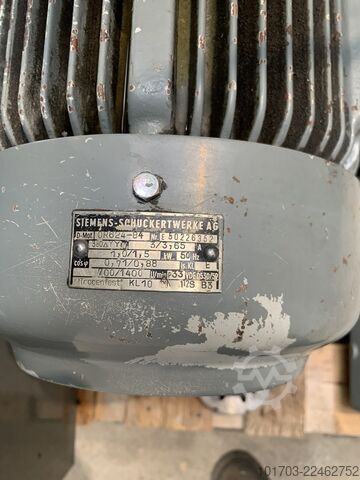

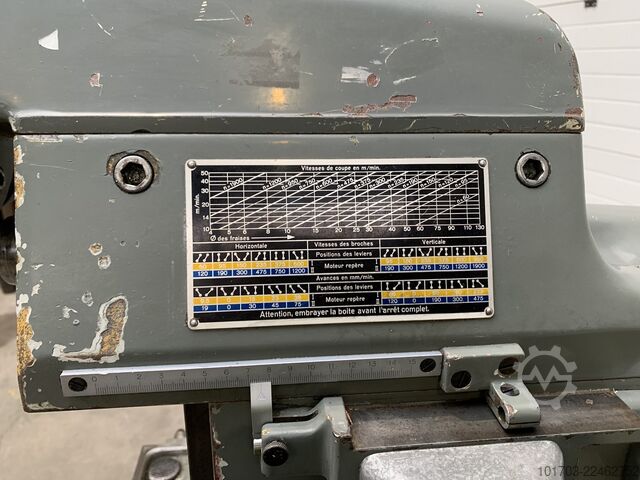

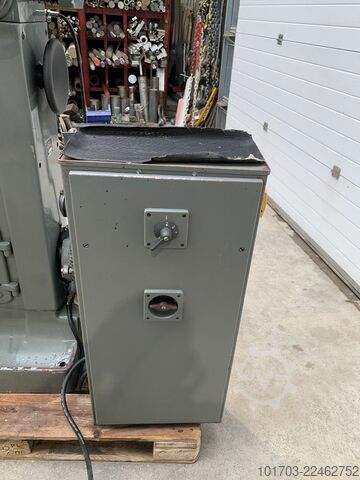

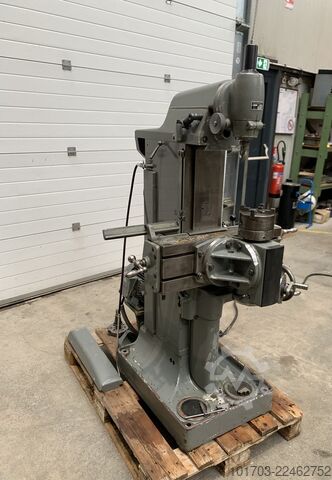

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone CM4 DECKEL Spindle speed: from 40 to 2000 RPM Ppedpfxjzqulas Aqljw Horizontally tiltable head Spindle motor: 2 speeds Motor: 1,5 kW Feeds: X - Z auto / Y manual Supplied without table only with one 4 concentric jaws Ø 140 mm Voltage: 380 V Width: 1200 mm Depth: 1200 mm Total height: 1600 mm Weight: approx 900 KG

Condition: used, Technical details: x-travel: 600 mm y-travel: 300 mm z-travel: 360 mm range of revolution per miute: max horiz. 40- 2000 U/min spindle taper: vert. / horiz. SK 40/ SK40 range of revolution per miute: max zul. 40 - 2000 U/min feed:: 2-3600 mm/min quill travel: 80 mm Table dimensions: 810 x 420 mm total power requirement: 3 KVA machine weight approx.: 1300 kg dimension machine xH: 1,8 x 1,35 x 1,95 m Psdpfxsu U E T Ie Aqljpw Milling machine with shaping head joint length 32-80mm with 10 x double strokes, 24-285 strokes/min Heidenhain 3-axis displays *

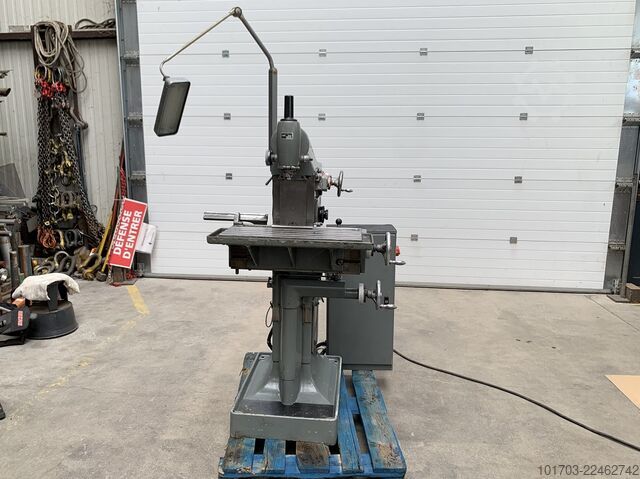

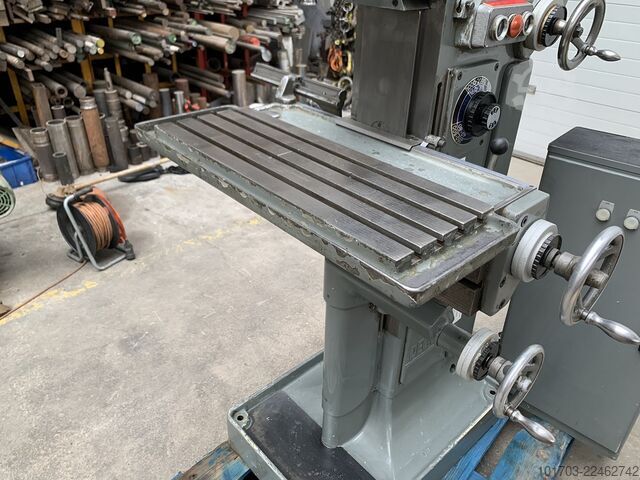

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone SA40 DECKEL Spindle speed: from 40 to 2000 RPM Table size: 600 x 210 mm Ppsdpfx Aqozquk Aslow Horizontally tiltable head Straight table Spindle motor: 2 speeds Motor: 1,3 kW Feeds: X - Z auto / Y manual Voltage: 380 V Width: 1200 mm Depth with electrical panel: 1200 mm Height:1600 mm Weight: approx 900 kg

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm - Fixed angle table 600 x 210 mm - Coolant system integrated in the machine base - Standalone control cabinet Pedpfx Asr U St Ujqlspw - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: reconditioned (used), Year of construction: 1984, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 340 mm, quill stroke: 80 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, table length: 210 mm, table width: 600 mm, total height: 1,750 mm, total length: 1,400 mm, total width: 1,600 mm, rotational speed (max.): 2,000 rpm, rotational speed (min.): 40 rpm, overall weight: 850 kg, table load: 200 kg, warranty duration: 3 months, The machine underwent a factory or partial overhaul by us in 2026 and is in top condition. As part of the partial overhaul, a new brake motor was installed. Control System 3-axis – active – digital display HEIDENHAIN TNC 113 Spindle Speed 40–2000 rpm, geometrically stepped direct drive with 18 speed levels for maximum torque and milling performance Feed Rate 5 to 500 mm/min, infinitely adjustable Rapid Traverse 1.2 m/min Quill Extendable quill, vertical 80 mm SK40 with M16 drawbar thread, optionally with DECKEL saw thread S20 x 2 Extendable quill, horizontal approx. 100 mm Axes X/Y/Z 300/150/340 mm Table Fixed angle table 600x210 mm Maximum table load: 200 kg Features • Vertical and horizontal spindle • Milling head manually swivelable +/- 90° • Z-axis bellows Options • Chip tray • Machine lamp • Universal table • Rotary table • Slotting head • Dividing head • Steady rest • etc. Ppjdpfx Aeyi Amwoqlow

Condition: used, Univ. universal tool milling machine DECKEL, type FP 1 Machine no. 52185, year of manufacture 1968 Travel distances: X: 300 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 250 mm Spindle mount: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Motor power: 1.0 and 1.4 kW, pole-shifting Power connection: 380 volts, 50 Hz - Feed in the X and Z axes - Two motor speeds and 8 gear stages - Quill travel on the vertical milling head: 60 mm - Fixed tilting table - Coolant system in the machine base - Adjacent control cabinet - Counter holder with counter bearing for horizontal milling, SK 40 Space requirement L x W x H: 1200 x 1100 x 1600 mm Weight: approx. 1000 kg Very good condition Pedpfx Aqedzqb Solspw

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 28317, Year of manufacture approx. 1960 Travel distances: X: 245 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 210 mm Spindle mount, horizontal: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 0.8 and 1.1 kW, pole-changing Power connection: 380 Volt, 50 Hz - Spindle speed controlled via 2 motor speeds and 6 gear stages - Feed in the X and Z axes Pedoiy Ekvjpfx Aqlspw - Coolant system with mechanical pump in the machine base - Quill travel on the vertical milling head: 60 mm - Vertical milling head swivels +/- 90° - Metal substructure made of angle iron with machine feet Space requirement L x W x H: 1100 x 900 x 1650 mm Weight: 650 kg Good condition

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Universal Milling Machine Deckel FP4M with 3-Axis Active Digital Readout Heidenhain, Excellent Condition, CE Compliant!!! Technical Data: - Year of manufacture: 1992, Machine no. 2203-8449 - Fixed angle table - Spindle speed: 50 - 2500 rpm - Feed rate: 8 – 630 mm/min - Drive power: 3.7 / 4.4 kW - Spindle brake - Rapid traverse: 1300 mm/min - Travel (X/Y/Z): 500/400/400 mm - Vertical milling head traverseable on column - Vertical and horizontal quill - SK40 taper - Vertical quill extendable by 90 mm - Hydraulic drawbar system - Approx. weight: 1600 kg Equipment and Accessories: - 3-axis active Heidenhain digital readout - Coolant system - Chip tray - Central electric lubrication - Operating manual, spare parts drawings About the Machine: Ppjdpfou Tuk Hsx Aqlow For sale is a Deckel FP4M Universal Milling Machine (Active) in very good condition. The machine has minimal backlash, and all slides move smoothly. Even at maximum spindle speeds, the milling machine runs quietly. The machine features hydraulic tool clamping. The FP4M was only occasionally used in a state-run facility for training purposes. On this newer FP4 model, the feed rates are steplessly adjustable in all three axes, and each axis also features a rapid traverse. A major advantage is the active 3-axis digital readout. With the Heidenhain control, you can input measurements that the machine will approach automatically. Oil change has been performed; mechanically and electrically tested. The Heidenhain digital readout makes work easier and even more precise. Take advantage of the opportunity to inspect and test this machine under power on site.

Condition: used, Univ. universal tool milling machine DECKEL, Type FP 1 Machine No. 51265, Year of manufacture approx. 1967 Travel distances X: 300 mm, Y: 150 mm, Z: 340 mm Table size 600 x 200 mm Spindle mounting SK 40 - S20 x 2 Pjdpfx Aqoghtvajlopw Spindle speed 40-2000 rpm, 16 speeds Motor power 1.0 and 1.6 kW, pole-changing Mains connection 380 volts, 50 Hz - Feed in the X and Z axes - Spindle speed via 2 motor speeds and 8 gear stages - Quill movement on the vertical milling head 60 mm - Swivel, rotary, and tilting angle table - Coolant pump in the machine base - Adjacent control cabinet Space required L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Good condition

Condition: used, Keyway milling head, head for DECKEL milling machine, type FP 1 Factory number: 21948 Dovetail width: approx. 74 - 88 mm Dovetail height: approx. 14.5 mm Dovetail length: 285 mm Distance from the front edge of the dovetail to the center of the gear: approx. 200 mm Stroke size: max. 80 mm Ppedpfx Aqeznn Hrelew Stroke rate: max. 475 double strokes/min. Tool holder: 4-sided, 16 x 16 mm with clamping plate - Stroke size adjustable via eccentric adjustment - Drive from the machine gearbox, within the dovetail guide (as with the normal vertical head) - This keyway milling head is inserted into the dovetail guide in place of the normal vertical milling head (Mounting in place of the vertical milling head) - Drive gear in the keyway milling head, 39 teeth, gear width 15 mm, presumably 15° pressure angle - Keyway milling head can be rotated 360° on the flange plate, degree scale +/- 35° - Small breakout point on the housing Weight: 28.5 kg DECKEL FP1 has a pressure angle of 15° on the drive wheel. DECKEL FP2 + FP3 have a pressure angle of 20° on the drive wheel.

Condition: reconditioned (used), Year of construction: 1987, Universal Tool Milling Machine Manufacturer: DECKEL Model: FP 2 Aktiv Year of manufacture: 1987 – overhauled, newly painted Pjdpfx Aqex A Eddjlepw with new machine electrics RAL7035 light grey / RAL7012 basalt grey RAL5008 grey blue Machine no.: 2202-11579 Milling head type: 2271 Milling head no.: 300-3606 with warranty Geometric acceptance with inspection report Accessories: - 3-axis active digital readout HEIDENHAIN TNC 113 - Fixed table 660 x 380 mm (T-slot: 12 mm) - Vertical milling head SK 40 with drawbar thread S 20 x 2 - Central lubrication, hand-operated - Coolant system - Operating manual - used, as seen -

Condition: used, Counter bearing and adapter for milling machine for horizontal milling Counter bearing and adapter (counterholder) for DECKEL milling machine (Bearing block with dovetail mounting adapter DECKEL FP1 + FP2) Type 9570 Dovetail width, narrow: approx. 72 mm Psdpfx Aoxcbl Deqlopw Dovetail width, wide: approx. 88 mm Dovetail height: approx. 15 mm Length (bearing block): 133 mm Width (bearing block): 50 mm Total height (bearing block): 105 mm Bearing bore: Ø 17 mm (with bronze bearing bushing) Distance from bore axis to dovetail mounting face: approx. 82.5 mm (center height) - Adapter fits dovetail and mounting surface, raises center height by 22.5 mm to 105 mm Total length (dovetail rail): 635 mm Weight: 3.8 kg Very good condition

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Universal Milling Machine Machine No. 2101 - Year of manufacture: 1979 Travel (manual) X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40-2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.4 / 1.8 kW, pole-changeable Power supply: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gearbox stages - Quill stroke at the vertical milling head: 60 mm - Vertical milling head tiltable and horizontally extendable by 100 mm - Fixed angle table 600 x 210 mm - Coolant system in the machine base - Separate control cabinet Pjdpfx Aqer D T U Delspw - Original chip tray mountable on machine base - Wiring diagram available Space required (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg In very good condition

Condition: used, functionality: fully functional, Milling machine Deckel FP 4 M 3-axis digital readout Heidenhain Work area: 500 x 400 x 400 mm Ppodpfxjy Awz Rs Aqljw Drive power: 4 kW Fixed table 800 x 460 mm Chip tray Spindle taper SK 40 Speed range n 50-2500 rpm Feed rates 8-630 mm/min Rapid traverse 1.3 m/min Space requirement approx. 2 x 2 x 2 m Weight approx. 1650 kg

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 33064, Year of manufacture approx. 1960, overhauled in 2012 Travel distances: X: 300 mm, Y: 150 mm, Z: 330 mm Table size: 600 x 210 mm Spindle mount: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 1.1 and 1.4 kW Power connection: 380 Volts, 50 Hz Podpfx Aedzp T Esqlspw - Feed in the X and Y axes - Quill movement on the vertical milling head - Fixed angle table - Coolant system with mechanical pump in the machine base - Adjacent control cabinet with cable plug connection Space required L x W x H: 1100 x 900 x 1600 mm Weight: approx. 900 kg Good condition Machine was overhauled in 2012.
