Toolroom milling machine

DECKEL FP 1

Condition: not inspected (used), functionality: unexamined, overall weight: 700 kg, total length: 1,000 mm, total width: 900 mm, total height: 1,600 mm, spindle speed (max.): 1,900 rpm, machine/vehicle number: 50025, No minimum price – guaranteed sale to the highest bidder! The machine is being auctioned due to a business closure. Placing a bid obligates you to collect the machine on time between 26.01.2026 and 29.01.2026! TECHNICAL DETAILS Spindle speed: 19 – 1,900 rpm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 1,000 x 900 x 1,600 mm Weight: 700 kg Ffsdpfxsxqmpde Agmjt

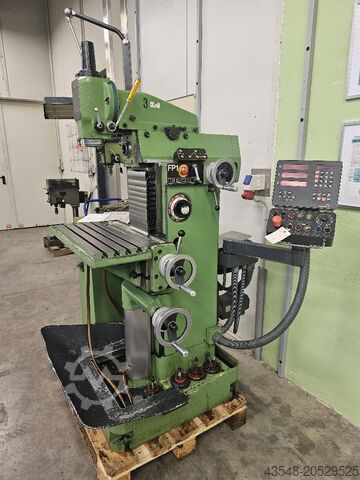

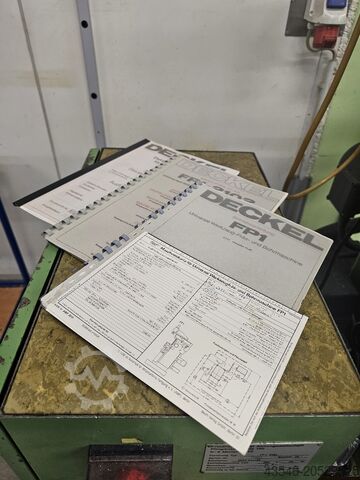

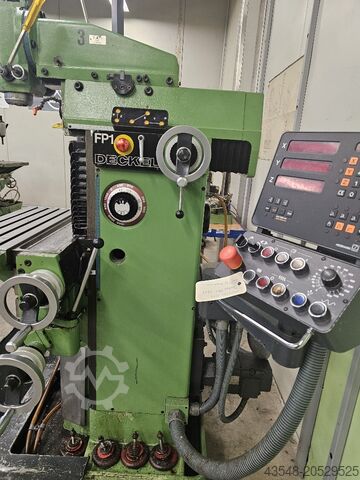

Condition: reconditioned (used), Year of construction: 1990, Universal Tool Milling Machine Make: DECKEL Model: FP 1 Aktiv Year of manufacture: 1990 – workshop-inspected Machine no.: 2102-5866 Milling head type: 2171 Milling head no.: 4613 Ffedex S Edljpfx Agmst Geometric inspection with test report Accessories: - 3-axis active digital readout HEIDENHAIN TNC 113 with active function in X, Y, and Z axes - Universal table 590 x 250 mm (T-slot: 12 mm) - Vertical milling head SK 40 with pull stud thread S 20 x 2 - Without coolant system; can be retrofitted if required - Centralized lubrication, electric - Operating manual Used as seen, sold without warranty The machine is technically in the condition of its year of manufacture.

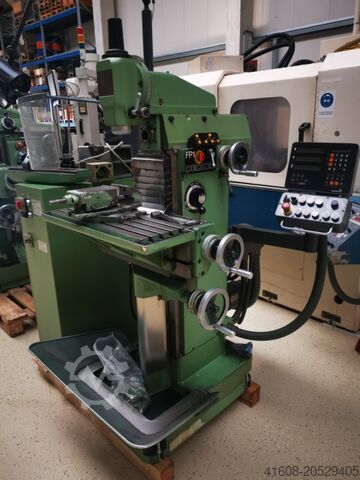

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 210 x 600 mm tool taper SK 40 Ffodex S Ec Ujpfx Agmot spindle turning speed range (16) 40 - 2000 U/min feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 730 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Additional information The machine is in very good condition and comes from a training workshop. Equipment: Safety cover and LED lamp retrofitted in 2016 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment

Condition: good (used), Electric motor, three-phase motor, brake motor Fodpfxeul H Dws Agmoft -Manufacturer: Siemens, electric motor type 1LC3113-4BB23 Z from milling machine Deckel FP4L -Power: 4.0 kW -Speed: 1435 rpm -Design: B14 -Protection class: IP 44 -Brake: multi-disc brake type EK5dB24 -Dimensions: 575/270/H225mm -Weight: 64 kg

Condition: good (used), 1 used universal tool milling machine make Deckel type FP 1 year 82 Fsdpfx Asrn I Rzegmoft Technical data: x-travel: 300 mm y-travel: 160 mm z-travel: 340 mm Spindle holder SK 40 Table size: 600x210 mm Spindle speeds: 40-2000 rpm Machine weight approx.: 1 t Space requirement approx.: 1.6x1.3x1.8 m

Condition: good (used), DECKEL Tool Milling Machine FP 1 No. 2101 with HEIDENHAIN 3-axis digital readout Travel: X/Y/Z: 300 x 160 x 340 mm Manual adjustment of milling head arm: 100 mm Expansion of working area to: 300 x 260 mm Spindle speeds, vertical/horizontal: 40 – 2,000 rpm Gear stages: 16 Spindle taper: SK 40 Tool holder: S20 x 2 (Deckel standard) Quill travel: 60 mm Fsdpfxoxyc Tks Agmsft Feed X/Z axis: 5 – 500 mm/min Feed adjustment: stepless Rapid traverse X/Z axis: 1,200 mm/min Feed Y axis: manual Fixed angle table: 600 x 210 mm Tilting vertical head: +/- 90 degrees Weight: 710 kg Dimensions: approx. 1,250 x 1,200 x 1,850 mm Technical data subject to change! Features: - For horizontal machining, the milling head is swiveled 90 degrees and pushed to the rear. - 3-axis precision digital readout HEIDENHAIN - Stepless feed on X/Z axis - The machine was partially overhauled by a specialist company a few years ago. Equipment: - 3-axis digital readout HEIDENHAIN - Micro coolant spray system - Fixed angle table - Chip tray - Machine lamp - Machine feet Further accessories available on request! Condition: Good to very good, from a training workshop Available from March 2026

Condition: reconditioned (used), functionality: fully functional, Dear Sir or Madam, We hereby offer a Deckel FP1 milling machine, 3-axis active, retrofitted with safety features. These later-generation machines are equipped with, among other things, central lubrication, an electric coolant pump, and a brake motor. Additionally, thanks to Harting connectors, the control cabinet can be quickly and easily disconnected from the machine. The safety components are also connected to the control cabinet via these connectors, ensuring ease of handling is maintained. We provide a 12-month warranty on the retrofitted safety features, which we offer for all machine types! *The electronic spindle guard can be adjusted on multiple axes and is designed to prevent access to the working spindle as well as hazards caused by flying chips, coolant, etc.* *The electronic spindle safety cover is intended to prevent contact with the rotating stub shaft and tool clamping mechanism.* Delivery time: On request Year of manufacture: 1989-1992 Machine number: 2102-xxxx Ffedpex Rvlqjfx Agmot Table: Fixed angle table Travel paths: X300mm/Y160mm/Z340mm Quill stroke: 60mm Connected load: 1.9 kW Number of spindle speeds: 16 Speed range: 40-2000 rpm Tool holder: SK40 Feed: Infinitely variable 5-500 mm/min Rapid traverse: 1200 mm/min Equipment and accessories: including 3-axis digital display with Heidenhain Active Control, coolant system, central lubrication, machine mounts, technical documentation, electronic spindle guard, electronic spindle safety cover Our service promise to you: - We are a certified master craftsman business specializing in mechanical engineering - All machines are thoroughly checked - All lubricants and, if necessary, worn parts are replaced in advance - Upon request, we will fully or partially overhaul the selected machine - Upon request, you can order additional accessories such as tools directly - Upon request, we can install further accessories such as safety devices, etc. - We are happy to take care of shipping and/or installation

Condition: refurbished (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 30000452, travel distance X-axis: 300 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 340 mm, quill travel distance: 60 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, table length: 600 mm, table width: 210 mm, overall weight: 710 kg, table load: 200 kg, Equipment: documentation/manual, DECKEL FP1 – completely overhauled in 2012 by FPS (Germany), equipped with Heidenhain digital display, tool cabinet with accessories, and dividing head. Since the overhaul, the machine has seen very light use and is therefore in like-new condition. About FPS: Specialized in the complete refurbishment of DECKEL machines. MANUFACTURER: DECKEL MODEL: FP1 CONDITION: Overhauled (2012) – mechanically and electronically as new! LOCATION: Graz (Austria) IMAGES/VIDEOS: For additional photographs and videos of the machine in operation, please contact us. Description: This high-quality DECKEL FP1 milling machine has been completely refurbished, with both mechanical and electrical components upgraded to the latest standards. A new CE-compliant control cabinet was installed in accordance with current statutory requirements (BGVA 3 / DIN-EN 60204-1, new machinery standard). During the overhaul, the control system, drive package, and drive motors were all replaced and brought up to date. The modernization also included the installation of a new, touch-safe control panel and new motor. Technical data: Operation: manual, with option for automatic positioning Control: 3-axis Heidenhain digital readout Spindle speed range: 40 – 2000 rpm (geometrically stepped, 16 speed stages) Feed rate: 10 – 500 mm/min (stepless adjustment) Ffjdpfexywhcjx Agmst Rapid traverse: 1.2 m/min (stepless adjustment) Quill: Vertical & horizontal extension 60 mm, SK40 Travel (X/Y/Z): 300 / 150 / 340 mm Table size: 600 × 210 mm Table load: max. 200 kg Machine weight: 710 kg incl. angle table and milling head Footprint: 1600 x 1400 x 1750 mm (W / D / H) Equipment: Vertical and horizontal spindle Milling head manually swivels ± 90° Completely new electrics and drive packages Overhauled – mechanically and electronically as new Extras: Z-axis bellows Special paintwork Highlights: Heidenhain digital readout for precise operation During overhaul, entire control system, drive package, and drive motors were renewed Contact us to arrange a viewing appointment.

Condition: excellent (used), DECKEL Universal Milling Machine FP 1 No. 2101 with HEIDENHAIN 2-axis Digital Readout Travel Paths: X/Y/Z: 300 x 160 x 340 mm Manual Adjustment Milling Head Arm: 100 mm Extension of Working Area to: 300 x 260 mm Spindle Speed Vertical/Horizontal: 40 – 2,000 rpm Gear Steps: 16 Spindle Taper: SK 40 Tool Fixture: S20 x 2 (Deckel Standard) Quill Travel: 60 mm Feed X/Z Axis: 5 – 500 mm/min Feed Control: stepless Rapid Traverse X/Z Axis: 1200 mm/min Feed Y Axis: manual Fsdpfexyc N Esx Agmjft Fixed Angle Table: 600 x 210 mm Tilting Vertical Head: +/- 90 degrees Weight: 710 kg Dimensions: approx. 1250 x 1200 x 1850 mm Technical data not binding! Features: For horizontal machining, the milling head is swivelled 90 degrees and slid to the rear. 2-axis precision digital readout HEIDENHAIN POSITIP VRZ 719 Infinitely variable feed on X/Z axis The machine underwent partial overhaul by a specialized company a few years ago. Equipment: 2-axis HEIDENHAIN digital readout Fixed angle table Chip tray Machine lamp Machine feet Further accessories on request! Condition: good to very good from training workshop Available from March 2026

Condition: reconditioned (used), Deckel FP1 AKTIV (3-Axis Active) Machine No. 2102-5745 Year of manufacture: approx. 1988 Ffjdpsxpwfgsfx Agmjt Travel distances: X-axis: 300 mm Y-axis: 150 mm Z-axis: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40–2000 rpm Motor power: 1.6 and 2 kW Power supply: 380 Volt, 50 Hz Equipment: - HEIDENHAIN 3-axis active digital readout, type TNC 113 - Infinitely variable feed on X, Y, and Z axes - Quill movement on vertical milling head: 60 mm - Vertical milling head swivels and extends horizontally by 100 mm - Coolant system (coolant tank in machine base) - Documentation - Centralized lubrication Space requirements (L x W x H): 1350 x 1100 x 1700 mm Weight: 850 kg The machine has been visually refurbished and technically inspected. Geometry measurement videos can be provided upon request. Backlash Y-axis: 0.15 mm Backlash X-axis: 0.3 mm Backlash Z-axis: 0.2 mm Runout horizontal spindle: 0.002 mm Runout vertical spindle: 0.002 mm Parallelism deviation Y-axis: 0.002 mm (measuring length 150 mm) Parallelism deviation X-axis: 0.002 mm (measuring length 300 mm) The following parts have been renewed: - Centralized lubrication checked - Heidenhain digital readout overhauled - New wiper set installed - LEDs in the Active display replaced - Oil changed - Vertical milling head fitted with new bearings - Oil sight glass replaced Net price, ex stock, free loaded
