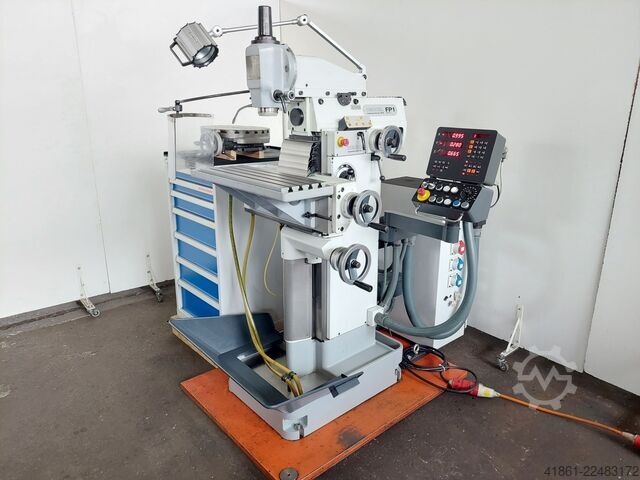

Tool room milling machine

Deckel FP 1

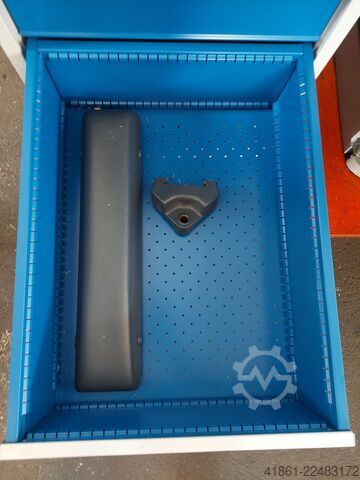

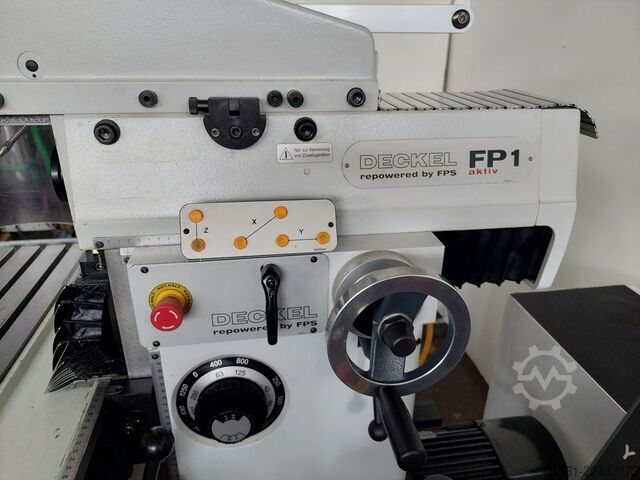

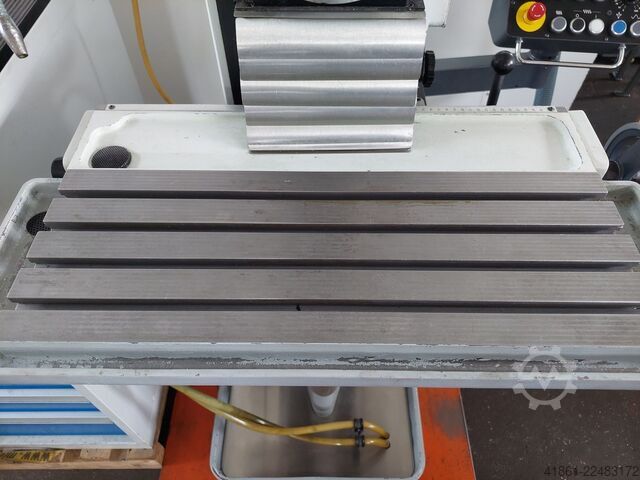

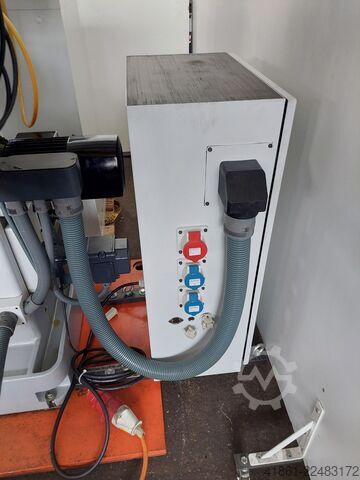

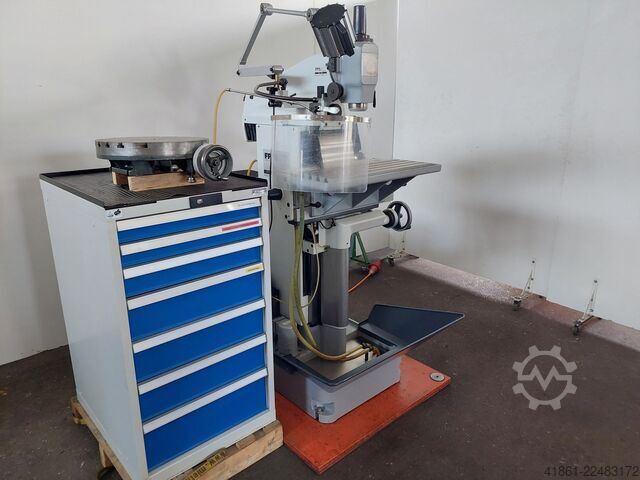

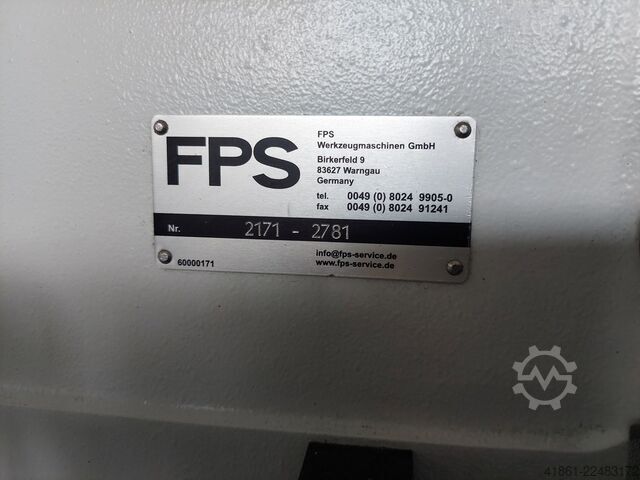

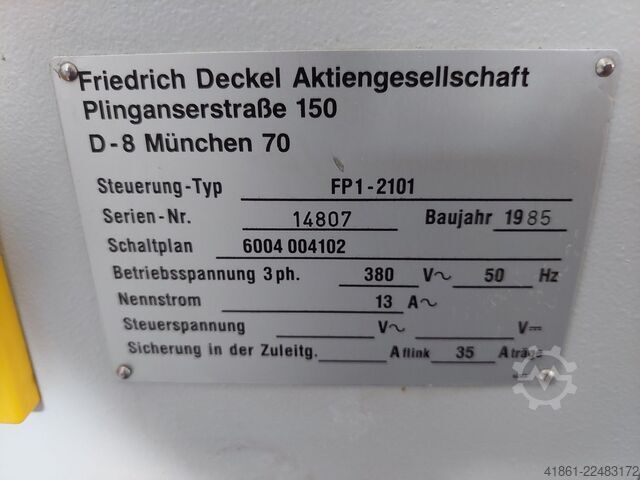

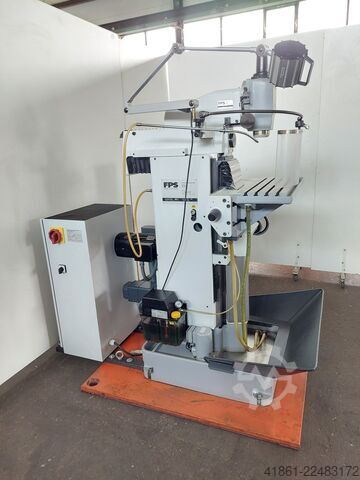

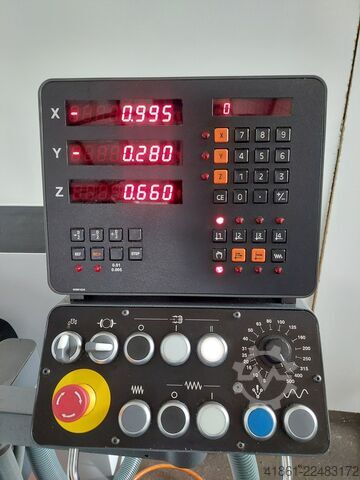

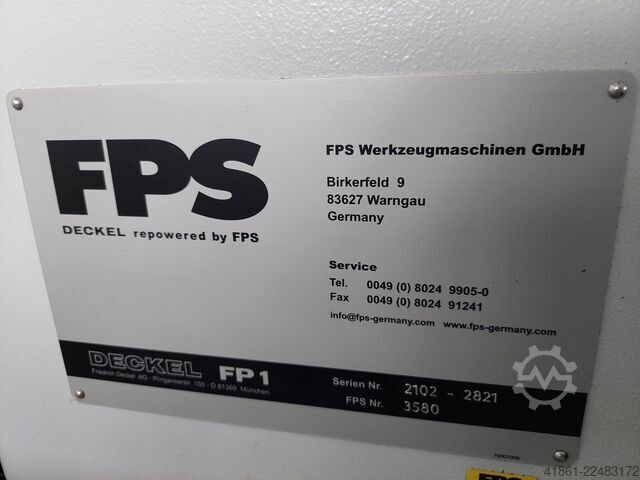

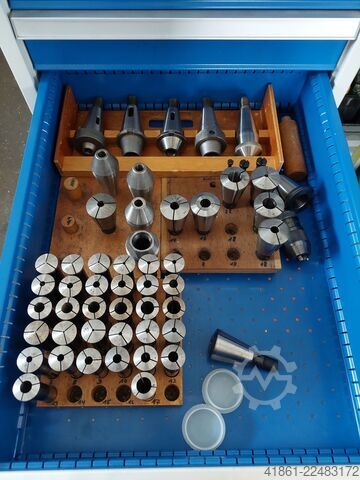

Condition: good (used), Year of construction: 1985, machine/vehicle number: 2102-2821, Offer 26207 Technical data: - Machine originates from the Weser Ems vocational training center and underwent a complete overhaul at - FPS Werkzeugmaschinen GmbH in Warngau in 2015-2016. - Table size 600 x 220 mm - Working range of the axes: - X (longitudinal) 300 mm - Y (transverse) 340 mm - Z (vertical) 150 mm - Distance between table axis and stand 655 mm - Tool holder ISA 40 - 16 working spindle speeds 40 - 2000 rpm - Feed rates X - Y - Z axes 10 - 500 mm/min - Rapid traverse 1200 mm/min - Drive 400 V / 1.1 / 1.3 kW - Space requirement approx. W 650 x H 1600 x D 1000 mm - Weight approx. 600 kg - Including: Bodpfx Aozrfifjphedf - Positioning control with Active digital display - Adjustable vertical milling head with drilling spindle - Central lubrication system - Fixed angular table - Collet set, various holders + milling cutters - Rotary table - Drawer cabinet with drawers on roller bearings

Condition: not inspected (used), Please see technical details on photo. Bsdpfxjhvzxze Aphjdf

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone CM4 DECKEL Spindle speed: from 40 to 2000 RPM Bedpfx Apozqulaehjdf Horizontally tiltable head Spindle motor: 2 speeds Motor: 1,5 kW Feeds: X - Z auto / Y manual Supplied without table only with one 4 concentric jaws Ø 140 mm Voltage: 380 V Width: 1200 mm Depth: 1200 mm Total height: 1600 mm Weight: approx 900 KG

Condition: used, Universal Milling Machine DECKEL FP1 Travel X: 300 mm Travel Y: 150 mm Travel Z: 300 mm Horizontal + vertical spindle Cone SA40 DECKEL Spindle speed: from 40 to 2000 RPM Table size: 600 x 210 mm Horizontally tiltable head Straight table Spindle motor: 2 speeds Motor: 1,3 kW Feeds: X - Z auto / Y manual Voltage: 380 V Width: 1200 mm Depth with electrical panel: 1200 mm Height:1600 mm Weight: approx 900 kg Bdjdpfx Apjzquk Ajhjf

Condition: good (used), Year of construction: 1980, Table size 1300 x 355 mm Bedjvu Dv Topfx Aphedf Tool holder, vertical + horizontal ISO 50 Travel X-axis 1000 mm Y-axis 350 mm Z-axis 450 mm Vertical milling head, swiveling R + L Quill stroke 100 mm Speed range 22.4 – 1400 rpm Feed range 6.3 – 630 mm/min Rapid traverse 2.5 m/min Drive power approx. 5 kW Space requirement L x W x H 1900 x 1800 x 2100 mm Weight 3200 kg Accessories / Special features: • 3-axis digital display, make FAGOR • Swiveling vertical milling head (R-L) with quill adjustment 100 mm • Vertical and horizontal milling spindle ISO 50 • Milling spindle vertical + horizontal • Large Clamping table 1350 x 350 mm • Feed and rapid traverse in all axes • Wide, stable guideways • Central lubrication • Swiveling control panel • Coolant system • EMERGENCY STOP switch Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Universal Milling Machine DECKEL Type FP 1 Universal milling machine Machine No. 2101 – Year of manufacture: 1979 Manual travel X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 – S20x2 Spindle speed: 40–2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.5 and 1.9 kW, pole-changeable Electrical connection: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gear steps - Quill movement at the vertical milling head: 60 mm - Vertical milling head can be swiveled and extended horizontally by 100 mm - Fixed angle table 600 x 210 mm Bodpfxor U St Uo Aphedf - Coolant system integrated in the machine base - Standalone control cabinet - Original chip tray for mounting on the machine base - Electrical schematic available Required space (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg Good condition

Condition: used, Univ. universal tool milling machine DECKEL, type FP 1 Machine no. 52185, year of manufacture 1968 Travel distances: X: 300 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 250 mm Spindle mount: SK 40 - S20 x 2 Spindle speed: 40-2000 rpm, 16 steps Motor power: 1.0 and 1.4 kW, pole-shifting Power connection: 380 volts, 50 Hz - Feed in the X and Z axes Bodpsdzqb Sofx Aphodf - Two motor speeds and 8 gear stages - Quill travel on the vertical milling head: 60 mm - Fixed tilting table - Coolant system in the machine base - Adjacent control cabinet - Counter holder with counter bearing for horizontal milling, SK 40 Space requirement L x W x H: 1200 x 1100 x 1600 mm Weight: approx. 1000 kg Very good condition

Year of construction: 1994, condition: ready for operation (used), Cutting force: 200kN, working width: 2500mm, cylinder width: 2600mm, cylinder diameter: 400mm, opening between the cylinders: 25-100mm, conveying speed: 11-44m/min, connected load: 7.5kW, weight: 3t, with documentation. Bjdpfx Apeix Ahbohodf

Condition: used, Univ. universal milling machine DECKEL, Type FP 1 Machine No. 28317, Year of manufacture approx. 1960 Travel distances: X: 245 mm, Y: 150 mm, Z: 340 mm Table size: 600 x 210 mm Spindle mount, horizontal: MK 4 - S20 x 2 Spindle speed, vertical: 95-1900 rpm, 12 steps Spindle speed, horizontal: 60-1200 rpm, 12 steps Motor power: 0.8 and 1.1 kW, pole-changing Power connection: 380 Volt, 50 Hz - Spindle speed controlled via 2 motor speeds and 6 gear stages - Feed in the X and Z axes Bjdpfx Apjiy Ekvshedf - Coolant system with mechanical pump in the machine base - Quill travel on the vertical milling head: 60 mm - Vertical milling head swivels +/- 90° - Metal substructure made of angle iron with machine feet Space requirement L x W x H: 1100 x 900 x 1650 mm Weight: 650 kg Good condition

Condition: used, Univ. universal tool milling machine DECKEL, Type FP 1 Machine No. 51265, Year of manufacture approx. 1967 Travel distances X: 300 mm, Y: 150 mm, Z: 340 mm Table size 600 x 200 mm Spindle mounting SK 40 - S20 x 2 Spindle speed 40-2000 rpm, 16 speeds Motor power 1.0 and 1.6 kW, pole-changing Mains connection 380 volts, 50 Hz - Feed in the X and Z axes - Spindle speed via 2 motor speeds and 8 gear stages - Quill movement on the vertical milling head 60 mm - Swivel, rotary, and tilting angle table - Coolant pump in the machine base - Adjacent control cabinet Space required L x W x H 1100 x 1100 x 1600 mm Weight 690 kg Good condition Bdjdoghtvaepfx Aphjf

Condition: used, Year of construction: 1991, pressure 60 t throat 280 mm stroke 10 - 90 mm ram adjustment 60 mm no. of strokes 110 Hub/min table surface area 740 x 550 mm clamping plate 740 x 555 mm ram surface 380 x 200 mm daylight, max. stroke above - ram adjustment above 360 mm total power requirement 4 kW weight of the machine ca. 3850 kg dimensions of the machine ca. B 1,1 x T 1,6 x H 2,3 m - fixed table - clamping plate - hydraulic clutch Ortlinghaus with additional brake - manual central lubrication Machine is partially overhauled in our company as follows: - disassembled, cleaned and completely technically inspected - new colour - shaft pulling, crack inspection, new seals - new control cabinet with touchscreen Bdodpfxov Az T Se Aphof - new braeke plate - current press inspection

Condition: used, Keyway milling head, head for DECKEL milling machine, type FP 1 Factory number: 21948 Dovetail width: approx. 74 - 88 mm Dovetail height: approx. 14.5 mm Dovetail length: 285 mm Distance from the front edge of the dovetail to the center of the gear: approx. 200 mm Stroke size: max. 80 mm Stroke rate: max. 475 double strokes/min. Tool holder: 4-sided, 16 x 16 mm with clamping plate - Stroke size adjustable via eccentric adjustment Bdedpsznn Hrjfx Aphef - Drive from the machine gearbox, within the dovetail guide (as with the normal vertical head) - This keyway milling head is inserted into the dovetail guide in place of the normal vertical milling head (Mounting in place of the vertical milling head) - Drive gear in the keyway milling head, 39 teeth, gear width 15 mm, presumably 15° pressure angle - Keyway milling head can be rotated 360° on the flange plate, degree scale +/- 35° - Small breakout point on the housing Weight: 28.5 kg DECKEL FP1 has a pressure angle of 15° on the drive wheel. DECKEL FP2 + FP3 have a pressure angle of 20° on the drive wheel.

Condition: used, Counter bearing and adapter for milling machine for horizontal milling Counter bearing and adapter (counterholder) for DECKEL milling machine (Bearing block with dovetail mounting adapter DECKEL FP1 + FP2) Type 9570 Dovetail width, narrow: approx. 72 mm Dovetail width, wide: approx. 88 mm Dovetail height: approx. 15 mm Length (bearing block): 133 mm Width (bearing block): 50 mm Total height (bearing block): 105 mm Bearing bore: Ø 17 mm (with bronze bearing bushing) Distance from bore axis to dovetail mounting face: approx. 82.5 mm (center height) - Adapter fits dovetail and mounting surface, raises center height by 22.5 mm to 105 mm Bodpfx Apsxcbl Dshsdf Total length (dovetail rail): 635 mm Weight: 3.8 kg Very good condition

Condition: used, Universal Tool Milling Machine DECKEL Type FP 1 Bdodpsr D T U Defx Aphof Universal Milling Machine Machine No. 2101 - Year of manufacture: 1979 Travel (manual) X: 300 mm, Y: 160 mm, Z: 330 mm Table size: 600 x 210 mm Spindle taper: SK 40 - S20x2 Spindle speed: 40-2000 rpm, 16 steps Feed X and Y axes: 5 to 500 mm/min Rapid traverse: 1200 mm/min Motor power: 1.4 / 1.8 kW, pole-changeable Power supply: 380 Volt, 50 Hz - Stepless feed in X and Z axes - Spindle speed via 2 motor speeds and 8 gearbox stages - Quill stroke at the vertical milling head: 60 mm - Vertical milling head tiltable and horizontally extendable by 100 mm - Fixed angle table 600 x 210 mm - Coolant system in the machine base - Separate control cabinet - Original chip tray mountable on machine base - Wiring diagram available Space required (L x W x H): 1350 x 1100 x 1700 mm Weight: 770 kg In very good condition
