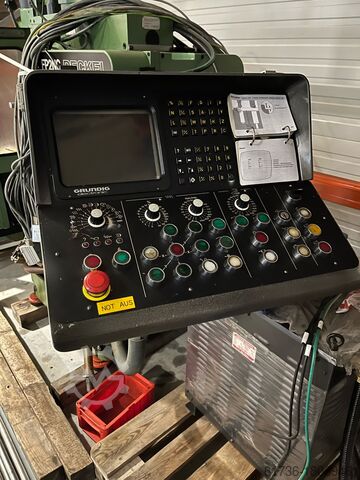

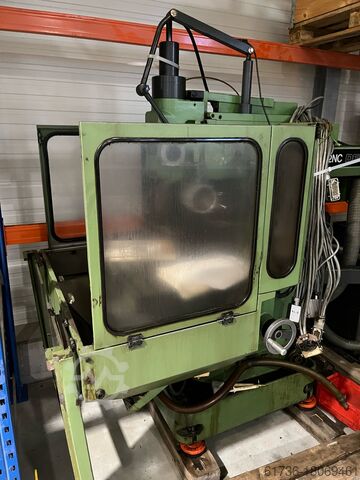

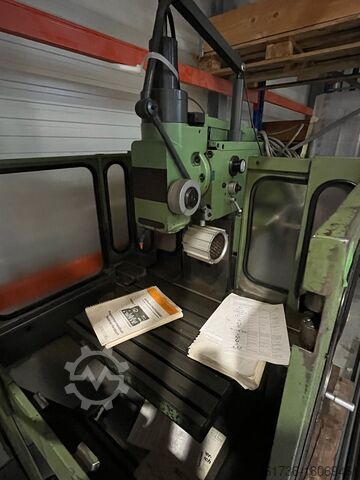

CNC milling machine

DECKEL FP 2 NC

Condition: ready for operation (used), Deckel FP 2 NC Universal Milling Machine Universal Milling Machine TNC 320 / 321 Travel distances: x- 300mm | y- 300mm | z- 400mm Stepless spindle speed 31.5 - 5000 rpm Feed rates 2-4000 mm/min Rapid traverse 4000 mm/min Tool holder SK 40 Quill stroke 80 mm Machine weight 1350 kg You are welcome to arrange an inspection appointment. We can also organise affordable shipping for you! You will receive a proper invoice. For international customers, we can also provide a net invoice. The requirement is a valid VAT ID number. Subject to prior sale. Godpsxfkm Aefx Ah Ieuk Visit our shop and take a look at our other offers. The specified company names and trademarks are the property of their respective owners and are used for identification and description purposes only. Variations in technical data or errors in the description of the item may occur and are subject to change.

Condition: like new (used), Year of construction: 2008, Üstünkarli UDKP 160 Cutting height 160 mm Gedpfx Ahoucnudo Ijuk Chain bed approx. 420 mm With spikes in the chain bed Including slat bush and spacer rings Main engine 75kW

Condition: good (used), Year of construction: 1982, functionality: fully functional, Tool milling machine with 3D control, manual handwheels, and a universal table adjustable in three axes. Control: Deckel Dialog Control 4: 3D contouring control, including drilling and milling cycles Monitor, electronic handheld control panel Gsdpfowid Spjx Ah Isuk Terminal for program input and output Technical specifications: Travel range X/Y/Z 300 x 220 x 400 mm Speed 31.5 - 3,150 rpm with 21 gear stages Feed rate 4-2,000 mm/min Rapid traverse 4 m/min Drive power 1.6-2.0 kW SK 40 tool holder Hydraulic tool clamping Universal milling table with digital display: Clamping area 600 mm x 320 mm Table load 180 kg C-axis rotation range 360° A-axis tilt range 15°/45° B-axis swivel range +/- 45° Vertical milling head: Manual quill stroke - horizontally 65 mm, vertically 60 mm Additional equipment: Manual machine handwheels with scale Direct travel measurement of the NC axes Cooling water system Special accessories: Approx. 33 tool holders (without tools) - see photo High-speed milling spindle Machine data: Machine weight approx. 1,380 kg Space requirement including accessories L approx. 2,940 mm, W approx. 1,900 mm, H approx. 1,960 mm Power supply: 380 V, 50 Hz, 12 kVA The machine is in good, fully functional condition. It can be inspected with power and chippings by appointment.

Condition: good (used), x-path 300 mm y-path 300 mm Gjdpoin Ndajfx Ah Ijuk z-path 400 mm CNC control DIALOG 11 Spindle speeds 31 - 5,000 rpm Spindle holder ISO 40 Table size 620 x 390 mm Table load 250 kg Feed rates infinitely variable 2 - 6,000 mm/min Drive power 5.5 kW Quill stroke 80 mm Coolant device Operating voltage 380 V Total power requirement 11.0 kVA Machine weight approx. 1.65 t Space requirement approx. 1.85 x 1.90 x 1.80 m Electrical cabinet 1.35 x 0.70 x 1.70 m Coolant box 1.00 x 0.45 x 0.20 m

Condition: new, Variable-speed ISO 40, Motorized cross table on all axes. 3-axis viewer included. Base with chip tank. Refrigeration system. Led lamp. Mechanical speed indicator. Variable speed motorized axes with rapids. Rail lubrication system with manual pump. Milling capacity with insert cutter : Guodpfxoh Im H Sj Ah Isk mm 100. Milling capacity : mm 35. Drilling capacity on cast iron with pre-hole : mm 60. Max drilling capacity on steel with pre-hole (s235jr) : mm 24. Spindle taper : ISO40 DIN2080. Spindle sleeve : mm 86. Spindle stroke : 120 mm. Head inclination : +/- 45°. Vertical head rotation : +/- 90°. Head body rotation : +/- 180°. Vertical spindle speed : (2) 60 ÷ 500 |500 ÷ 3600 rpm. Motor : 400 V 50 Hz 2.25 kW. Distance between machine nose and table : 45 - 395 mm. Spindle-column axis distance : 215-450 mm. Table size : 1246 x 230 mm. Longitudinal table displacement : 850 mm. Transverse table displacement : 310 mm. Maximum load capacity : 400 kg. Dimensions : 1680 x 1500 x 2100 h mm. Net weight : 1000 kg.

Condition: used, machine/vehicle number: 2801-0234, x-travel:300 mm y-travel:220 mm z-travel:400 mm surface area:620 x 390 mm Gujdocxxm Espfx Ah Iek turning speeds:31 - 3150 U/min feed range:1 - 3600 mm/min rapid traverse:4000 m/min spindle taper:SK 40 milling-head swivable +/-:90° quill stroke:60 mm total power requirement:1,09 / 2,0 / 4,0 kW weight of the machine ca.:1,3 t dimensions of the machine ca.:1,3 x 1,1 x 1,6 cm m Deckel FP2 NC Milling Machines. - Spilndle Head can be swiveled left or Right (90 °) - Angular Fixed Work Table: 620 x 390 mm (Max. Load 250 kg) - Hydralic Tool clamping system SK40 with Pull studs DIN 2080 or DIN 69872 - Electronic handwheel for Easy Axis movement - Deckel Dialog 4 CNC control Systems - Mechanical hand-wheels for all axes to operate manually, Central Lubricant system, Chip tray with Splash cabin

Condition: used, The machine can be inspected at our premises. Gedpfeviq Tzex Ah Ieuk

Condition: new, Milling drill with gears Fervi T047/400VDA tapping 400V 1,5kW NEW MANUFACTURING " CE ". The machine can be used for the processing of: Milling Drilling Gujdpfx Ahog Npiwe Iek Tapping. Drilling capacity on cast iron with pre-hole : ø 40 mm. Max. drilling capacity on steel with pre-hole: 32 mm dia. Milling capacity with insert cutter : 80 mm dia. Milling capacity : Ø 25 mm. Tapping capacity : Ø 22 mm. Conical shank : CM 4. Spindle stroke : 130 mm. Sleeve : ø 76 mm. Column : ø 115 mm. Head inclination : ± 60°. Spindle speed : (12) 75 ÷ 3200 rpm. Three-phase motor : 400 V 50 Hz 1,1 - 1,5 kW. Table dimensions : 585 x 190 mm. Keyway : 12 mm. Base dimensions : 648 x 412 mm. Overall dimensions: 740 x 790 x 1960h mm. Weight : 390 Kg.

Condition: excellent (used), Weinig four-sided planer max planing width 230mm max planing height 120mm 5 heads, bottom-5,5KW; left and right-11KW, top-11KW, bottom-5,5KW feed - 4KW fully adjustable heads electrically adjustable up and down and planing width 40mm spindles feed on gimbal rollers, with smooth adjustment Guodpfx Asrigxysh Ijk WEINIG brand solid planer, length of the machine 415cm machine checked in original condition

Condition: new, Fervi T052/400VDA Milling drill. Ready for delivery except sold. With automatic descent, choice of direction of rotation and belt drive rack spindle 1 ÷ 13 b16 drilling spindle attachment cm 3 cutter attachment cm 3 ø 27 mm refrigeration system Drilling capacity with pre-hole Ø 32 mm Milling capacity with insert cutter Ø 76 mm Milling capacity Ø 20 mm Gsdpfx Aheh Dbbgo Iouk Head stroke 405 mm Morse taper CM 3 Column spindle distance 205 mm Max. distance between spindle and table 700 mm Spindle stroke 130 mm Manual vertical feed division 0,05 mm Sleeve Ø 75 mm
