Tool Room Milling Machine - Universal

DECKEL FP2 LB

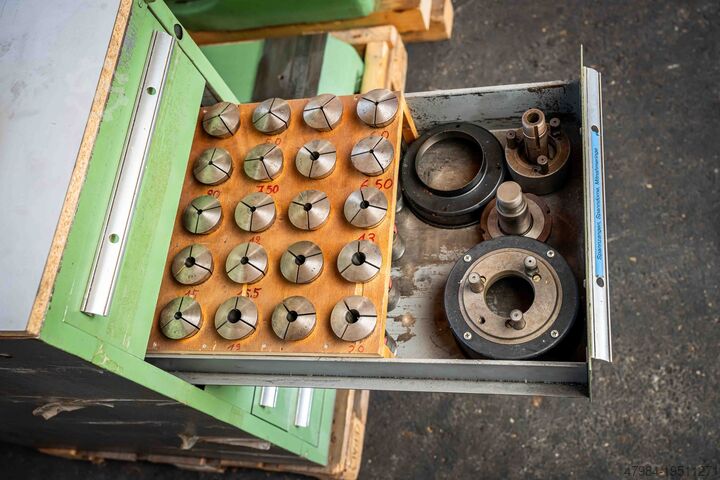

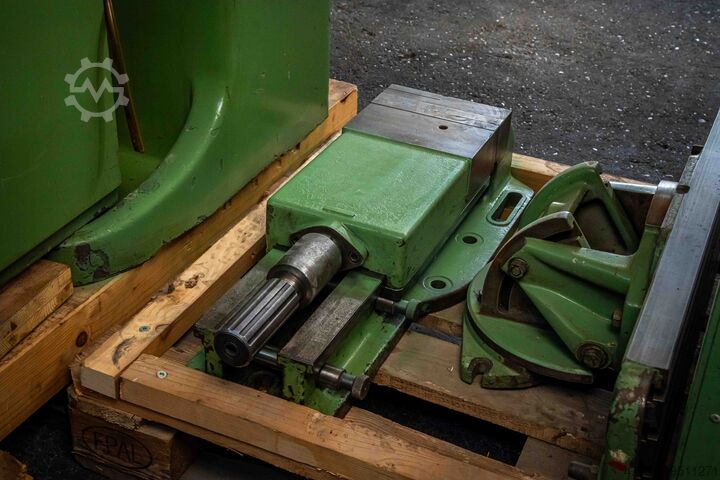

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: R0101, travel distance X-axis: 800 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, spindle speed (max.): 2,000 rpm, table length: 1,000 mm, table width: 520 mm, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 20/11/2025! Bidding obligates you to collect the machine on time between 01/12/2025 and 05/12/2025! TECHNICAL DETAILS Travel distances X-axis travel: 800 mm Y-axis travel: 300 mm Z-axis travel: 300 mm Spindle Maximum spindle speed: 2,000 rpm Minimum spindle speed: 25 rpm Chuck diameter: 40 mm Work table Table width: 520 mm Table length: 1,000 mm MACHINE DETAILS Rjdpfx Aoxm Scueazsch Dimensions (L x W x H): 2,500 x 2,000 x 1,800 mm EQUIPMENT Collets Additional milling table (table dimensions: 700 x 240 mm) Large machine vice (jaw width: 200 mm)

Condition: good (used), Tool milling machine / DECKEL FP 2 LB - 3-axis Heidenhain digital readout - Travel X/Y/Z 800x300x400 mm - Automatic feeds 10-500 mm/min - Rapid traverse on all three axes / 1.5 meters/min - Worktable 1100 x 440 mm - Spindle speeds 40 - 2000 rpm - Tool holder ISO 40 Rcedewxb Rnjpfx Aazsh - Vertical sliding head - Horizontal / vertical / milling spindle - Coolant system - Documentation Dimensions: LxWxH 1.8 x 1.7 x 1.7 meters / Weight: 1800 kg Subject to errors and input mistakes.

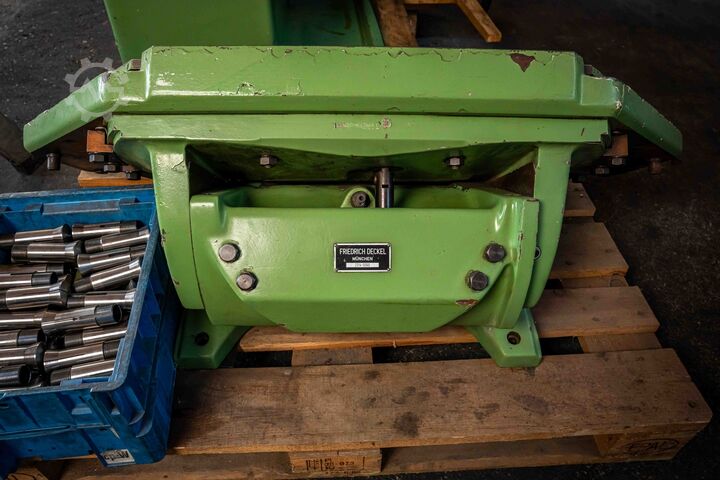

Condition: good (used), Friedrich Deckel FP 2 LB Toolroom Milling Machine The accessories are not included in the scope of delivery but can be purchased separately. The Deckel FP 2 LB universal milling machine is characterized by its extremely stable base frame and is designed as a traveling column machine. This means that the machine maintains its precision even when machining heavy workpieces weighing up to 1000 kg. Another feature is the 45-degree inclined bed. After removing the universal table, this design allows for the direct clamping and machining of V-engine blocks with a 90-degree cylinder angle, such as those found in American V8 engines. The long travel of 800 mm is also advantageous in this application. Technical Specifications: Deckel Universal Milling Machine FP 2 LB Digital Display: 3-Axis Digital Display Heidenhain X-Axis Travel: 800 mm Y-Axis Travel: 300 mm Z-Axis Travel: 400 mm Tool Holder: SK 40, Drawbar Thread S 20 x 2 Milling Head Type: Vertical Milling Head Speed Range: 40 - 2000 rpm Number of Steps: 18 Table Type: Universal Swivel/Tilt Table (± 45° / ± 15°) Table Clamping Area: 1000 x 520 mm T-Slot Size: 16 mm Vise 160 mm Rodpfx Asgyw S Tsazoch Power Consumption: 9.5 kVA Weight: Approx. 1900 kg Dimensions: Approx. 1570 x 1675 x 1850 Other Items - New and Used - can be found in our shop! International shipping costs on request!

Condition: used, machine/vehicle number: 0736, x-travel:800 mm y-travel:300 mm z-travel:400 mm work table::1000 X 440 spindle turning speed range:40 - 2000 RPM/min turning speeds steps:18 feed range:10-500 mm/min feed steps:18 rapid traverse:1,50 m/min inner taper of milling spindel:SK40 total power requirement:2,2 kW weight of the machine ca.:2 t dimensions of the machine ca.:1,57 x 1,68 x 1,85 m Deckel FP2 LB Universal Milling Machine Rsdpfxocxxyhs Aazoch - Spilndle Head can be swiveled left or right (90°) - Rigid Angular Table: 1000 x 440 mm - Quick lever for Rapid Feed Travese Seperate Power cabin and has a Chip tray for clean safe working Area.

Condition: used, X-way 800 mm Y-way 300 mm Z-way 400 mm Speed 40 - 2000 rpm. ISO 40 mounting Feed rate 10 - 500 mm/min. Spindle motor 2,2 KW Redebq Dbajpfx Aazoch

Condition: good (used), machine/vehicle number: R0101, travel distance X-axis: 800 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 300 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 25 rpm, mount diameter: 40 mm, total height: 1,800 mm, total width: 2,000 mm, total length: 2,500 mm, table width: 520 mm, table length: 1,000 mm, - Including set of collets and an additional milling table (table dimensions: 700 x 240 mm) Rcsdpfx Aaowxq Uiszsh - Including large machine vice with jaw width of 200 mm
