Tool milling and drilling machine

Friedrich Deckel FP 2 LB

Friedrich Deckel FP 2 LB Toolroom Milling Machine

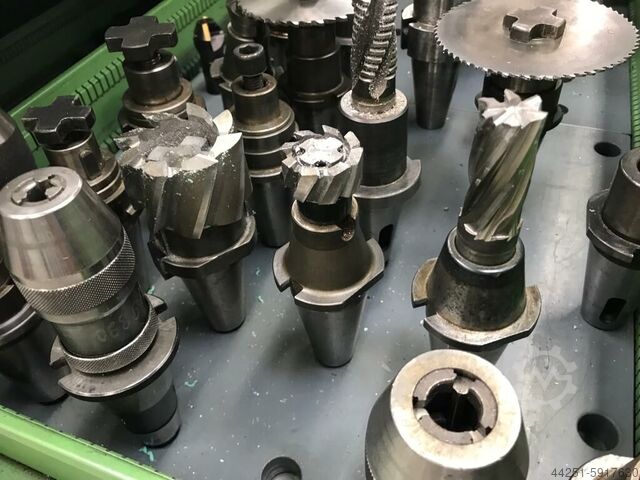

The accessories are not included in the scope of delivery but can be purchased separately.

The Deckel FP 2 LB universal milling machine is characterized by its extremely stable base frame and is designed as a traveling column machine. This means that the machine maintains its precision even when machining heavy workpieces weighing up to 1000 kg.

Another feature is the 45-degree inclined bed. After removing the universal table, this design allows for the direct clamping and machining of V-engine blocks with a 90-degree cylinder angle, such as those found in American V8 engines.
Bcsdpfx Agsgyw S Tjpju

The long travel of 800 mm is also advantageous in this application.

Technical Specifications:

Deckel Universal Milling Machine FP 2 LB
Digital Display: 3-Axis Digital Display Heidenhain
X-Axis Travel: 800 mm
Y-Axis Travel: 300 mm
Z-Axis Travel: 400 mm
Tool Holder: SK 40, Drawbar Thread S 20 x 2
Milling Head Type: Vertical Milling Head
Speed Range: 40 - 2000 rpm
Number of Steps: 18
Table Type: Universal Swivel/Tilt Table (± 45° / ± 15°)
Table Clamping Area: 1000 x 520 mm
T-Slot Size: 16 mm

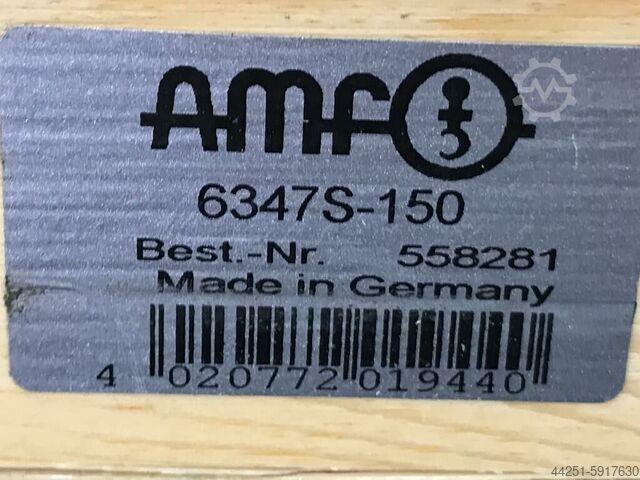

Vise 160 mm
Power Consumption: 9.5 kVA
Weight: Approx. 1900 kg
Dimensions: Approx. 1570 x 1675 x 1850
