CNC tool milling machine

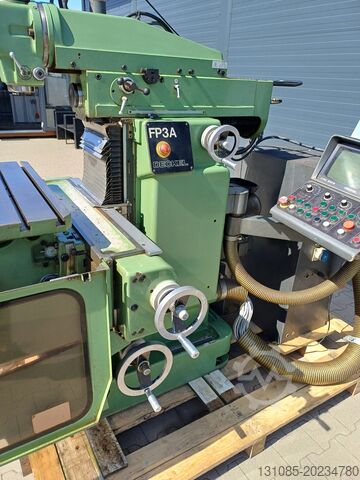

Deckel FP3 A

Condition: used, Year of construction: 1989, functionality: fully functional, travel distance X-axis: 490 mm, travel distance Y-axis: 290 mm, travel distance Z-axis: 390 mm, Technical Data: Main Drive: Pole-reversible three-phase brake motor with right/left rotation ..... .. 2.0/4.0 kW Crjdpfx Ajymc Uped Nsb 21 programmable spindle speeds ..... 25 ... 2500 rpm Tool holder in retractable quill . . . . . . NK40 Switch-operated tool clamp Feed Drive: Central DC motor with electromagnetic clutches ..... . ..... 1.4 kW (5Nm) Feed rate (programmable) ·· . . . . . . 5 ... 500 mm/min Feed correction ... ! . . ... . . . . . . from 20 to 120% Rapid traverse for X, Y, Z ..... ... . 1500 mm/min Travel range, motor/manual: X (longitudinal) . . . . . . . . . . . . . . . . . 490/500 mm Y (lateral) . . . . . . . . . . . . . . . . . . . . 290/300 mm Z (vertical) without bellows . . . . . . 390/400 mm with bellows . . . . . . . . . . . . . . . . . 345/355 mm + Vertical milling head on spindle carrier manually adjustable ..... ... ..... .. ... 200 mm Machine dimensions (min.) Length/Width/Height ..... . 1420x1290x1870 mm (see also foundation plan) Note: We offer flexible financing solutions for all machines as well as a professional relocation service. Dismantling, transport, and expert installation – all from a single source. Billing based on individual conditions and contract term. Contact us for your personal offer.

Condition: used, Year of construction: 1984, machine/vehicle number: 2804-1181, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, table width: 450 mm, table length: 700 mm, rotational speed (max.): 3,150 rpm, rotational speed (min.): 32 rpm, Used DECKEL tool milling machine model FP 3A CNC Table size: 700x450mm, spindle taper SK40 DIN 2080, Travel paths: X/Y/Z = 500/400/400mm, spindle speeds from 31.5 to 3150 rpm (21 working spindle speeds), feed rate 5-1250mm/min, rapid traverse in X, Y and Z 2500mm/min, coolant system and machine feet. Crodpfxeyrnvvs Ad Nsb Year of manufacture: 1984; the machine was overhauled by Harich in 2010. The machine is located at our site in 71334 Waiblingen-Beinstein and can of course be inspected. Please contact us.

Year of construction: 1980, condition: ready for operation (used), Max. rotational speed: 2500/min, feed rate: 5-500mm/min. Cedpfefdzzyox Ad Nsrb

Year of construction: 1987, condition: ready for operation (used), A CNC universal milling machine Deckel is available. Travel X/Y/Z: 400mm/400mm/400mm, table dimensions X/Y: 700mm/460mm, max. table load: 350kg, tool holder: SK40, quill stroke: 80mm, speed: 4000rpm, feed rate: 3600mm/min, rapid traverse: 4m/min. Machine dimensions X/Y/Z: approx. 1800mm/1800mm/2200mm, weight: approx. 2500kg, control: Contour 3. The tool change magazine is no longer in operation. Documentation available. An on-site inspection is possible. Crsdpfsya Hw Uox Ad Neb

Condition: used, Technical details: Type: Deckel FP3 / 4A-TC with Contour 3 Year of manufacture: 1987 Cjdpfxsyhwh Ts Ad Nsrb In 2025, a new power supply unit and a new ballast circuit were installed The tool changer magazine is no longer in operation.

Condition: used, Year of construction: 1987, - Lid Contour 3 CNC control - Sliding vertical milling head with extendable spindle - counter bearing for long milling arbors - Hydraulic tool clamp - Automatic speed gearbox - Automatic clamping in X/Y/Z axes - Automatic central lubrication - coolant device - direct path measurement - Collision protection clutch in Z/Y axes - year of construction 1987 Technical data Working range: - X-axis (longitudinal): 485 mm - Y-axis (transverse): 385 mm - Z-axis (vertical): 380 mm - Vertical quill stroke: 80 mm - Vertical milling head can be moved on headstock: 150 mm Main drive: - Motor: pole-changing three-phase AC brake motor and manual gearbox with clockwise/anticlockwise rotation - Power: 3.7 / 4.4 kW - 18 working spindle speeds: 50 - 2500 rpm - Step change: 1.25 - Tool holder: SK40 (M16) - Tool clamp: hydraulic Feed drive: - X-axis: 1 DC motor - Y- and Z-axis: 1 DC motor - All axes: ball screws - Feed speed programmable: 10 - 1000 mm/min - Rapid traverse X-/Y-/Z-axis: 2000 mm/min Universal table: - Number of T-slots: 7 - T-slot width: 14/H7 mm - T-slot spacing: 63 mm - Center bore Ø/depth: 63H6 / 8 - Distance from table center to screw-on surface: 260 mm - Max. Passage height (vertical milling spindle/table surface): 490 mm - Permissible load: 300 kg - Weight: 230 kg - Rotation range in horizontal position (axis C): 360 ° - Tilt range (axis A): +450 / -150 ° Cjdpfxsu Awlzo Ad Norb - Pivoting range (axis B): ± 450 ° - Measuring range with direct digital display: Resolution 360000 x 0.001 ° - Reduction ratios: 60:1 / 120:1 / 240:1 Installation: - Space requirement with safety area: approx. 2.3 x 2.5 m - Operating voltage: 400 V / 50 Hz - Total connected load: 7.5 kW / 9.5 kVA - Machine weight: approx. 1830 kg - Floor load: 3000 kg/m²

Condition: used, Flat belt pulley, toothed pulley, multi-belt pulley -Spare part comes: from a machining center cover type FP3A Crodpfxeffh Nzo Ad Nob -Diameter: 80 mm -Recording: 28 mm -Dimensions: 80/80/H61 mm -Weight: 1.2 kg

Condition: used, Rotary encoder, tachometer, encoder Cjdpjffh N Aefx Ad Norb -Spare part comes: from a machining center cover type FP3A -Number: 1x speedometer available -Price: per piece -Dimensions: 83/122/H95 mm -Weight: 1.1 kg

Condition: used, CNC Milling Machine DECKEL Type FP 3 A Tool-tool milling machine with handwheels, also for conventional operation Serial No. 2206 - Built in 1982 GRUNDIG CNC 2101 CNC control system Travel paths X: 490 mm, Y: 300 mm, Z: 340 mm Table size 705 x 425 mm Spindle mount SK 40 Quill stroke 100 mm Spindle speed 25 - 2500 rpm, 21 steps Feed rate 5 - 500 mm/min, continuously variable Rapid traverse speed 1200 mm/min Spindle motor power: 2/4 kW, pole-changing Power supply: 380 V, 50 Hz - GRUNDIG CNC 2101 CNC control system - Mechanical handwheels for all three axes - Universal tilt-and-turn table - Vertical milling head tilts and is manually adjustable by 200 mm - Hydro-mechanical tool clamping - Coolant system in the machine base - Protective enclosure at the front and sides with three hinged doors - Control cabinet adjacent (L x W = 600 x 430 mm) Space requirement: L x W x H: 1900 x 1700 x 1950 mm Weight: 1700 kg (machine 1540 kg + electrical cabinet 160 kg) Very good condition Codpfev R E Rdex Ad Nsrb

Condition: used, machine/vehicle number: 2820-0419, x-travel:500 mm y-travel:400 mm z-travel:400 (340) mm table surface area:710 x 430 mm turning speed range:40 - 4000 U/min feed range:02 - 3600 mm/min rapid feed:4,0 m/min milling-head swivable +/-:90° quill stroke:80 mm spindle taper:SK 40 control:Contour 3 total power requirement:5,5 kW weight of the machine ca.:1,9 kg dimensions of the machine ca.:2 x 1,4 x 1,8 m Deckel Model FP3 A - Spilndle Head can be swiveled 90 ° (Left of Right) - Universal tilting rotary swivel table (Size - 710 x 430 mm - Deckel Contour 3 CNC control Systems. Codpsh Ra Nisfx Ad Nerb - Hydralic Tool clamping system SK40 with Pull studs DIN 2080 or DIN 69872 - Portable Electronic Handwheel for All Axis Control Central Lubricant system, Chip tray with Splash cabin will provide complete protection, clean and safe working Area.
