Tool and cutter grinder

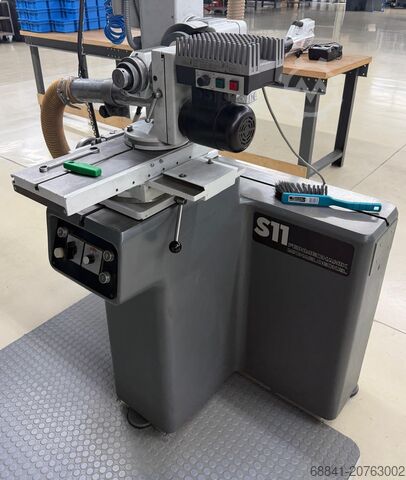

DECKEL S11

Condition: good (used), Year of construction: 1988, DECKEL S11 tool grinding machine - good condition - Scope of offer according to photos - EXW CH-4528 Zuchwil Technical data Clamping surface of the tool slide: 500 x 180mm Max. Tool diameter between the tips: 130mm Max. Tool diameter with flying clamping in the universal dividing head: 620mm Max. Tool lengths between centers: 270mm T-slot machine stand: 12mm T-slot grinding head, tool slide and accessories: 8mm Sanding stroke: 190mm Sanding stroke for twist sanding: 190mm Cross adjustment of tool slide: 100mm Hedpfor Elwksx Afpenu Vertical adjustment of sanding head: 325mm Longitudinal adjustment of grinding spindle: 5mm Tool carrier: 220mm Grinding head support: 800mm Universal dividing head on tool slide: 330mm Sanding head support: 360 degrees Sanding head: 360 degrees Tool carrier: 360 degrees Three-phase drive motor: 1.1KW at 2800 rpm Spindle speeds: Infinitely variable 2000 to 12000 rpm Max. Grinding wheel diameter: 125mm Max. Cutting wheel diameter: 200mm Weight: approx. 800 kg Dimensions: 800 x 1100 x 1760mm Space requirement: 2.5 x 2.3 m No responsibility is taken for the correctness, completeness and up-to-dateness of the information.

Condition: excellent (used), Year of construction: 1998, machine/vehicle number: 2036, total height: 1,900 mm, total length: 1,400 mm, total width: 900 mm, overall weight: 600 kg, rotational speed (min.): 2,000 rpm, rotational speed (max.): 10,000 rpm, table length: 500 mm, table width: 200 mm, power: 2 kW (2.72 HP), Equipment: rotational speed infinitely variable, TECHNICAL DETAILS: - Machine number: 2036 - Operating voltage: 400 V - Frequency: 50–60 Hz - Rated current: 10 A - Connection: 2 kW - Grinding wheel diameter: max. 125 mm - Speed: 2,000–10,000 rpm - Table dimensions: 500 x 200 mm WORKING AREA & CAPACITY: - Indexing head center height: 170 mm - Tailstock center height: 120 mm (with intermediate support: 170 mm) - Workpiece diameter between centers: 338 mm - Workpiece diameter, overhung: 600 mm - Distance between centers: 950 mm - Internal taper, indexing spindle: Morse 4 / Unified 40 - T-slots, machine base: 12 mm Hjdpewxrf Nofx Afpjnu - T-slots, additional elements: 8 mm TRAVEL DISTANCES & ADJUSTMENTS: - Sharpening stroke: 190 mm - Cross travel, tool holder: 100 mm - Vertical adjustment, grinding head: 325 mm - Axial adjustment, grinding spindle: 5 mm - Tool holder: 230 mm - Grinding head mounting: 800 mm - Indexing device on tool slide: 330 mm ROTATION / SWIVEL RANGES: - Grinding head mounting: 360° - Grinding heads: 360° - Tool holder: 360° - Universal device (horizontal/vertical): 360° OTHER FEATURES: - Spiral grinding/slotting lead: 0.80 mm - Maximum spiral sharpening length: 190 mm DRIVE & SPEEDS: - Three-phase motor: 0.7 / 0.85 kW - DC motor: 1.3 kW - Spindle speeds: 4,000 / 8,000 rpm (pole switching) - Stepless DC: 2,000–10,000 rpm - Grinding wheel diameter: max. 125 mm - Cutter wheel diameter: max. 200 mm ACCESSORIES: - Includes two-axis digital readout - Extensive machine accessories included

Condition: excellent (used), functionality: fully functional, type of input current: three-phase, overall weight: 520 kg, input voltage: 400 V, space requirement height: 1,760 mm, space requirement length: 1,100 mm, space requirement width: 800 mm, nominal power (apparent): 2 kVA, Tool grinding machine DECKEL S11 TECHNICAL CHARACTERISTICS: Grinding wheel diameter: 125 [mm] Workpiece spindle nose: ISO 40 Paper filtration unit: No Supply voltage: 400 [V] Total power required: 2 [kVA] Dimensions: 1100 x 800 x 1760 Weight: 520 [Kg] EQUIPMENT INCLUDED: x1 universal index head - Part N°: 255X0X x10 dividing inserts for universal index head x1 tailstock with transverse adjustment - Part N°: 2621000 x1 tailstock with vertical adjustment - Part N°: 2624000 x1 swivel bracket assembly - Part N°: 2626000 x1 universal wheel dresser - Part N°: 2628000 x1 universal setting gauge - Part N°: 2570000 x1 spiral and relief grinding attachment - Part N°: 2580000 x1 relief grinding slide - Part N°: 2673000 x1 machine vice - Part N°: 2635000 x1 opto-electronic measuring unit with miscroscope - Part N°: 2650012 x2 digital readouts RSF-Elektronik x1 radius grinding attachment - Part N°: 2601X00 x1 LED lamp x3 feet pads Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. Hjdpfx Afsxdkw Sjpenu The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine for sharpening tools, milling cutters, taps, and drills. Similar to brands such as Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter. Also see cylindrical or surface grinders, lathes, machining centers, and milling machines.

Condition: good (used), Year of construction: 1984, functionality: fully functional, I am sellingDECKEL S11 machines, purchased one year ago at the AUORA auction in Germany. Can also be sold separately. Price is 7000 eur. Hnedpfxsu Uvf Ij Afpou

Condition: new, Year of construction: 2025, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm current capacity 380 kVA power capacity - grinding motor 1,1 kW speeds of grinding spindle 2 - 10.000 U/min total power requirement 2,2 kW !!! We have almost all spare parts for Deckel S 11 machines in stock !!! * Machine and accessories overhaul year of construction 2025 with CE marking Hnedew U Eh Uspfx Afpsu DECKEL S 11 TOOL GRINDING MACHINE - UNIVERSAL 400 V, 50 Hz, with CEE plug and cable Color: 2 K new paint Stand RAL 7005 mouse gray Body and accessories RAL 7035 light gray Motorized height adjustment, axial grinding spindle adjustment * Complete electrical conversion includes: > Fi circuit breaker > New three-phase drive > new brake motor > new frequency control > new touch-safe built-in electrics > EMC cable glands > EMC cables > new protective hoses > Emergency stop switch > New control panel * Machine stand milled + ground, new support plate Basic equipment: - LED light Waldmann - Suction without a vacuum cleaner - Protective cover for grinding wheels up to Ø 125 mm - Set of technical information - Abrasive wheel holder 51 mm - Set of suspension devices for transport - 5 adjusting screws Accessories: * Video measuring system with CCD camera and image processing software with new measuring cross slide New RSF scales on the measuring cross slide and on the machine machine axes up and across (4 axes) incl. complete mounting and adjustment * universal index head Sk 40 with dividing disc 24 R with mounting points foroptics * Operating key, operating instructions, spare parts list, circuit diagram * Technical grinding instructions * Machine and accessories overhauled and with electrical acceptance certificate * abroad 6-month warranty We will gladly accept your used Deckel S 11 as a trade-in - please contact us! !!! Accessories can be varied as required !!! Pictures include special accessories

Condition: used, Year of construction: 2002, operating hours: 500 h, functionality: fully functional, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm spindle turning speed - stepless 2 - 12000 U/min current capacity 380 kVA power capacity - grinding motor 1,1 kW total power requirement 2,2 kW weight of the machine ca. 0,6 t !!! We have almost all spare parts for the Deckel S 11 machines in stock !!! !!! Accessories can be varied as desired !!! We would be happy to trade in your used Deckel S 11 - contact us! 2189 400 V, 50 Hz, with CEE plug and cable Colour: body pastel turquoise RAL 6034 Stand blue-grey RAL 7031 Motorized height adjustment, axial grinding spindle adjustment Machine like new !! * Accesories: Hnjdsw U Eh Ispfx Afpou * Sk ??40 dividing head with 24 R dividing disc * Graduated disc 20 R * Tightening screw M 16 69871 * Spiral and relief grinding device with rack housing * Counter bearing with 4 tailstock centres * Center point with driver * Dressing device * Dressing diamond * Radius grinding device SK 40 complete with setting gauge * Steel holder for ditto * Support fingers with sliding blades * Support finger holder * Complete dust extraction without suction * Halogen light * Tooth support complete * Setting gauge * Plier sleeve and jacking nut and wrench * 35 collets 1.0 - 18.0 mm increasing by 0.5 mm * 1 set of SK 40 direct collets 6, 8, 10, 12, 14, 16, 18, 2, 22, 25 mm * 6 jaw grinding chuck * 3 taper reducing sleeves Sk 40 x Mk 1, 2, 3, 4 * clamping nut * 20 grinding wheel chucks * 2 protective hoods * various diamond/borazon discs * Instruction Manual & Keys, Parts List, Wiring Diagram * Complete set of grinding instructions ##### Machine is partially overhauled and with electrical acceptance report! ##### !! Various measuring optics (new or used) with measuring cross sled available !!

Condition: used, Year of construction: 1989, functionality: fully functional, grinding wheel diameter: 125 mm, overall weight: 520 kg, collet bore: 25 mm, grinding spindle speed: 500 rpm, power: 1.1 kW (1.50 HP), input current: 20 A, input frequency: 50 Hz, year of last overhaul: 2021, Equipment: rotational speed infinitely variable, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm spindle turning speed - stepless 2 - 10000 U/min current capacity 380 kVA power capacity - grinding motor 1,1 kW total power requirement 2,2 kW weight of the machine ca. 0,6 t !!! We have almost all spare parts for the Deckel S 11 machines in stock !!! !!! Accessories can be varied as desired !!! We would be happy to trade in your used Deckel S 11 - contact us! Hnodpfx Ajw U Ehzefpju Notice: We would be happy to provide you with a free offer. However, please understand that we only accept inquiries with a complete address edit. 1218 400 V, 50 Hz, with CEE plug and cable Colour: light grey RAL 7035 Stand traffic grey RAL 7042 (new paint) axial grinding spindle adjustment Accessories: * Machine stand and carrier plate ground * Complete electrical conversion included: > new three-phase drive > new brake motor > new frequency controller > new built-in electrics touch-proof > Fi circuit breaker > EMC cables and screwed connections > new protective cables > new control panel > Emergency stop switch * Opto electronic measuring device with microscope, support arm, parking space, new 2-axis Fagor digital readout and scales completely mounted and adjusted * dividing head Sk 40 with prisms and 24 R dividing disc * 1 graduated disc 14 + 22 R each * Twist and back-grinding device with rack and pinion housing * Setting gauge * Complete tooth support * pivoting support finger * LED lamp waldmann * Dust extraction device without vacuum cleaner * Univ. adjustment gauge * 10 direct collets Sk 40 6/ 8/ 10/ 12/ 14/ 16/ 18/ 20 22/ 25 mm * Collet sleeve with forcing nut * 1 set = 35 collets S 20x2 from 1.0 - 18.0 mm by 0.5 mm each * 1 taper reducing sleeve Sk 40 x Mk 1/ 2/ 3/ 4 * 3 grinding wheel chuck L 48, 35 mm * Protective cover * Exchange grinding spindle * Tool cabinet with 4 drawers * Shelves for dto. * Operating key, operating instructions, spare parts list, circuit diagram * Machine and accessories completely overhauled and with electrical test certificate!* 6 months warranty !

Condition: used, Year of construction: 2002, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length - 940 mm spindle turning speed - stepless 2 - 10000 U/min current capacity kVA power capacity - grinding motor 1,1 kW total power requirement 2,2 kW DECKEL S 11 TOOL GRINDING MACHINE - UNIVERSAL 2178 / V, 50 Hz, with CEE plug and cable !! Original paint !!! ! Machine is in delivery condition, depending on customer request the machine can be overhauled ! motorised height adjustment, axial grinding spindle adjustment Accessories: * Dividing head Sk 40 with dividing disc 24 R with mounting points for optics* Hodsw U Ehnspfx Afpsnu * Dust extraction device without suction cup * Halogen lamp * Protective cover * 3 pcs. transport lugs * 1 set of technical sanding instructions * Operating key, operating instructions, spare parts list, wiring diagram

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, total height: 1,760 mm, total length: 1,100 mm, total width: 850 mm, workpiece weight (max.): 12 kg, spindle speed (max.): 10,000 rpm, spindle speed (min.): 500 rpm, type of input current: three-phase, grinding wheel diameter: 125 mm, overall weight: 520 kg, grinding length: 190 mm, rotational speed (min.): 500 rpm, rotational speed (max.): 10,000 rpm, center height in crank: 220 mm, center height: 330 mm, collet bore: 25 mm, grinding spindle speed: 10,000 rpm, feed rate Z-axis: 1 m/min, pivoting range: 360 °, travel distance X-axis: 100 mm, travel distance Y-axis: 190 mm, travel distance Z-axis: 325 mm, center width: 620 mm, grinding spindle motor power: 1,100 W, table length: 500 mm, table width: 180 mm, table height: 1,020 mm, power: 2 kW (2.72 HP), height adjustment type: electric, workpiece diameter (max.): 620 mm, input current: 20 A, grinding diameter: 130 mm, input frequency: 50 Hz, disc diameter: 125 mm, input voltage: 360 V, space requirement width: 2,000 mm, space requirement length: 1,800 mm, space requirement height: 1,800 mm, grinding wheel speed: 10,000 rpm, year of last overhaul: 2025, warranty duration: 12 months, distance table to spindle center: 325 mm, tool diameter: 400 mm, workpiece length between centers: 270 mm, distance between centers: 300 mm, surfacing fence height: 190 mm, Equipment: rotational speed infinitely variable, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm current capacity 380 kVA power capacity - grinding motor 1,1 kW speeds of grinding spindle 2 - 10.000 U/min total power requirement 2,2 kW !!! We have almost all spare parts for the Deckel S 11 machines in stock !!! !!! Accessories can be varied as desired !!! We would be happy to trade in your used Deckel S 11 - contact us! Hnsdew U Ehhspfx Afpou * Machine and accessories completely overhauled with CE marking 400 V, 50 Hz, with CEE plug and cable BASICMACHINE!!! overhauled in 2023 Color: 2 K repainting Stand RAL 7005 mouse gray Structure and accessories RAL 7035 light gray motorized height adjustment, axial grinding spindle adjustment * Complete electrical conversion includes: > Fi circuit breaker > new three-phase drive > new brake motor > new frequency regulation > new touch-safe built-in electronics > EMV screw connections > EMV cables > new protective tubes > Emergency stop switch > new control panel * Machine stand milled + ground, new carrier plate Basic equipment: - LED light Waldmann - Suction without a vacuum cleaner - Protective cover for grinding wheels up to Ø 125 mm - Set of technical information - Abrasive wheel holder 51 mm - Set of suspension devices for transport - 5 adjusting screws * Operating key, operating instructions, spare parts list, circuit diagram * technical grinding instructions * CE-documents * Machine and accessories overhauled and with electrical acceptance report * abroad 6 months warranty

Condition: excellent (used), Year of construction: 2016, operating hours: 200 h, functionality: fully functional, total height: 1,760 mm, total length: 1,100 mm, total width: 850 mm, workpiece weight (max.): 12 kg, spindle speed (max.): 10,000 rpm, spindle speed (min.): 500 rpm, feed length X-axis: 100 mm, feed length Y-axis: 190 mm, feed length Z-axis: 325 mm, type of input current: three-phase, grinding wheel diameter: 125 mm, overall weight: 520 kg, grinding length: 270 mm, rotational speed (min.): 500 rpm, rotational speed (max.): 10,000 rpm, center height in crank: 220 mm, center height: 300 mm, collet bore: 25 mm, grinding spindle speed: 10,000 rpm, feed rate X-axis: 1 m/min, feed rate Y-axis: 1 m/min, feed rate Z-axis: 1 m/min, pivoting range: 360 °, travel distance X-axis: 100 mm, travel distance Y-axis: 190 mm, travel distance Z-axis: 325 mm, center width: 620 mm, grinding spindle motor power: 1,100 W, table length: 190 mm, table width: 200 mm, table height: 1,020 mm, power: 1.1 kW (1.50 HP), height adjustment type: electric, workpiece diameter (max.): 400 mm, input current: 20 A, grinding diameter: 300 mm, input frequency: 50 Hz, disc diameter: 125 mm, input voltage: 280 V, space requirement width: 2,000 mm, space requirement length: 1,800 mm, space requirement height: 1,800 mm, grinding wheel speed: 10,000 rpm, year of last overhaul: 2022, distance table to spindle center: 325 mm, tool diameter: 300 mm, workpiece length between centers: 270 mm, distance between centers: 270 mm, number of spindles: 1, Equipment: rotational speed infinitely variable, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm spindle turning speed - stepless 2 - 12000 U/min current capacity 380 kVA power capacity - grinding motor 1,1 kW total power requirement 2,2 kW weight of the machine ca. 0,6 t !!! We have almost all spare parts for the Deckel S 11 machines in stock !!! !!! Accessories can be varied as desired !!! We would be happy to trade in your used Deckel S 11 - contact us! 2016 S25 003004 V, 50/60 Hz, with CEE plug and cable Color: light gray motorized height adjustment, axial grinding spindle adjustment Equipment: * Opto-electronic measuring device with measuring electronics Image processing, PC (Original ISOG) * CCD camera and monitor * Dividing head Sk 40 with dividing disk 24 R * 1 dividing disk each 14, 16, 18 * Tightening screw M 16 * Counter bearing complete with 4 center punch points * Center point Sk 40 with driver * Twist-u. Relief grinding device with rack housing * Dust extraction completely without vacuum cleaner * LED machine light Hsdpfx Afjw U Ehbspjnu * Tooth support complete with support and sliding blades * Setting gauge * Universal setting gauge * Handwheel facility * Dressing device with 3 diamonds * 1 set of collets 1.0 - 17.5 mm by 0.5 mm rising * Pliers sleeve and extraction nut and key * 10 pieces of direct collets Sk 40 6 - 25 mm * 4 cone reducing sleeves Sk 40 x Mk 1, 2, 3, 4 * Clamping nut * 12 grinding wheel chucks * Tool cabinet with shelves * 2 protective hoods * various diamond / borazon discs * Operating instructions and key, spare parts list, circuit diagram * Set of technical grinding instructions ##### Machine is partially overhauled and has an electrical acceptance report!#####
